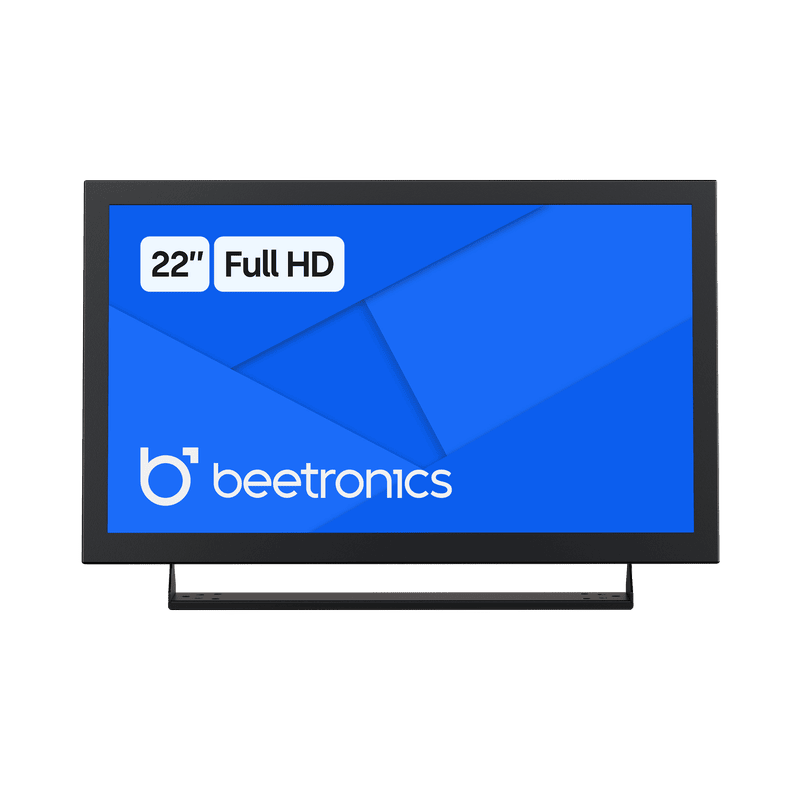

22 Inch Monitor Metal
Model: 22HD7M
31 units in stock
22 Inch Monitor Metal
22 Inch Monitor Metal
22 Inch Monitor Metal
22 Inch Monitor Metal
22 Inch Monitor Metal
22 Inch Monitor Metal
22 Inch Monitor Metal
22 Inch Monitor Metal
22 Inch Monitor Metal
22 Inch Monitor Metal

22 Inch Monitor Metal

Model: 22HD7M
31 units in stock
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC and RCA
  3. Desktop, flush and wall mountable
  4. 20.2 x 12.2 x 1.7 inches
Display Type
$569.00
Free Delivery & Free Returns
Order by 5:00 pm ET for Delivery on Monday
  • Description
  • Specifications
  • Connectivity
  • Downloads

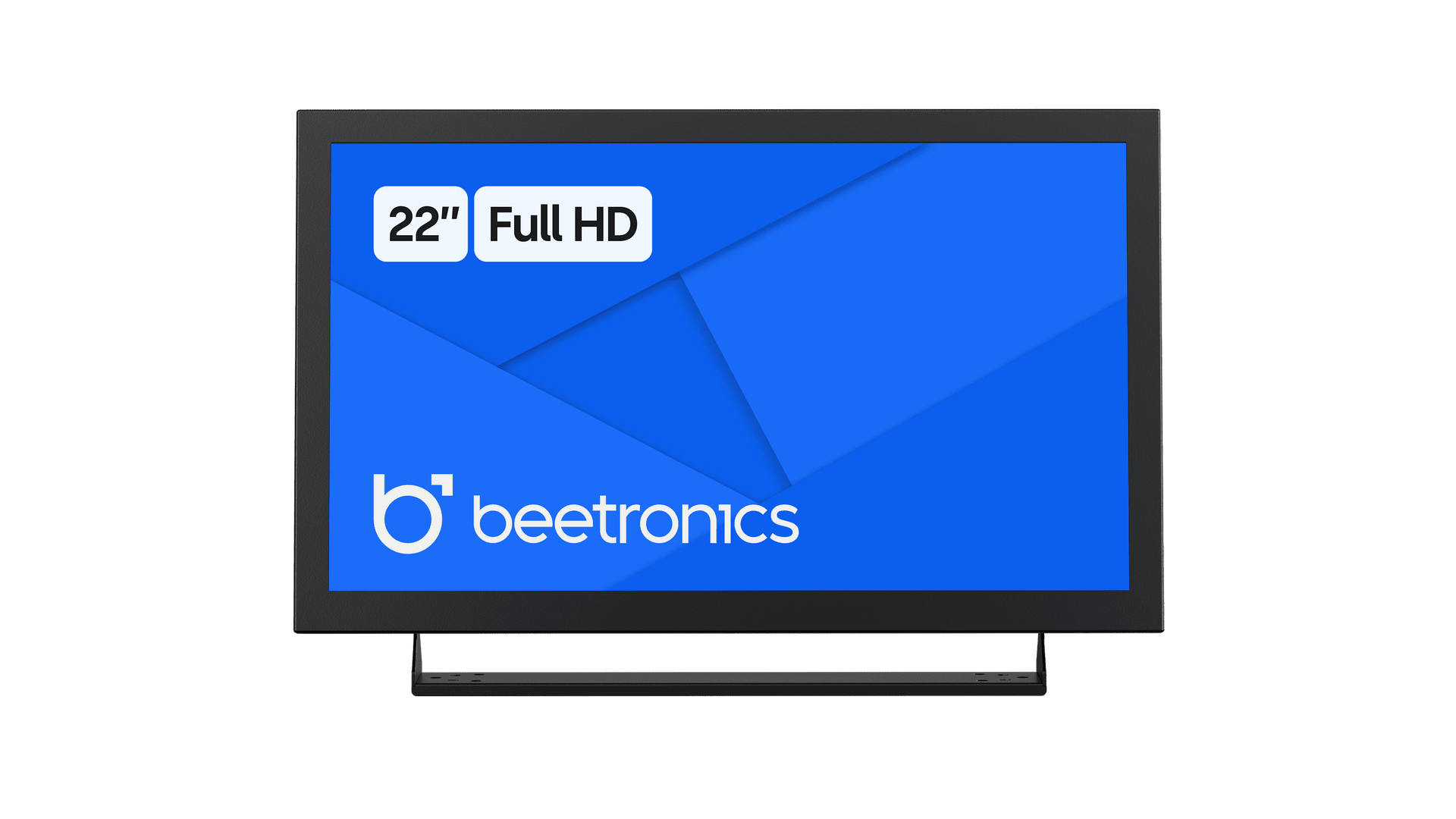

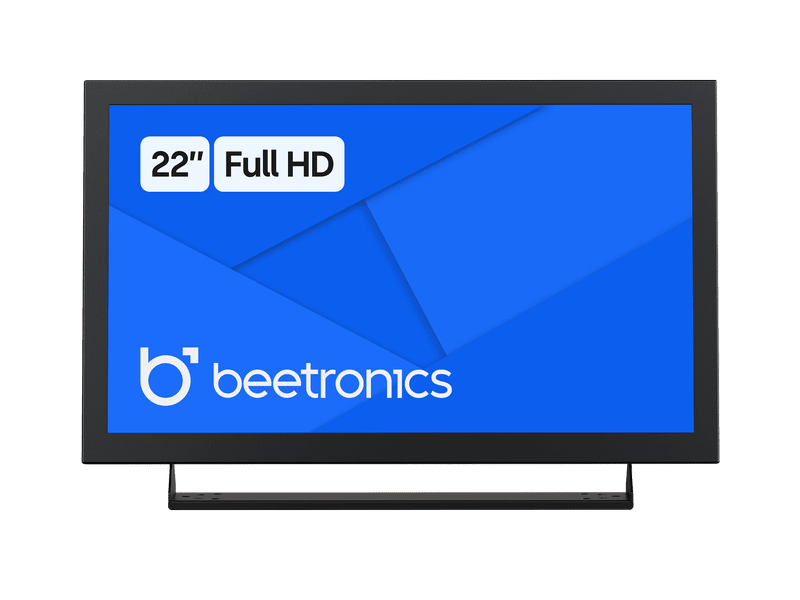

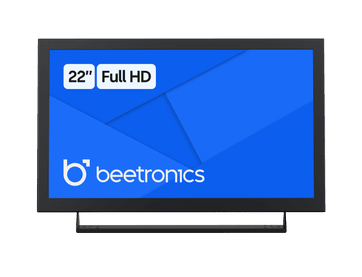

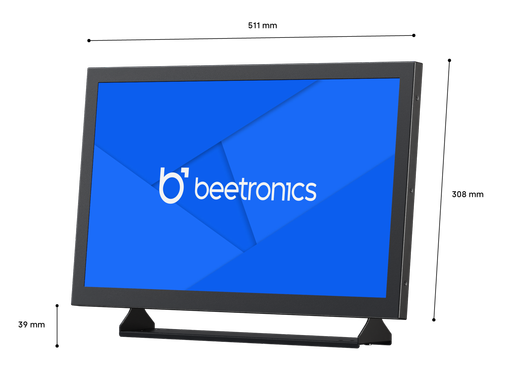

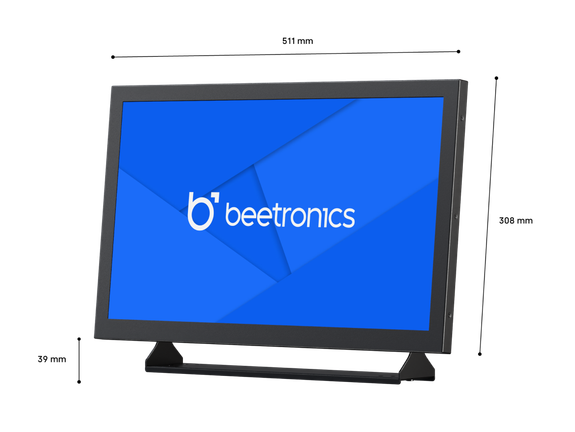

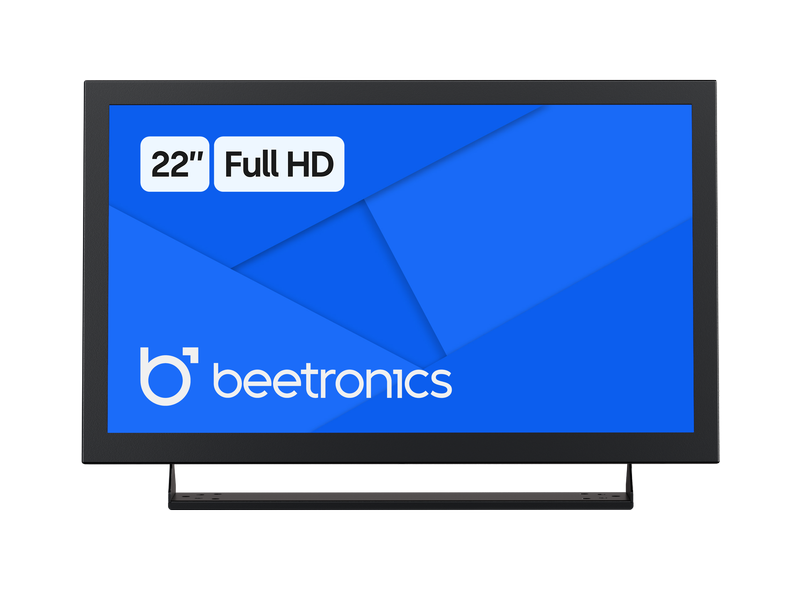

This 22 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. The 22 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting. The 22HD7M can be connected via HDMI, VGA, BNC or RCA connections.

Outstanding Full HD image quality

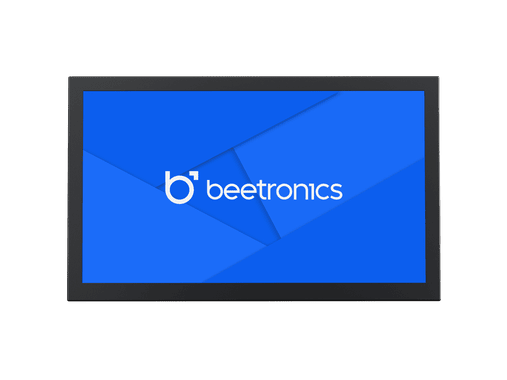

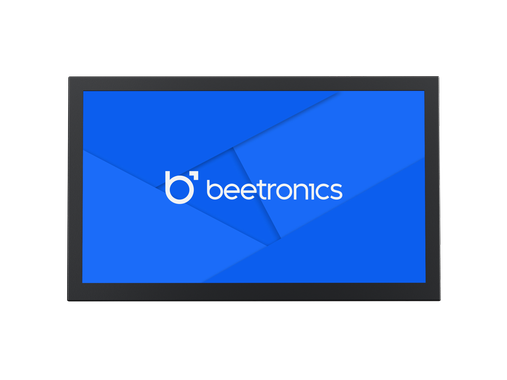

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colors and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, color and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

22 Inch Monitor Metal

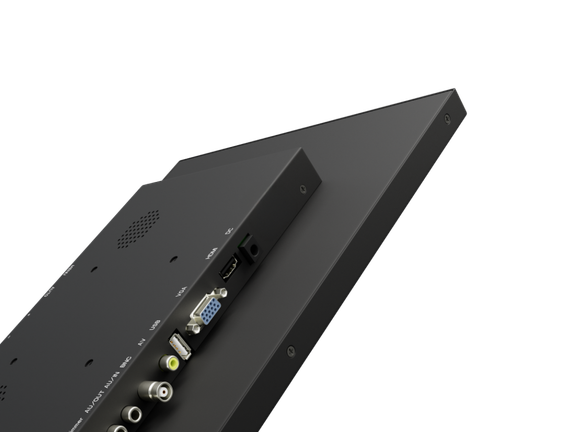

Versatile connectivity

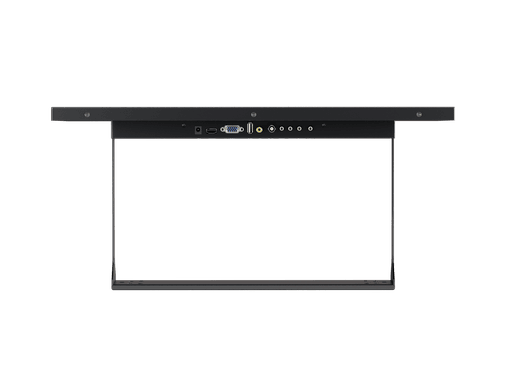

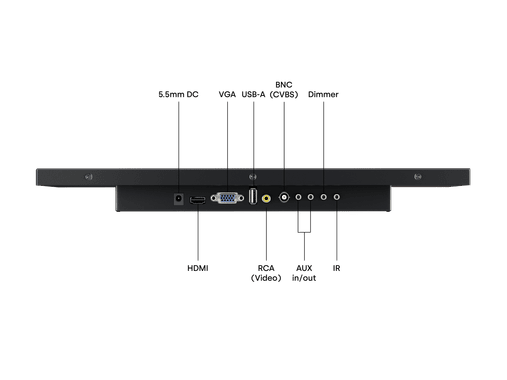

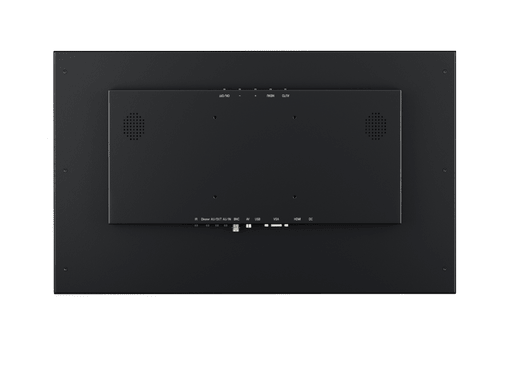

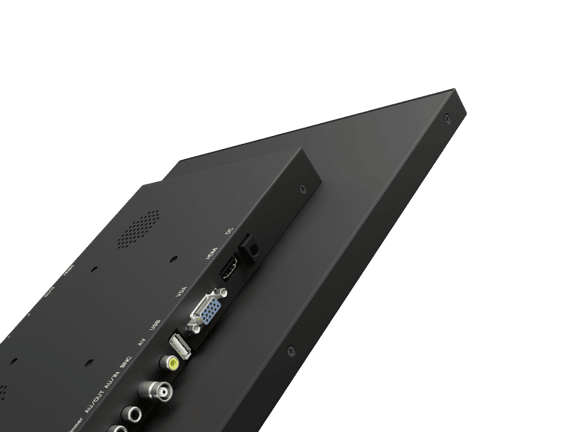

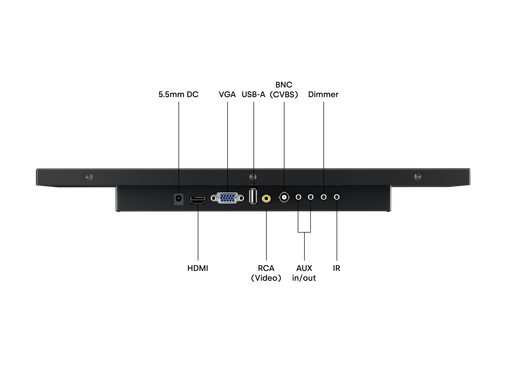

The 22HD7M has HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

22 Inch Monitor Metal

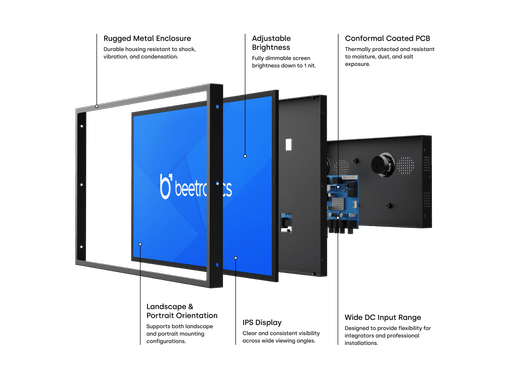

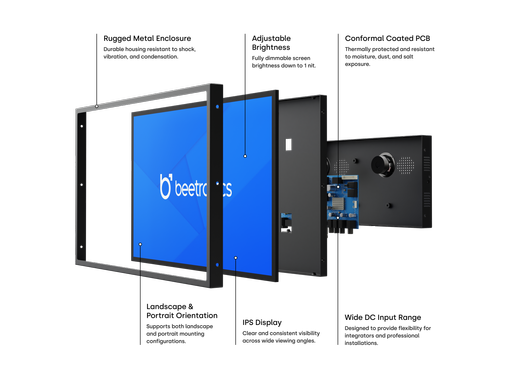

Designed for professional use

The 22HD7M is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.



22 Inch Monitor Metal

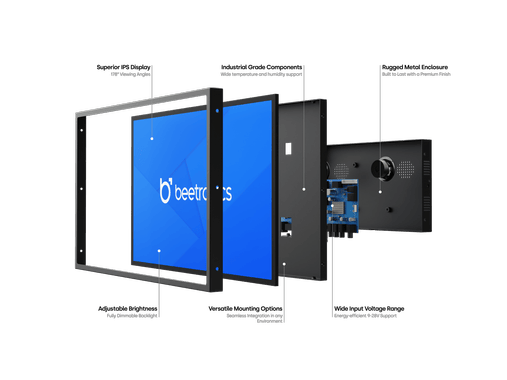

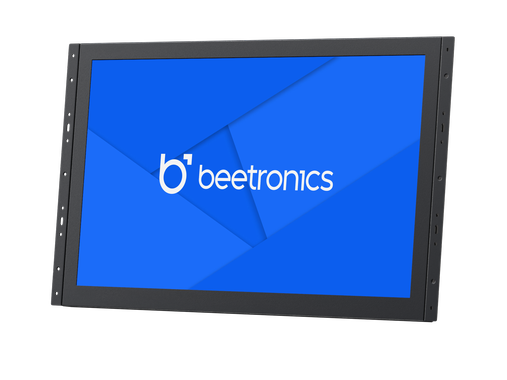

Easily integrated

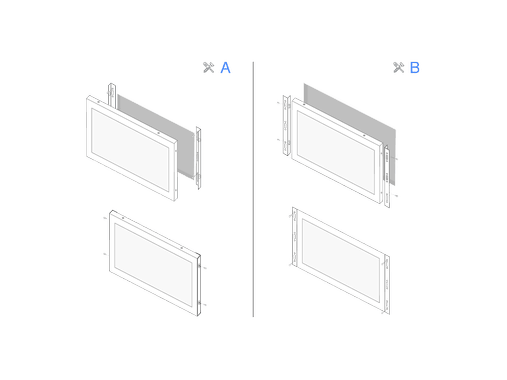

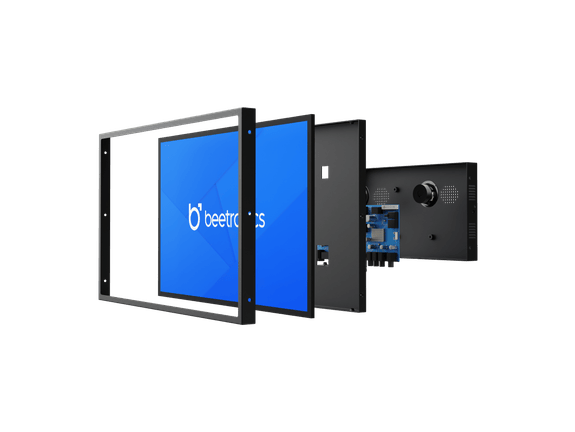

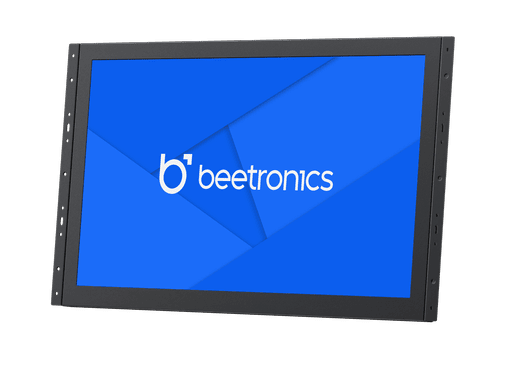

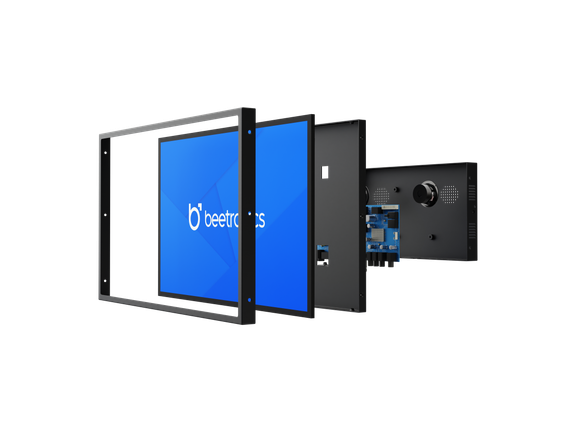

Thanks to numerous mounting options, the 22 inch metal monitor can be seamlessly integrated into any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to embed the monitor in any environment.

22 Inch Monitor Metal

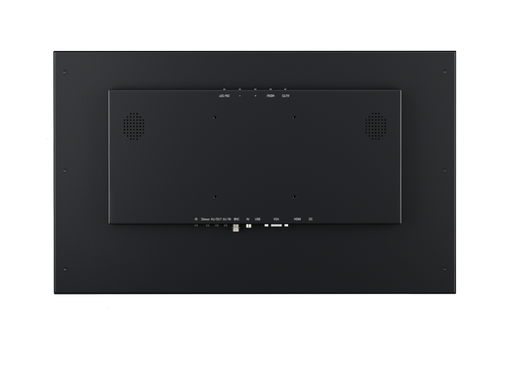

Desktop or wall mounting

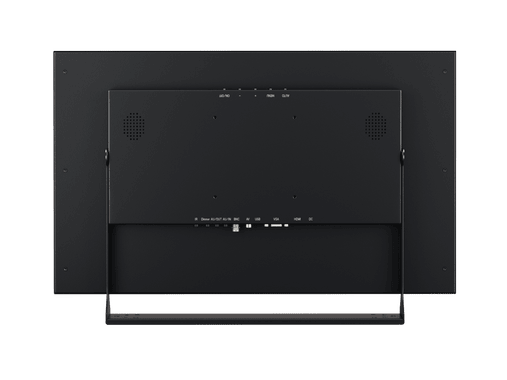

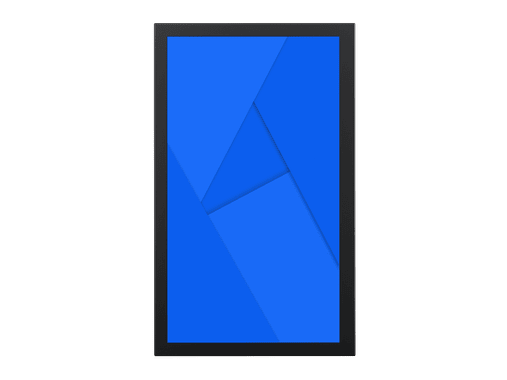

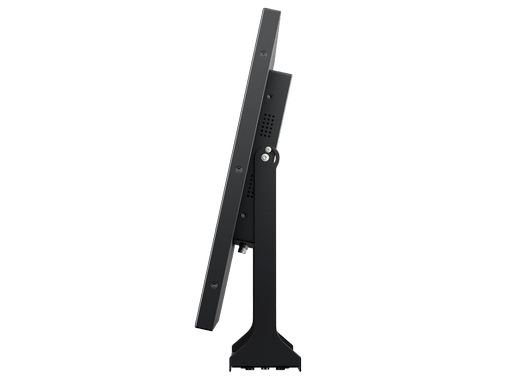

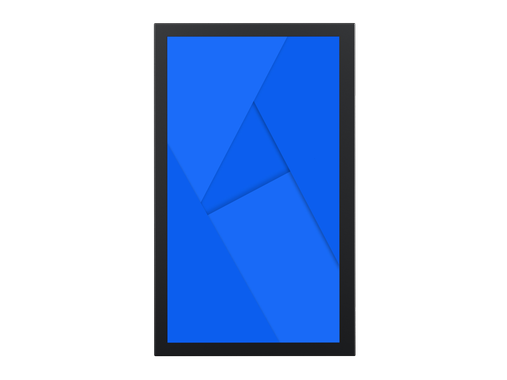

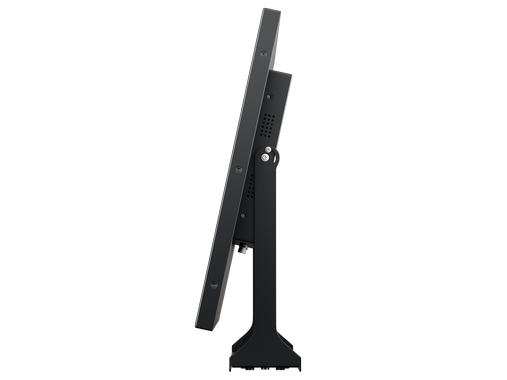

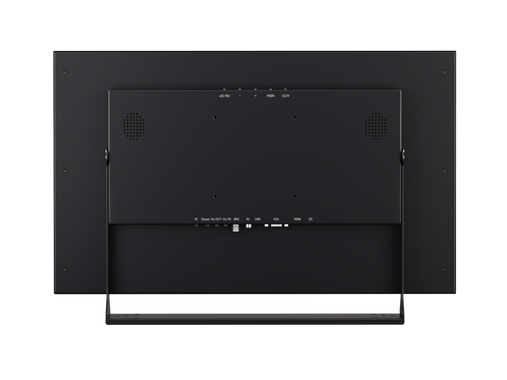

The Beetronics 22HD7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 100mm VESA mount. This makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode.

22 Inch Monitor Metal
General
Manufacturer
Beetronics
Item number
22HD7M
Previous model
22HDM
Product name
22 Inch Monitor Metal
Warranty
2 years
Datasheet
Manual
Panel
Matte, LED-IPS
Diagonal size
21.6 inches (549 mm)
16:9 (4:3 adjustable)
1920 x 1080 (max), 640 x 480 (min)
178° horizontal, 178° vertical
Color encoding system
PAL/NTSC/SECAM
Brightness
250 cd/m2
Contrast
3000:1
Connectivity
HDMI
1x
VGA
1x
RCA video
1x
AUX input
1x
AUX output
1x
USB
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)

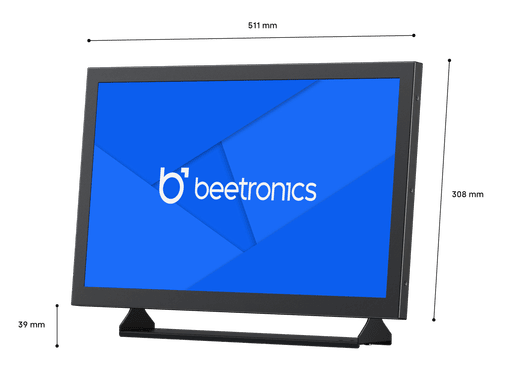

Size & weight
Color
Black
Weight
9,5 lbs (11,5 lbs with stand)

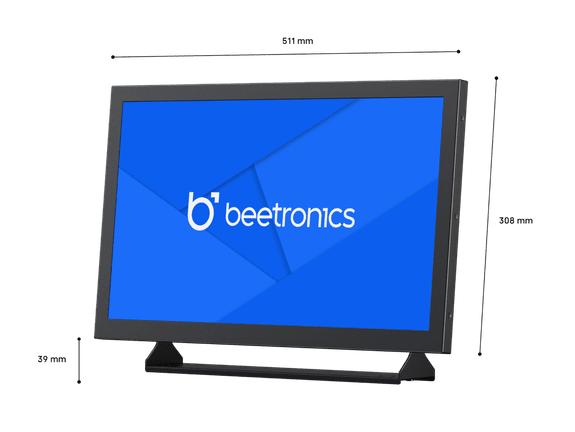

Width
20.1 inches
Height
12.2 inch
Thickness
1.6 inches
Display dimensions
17.2 x 10.2 inch
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 9-33V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption
16.2 Watt
Environmental
Operating temperature
-4°F to +140°F
Storage temperature
-4°F to +158°F
Operating humidity
20% - 80% non-condensing
Mounting
VESA (100 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, CCC
Package content
Includes

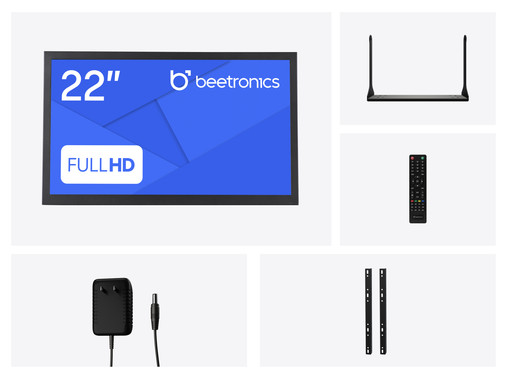

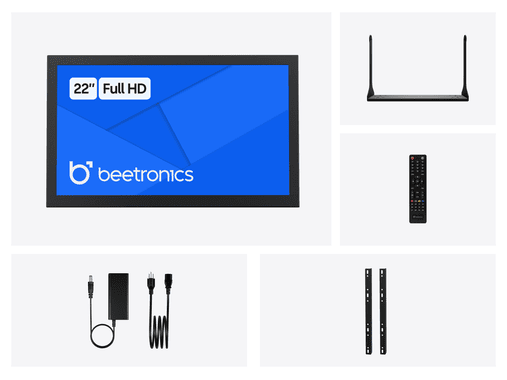

Monitor, Stand, Remote control, Mounting strips, AC power adapter, Manual
Compatible accessoires
Dimmer
Compatible with external dimmer (DMK7)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
Compatible with VDK7 metal stand
HDMI
HDMI
VGA
VGA
BNC
BNC
RCA (video)
RCA
3.5mm (input)
AUX_audio_35mm
3.5mm (output)
AUX_audio_35mm
USB(media)
usb_touch
Downloads
Manual
Technical drawing
3D Drawing
Datasheet
