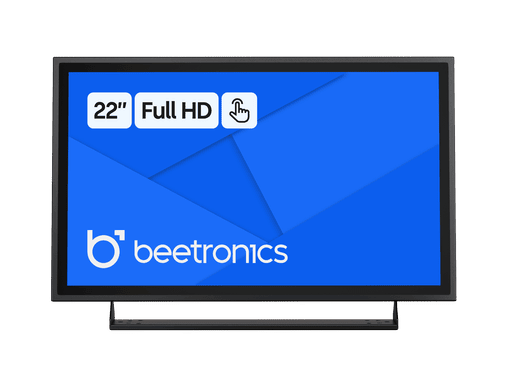

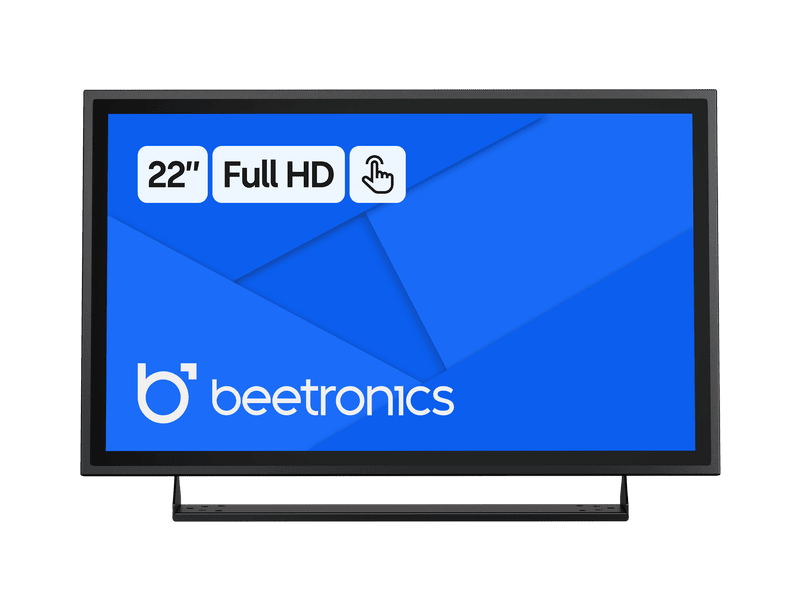

22 inch touchscreen metal
- Full HD multi-touch panel
- Windows, Mac, Linux & Android compatible
- Desktop, flush and wall mountable
- 20.5 x 12.4 x 1.7 inches
$699.00
Order before 5:00 pm for free delivery on Thursday
- Description
- Specifications
- Connectivity
- Downloads

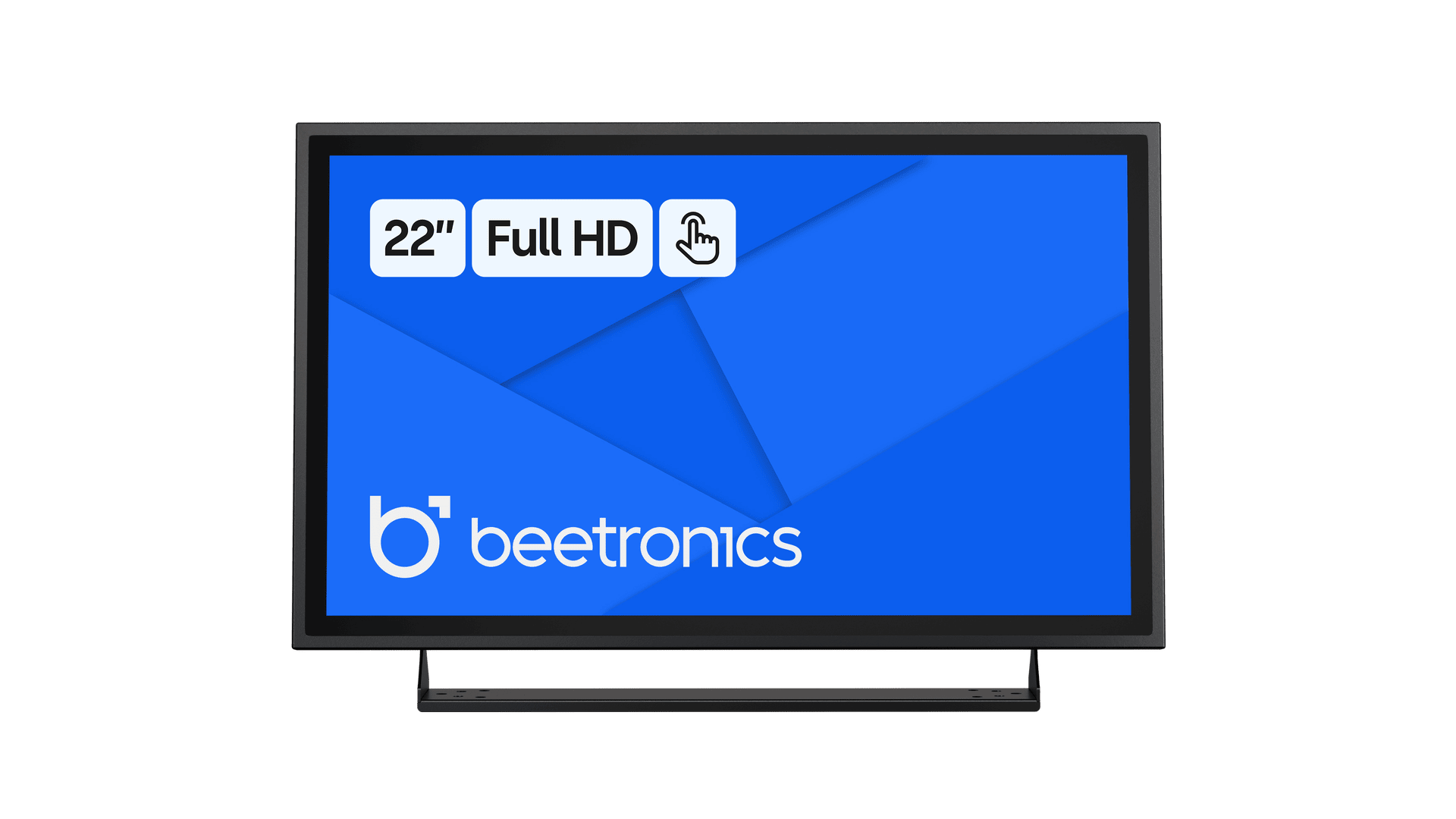

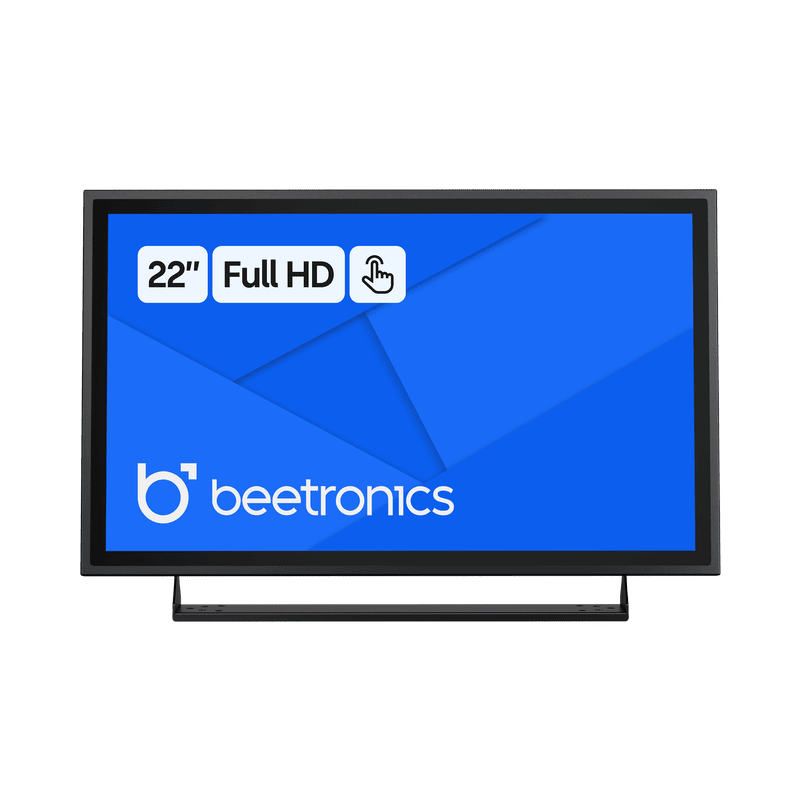

This Full HD 22 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 22TS7M delivers best-in-class picture quality with excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.
Full HD multi-touch panel
Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colors and excellent 178° viewing angles. The 22TS7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.
Windows, Mac, Linux & Android compatible
The 22TS7M is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen has a wide range of video inputs including HDMI, VGA, BNC and RCA. Connecting the included USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.
.jpg)
Designed for professional use
The 22TS7M is designed for continuous operation and professional use. The touchscreen is manufactured with high quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 28 Volts and features a fully dimmable backlight.

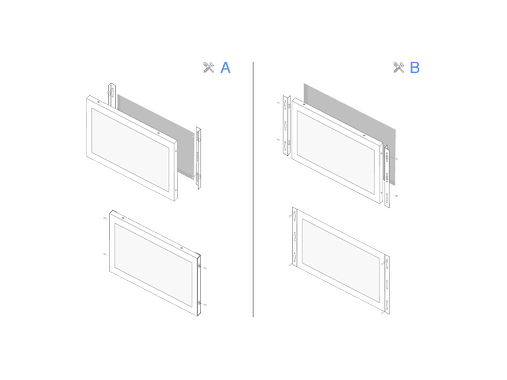

Easily integrated

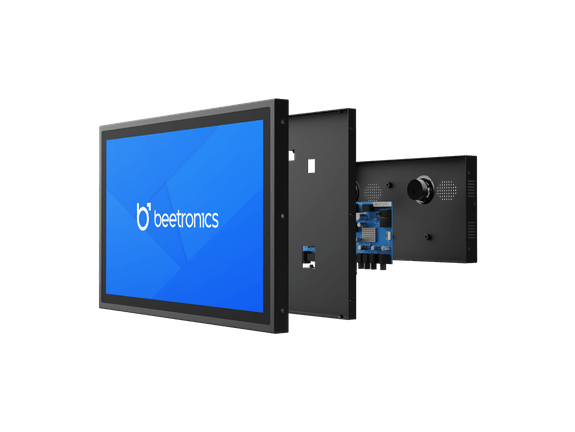

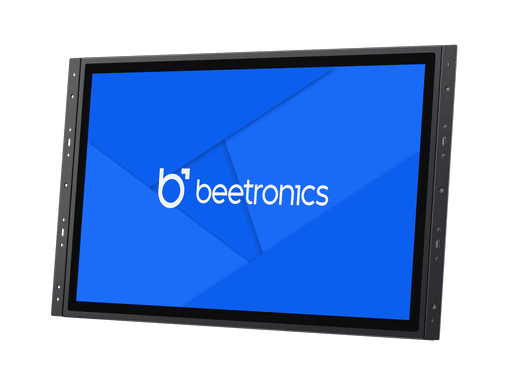

Thanks to numerous mounting options, the 22 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.
Desktop or wall mounting

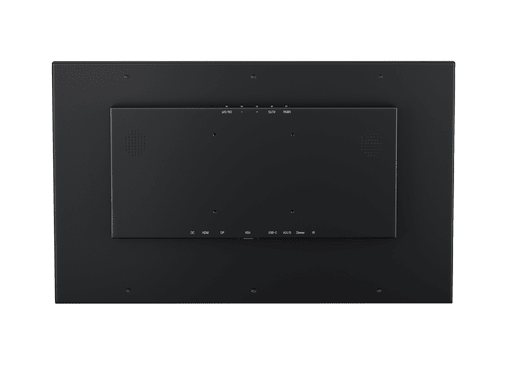

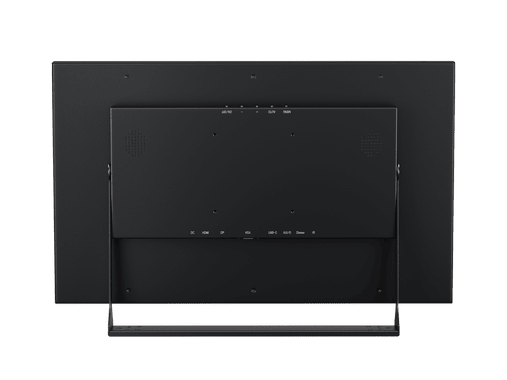

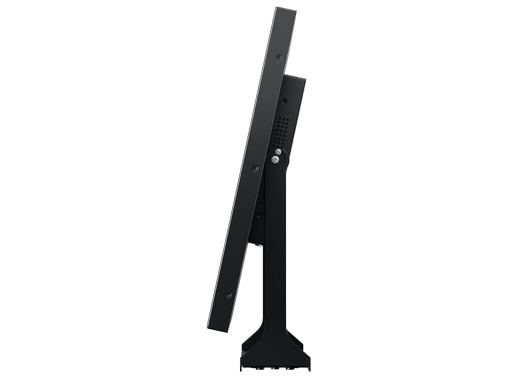

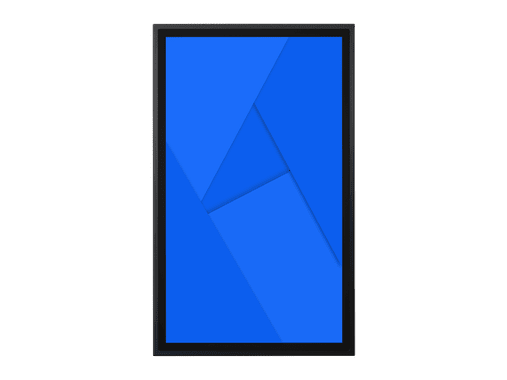

The Beetronics 22TS7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 100mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.
| General | |
|---|---|
| Manufacturer |
Beetronics
|
| Item number |
22TS7M
|
| Product name |
22 inch touchscreen metal
|
| Warranty |
2 years
|
| Datasheet | |
| Manual | |
| Drivers | |
| Supported operating systems | |
|---|---|
| Windows |
Windows 8, 10, 11
|
| Windows Embedded |
Windows Embedded 8 Industry, Windows Embedded 8.1 Industry, Windows IoT Enterprise
|
| macOS |
Catalina, Big Sur, Monterey
|
| Linux |
All Linux distributions
|
| Chrome OS |
All ChromeOS versions
|
| Brightsign |
All BrightsignOS versions
|
| Android |
Android 8.0 and higher - not compatible with smartphones or tablets
|
| Panel | |
|---|---|
| Type |
LED-IPS
|
| Diagonal size |
21.6 inches (548 mm)
|
| Aspect ratio |
16:9 (4:3 adjustable)
|
| Native resolution |
1920 x 1080
|
| Supported resolutions |
1920 x 1080 (max), 640 x 480 (min)
|
| Pixels per inch |
100 PPI
|
| Viewing angle |
178° horizontal, 178° vertical
|
| Color encoding system |
PAL/NTSC/SECAM
|
| Brightness |
250 cd/m2
|
| Contrast |
3000:1
|
| Touch technology |
Capacitive, 10-point multitouch (PCAP)
|
| Control |
Stylus, hand, glove
|
| Connectivity | |
|---|---|
| HDMI |
1x
|
| VGA |
1x
|
| BNC (CVBS) |
1x
|
| RCA video |
1x
|
| AUX input |
1x
|
| AUX output |
1x
|
| USB |
Only for touchscreen functionality
|

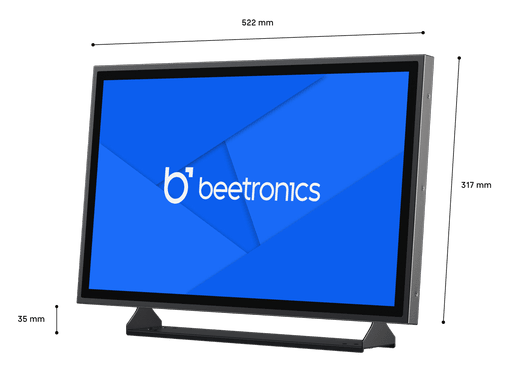

| Size & weight | |
|---|---|
| Colour |
Black
|
| Weight |
11,7 lbs (13,7 lbs with stand)
|

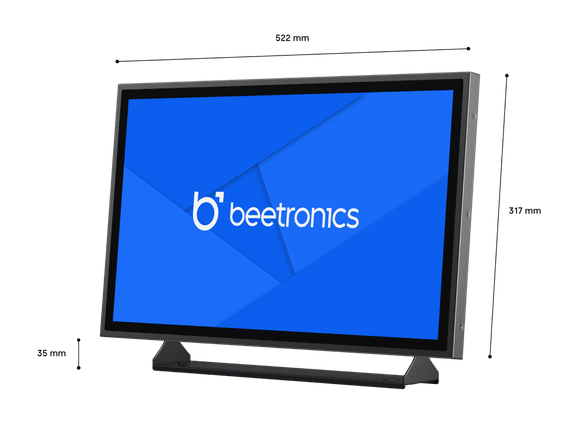

| Width |
20.5 inches
|
| Height |
12.5 inches (+ 1.4 inches with stand)
|
| Thickness |
1.7 inches
|
| Display dimensions |
18.9 x 10.6 inches
|
| Technical drawing | |
| 3D Drawing | |
| Features and functions | |
|---|---|
| Audio |
Integrated speakers
|
| Key-lock |
The control buttons can be blocked
|
| Auto-on |
Automatically powers on when it receives current or a signal
|
| Dimmable |
Adjustable backlight brightness
|
| Mirroring |
Image can be mirrored, horizontally and vertically
|
| Power | |
|---|---|
| Input voltage |
DC 9-28V
|
| Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
| Consumption |
16.2 Watt
|
| Environmental | |
|---|---|
| Operating temperature |
-4°F to +140°F
|
| Storage temperature |
-4°F to +158°F
|
| Operating humidity |
20% - 90% non-condensing
|
| Mounting | |
|---|---|
| Wall mount |
VESA (100 mm)
|
| Flush mount |
Mounting strips included
|
| Stand |
Adjustable and detachable
|
| Certifications & Standards | |
|---|---|
| IP rating |
IP65 front panel
|
| Certifications |
CE, FCC, RoHS, REACH, UKCA
|
| Package content | |
|---|---|
| Includes |

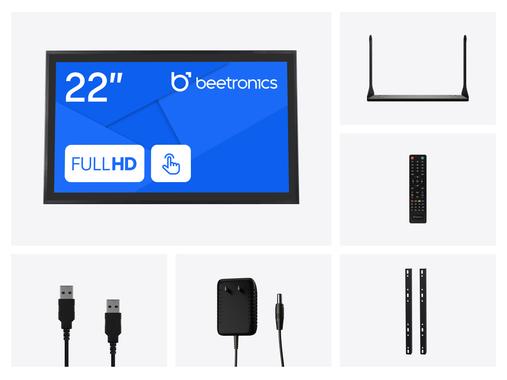

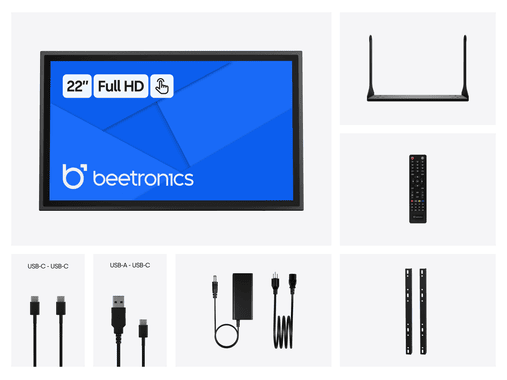

Touchscreen, USB cable, Remote control, AC power adapter, Stand, Installation strips, Manual
|

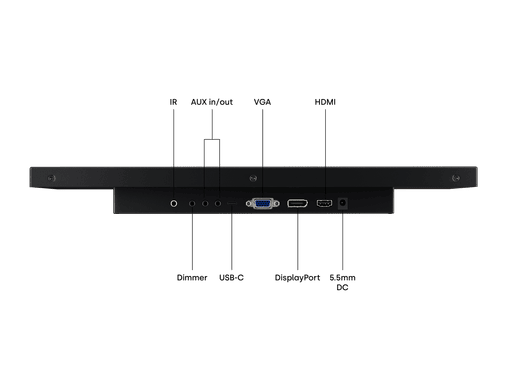

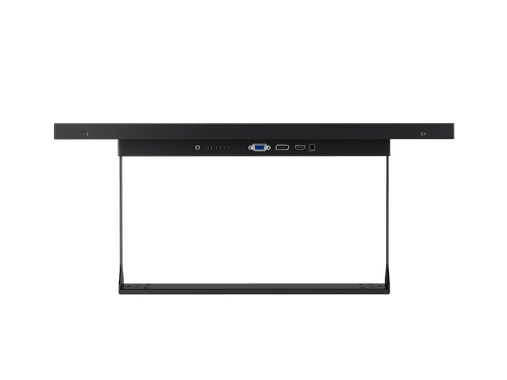

HDMI
VGA
BNC
RCA (video)
3.5mm (input)
3.5mm (output)
USB(touch)
| Manual | Download PDF |
| Technical drawing | Download PDF |
| 3D Drawing | Download CAD/STP |
| Datasheet | Download PDF |
| Drivers | Download touchscreen driver |
