Model: 17HD7M
66 units in stock
Product Information
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop

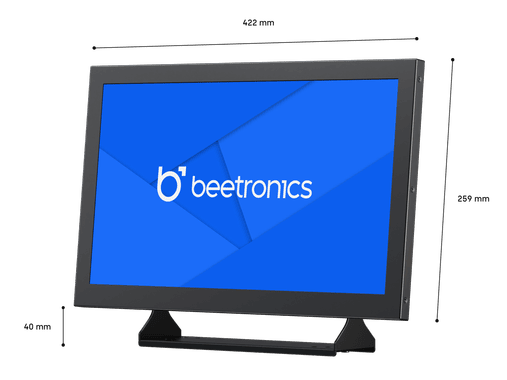

  4. External dimensions: 16.6 x 10.2 x 1.5 inches
Select Display Type
Display Type
$549.00
Order by 5:00 pm ET for Delivery on Monday

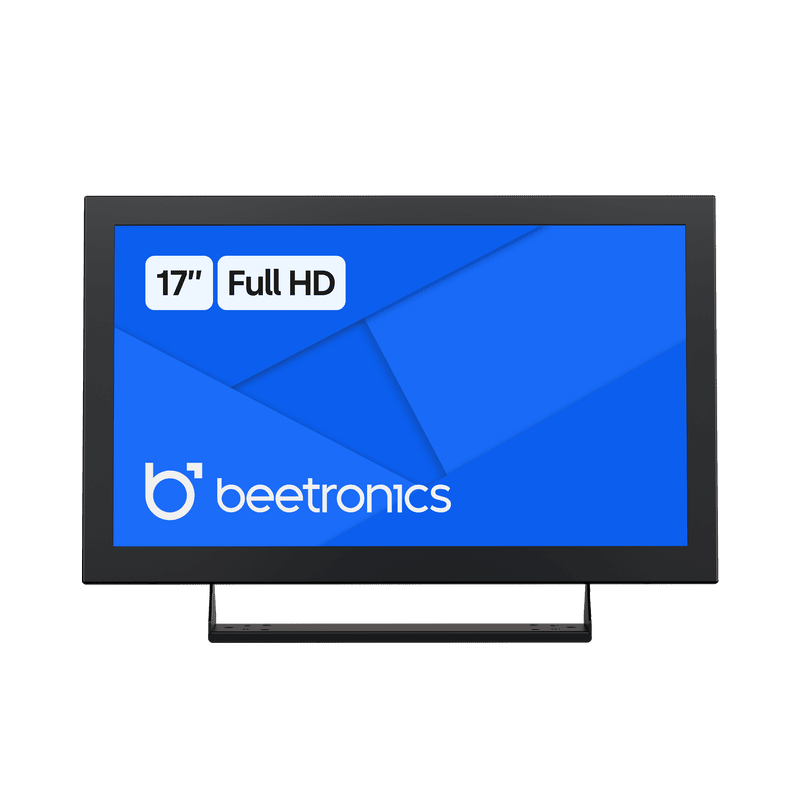

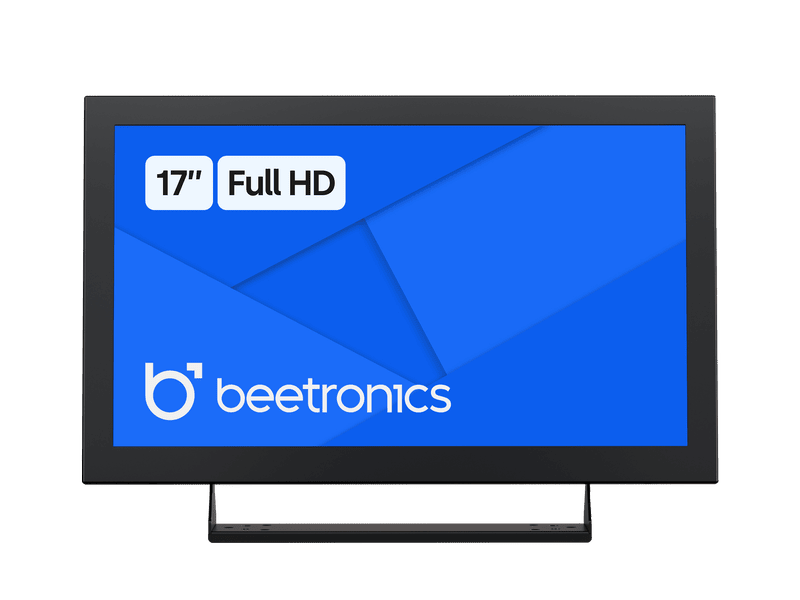

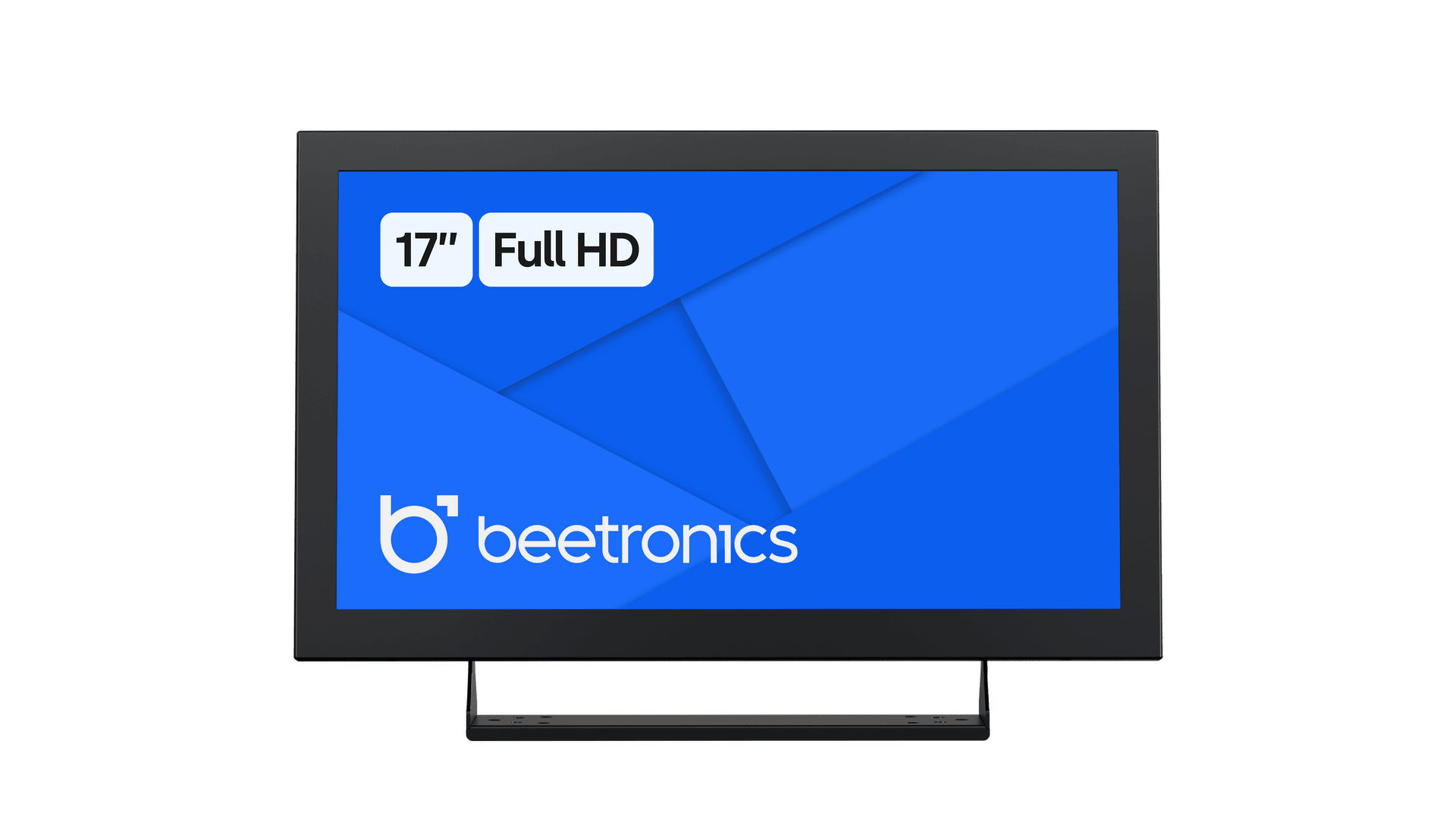

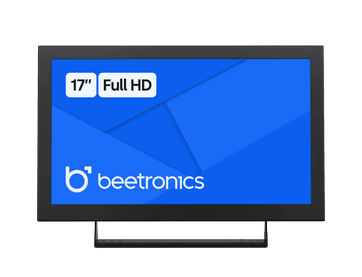

This 17-inch Full HD monitor offers exceptional picture quality with impressive 178° viewing angles. Housed in a robust metal casing, it's perfect for desktop use, flush mounting, or wall installation. The 17HD7M supports a variety of connections, including HDMI, VGA, BNC, and RCA.

Product Description
17 Inch Monitor Metal

Exceptional Full HD Picture Quality

Equipped with a native Full HD IPS panel, this monitor offers outstanding image quality with vibrant colors and excellent 178° viewing angles. The matte screen minimizes reflections, and the contrast, color, and brightness are easily adjustable. It supports all standard resolutions up to 1080p.

17 Inch Monitor Metal

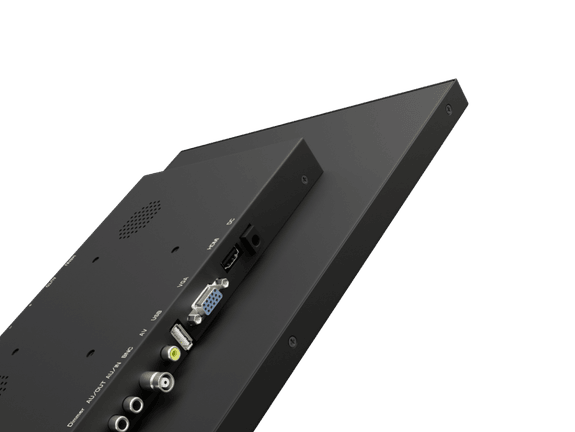

Versatile Connectivity

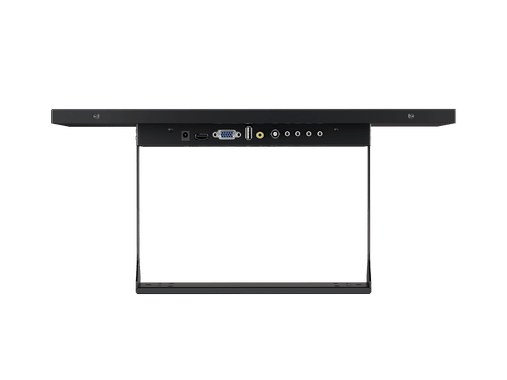

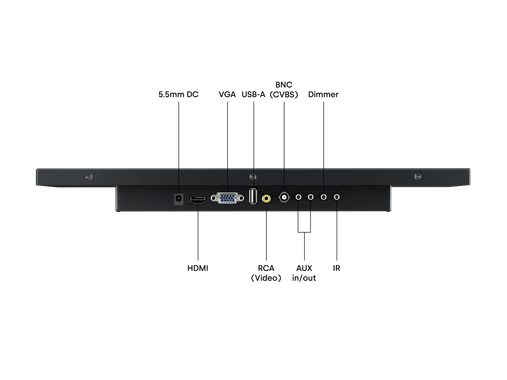

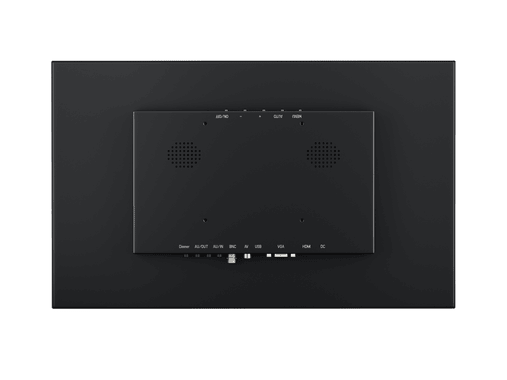

The Beetronics 17HD7M includes HDMI, VGA, BNC, and RCA ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

17 Inch Monitor Metal

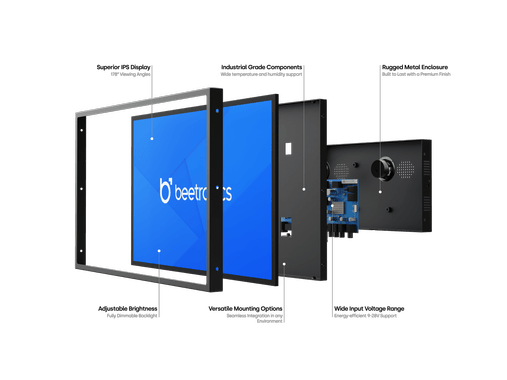

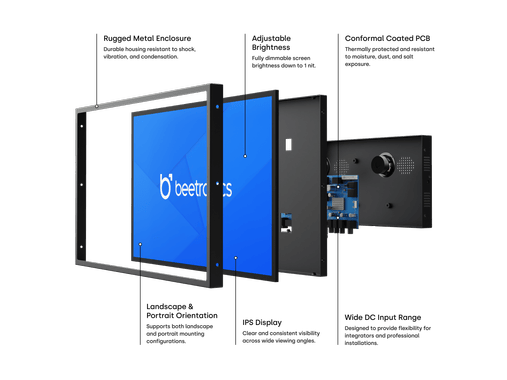

Designed for Professional Use

The 17HD7M is designed for continuous operation and professional use. Crafted with high-quality components, it ensures reliable performance even in the toughest conditions. The monitor supports a wide input voltage range of 9-36 volts and features a fully dimmable backlight.

17 Inch Monitor Metal

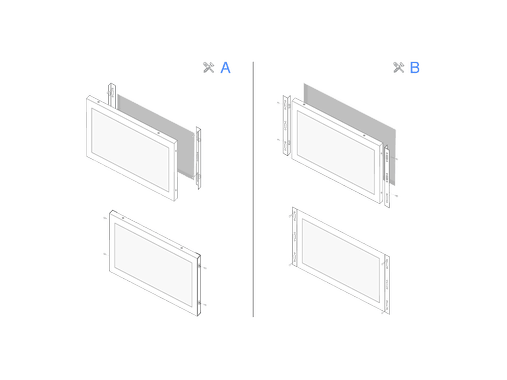

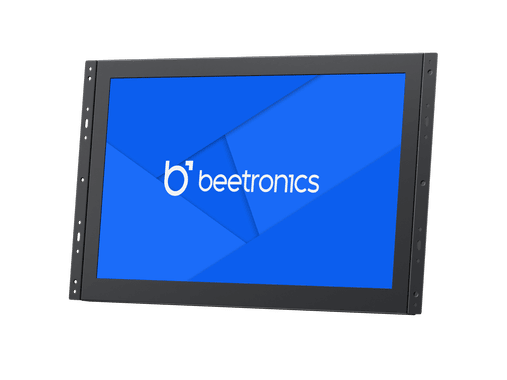

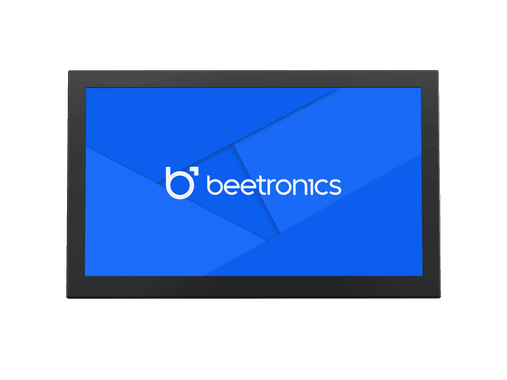

Easy Integration

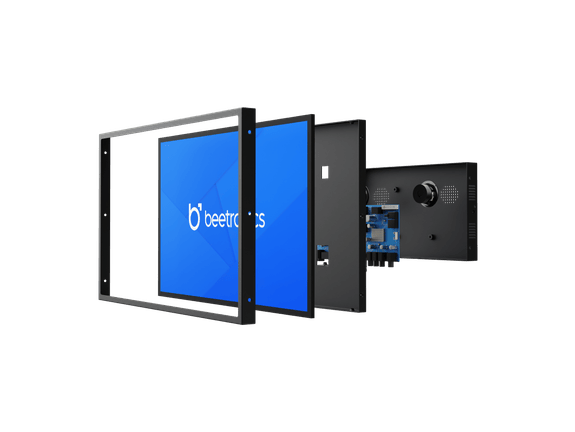

With numerous mounting options, the 17-inch metal monitor can be seamlessly integrated into any application. The provided mounting strips and easy-to-disassemble casing allow for various flush mounting options, making it simple to embed the monitor in any environment.

17 Inch Monitor Metal

Desktop or Wall Mounting

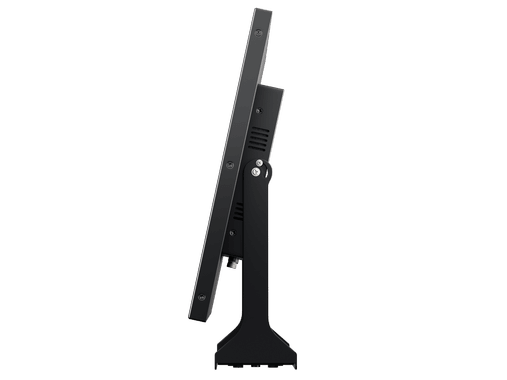

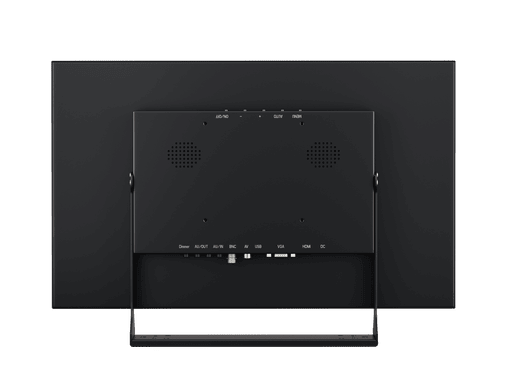

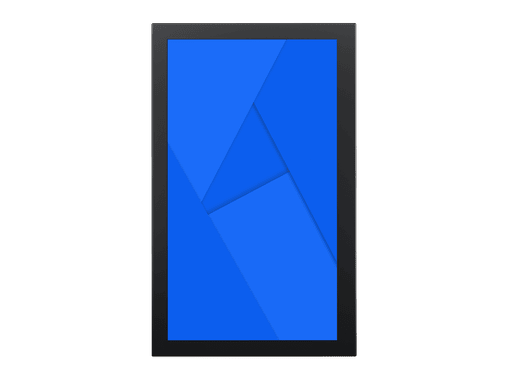

The Beetronics 17HD7M features a fully collapsible stand that can be easily detached to reveal a 100mm VESA mount. This allows for simple installation on any universal wall bracket, in both landscape and portrait orientations.

Specifications
General
Manufacturer
Beetronics
Item Number
17HD7M
Product Name
17 Inch Monitor Metal
Warranty
2 Years
Datasheet
User Manual
Quickstart
Panel
Diagonal Size
17.4 Inches (441 mm)
Panel Type
IPS-LCD
16:9 (4:3 Adjustable)
Response Time
10 ms
MTBF
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
127 PPI
Backlight
LED
Brightness
300 cd/m2
Contrast
800:1
Colour Encoding System
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Connectivity
HDMI
1x
VGA
1x
1x
RCA Video
1x
1x Integrated USB Media Player
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x
Size & Weight
Colour
Black

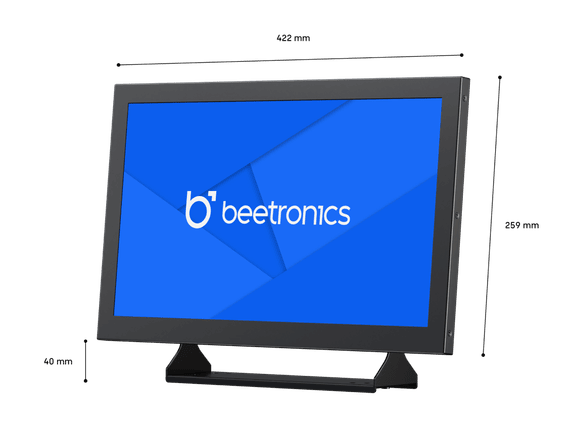

Dimensions (Without Stand)
16.6 x 10.2 x 1.5 Inches
Image Size
15.1 x 8.5 Inches
Weight
6.6 lbs (8.4 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Audio
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable Backlight Brightness
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.
Orientation
Landscape, Portrait, Face-up
The monitor is equipped with a built-in USB media player.
Power
Input Voltage
DC 9-36V
Consumption
Typical 11.8 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 100x100mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

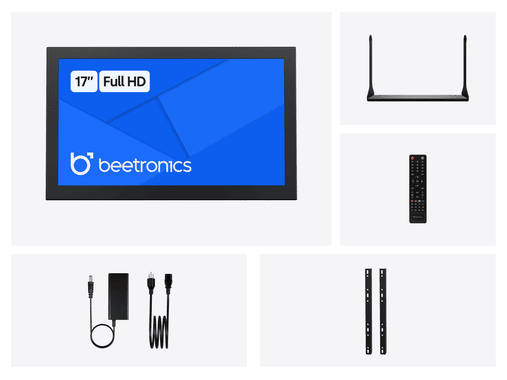

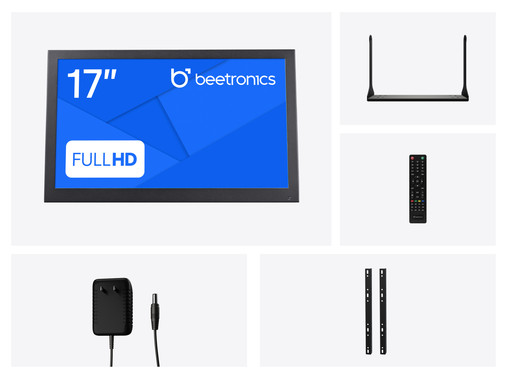

Package Content
Includes
Monitor, Stand, Remote Control, Mounting Strips, AC Power Adapter, Manual
