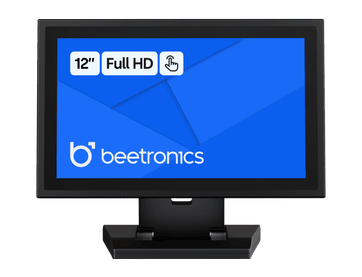

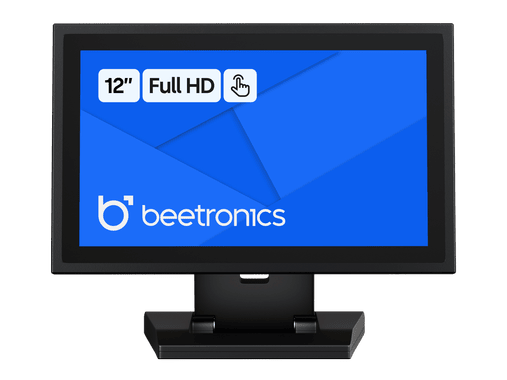

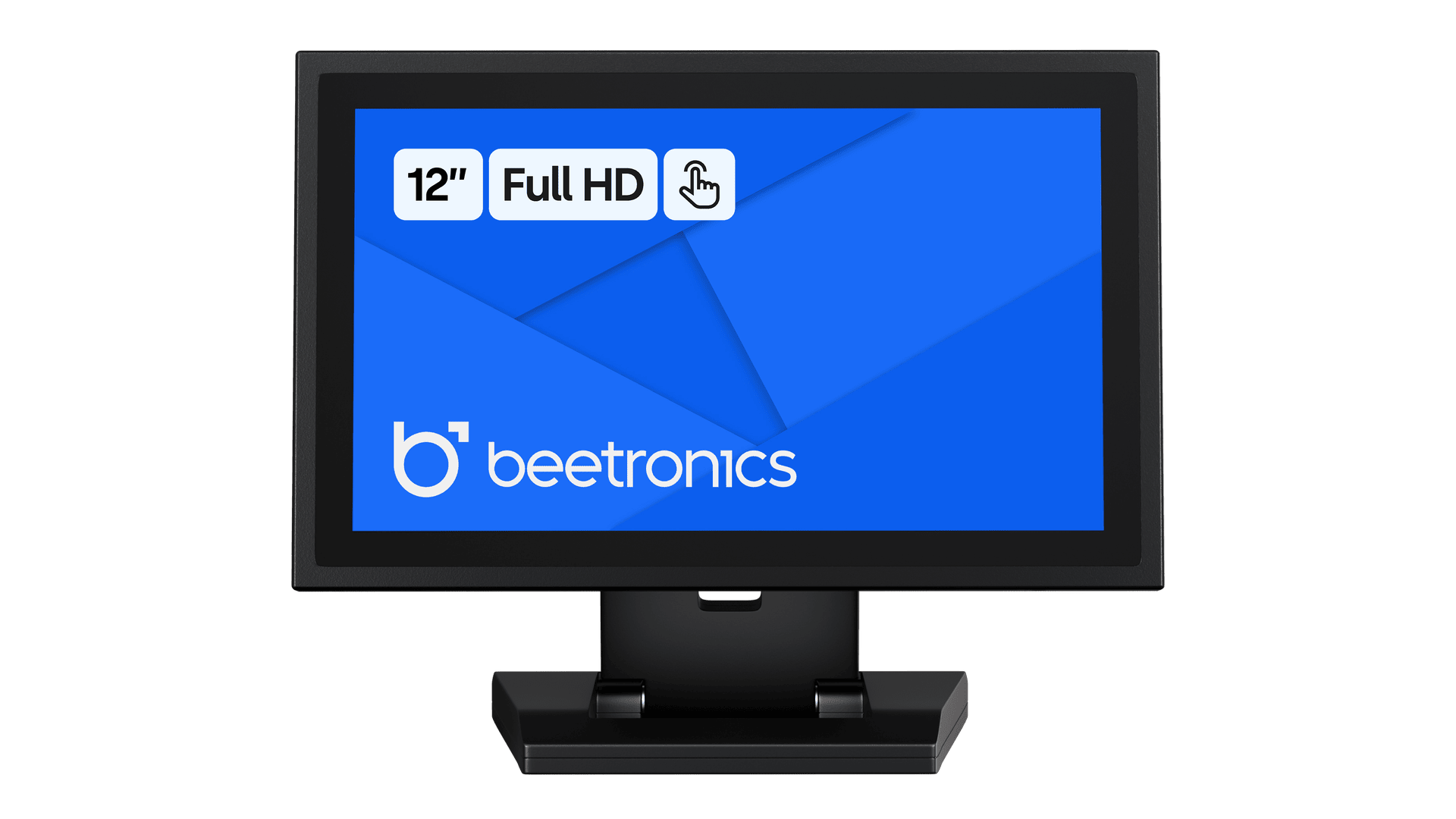

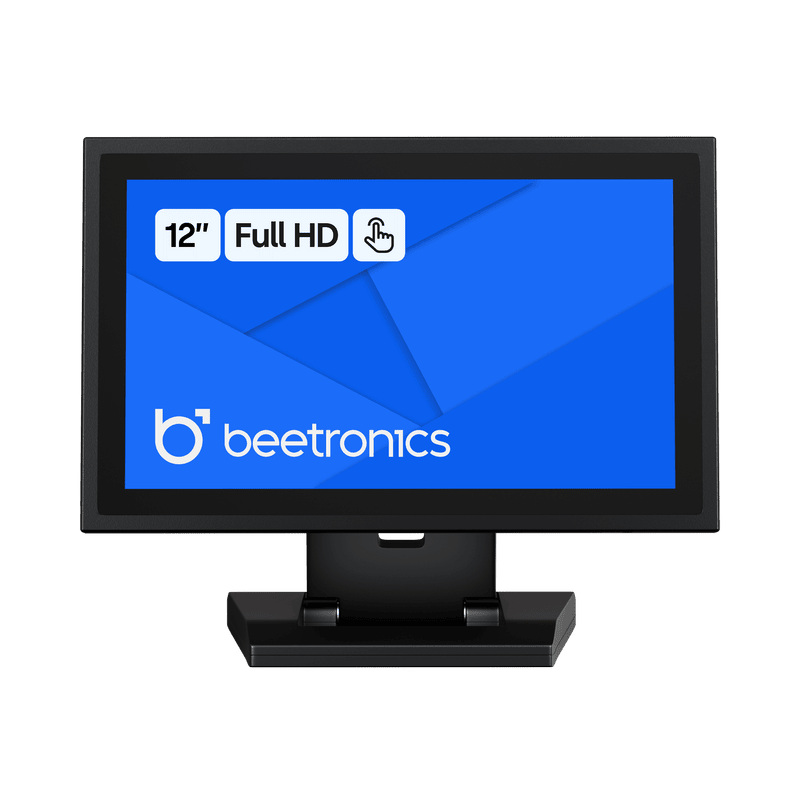

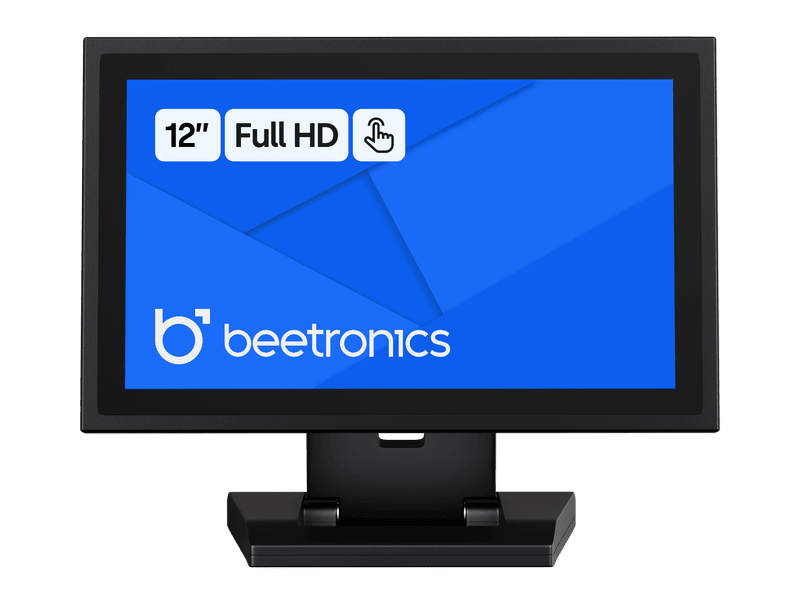

12 inch touchscreen metal

  1. Full HD multi-touch panel
  2. Windows, Mac, Linux & Android compatible
  3. Desktop, flush and wall mountable
  4. 11.7 x 7.3 x 1.5 inches
Model: 12TS5M
25 units in stock

Order before 5.00 pm for free delivery on Wednesday

$469.00
  • Description
  • Specifications
  • Connectivity
  • Downloads

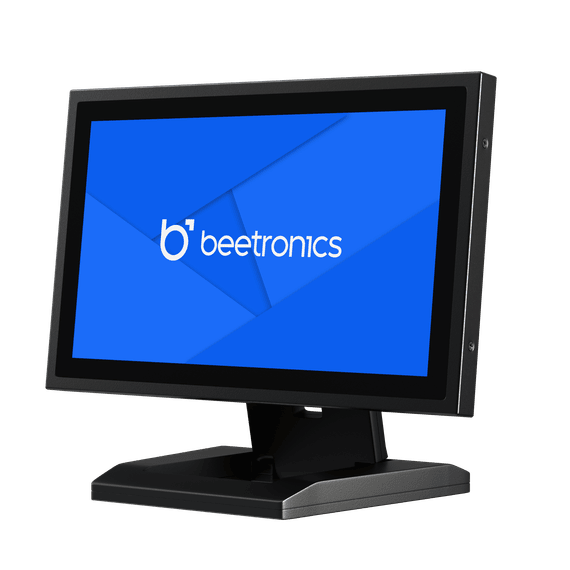

This Full HD, 12 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 12TS5M provides crystal-clear image quality with an excellent 178° viewing angle. It’s compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications and is suitable for intensive use.


Full HD multi-touch panel

Fitted with a native Full HD, LED-IPS panel, the touchscreen delivers outstanding image quality, vibrant colors and excellent 178° viewing angles. The 12TS5M has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.

10 inch touchscreen with stand

Windows, Mac, Linux & Android compatible

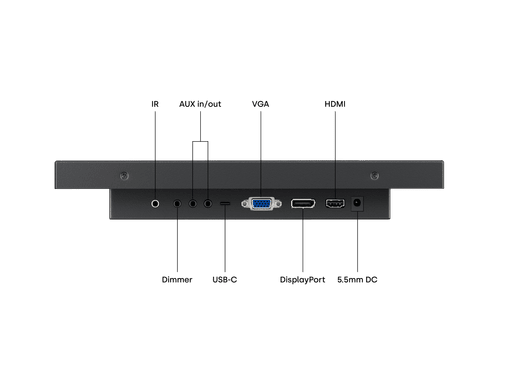

The 12TS5M is compatible with Windows, Mac, Linux & Android operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touch functionality. The touchscreen monitor is automatically recognized and is instantly ready for use.

12 inch touchscreen compatible with windows mac linux and android

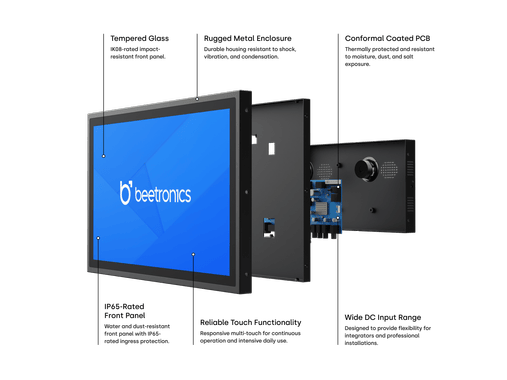

Designed for professional use

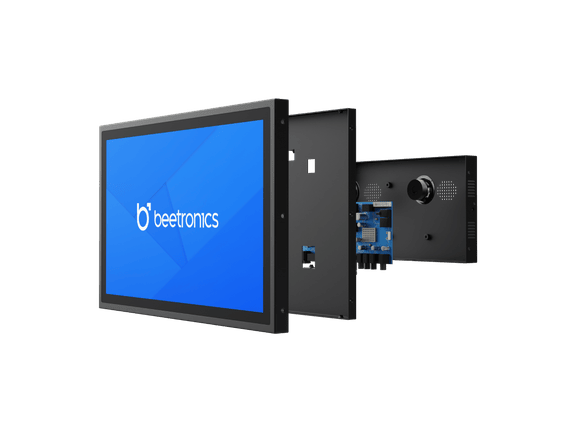

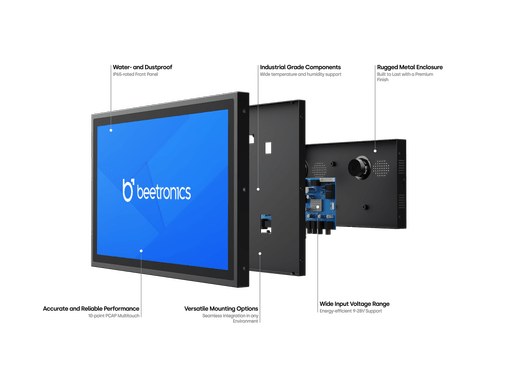

This touchscreen is suitable for continuous 24/7 operation. The monitor is manufactured using high quality components ensuring accurate operation and maximum reliability in every situation. Enveloped in a sturdy metal housing,  the 12TS5M is ideal for professional use.

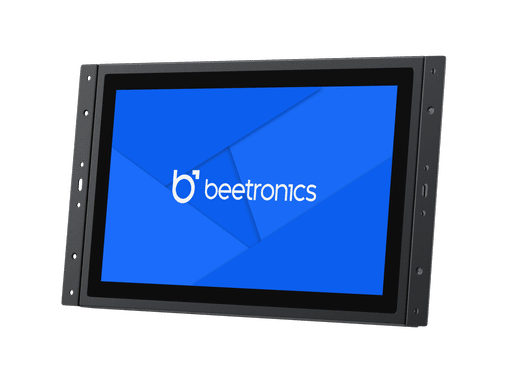

10 inch touchscreen open frame, flush mount

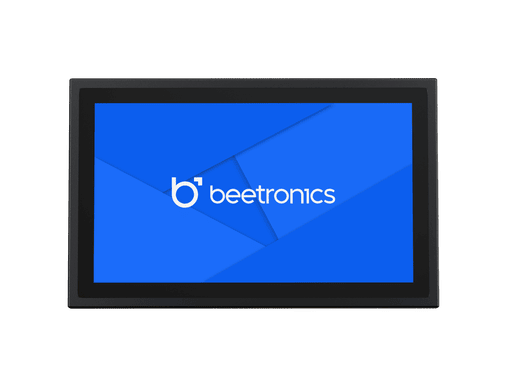

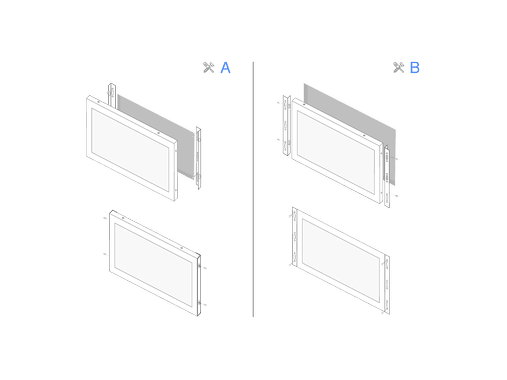

Desktop, flush and wall mountable

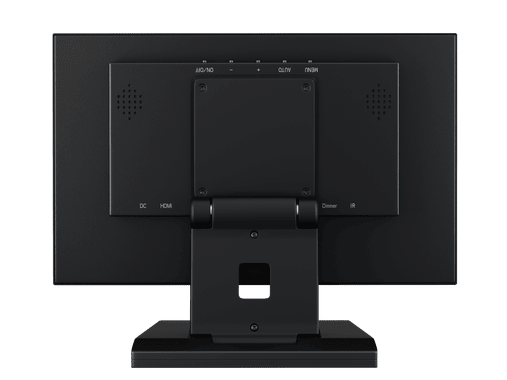

The Beetronics 12TS5M has a fully collapsible stand. The stand can easily be removed if desired, allowing access to the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the monitor or integrate it into your own application.

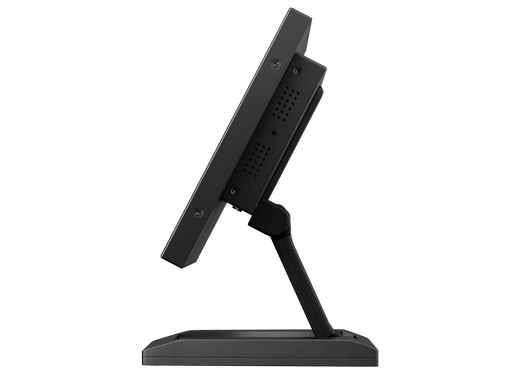

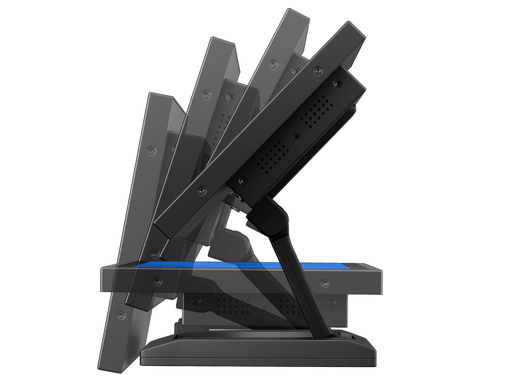

12 inch touchscreen with collapsible stand
General
Manufacturer
Beetronics
Item number
12TS5M
Product name
12 inch touchscreen metal
Warranty
2 years
Datasheet
Manual
Supported operating systems
Windows
(Windows 7, 8, 10)
Windows Embedded
(Windows embedded 7, 8, 10)
Mac
(Yosemite, El Capitan, Sierra, High Sierra, Mojave)
Linux
Android
(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
Drivers
No drivers needed. Plug & Play
Panel
Type
LED-IPS
Diagonal size
11.6 inch (29,5 cm)
Aspect ratio
16:9 (4:3 adjustable)
Native resolution
1920 x 1080
Supported resolutions
1920 x 1080 (max), 640 x 480 (min)
Pixels per inch
184 PPi
Viewing angle
178° horizontal, 178° vertical
Colour encoding system
PAL/NTSC/SECAM
Brightness
400 cd/m2
Contrast
700:1
Touch technology
Capacitive, 10-point multitouch (PCAP)
Control
Stylus, hand, glove

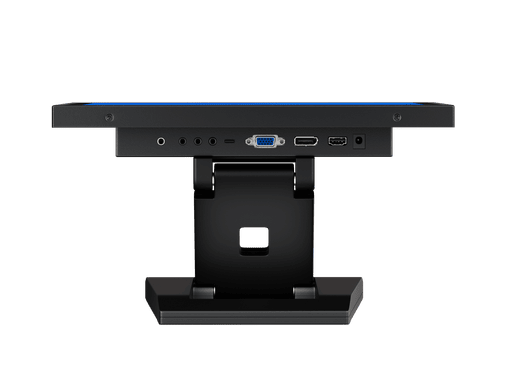

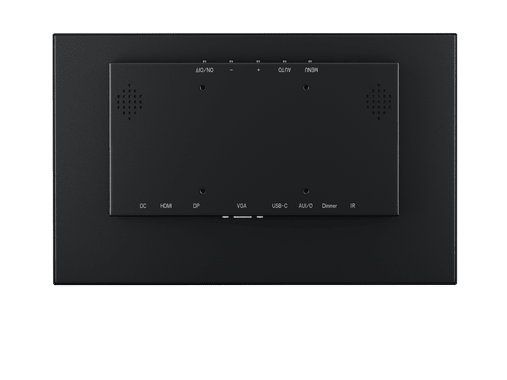

Connectivity
HDMI
1x
BNC (CVBS)
1x
RCA video
1x
AUX output
1x
USB
Only for touchscreen functionality
Size & weight
Colour
Black
Weight
2.8 lbs (3.8 lbs with stand)
Width
11.0 inches
Height
7.3 inches (+0 to 1.5 inches with stand)
Thickness
1.5 inches
Display dimensions
11.1 x 6.7 inches
Technical drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 12V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption
<15 Watt (0.5 Watt standby)
Environmental
Operating temperature
-4°F to +140°F
Storage temperature
-4°F to +158°F
Operating humidity
20% - 90% non-condensing
Mounting
Wall mount
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
IP rating
IP65 front panel
Certifications
CE, FCC, RoHS, REACH

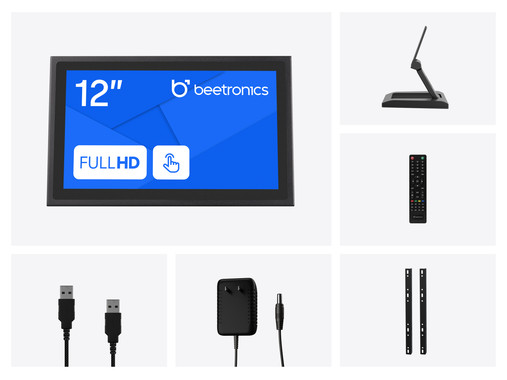

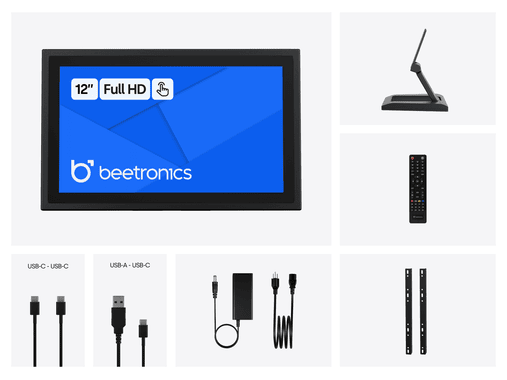

Package content
Includes
Touchscreen, USB cable, Remote control, AC power adapter, Stand, Installation strips, Manual

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA(video)
RCA
AUX(output)
AUX_audio_35mm
USB(touch)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
