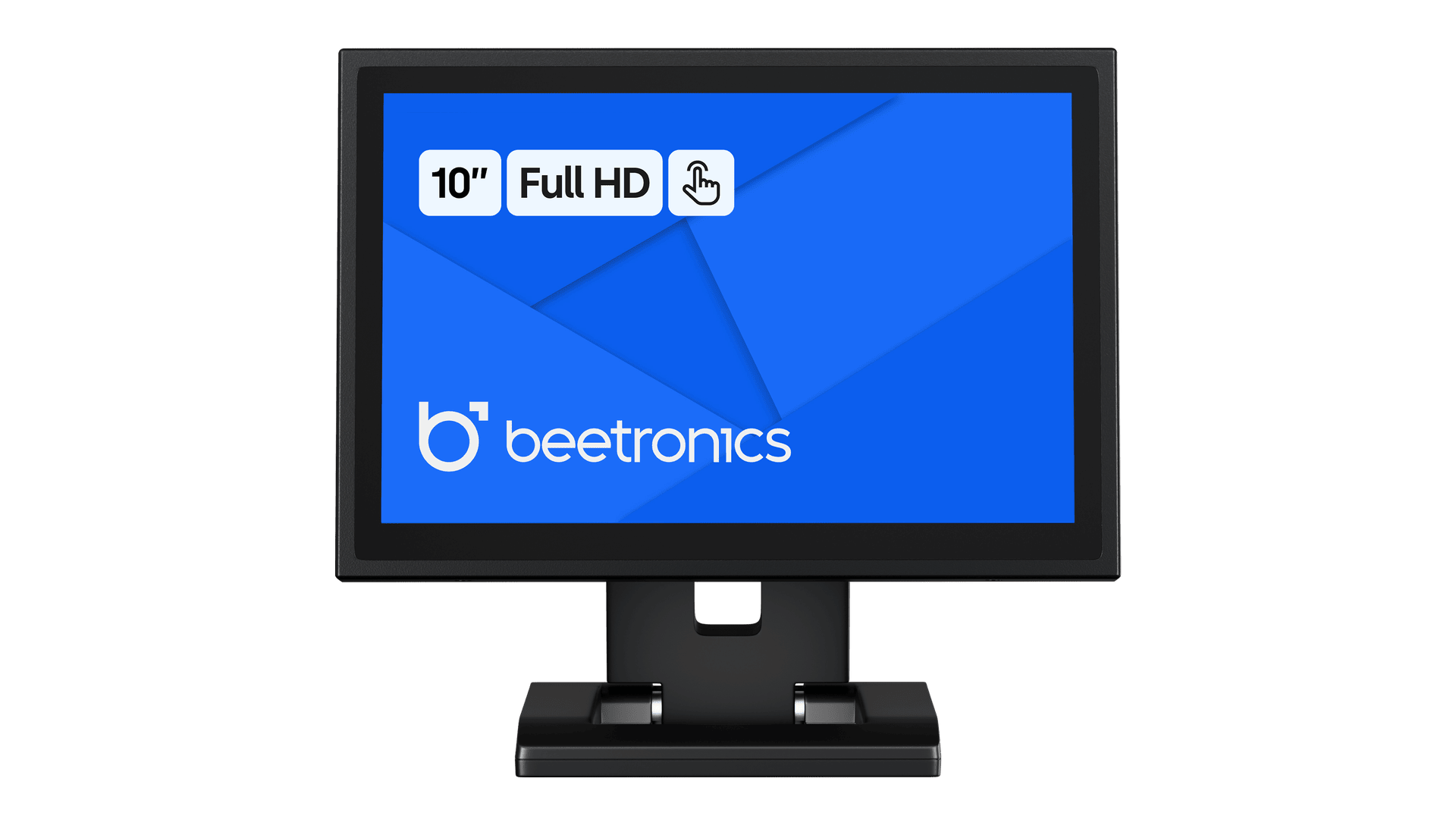

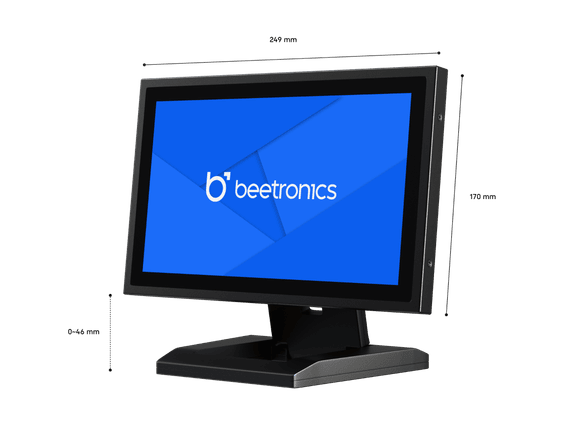

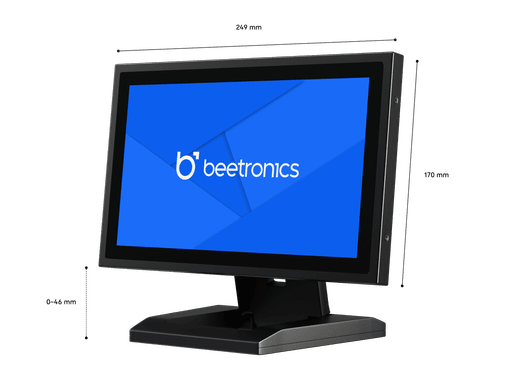

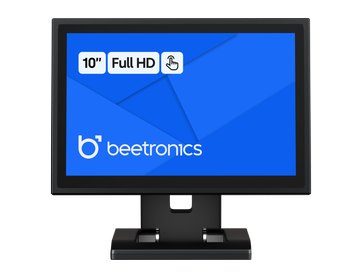

10 inch touchscreen metal

  1. Full HD multi-touch panel
  2. Windows, Mac, Linux & Android compatible
  3. Desktop, flush and wall mountable
  4. 9.8 x 6.7 x 1.5 inches
Model: 10TS7M
100+ units in stock

Order before 5:00 pm for free delivery on Monday

$445.00
  • Description
  • Specifications
  • Connectivity
  • Downloads

This Full HD 10 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 10TS7M delivers best-in-class picture quality with excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.


Full HD multi-touch panel

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colors and excellent 178° viewing angles. The 10TS7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

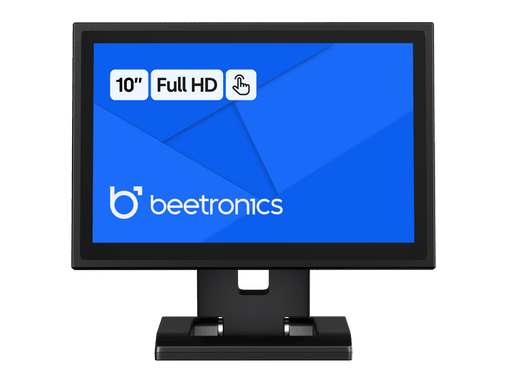

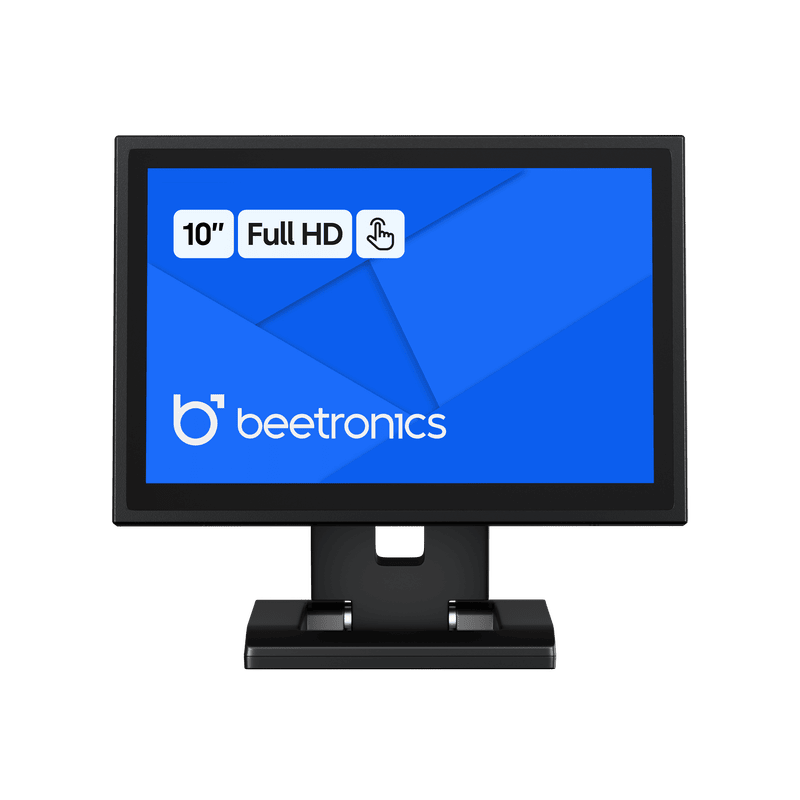

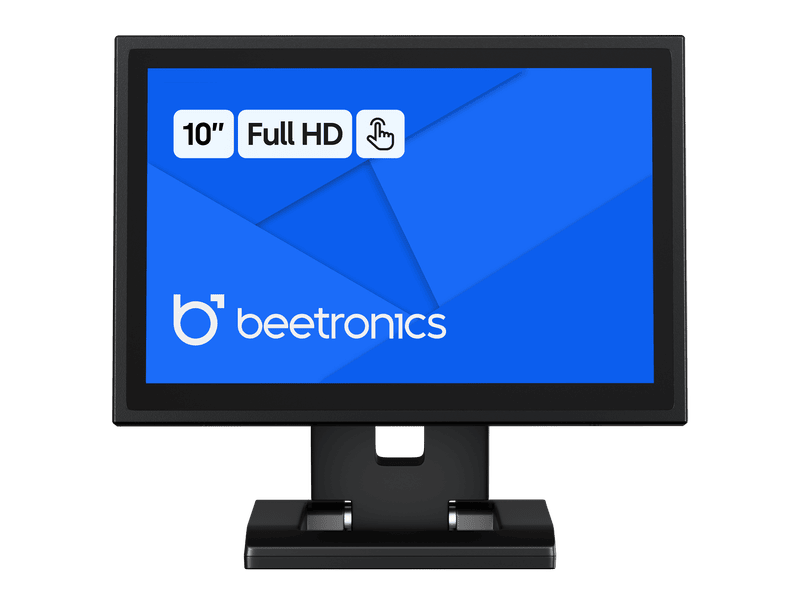

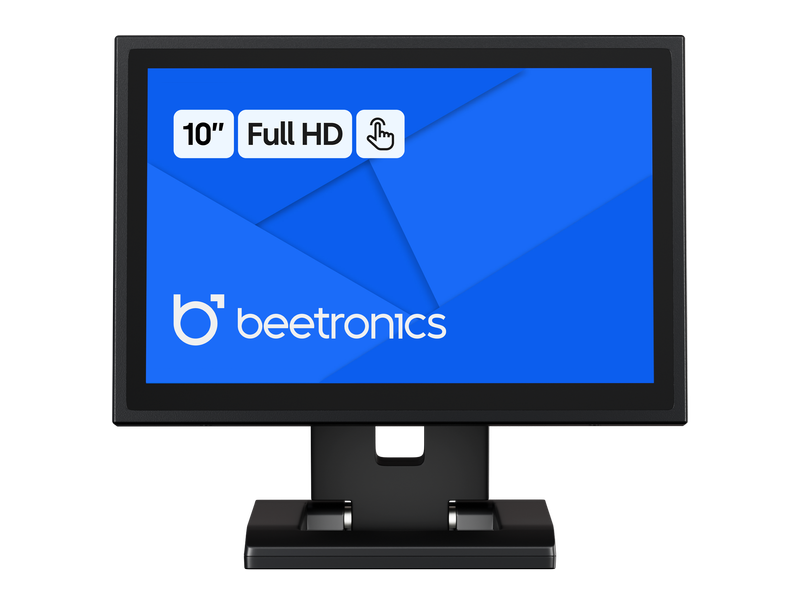

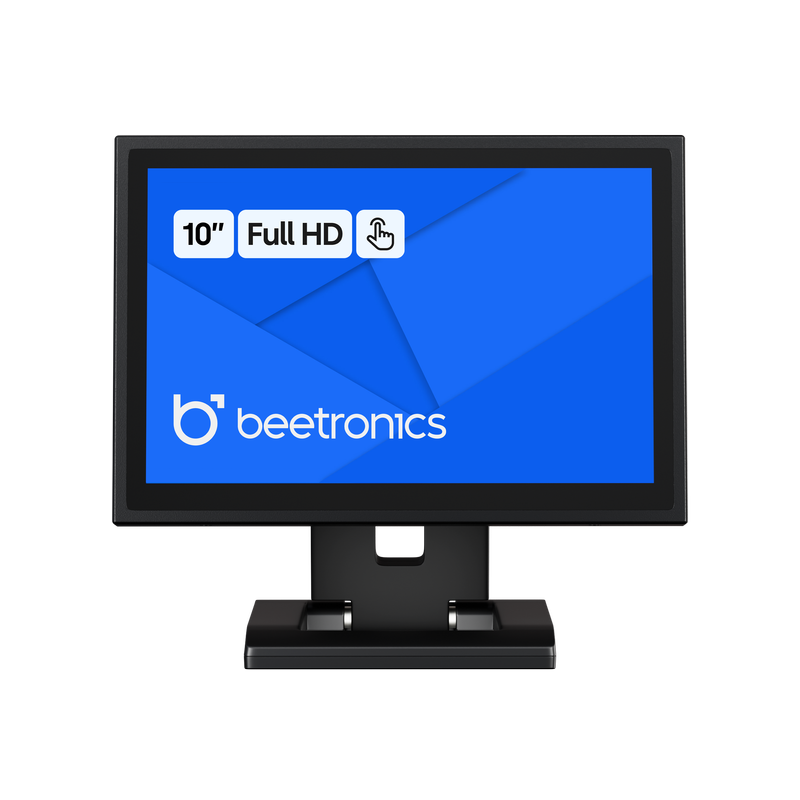

10 inch touchscreen with stand

Windows, Mac, Linux & Android compatible

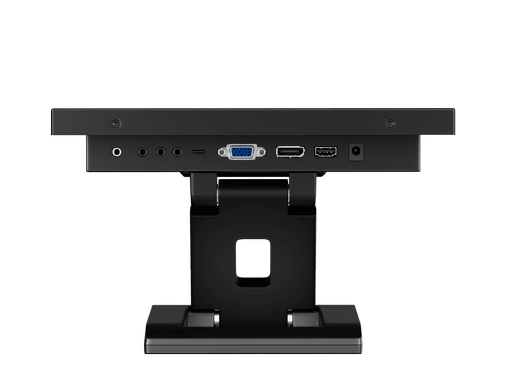

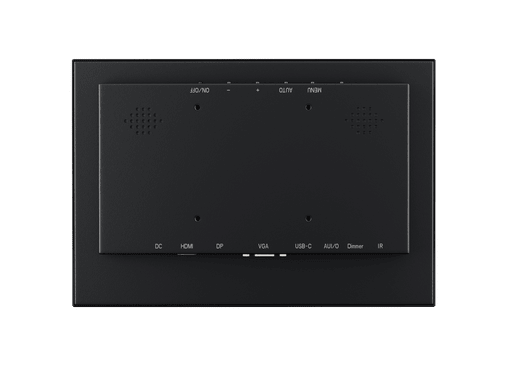

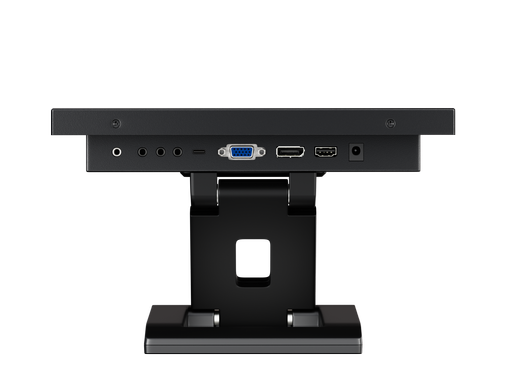

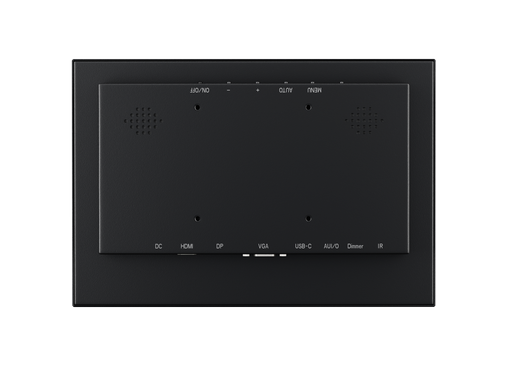

The 10TS7M touchscreen is compatible with Windows, Mac, Linux & Android operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.

10 inch touchscreen windows mac linux and android

Designed for professional use

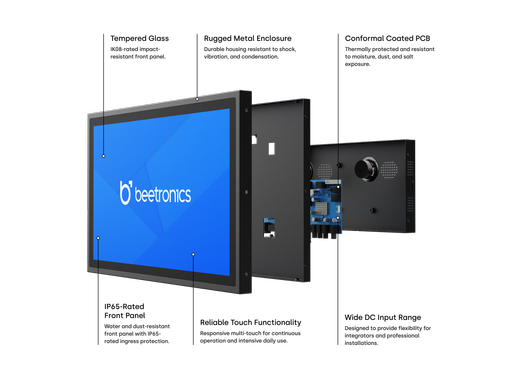

The 10TS7M is designed for continuous operation and professional use. The touchscreen is manufactured with high quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

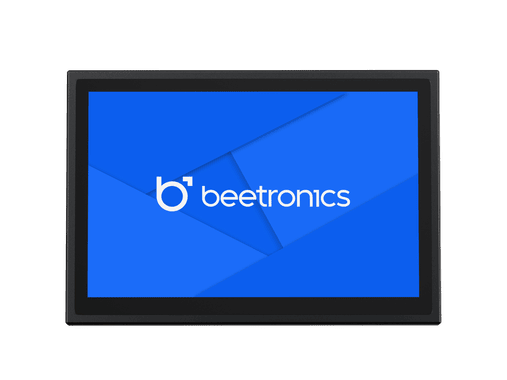

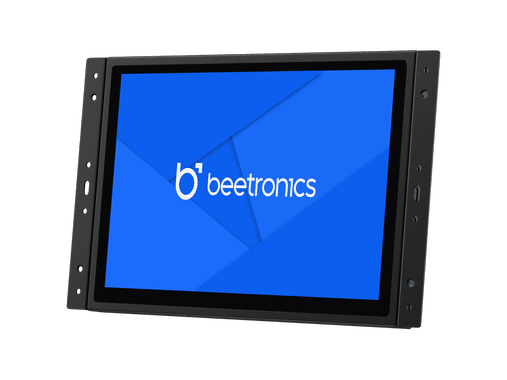

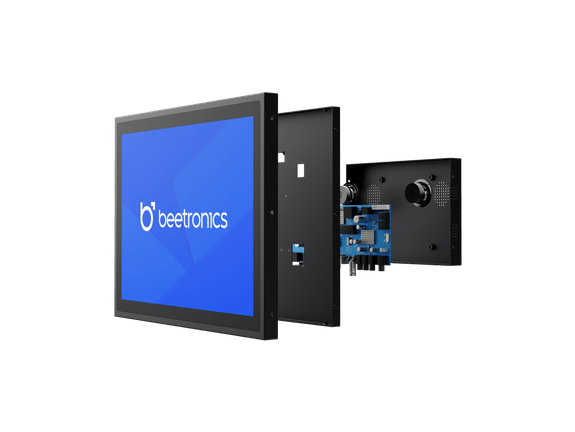

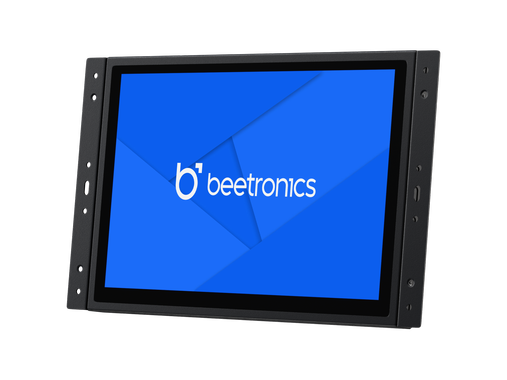

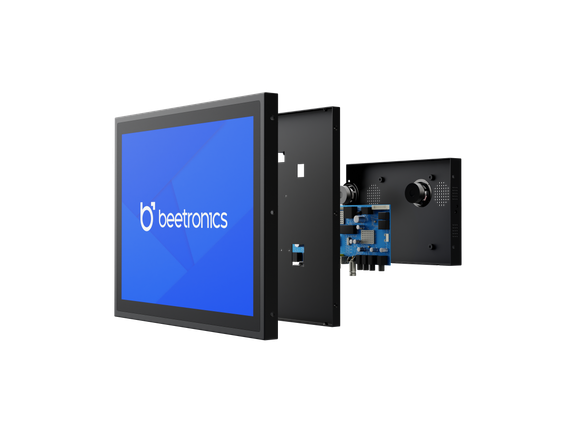

10 inch touchscreen open frame, flush mount

Easily integrated

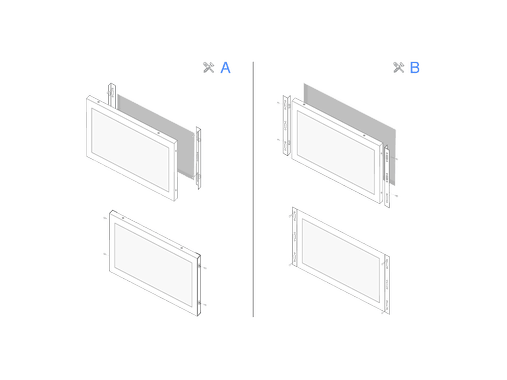

Thanks to numerous mounting options, the 10 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.

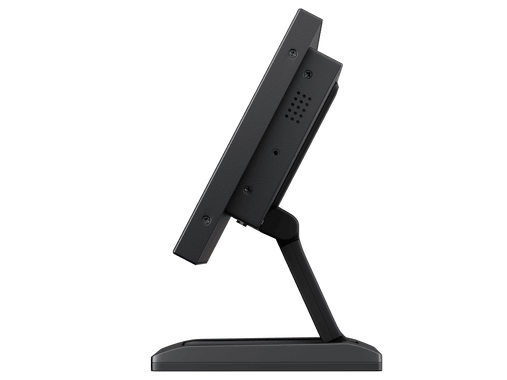

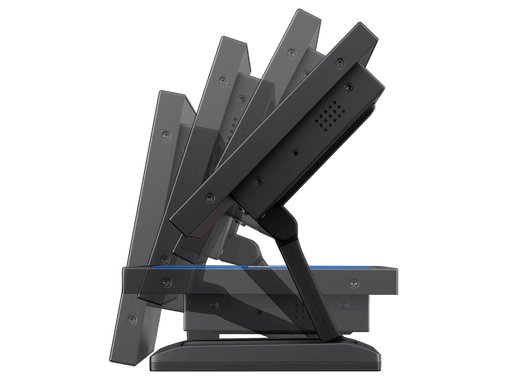

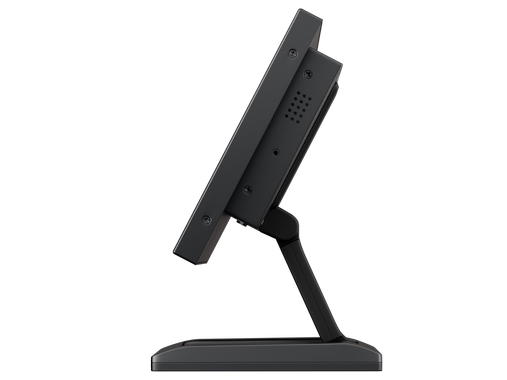

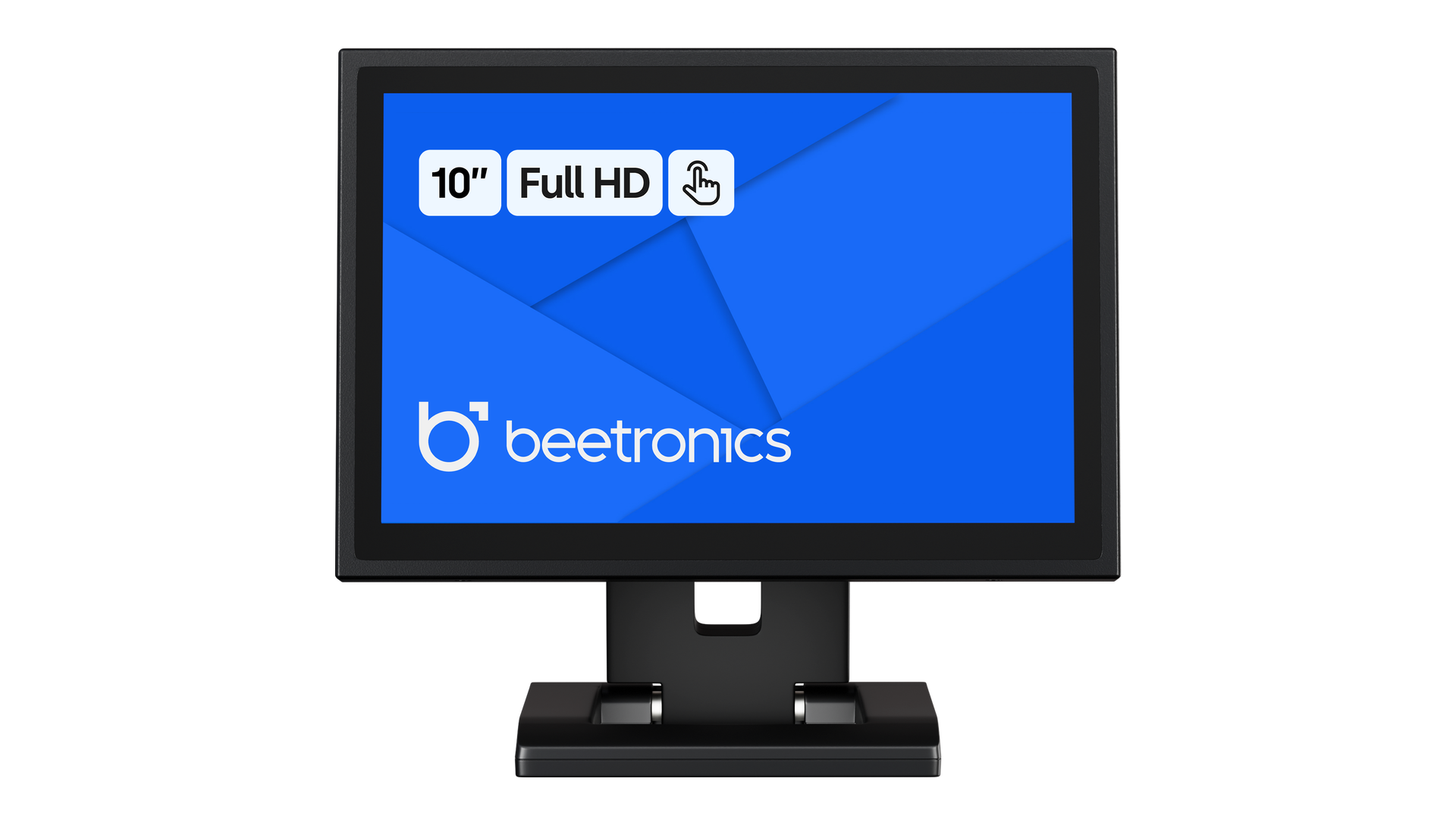

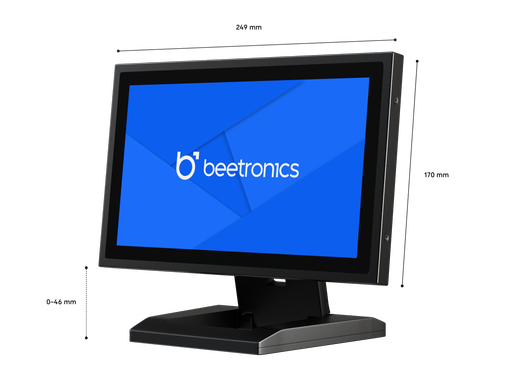

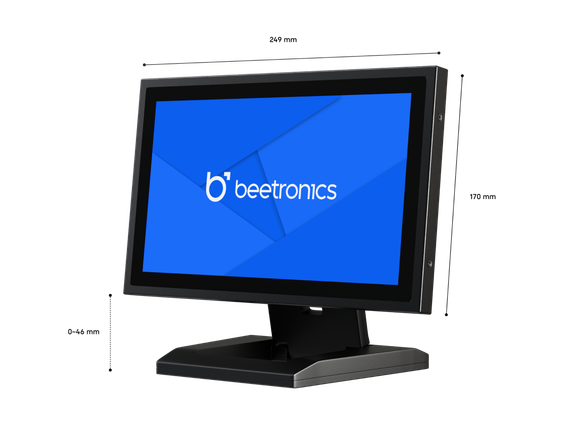

touchscreen 10 inch with adjustable stand

Desktop and wall mounting

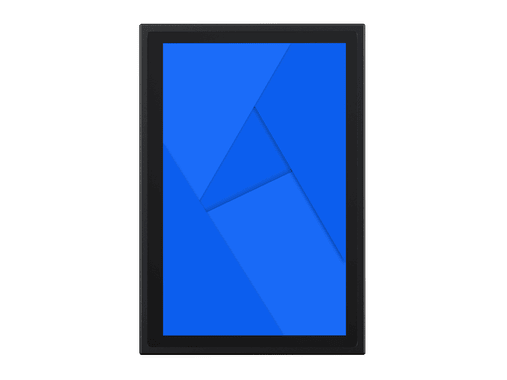

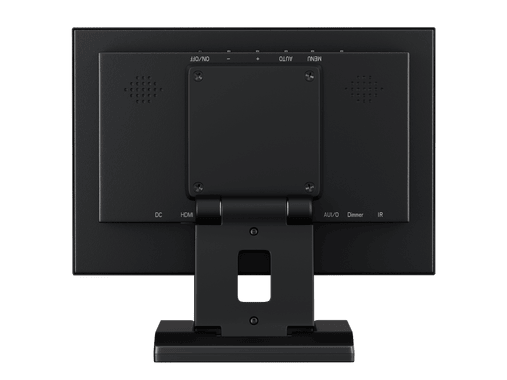

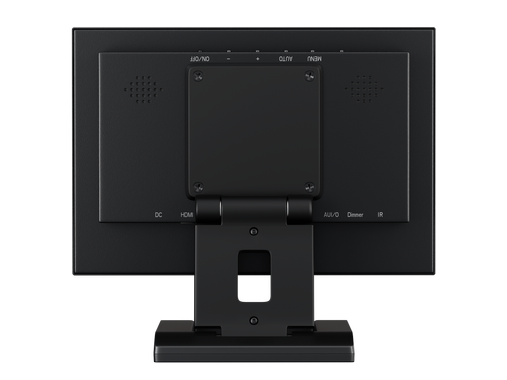

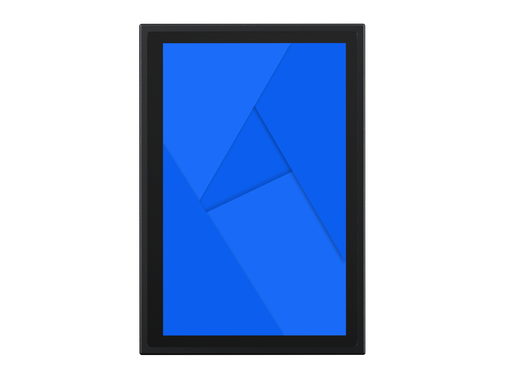

The Beetronics 10TS7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

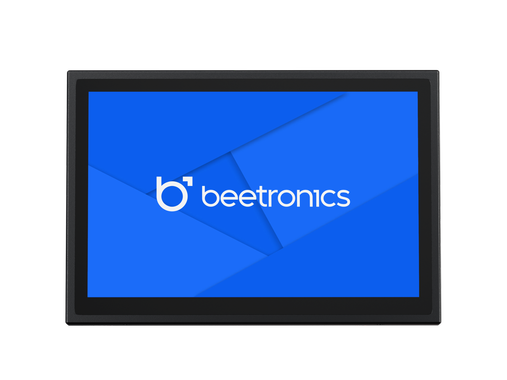

10 inch touchscreen open frame, flush mount
General
Manufacturer
Beetronics
Item number
10TS7M
Product name
10 inch touchscreen metal
Warranty
2 years
Datasheet
Manual
Supported operating systems
Windows
(Windows 7, 8, 10)
Windows Embedded
(Windows embedded 7, 8, 10)
Mac
(Yosemite, El Capitan, Sierra, High Sierra, Mojave)
Linux
Android
(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
Drivers
No drivers needed. Plug & Play
Panel
Type
LED-IPS
Diagonal size
11.1 inches (281 mm)
Aspect ratio
16:10 (16:9, 4:3 adjustable)
Native resolution
1920 x 1200
Supported resolutions
1920 x 1200 (max), 640 x 480 (min)
Pixels per inch
226 PPI
Viewing angle
178° horizontal, 178° vertical
Color encoding system
PAL/NTSC/SECAM
Brightness
400 cd/m2
Contrast
600:1
Touch technology
Capacitive, 10-point multitouch (PCAP)
Control
Stylus, hand, glove

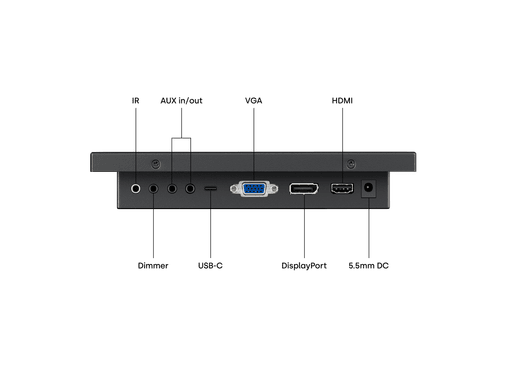

Connectivity
HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA video
1x
AUX input
1x
AUX output
1x
USB
Only for touchscreen functionality
Size & weight
Colour
Black
Weight
2.8 lbs (3.8 lbs with stand)
Width
12.9 inches
Height
6.7 inches (+0 to 1.5 inches with stand)
Thickness
1.5 inches
Display dimensions
9.3 x 6.2 inches
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 9-33V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption
<15 Watt (0.5 Watt standby)
Environmental
Operating temperature
-4°F to +140°F
Storage temperature
-4°F to +158°F
Operating humidity
20% - 90% non-condensing
Mounting
Wall mount
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
IP rating
IP65 front panel
Certifications
CE, FCC, RoHS, REACH

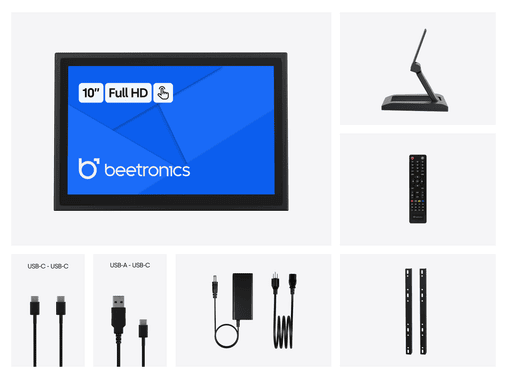

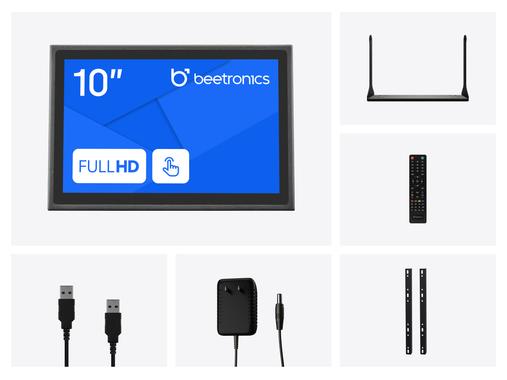

Package content
Includes
Touchscreen, USB cable, Remote control, AC power adapter, Stand, Installation strips, Manual

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA (video)
RCA
3.5mm (input)
AUX_audio_35mm
3.5mm (output)
AUX_audio_35mm
USB(touch)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
3D Drawing   Download CAD/STP
Datasheet   Download PDF
