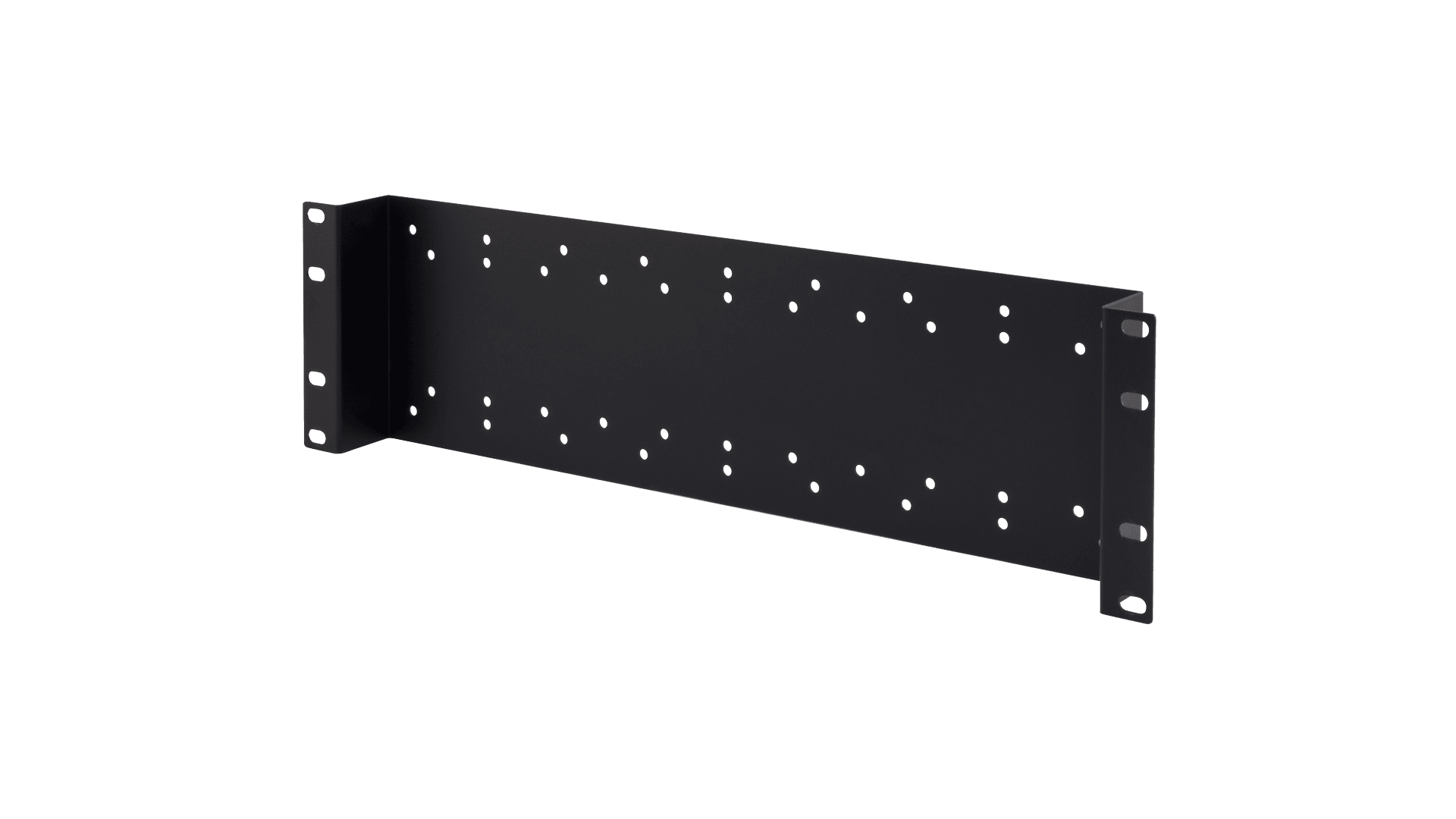

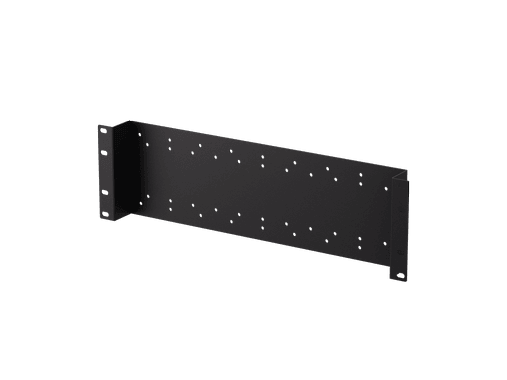

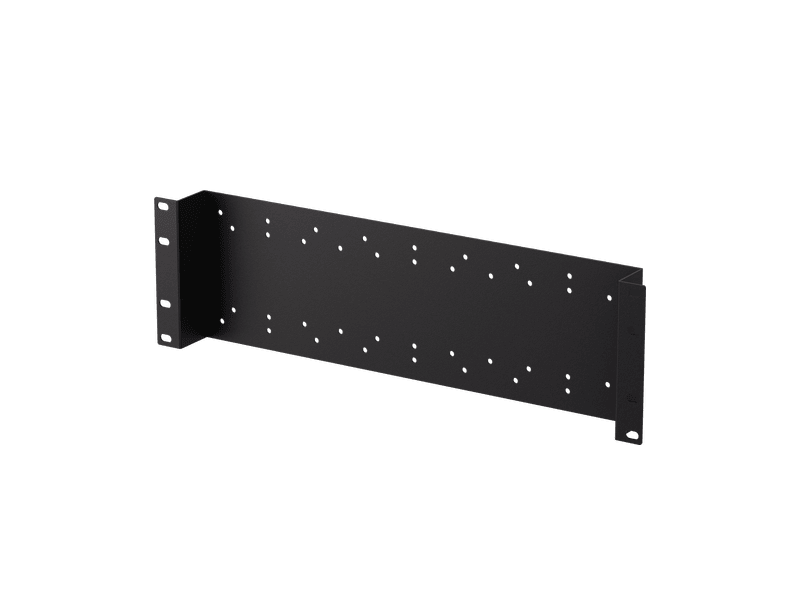

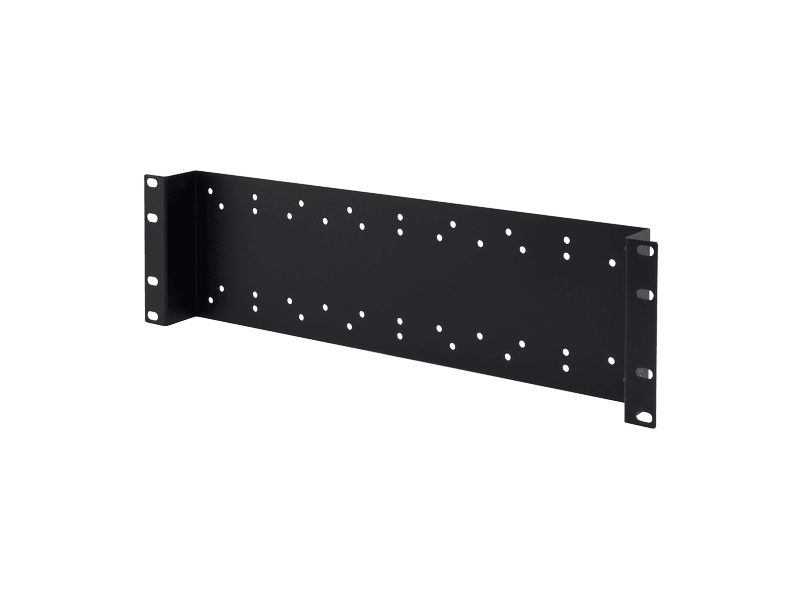

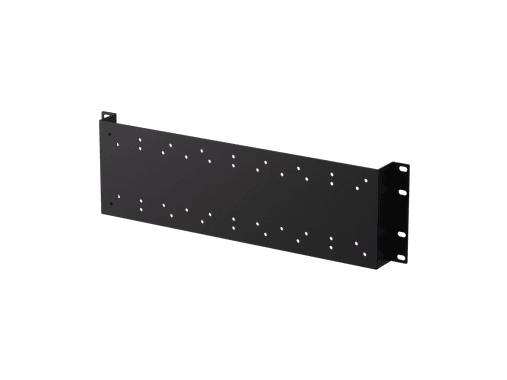

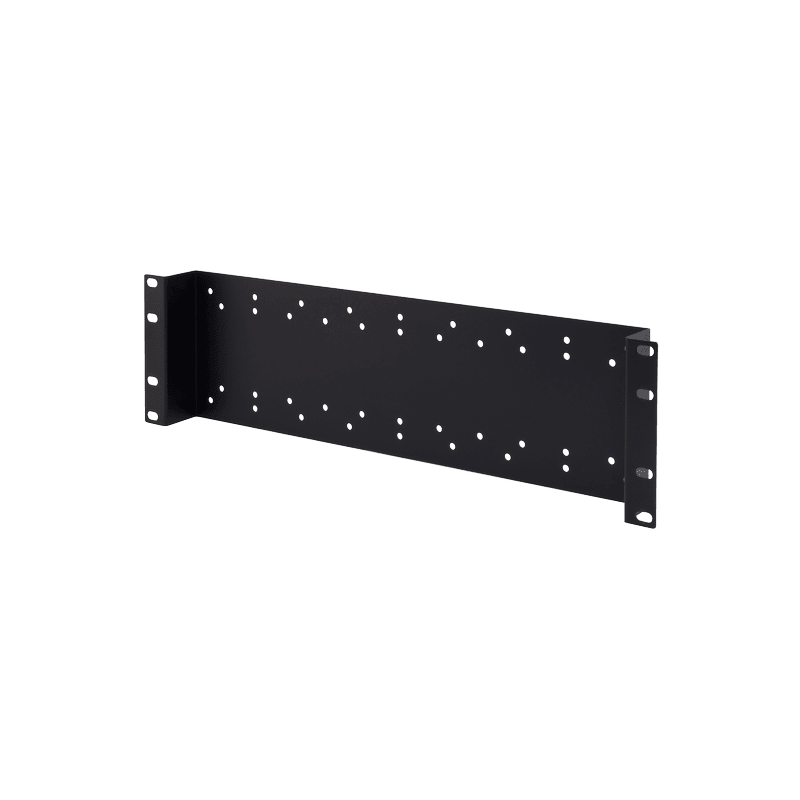

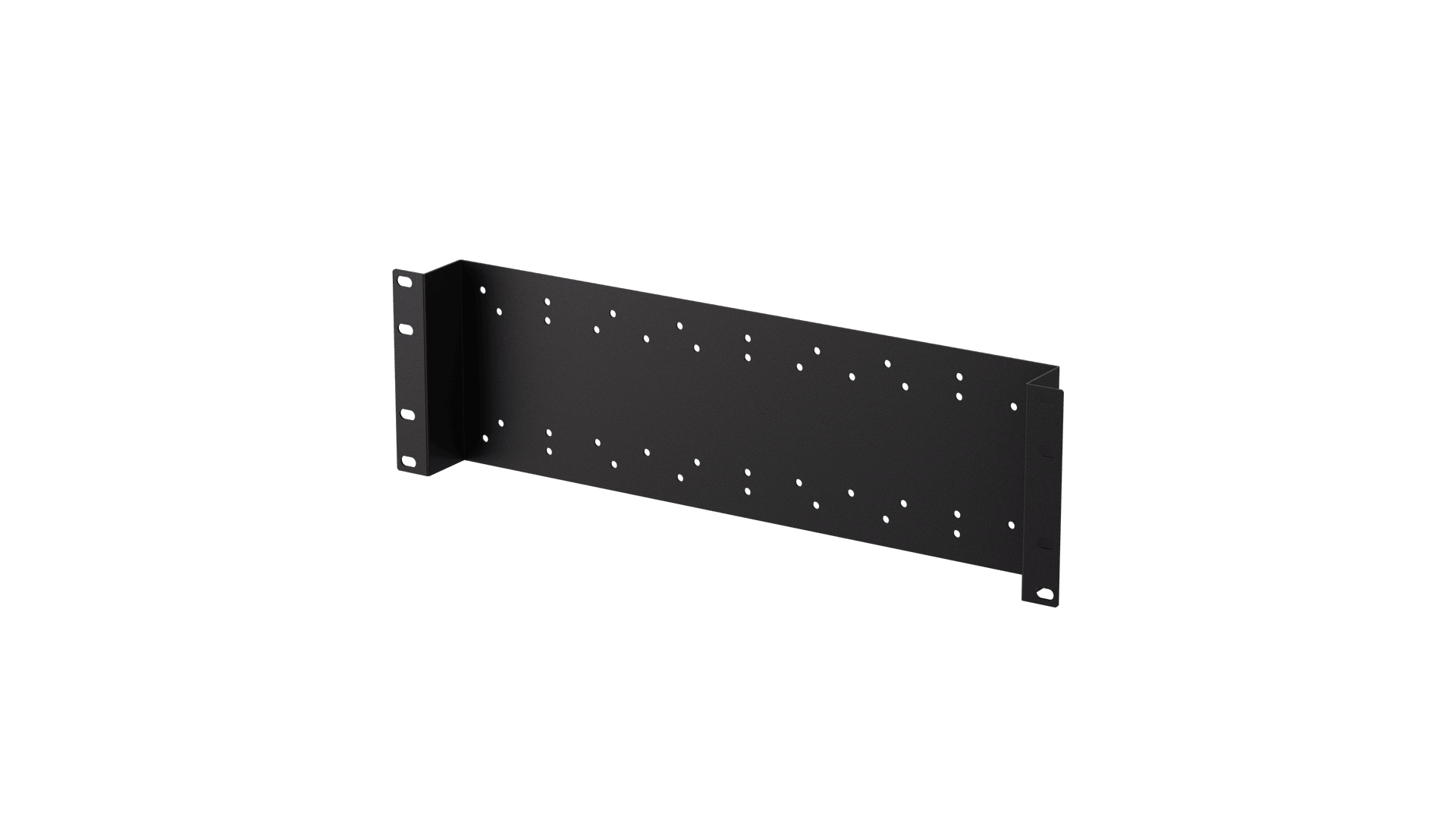

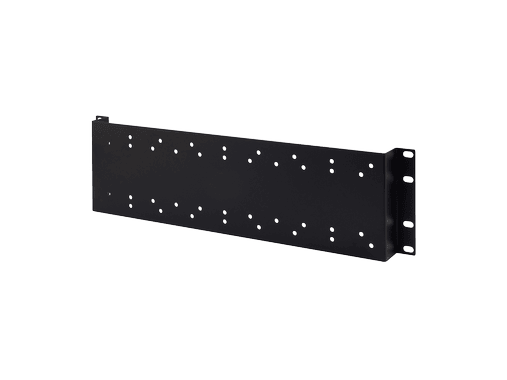

19 Inch Rack Mount Kit
Product Information
- 19 inch rack mount designed for Beetronics displays
- Quick & easy to install
- Compatible with standard EIA 19-inch racks
- Compatible with VESA: 75x75, 100x100

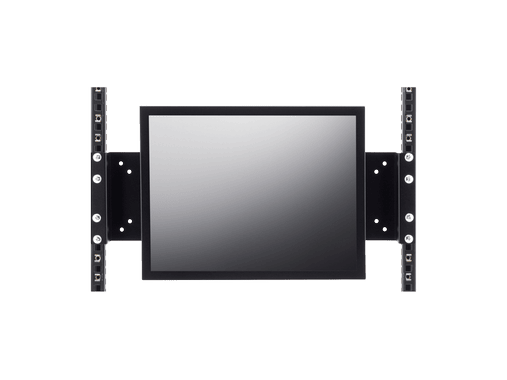

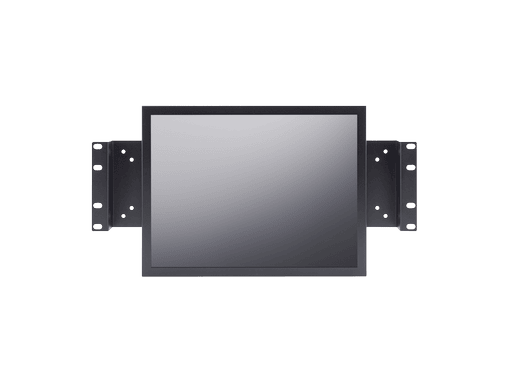

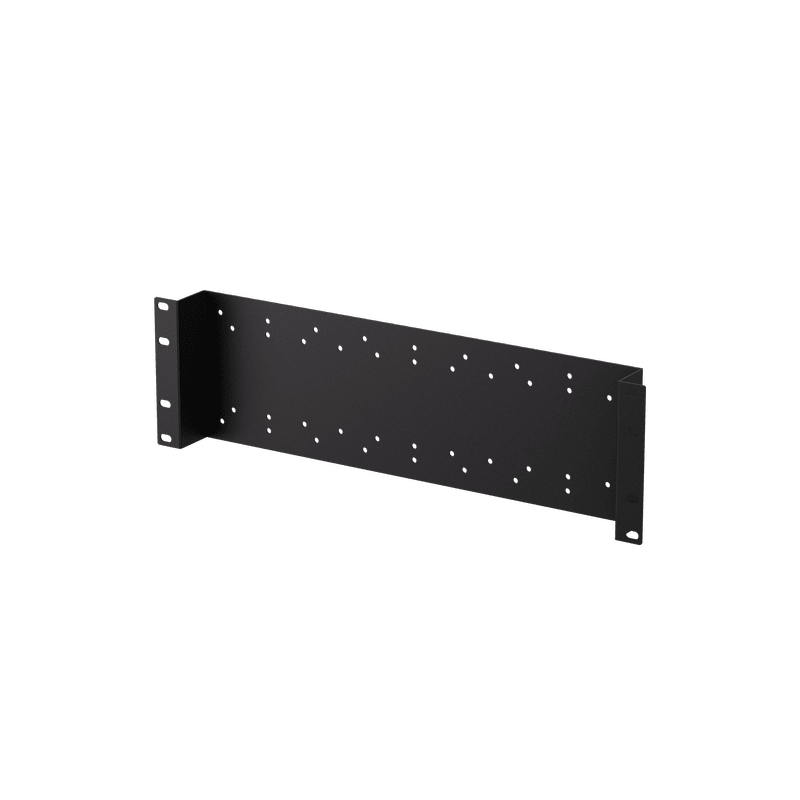

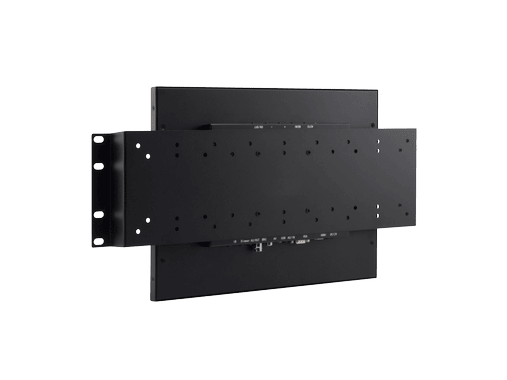

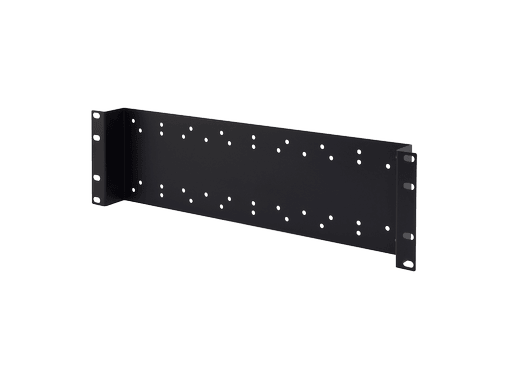

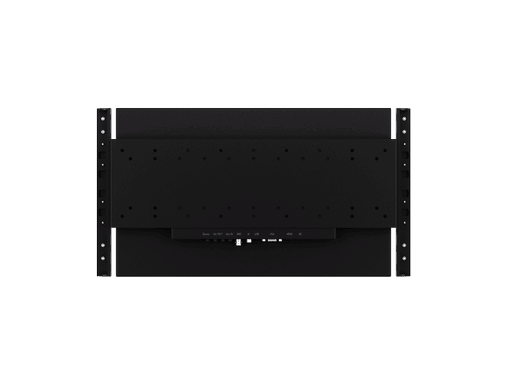

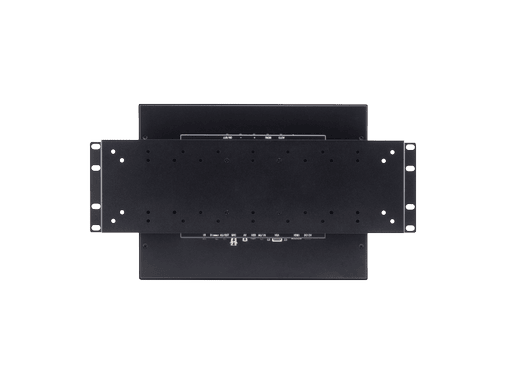

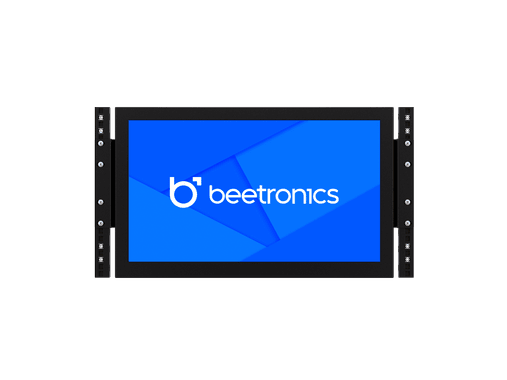

The RMK2 19 inch rack mount kit is compatible with all Beetronics monitors and touchscreens up to 17 inches. The monitors and touchscreens can be easily mounted to the RMK2 via the 75 or 100 mm VESA at the back. The recessed shape of the rack mount kit allows one or more monitors to be mounted at the same time while still being able to close the cabinet door. The sturdy rack mount kit weighs 2.4 pounds and is made from powder coated steel.
$59.00
Specifications
General
- Manufacturer
- Beetronics
- Product Name
- 19 Inch Rack Mount Kit
- Item Number
- RMK2
- Warranty
- 2 Years
- Datasheet
- Download PDF
Connectivity
- VESA
- 75x75, 100x100
Mechanical
- Weight
- 2.0 lbs
- Color
- Black
- Width
- 19.1 Inches
- Height
- 5.3 Inches
- Thickness
- 1.6 Inches
- Technical Drawing (2D)
- Download PDF
Package Content
- Includes
- Rack-Mount-Kit, Screws
Compatibility
- Compatible with
- 7HD7M, 8VG7M, 8HD7M, 9HD7M, 10HD7, 10VG7M, 10HD7M, 12HD7, 12VG7M, 12HD7M, 12SDI7M, 13HD7, 13HD7M, 15HD7, 15VG7M, 15HD7M, 15SDI7M, 17VG7M, 17HD7M, 19VG7M, 7TS7M, 8TSV7M, 10TS7, 10TSV7M, 10TS7M, 10HB9M/U1, 12TS7, 12TSV7M, 12TS7M, 12HB9M/U1, 13TS7, 13TS7M, 15TS7, 15TSV7M, 15TS7M, 15HB9M/U1, 17TSV7M, 17TS7M, 17HB9M/U1, 19TSV7M
Downloads
Download Technical Documentation
