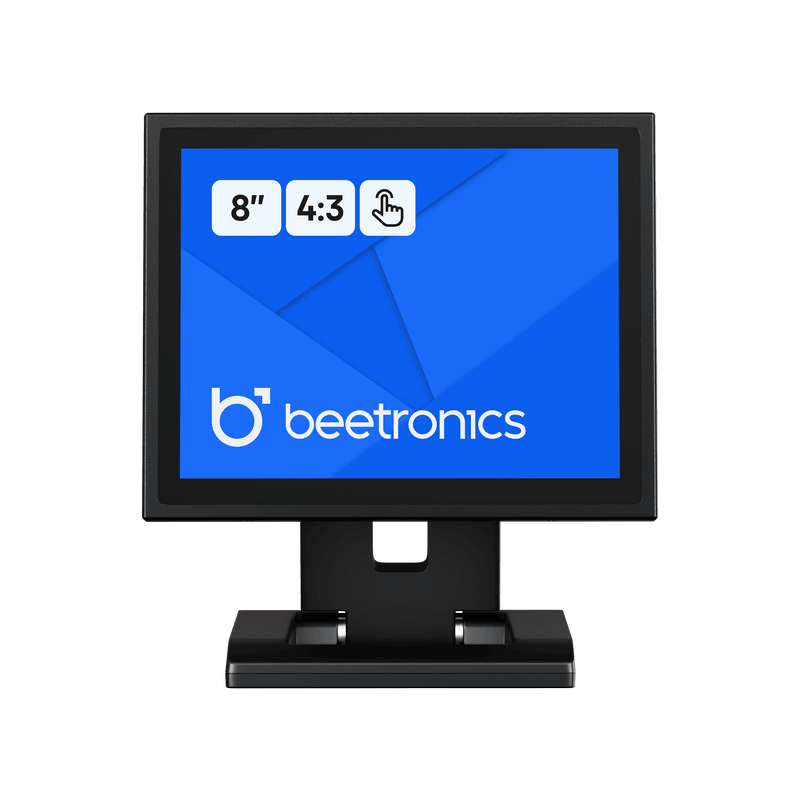

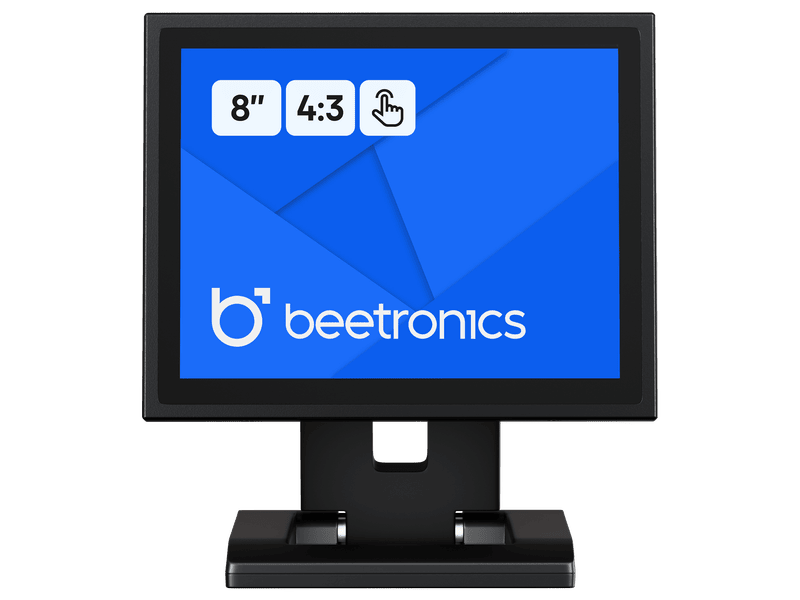

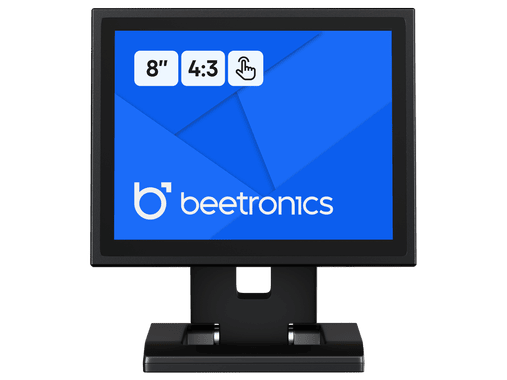

This 8 inch touchscreen has a reliable multi-touch panel with a 4:3 aspect ratio. The monitor delivers excellent 178° viewing angles and is compatible with Windows, Mac & Linux operating systems. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

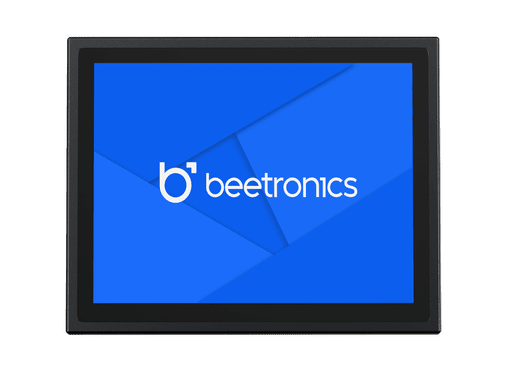

This 8 inch touchscreen is equipped with a 4:3 aspect ratio IPS panel. The touchscreen delivers excellent 178° viewing angles and is able to scale any resolution up to 1080p. The 8TSV7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

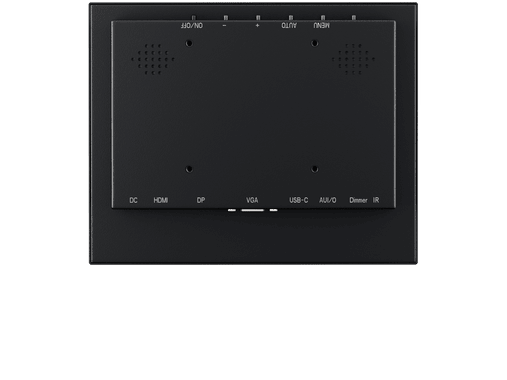

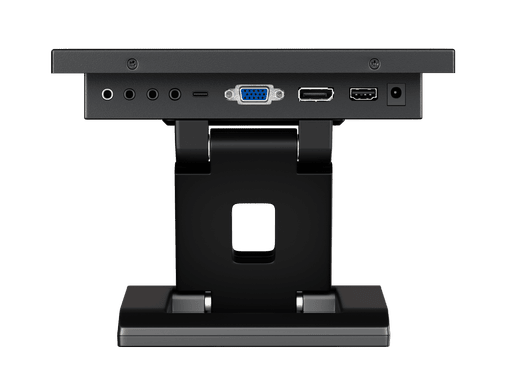

The 8TSV7M is compatible with Windows, Mac & Linux operating systems. The touchscreen has a wide range of video inputs including HDMI, VGA, BNC and RCA. Connecting the included USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.
The 8TSV7M is designed for continuous operation and professional use. The touchscreen is manufactured with high quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 28 Volts and features a fully dimmable backlight.

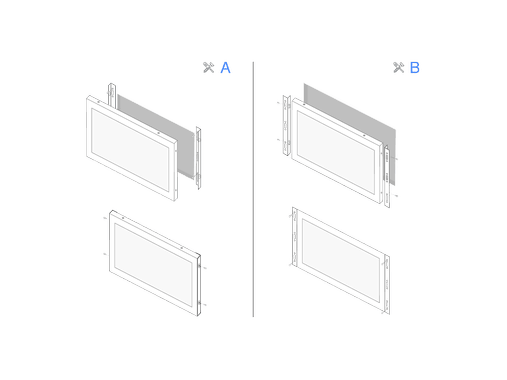

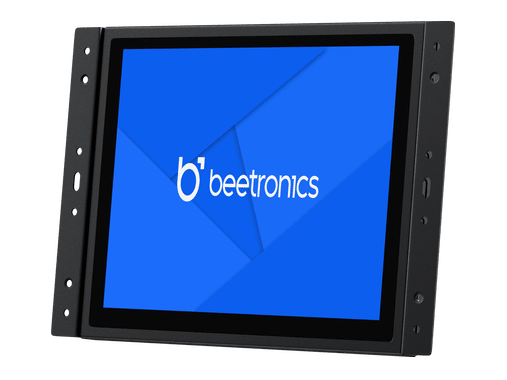

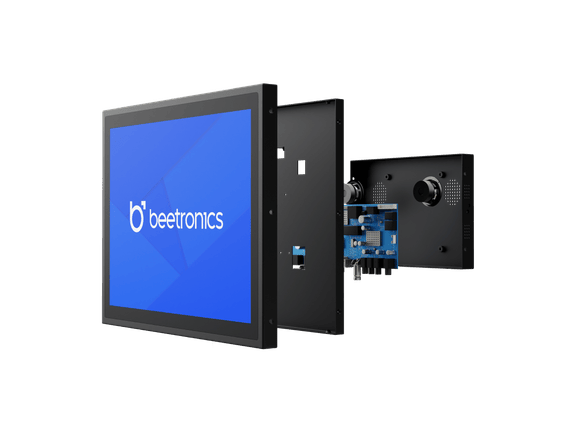

Thanks to numerous mounting options, the 8 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.

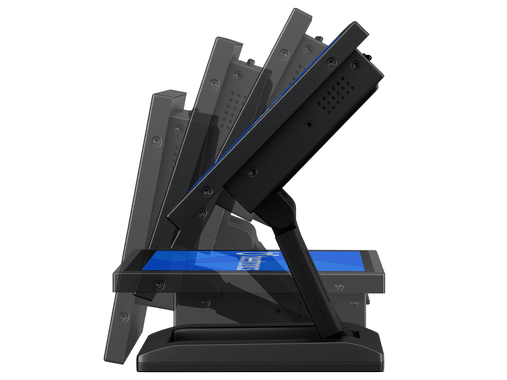

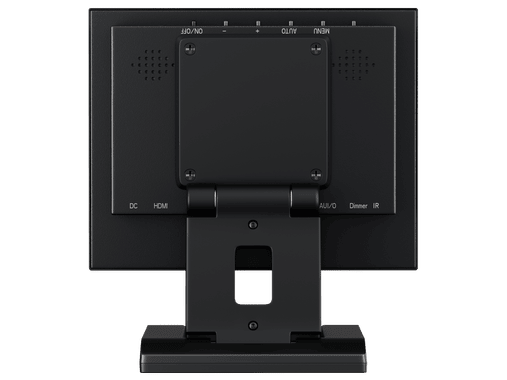

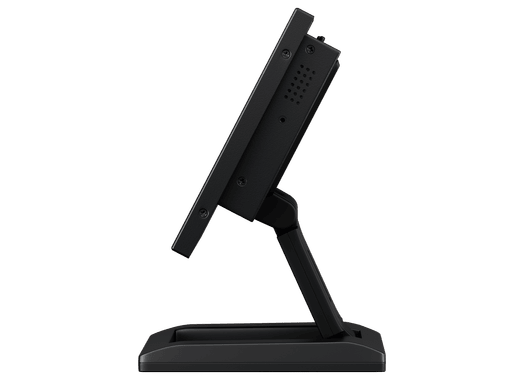

The Beetronics 8TSV7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.
General | |
---|---|
Manufacturer |
Beetronics
|
Item number |
8TSV7M
|
Product name |
8 inch touchscreen metal (4:3)
|
Warranty |
2 years
|
Datasheet | |
Manual | |
Drivers |
Supported operating systems | |
---|---|
Windows |
Windows 8, 10, 11
|
Windows Embedded |
Windows Embedded 8 Industry, Windows Embedded 8.1 Industry, Windows IoT Enterprise
|
macOS |
Catalina, Big Sur, Monterey
|
Linux |
All Linux distributions
|
Chrome OS |
All ChromeOS versions
|
Brightsign |
All BrightsignOS versions
|
Panel | |
---|---|
Type |
LED-IPS
|
Diagonal size |
8.0 inches (204 mm)
|
Aspect ratio |
4:3
|
Native resolution |
1024 x 768
|
Supported resolutions |
1920 x 1200 (max), 640 x 480 (min)
|
Pixels per inch |
160 PPI
|
Viewing angle |
178° horizontal, 178° vertical
|
Color encoding system |
PAL/NTSC/SECAM
|
Brightness |
350 cd/m2
|
Contrast |
800:1
|
Touch technology |
Capacitive, 10-point multitouch (PCAP)
|
Control |
Stylus, hand, glove
|
Connectivity | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
AUX input |
1x
|
AUX output |
1x
|
USB |
Only for touchscreen functionality
|
Size & weight | |
---|---|
Colour |
Black
|
Weight |
2,2 lbs (3,1 lbs with stand)
|
Width |
7.8 inches
|
Height |
6.3 inches (+0 to 1.5 inches with stand)
|
Thickness |
1.3 inches
|
Display dimensions |
163 x 123 mm
|
Technical drawing | |
3D Drawing |
Features and functions | |
---|---|
Audio |
Integrated speakers
|
Key-lock |
The control buttons can be blocked
|
Auto-on |
Automatically powers on when it receives current or a signal
|
Dimmable |
Adjustable backlight brightness
|
Mirroring |
Image can be mirrored, horizontally and vertically
|
Power | |
---|---|
Input voltage |
DC 9-28V
|
Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Consumption |
10.1 Watt
|
Environmental | |
---|---|
Operating temperature |
-4°F to +140°F
|
Storage temperature |
-4°F to +158°F
|
Operating humidity |
20% - 90% non-condensing
|
Mounting | |
---|---|
Wall mount |
VESA (75 mm)
|
Flush mount |
Mounting strips included
|
Stand |
Adjustable and detachable
|
Certifications & Standards | |
---|---|
IP rating |
IP65 front panel
|
Certifications |
CE, FCC, RoHS, REACH, UKCA
|
Package content | |
---|---|
Includes |

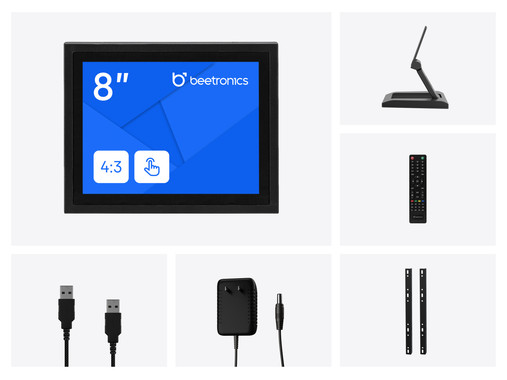

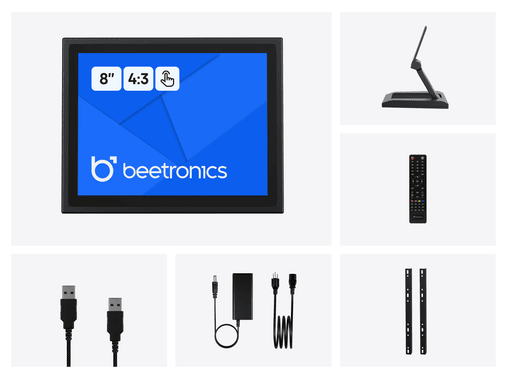

Touchscreen, USB cable, Remote control, AC power adapter, Stand, Installation strips, Manual
|
Manual | Download PDF |
Technical drawing | Download PDF |
3D Drawing | Download CAD/STP |
Datasheet | Download PDF |
Drivers | Download touchscreen driver |
Files |
---|
Product name | Model | In stock | Quantity | Price |
---|---|---|---|---|
![]()
8 inch touchscreen metal (4:3)
|
8TSV7M |
|
|
$389.00 |
![]() |
VWB1 |
|
|
$35.00 |
![]() |
KHD2 |
|
|
$19.00 |
![]() |
VGA1 |
|
|
$15.00 |
|
