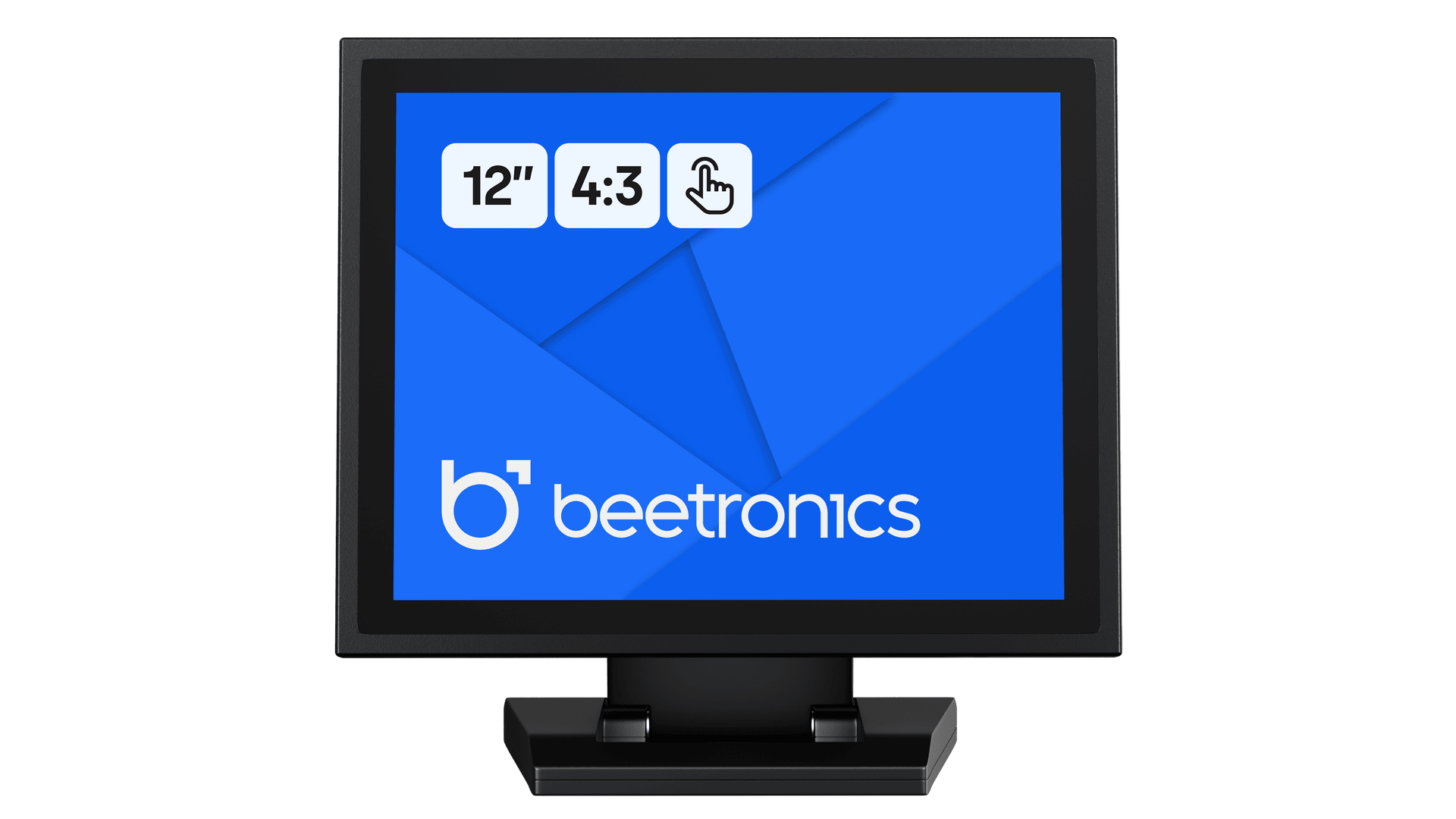

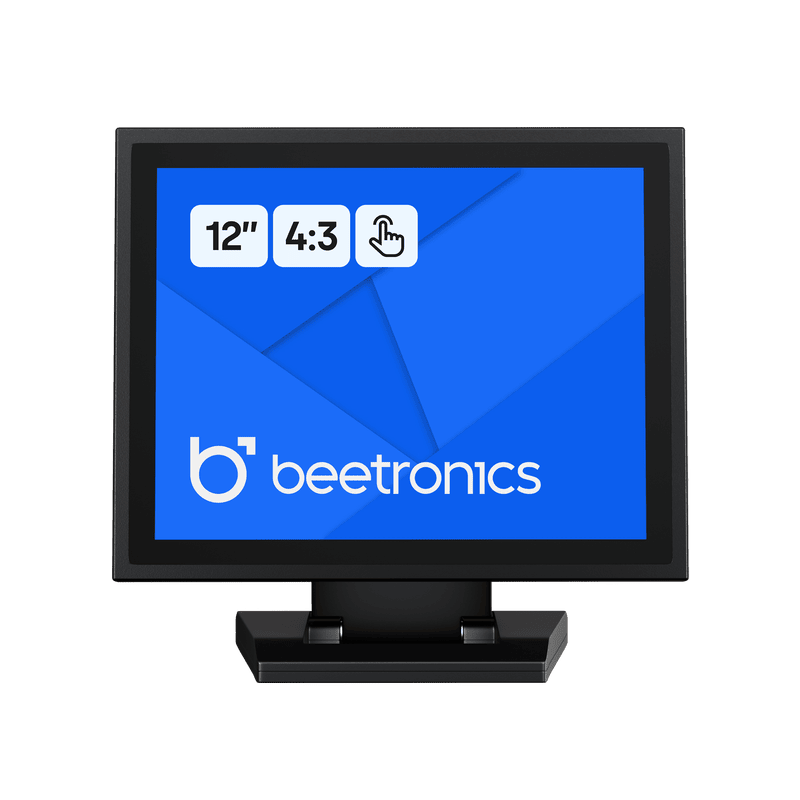

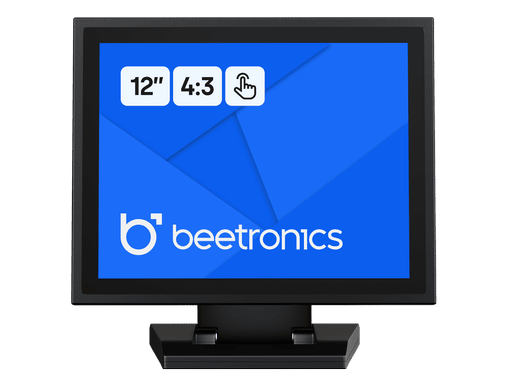

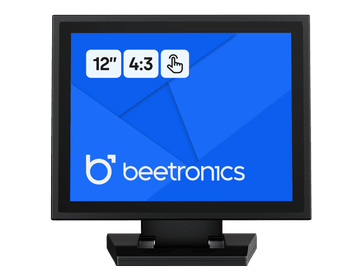

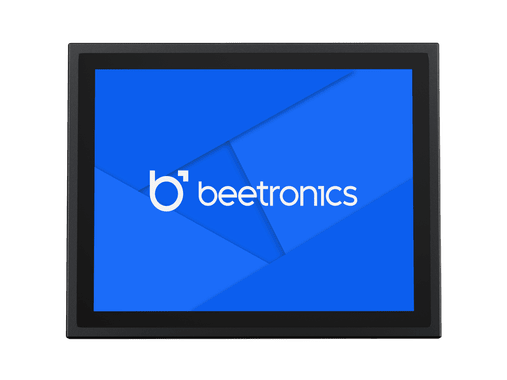

12 Inch Touchscreen Metal (4:3)
12 Inch Touchscreen Metal (4:3)
- 4:3 multi-touch panel
- Input: HDMI, VGA, BNC, RCA
- Mounting: Flush, embedded, wall, desktop
- External dimensions: 11.1 x 8.8 x 1.8 inches
Screen Size
12 Inch Touchscreen Metal (4:3)
-
8 Inch Touchscreen Metal (4:3)7.9 x 6.3 x 1.5 inches -
10 Inch Touchscreen Metal (4:3)9 x 7.3 x 1.7 inches
-
12 Inch Touchscreen Metal (4:3)11.1 x 8.8 x 1.8 inches
-
15 Inch Touchscreen Metal (4:3)13.6 x 10.6 x 1.9 inches
-
17 Inch Touchscreen Metal (5:4)15.1 x 12.4 x 1.7 inches
-
19 Inch Touchscreen Metal (5:4)16.6 x 13.7 x 1.9 inches
- View all 12 Inch Touchscreens
$499.00
Order by 5:00 pm ET for Delivery on Monday
- Description
- Specifications
- Connectivity
- Downloads
This 12 inch touchscreen has a reliable multi-touch panel with a 4:3 aspect ratio. The monitor delivers excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.
4:3 multi-touch panel
This 12 inch touchscreen is equipped with a 4:3 aspect ratio IPS panel. The touchscreen delivers excellent 178° viewing angles and is able to scale any resolution up to 1080p. The 12TSV7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.
Compatible with Windows,
macOS, ChromeOS and Linux

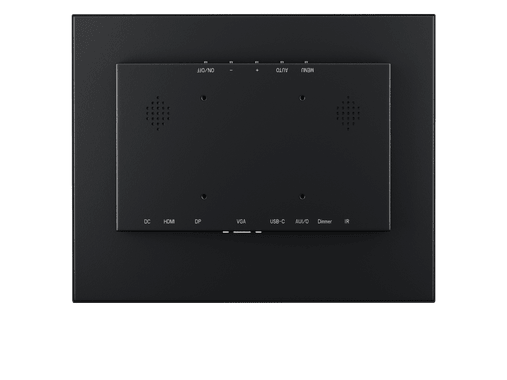

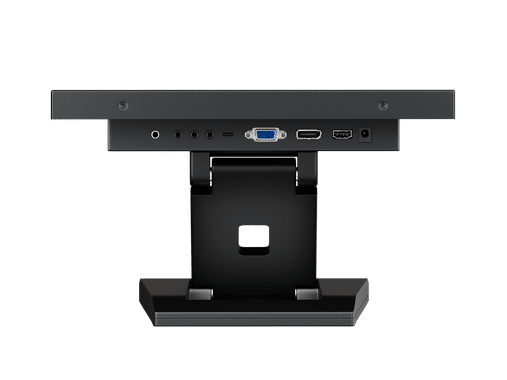

The 12 inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The touchscreen offers versatile connectivity and can be connected via HDMI, VGA, RCA or BNC for the display. The touch functionality can easily be activated via the included USB-A cable. Once connected to the source, the display is automatically recognized and is immediately ready for use.
Designed for professional use
The 12TSV7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

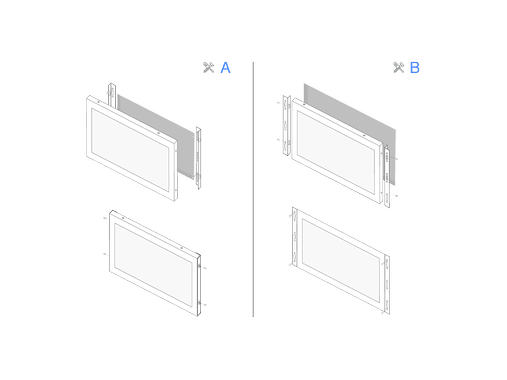

Easily integrated

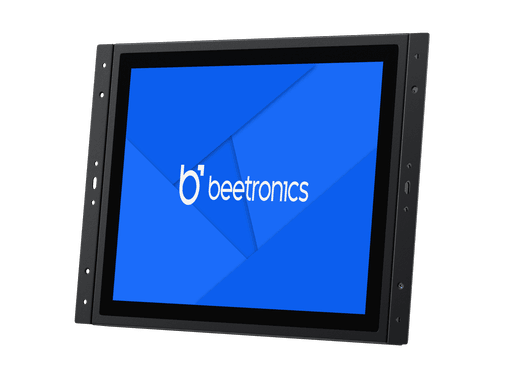

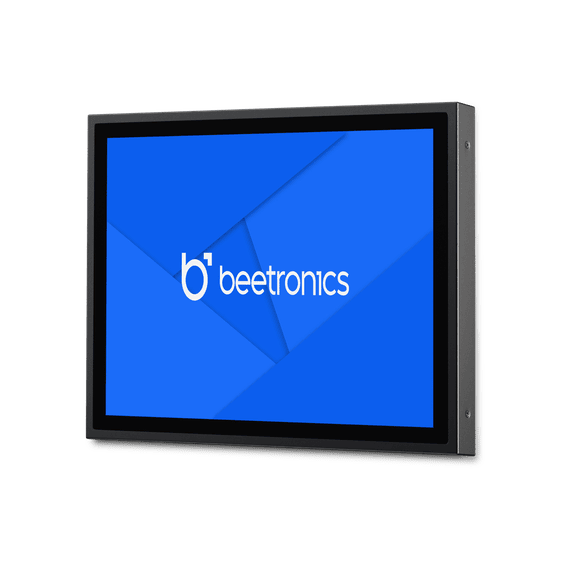

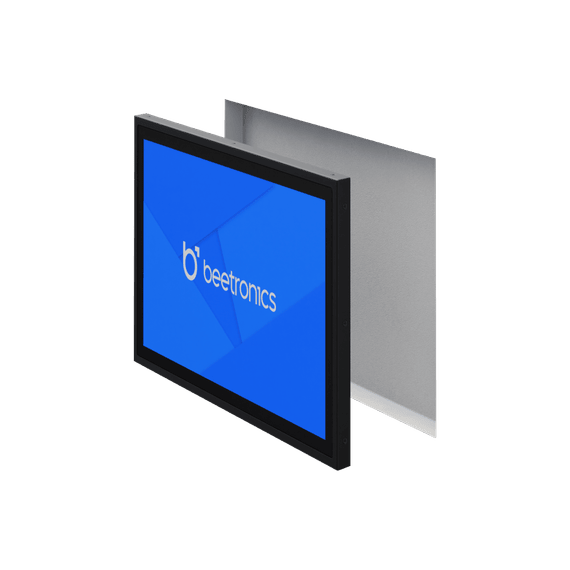

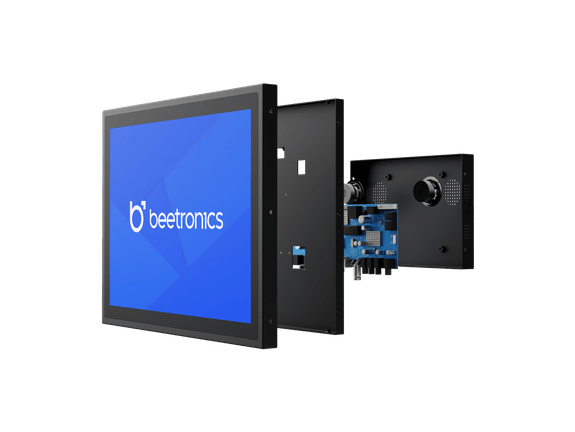

Thanks to numerous mounting options, the 12 inch metal touchscreen can be seamlessly integrated into any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to embed the monitor in any environment.

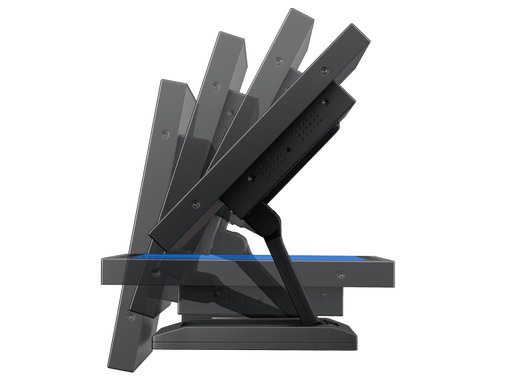

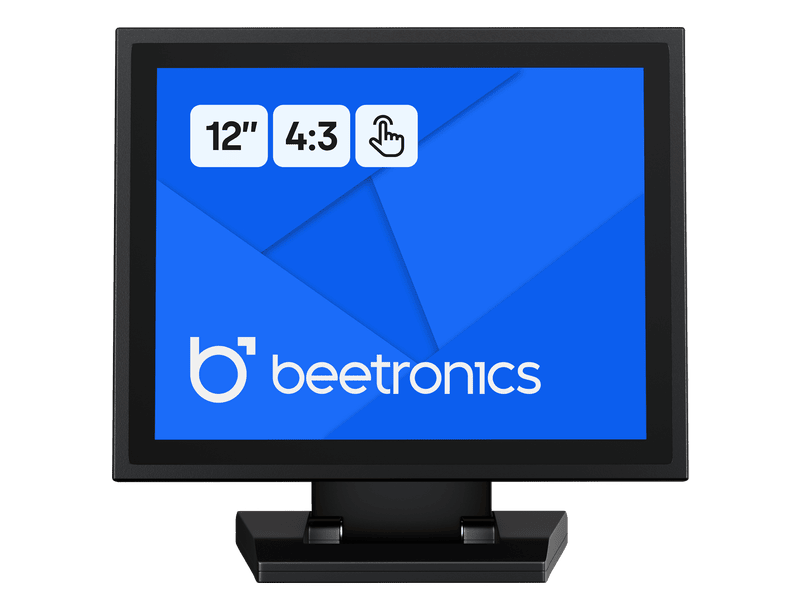

Desktop or wall mounting

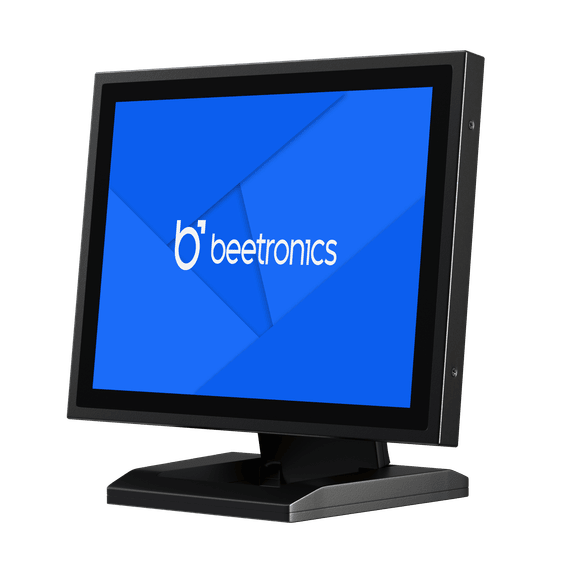

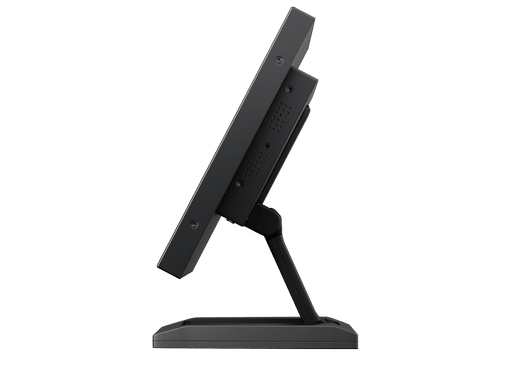

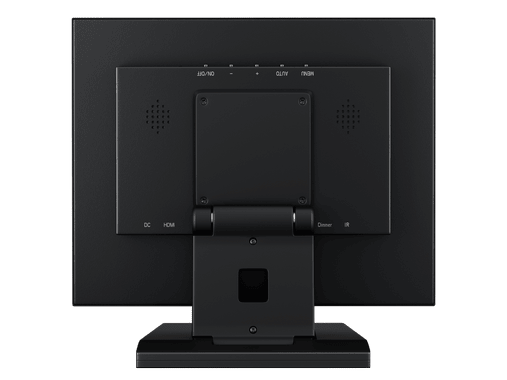

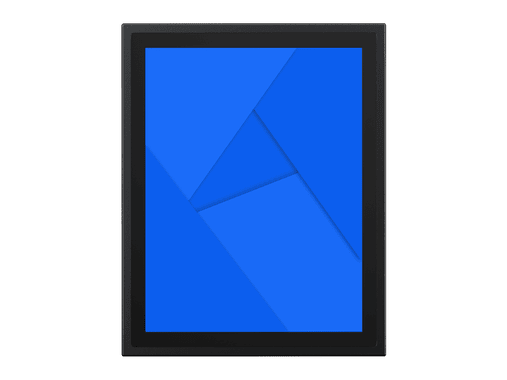

The Beetronics 12TSV7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.
General
Manufacturer
Beetronics
Item number
12TSV7M
Product name
12 Inch Touchscreen Metal (4:3)
Warranty
2 years
Datasheet
Manual
Drivers
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Big Sur, Monterey, Ventura
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Panel
LED-IPS
Diagonal size
12.1 inches (308 mm)
4:3
1024 x 768
1920 x 1200 (max), 640 x 480 (min)
83 PPI
178° horizontal, 178° vertical
Color encoding system
PAL/NTSC/SECAM
Brightness
450 cd/m2
Contrast
800:1
Capacitive, 10-point multitouch (PCAP)
Control
Stylus, hand, glove

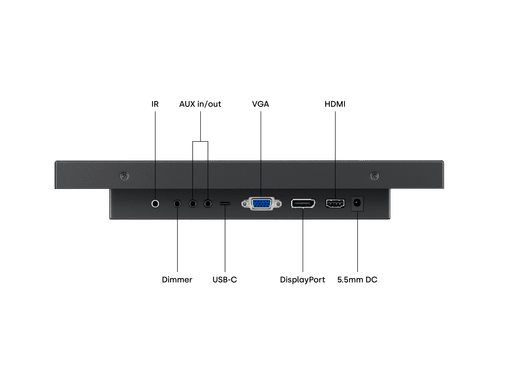

Connectivity

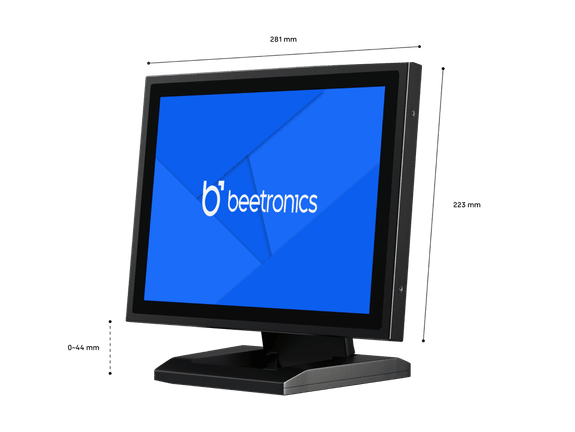

Size & weight
Color
Black
Weight
4.2 lbs (5.5 lbs with stand)
Width
11.7 inches
Height
8.8 inches
Thickness
1.7 inches
Display dimensions
9.7 x 7.2 inches
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 9-33V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-3A
Consumption
7.8 Watt
Environmental
Operating temperature
-4°F to +140°F
Storage temperature
-4°F to +158°F
Operating humidity
20% - 80% non-condensing
Mounting
Certifications & Standards
IP65 front panel
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, CCC

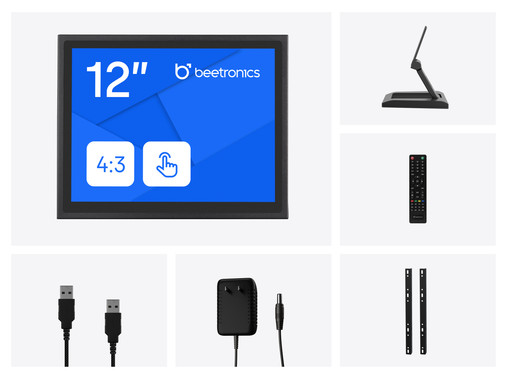

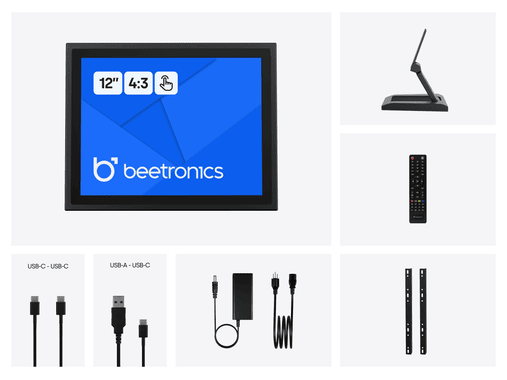

Package content
Includes
Touchscreen, USB cable, Remote control, AC power adapter, Stand, Installation strips, Manual
Compatible accessories
Stand
VDK3 included as standard
Downloads
Manual
Technical drawing
3D Drawing
Datasheet
Drivers
