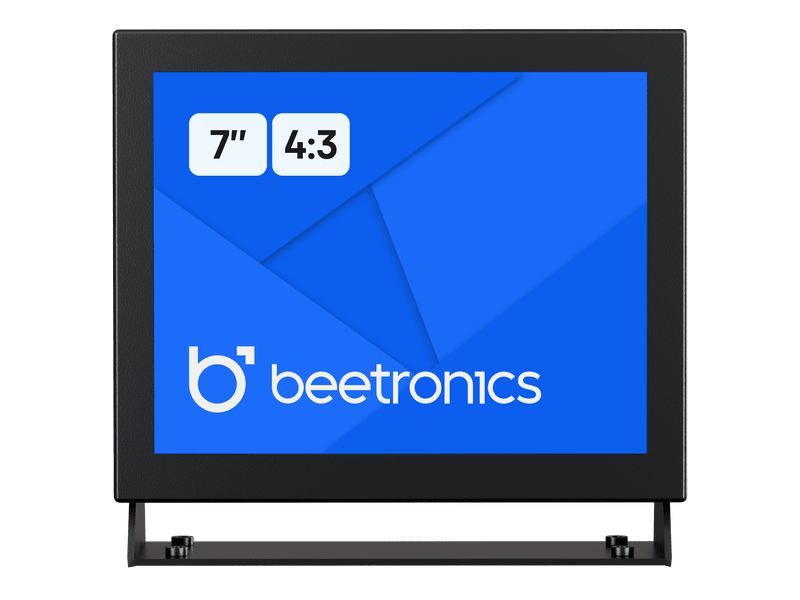

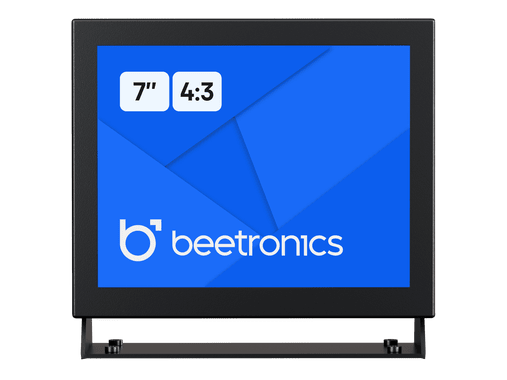

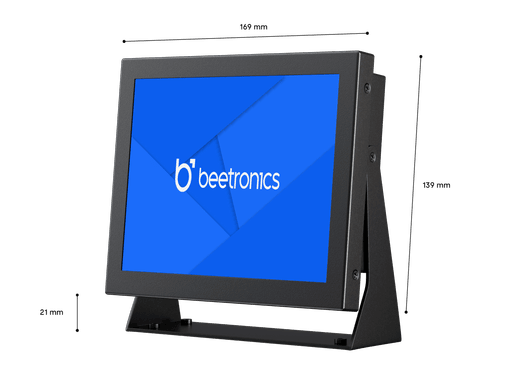

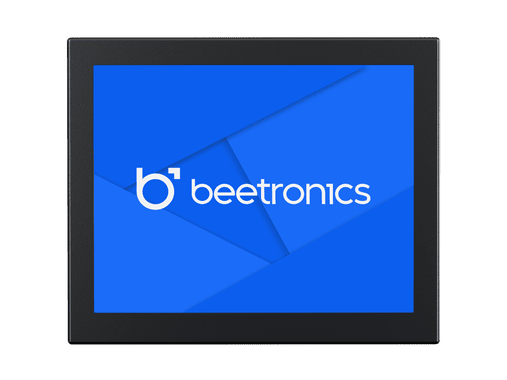

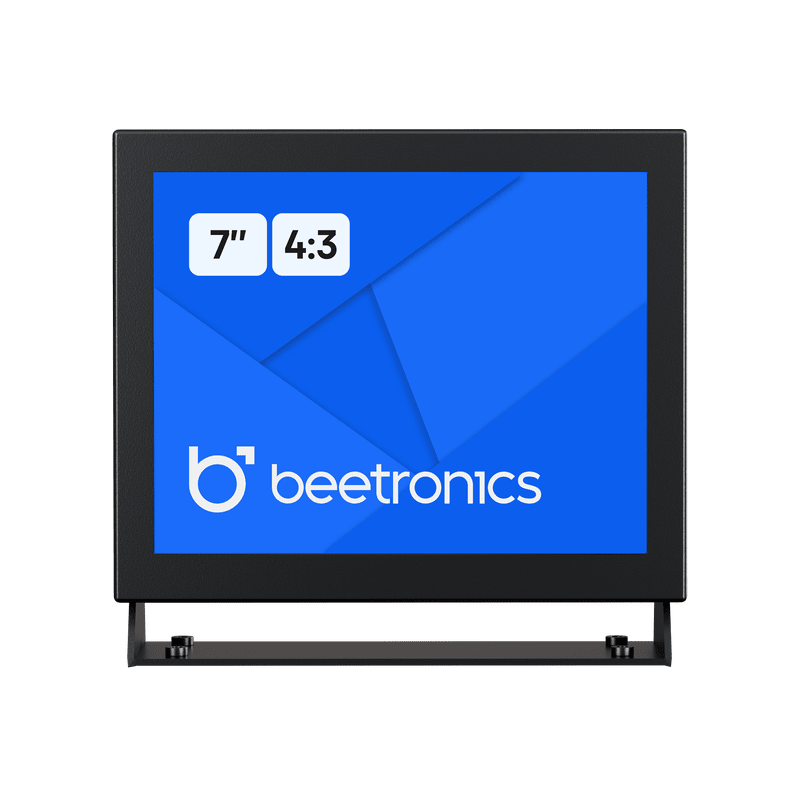

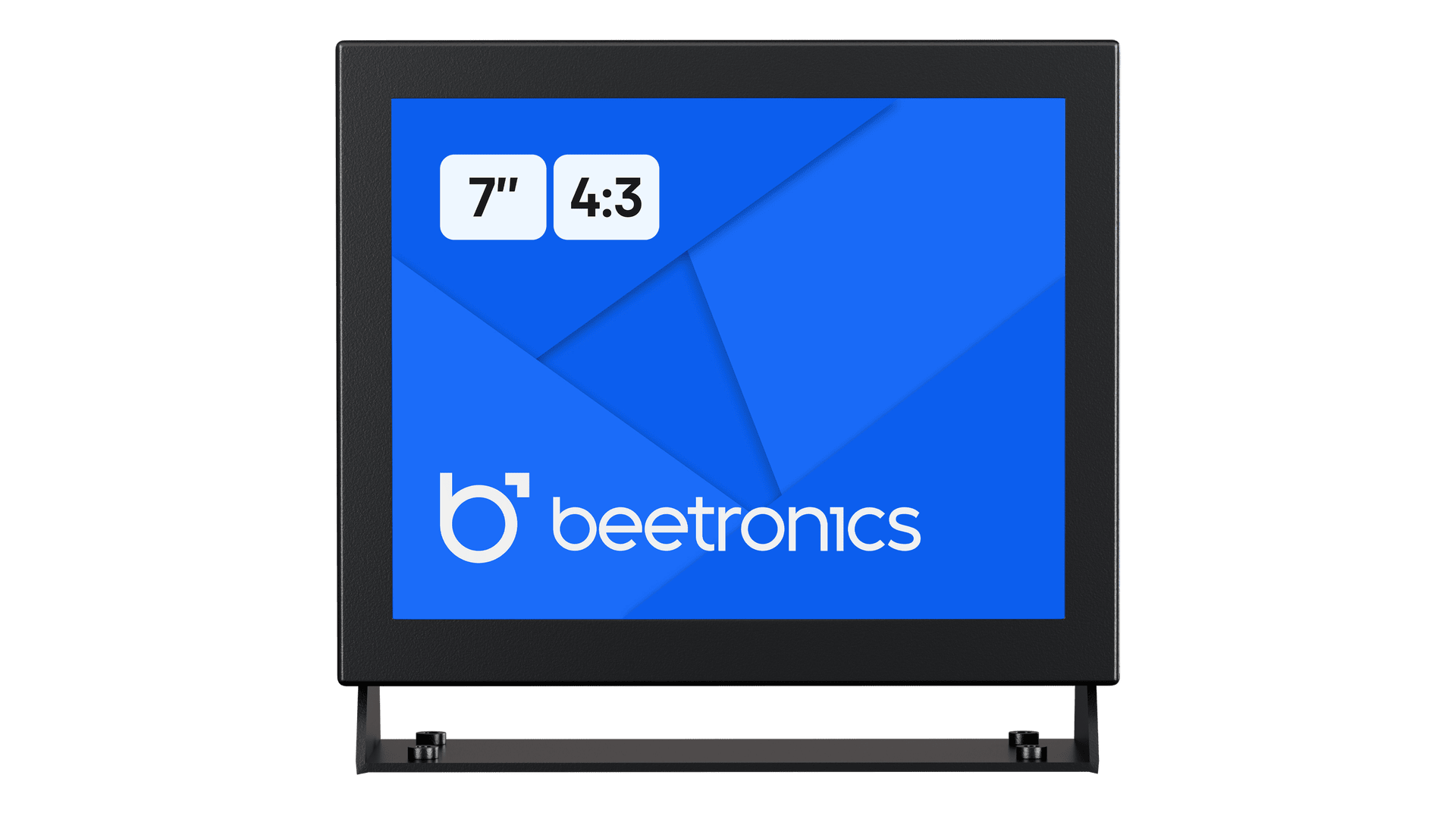

This 7 inch monitor has a matte IPS panel with a 4:3 aspect ratio. The monitor delivers a crisp image quality with excellent 178° viewing angles. The 7 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting.
This 7 inch monitor is equipped with a 4:3 aspect ratio IPS panel. The monitor delivers a crisp image with excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, color and brightness are all very easy to adjust. The monitor is designed to display 4:3 ratio resolutions and is able to scale any resolution up to 1080p.

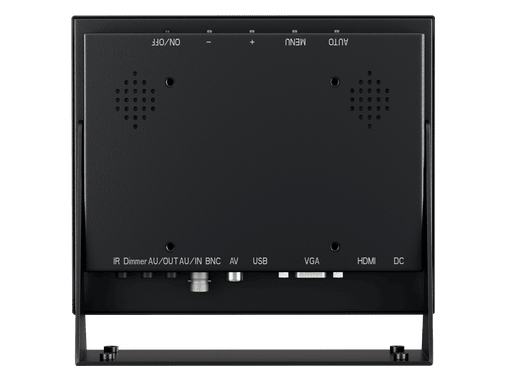

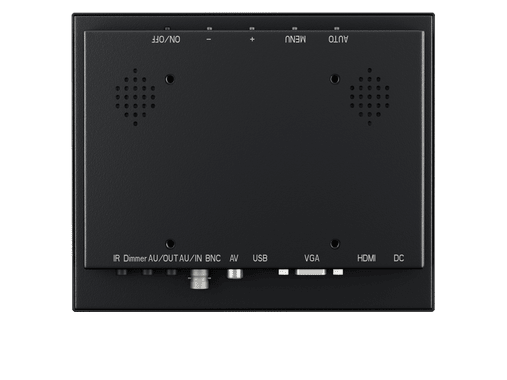

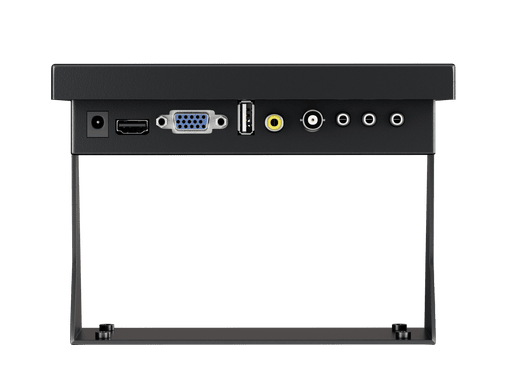

The Beetronics 7VG7M features HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on or off when it detects current or a video signal.
The 7VG7M is designed for continuous operation and professional use. The monitor is manufactured with high quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 28 Volts and features a fully dimmable backlight

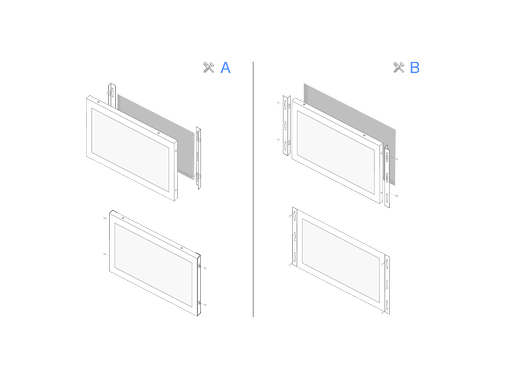

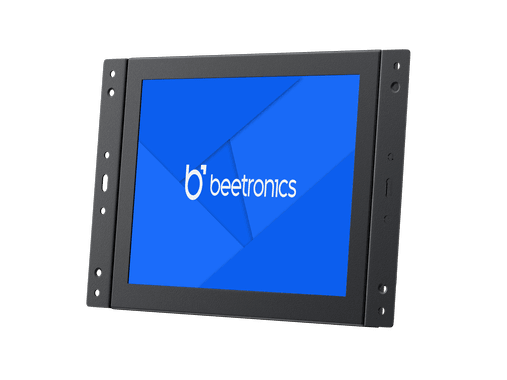

Thanks to numerous mounting options the 7 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

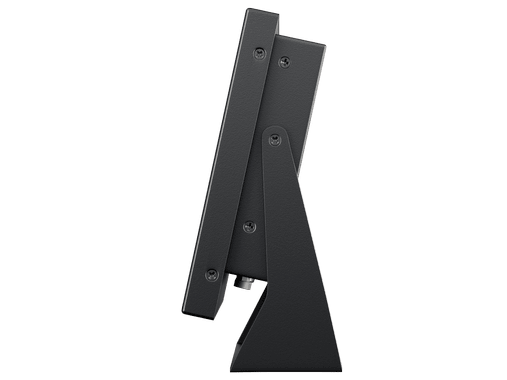

The Beetronics 7VG7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket.
General | |
---|---|
Manufacturer |
Beetronics
|
Item number |
7VG7M
|
Product name |
7 inch monitor metal (4:3)
|
Warranty |
2 years
|
Datasheet | |
Manual |
Panel | |
---|---|
Type |
LED
|
Diagonal size |
7 inches (177 mm)
|
Aspect ratio |
4:3
|
Native resolution |
1024 x 768
|
Supported resolutions |
1920 x 1200 (max), 640 x 480 (min)
|
Pixels per inch |
182 PPI
|
Color encoding system |
PAL/NTSC/SECAM
|
Brightness |
250 cd/m2
|
Contrast |
800:1
|
Connectivity | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
AUX input |
1x
|
AUX output |
1x
|
USB |
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
|
Size & weight | |
---|---|
Colour |
Black
|
Weight |
1,8 lbs (2,2 lbs with stand)
|
Width |
6.6 inches
|
Height |
5.5 inches (+ 0.8 inches with stand)
|
Thickness |
1.4 inches
|
Display dimensions |
5.6 x 4.2 inches
|
Technical drawing | |
3D Drawing |
Features and functions | |
---|---|
Audio |
Integrated speakers
|
Key-lock |
The control buttons can be blocked
|
Auto-on |
Automatically powers on when it receives current or a signal
|
Dimmable |
Adjustable backlight brightness
|
Power | |
---|---|
Input voltage |
DC 9-28V
|
Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Consumption |
5.4 Watt
|
Environmental | |
---|---|
Operating temperature |
-4°F to +140°F
|
Storage temperature |
-4°F to +158°F
|
Operating humidity |
20% - 90% non-condensing
|
Mounting | |
---|---|
Wall mount |
VESA (75 mm)
|
Flush mount |
Mounting strips included
|
Stand |
Adjustable and detachable
|
Certifications & Standards | |
---|---|
Certifications |
CE, FCC, RoHS, REACH, UKCA
|
Package content | |
---|---|
Includes |

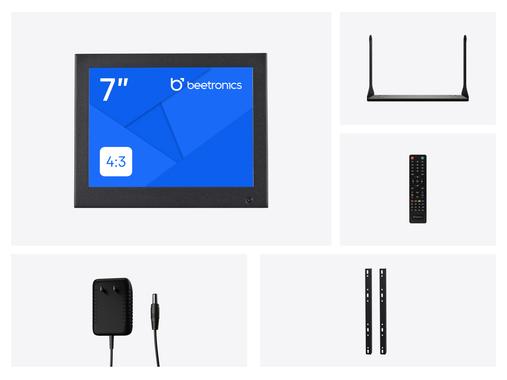

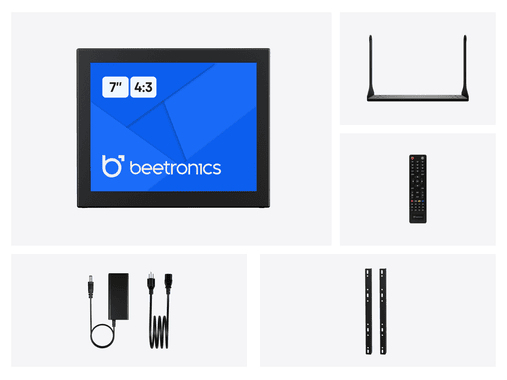

Monitor, Stand, Remote control, Mounting strips, AC power adapter, Manual
|
Manual | Download PDF |
Technical drawing | Download PDF |
3D Drawing | Download CAD/STP |
Datasheet | Download PDF |
