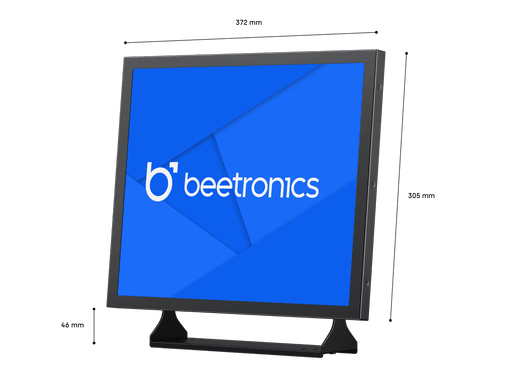

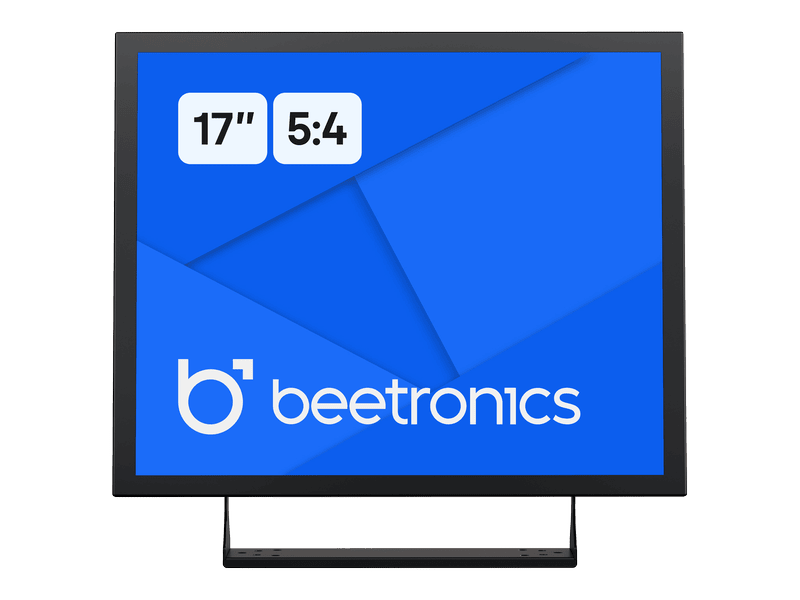

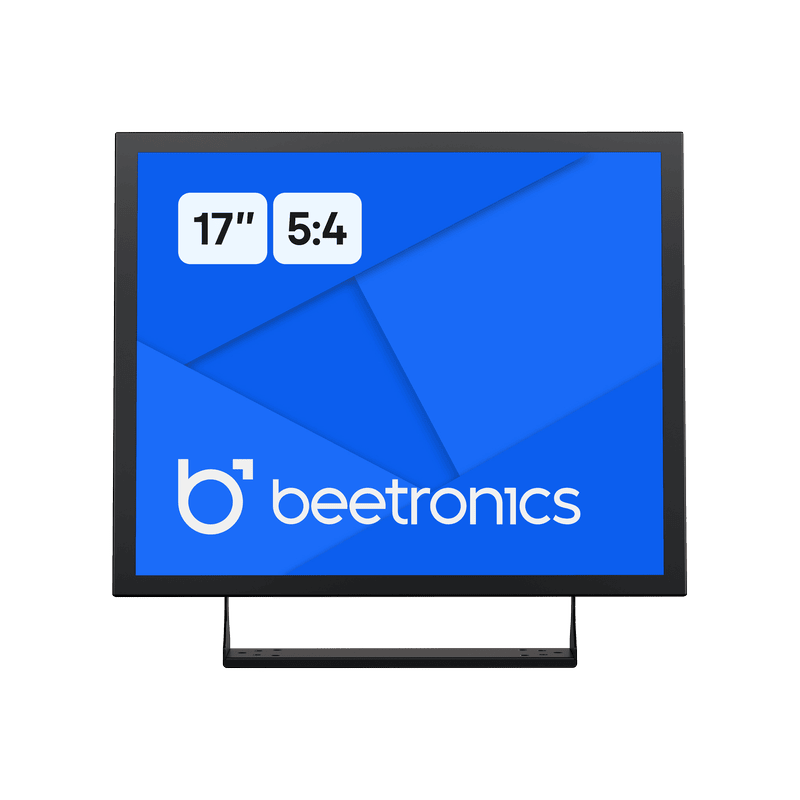

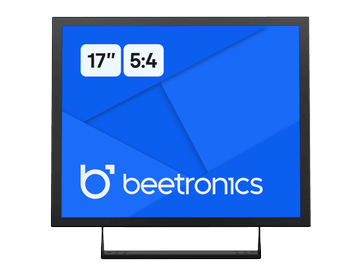

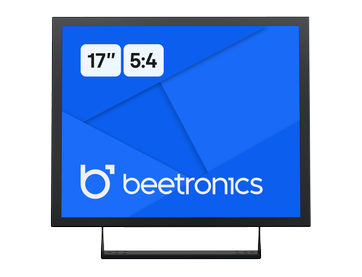

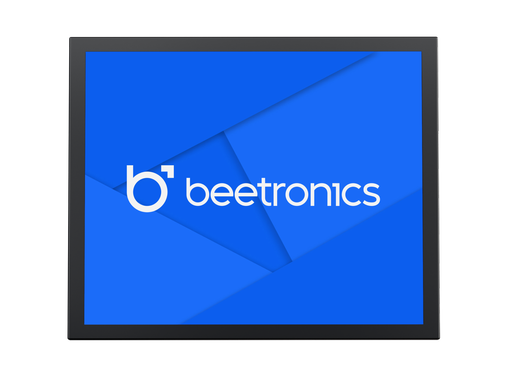

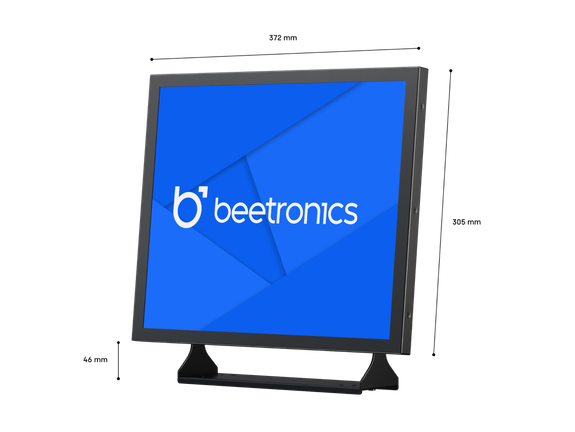

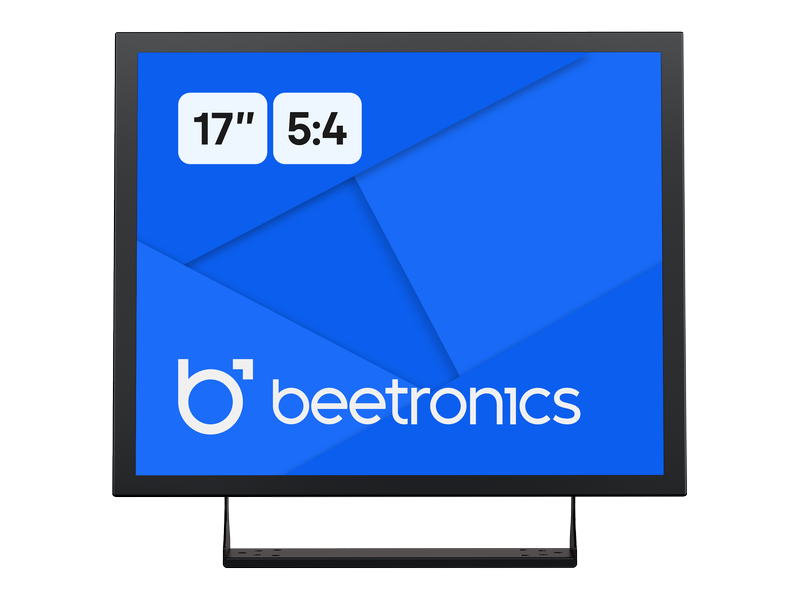

17 Inch Monitor Metal (5:4)

Model: 17VG7M
100+ units in stock

Product Information

  1. 5:4 aspect ratio
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 14.6 x 12.0 x 1.6 inches

This 17-inch monitor features a matte IPS panel with a 4:3 aspect ratio, ensuring sharp image quality and wide 178° viewing angles. Its durable metal housing makes it perfect for desktop use and suitable for both flush and wall mounting.

Display Type
$419.00
Order by 4:30 PM ET for same-day shipping
Long-Term Availability Consistently available for years to come.
Free Shipping & Returns No shipping costs and free 30-day returns.
5.000+ Reviews, Rated 4.8/5 Trusted by industry leaders worldwide.

Product Description

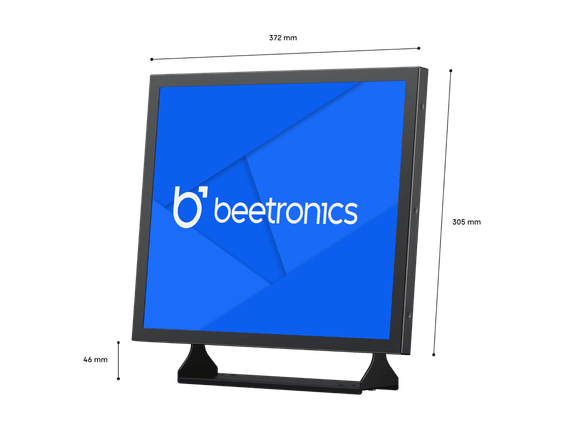

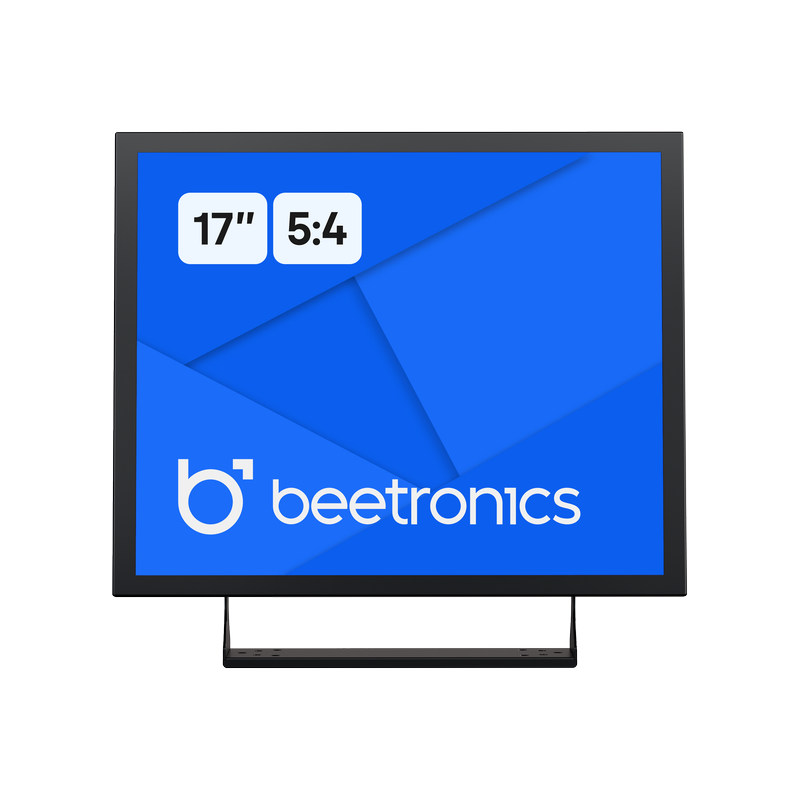

17 Inch Monitor Metal (5:4)

5:4 Aspect Ratio

This 17-inch monitor features an IPS panel with a 4:3 aspect ratio. Enjoy clear, vibrant images with impressive 178° viewing angles thanks to advanced IPS technology. The anti-glare screen minimizes distracting reflections, while the easy-to-adjust controls let you fine-tune contrast, color, and brightness to your liking. Perfect for displaying 4:3 content, this monitor can scale up to 1080p resolution.

17 Inch Monitor Metal (5:4)

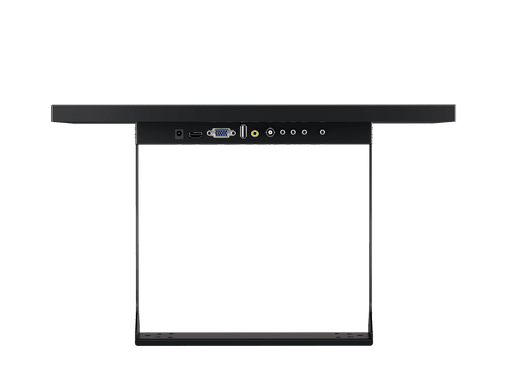

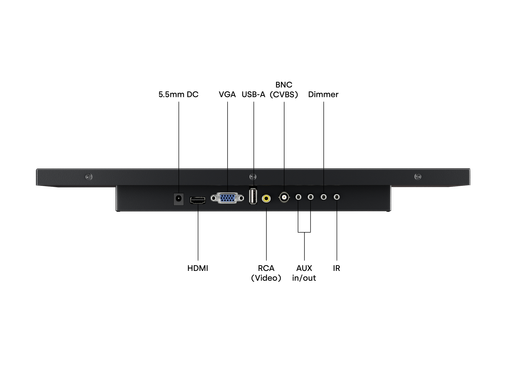

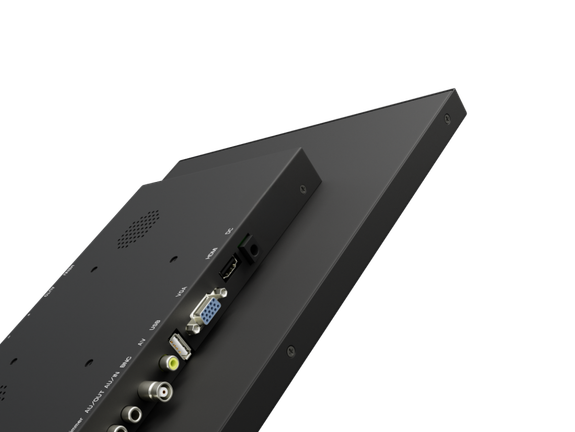

Versatile Connectivity

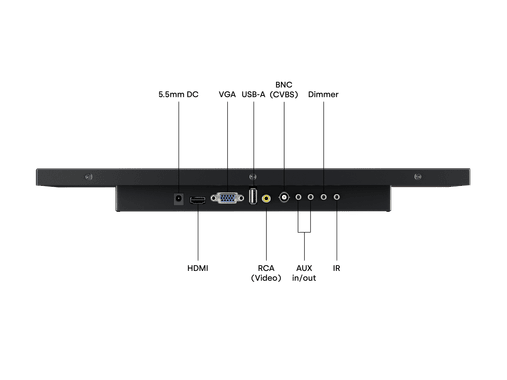

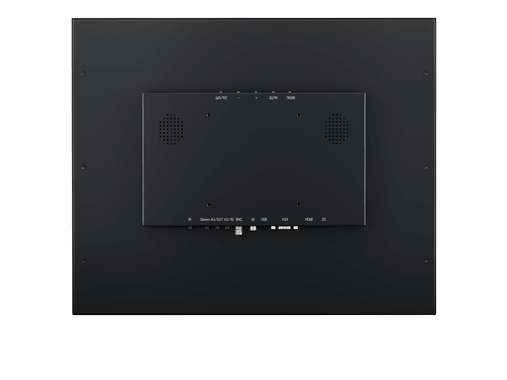

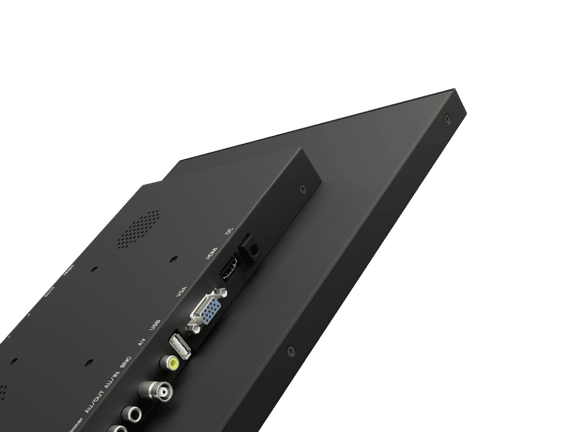

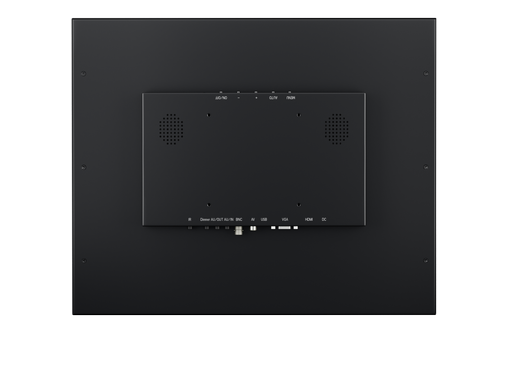

The Beetronics 17VG7M includes HDMI, VGA, BNC, and RCA ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

17 Inch Monitor Metal (5:4)

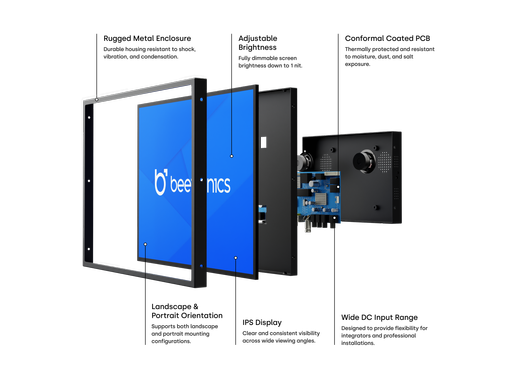

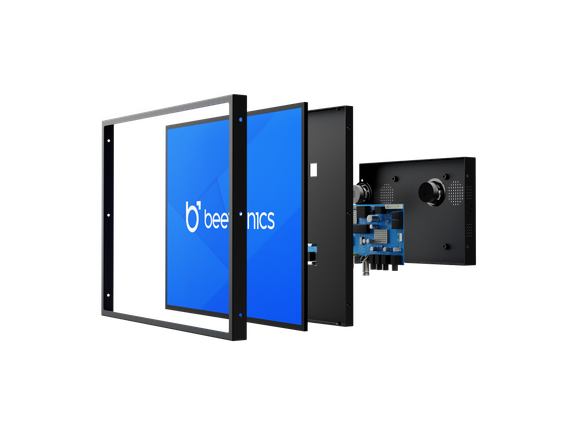

Designed for Professional Use

The 17VG7M is designed for continuous operation in professional applications. Built with industrial-grade components, it delivers reliable performance across a wide range of operating conditions. The monitor features a fully dimmable backlight and supports a wide 10–36V DC input range, providing flexibility for professional installations.

Mounting Options

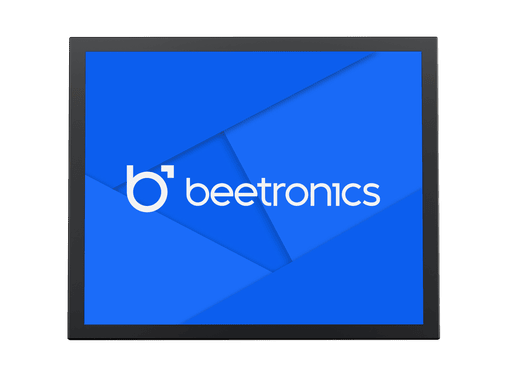

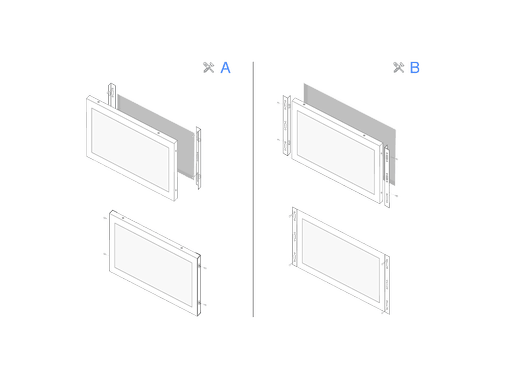

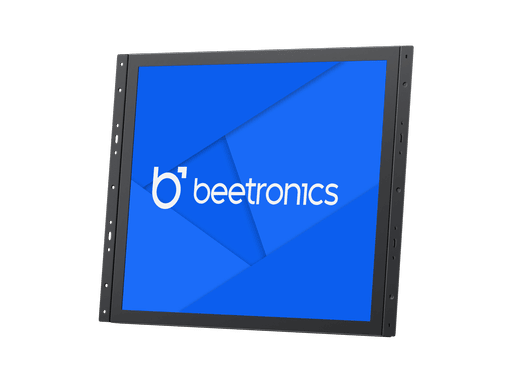

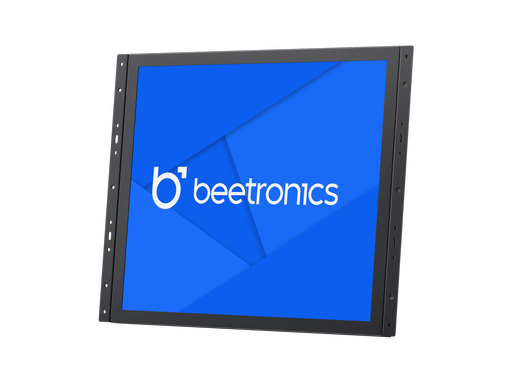

Flush-Mount

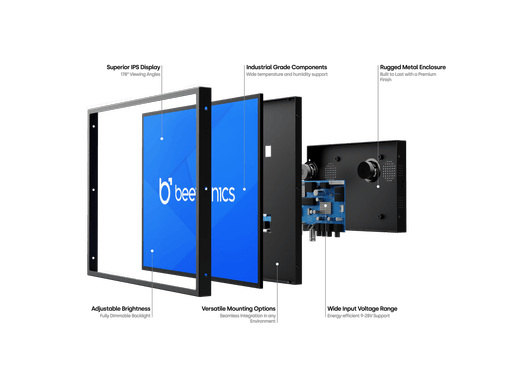

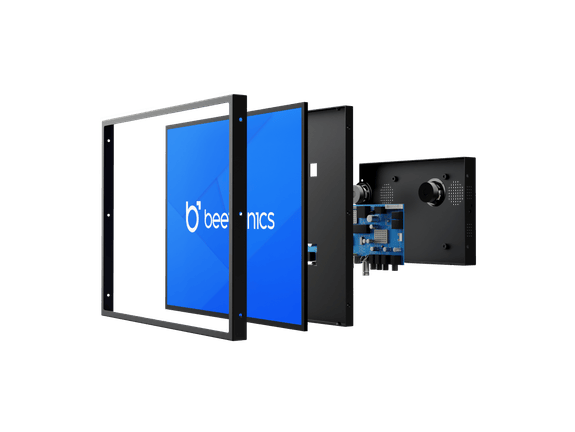

The monitor is designed for flush mounting, requiring no cooling or ventilation. It includes mounting strips as a standard feature, and its housing can be easily disassembled. This design provides exceptional flexibility, offering various installation options for smooth, seamless integration into nearly any environment.

Wall Mount

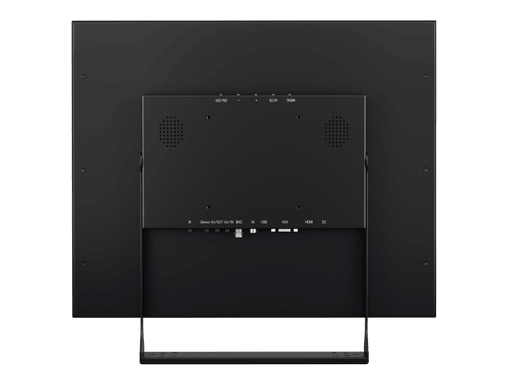

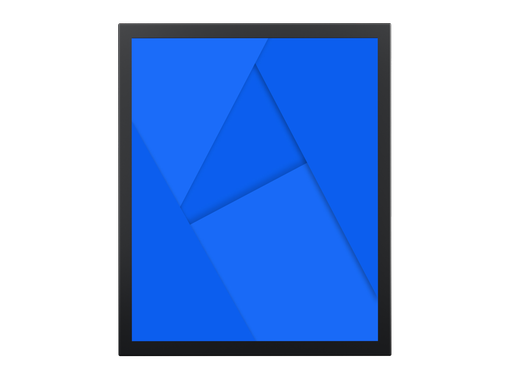

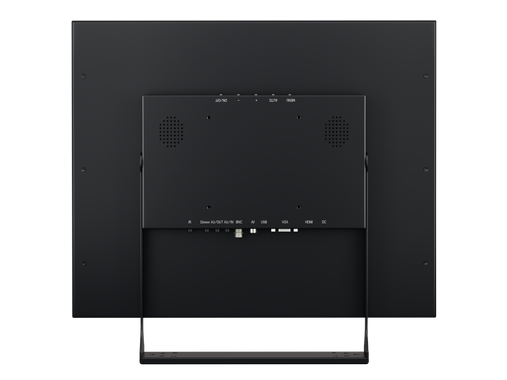

The monitor includes a universal 100mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

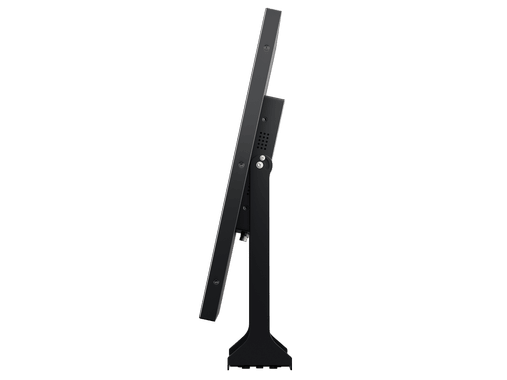

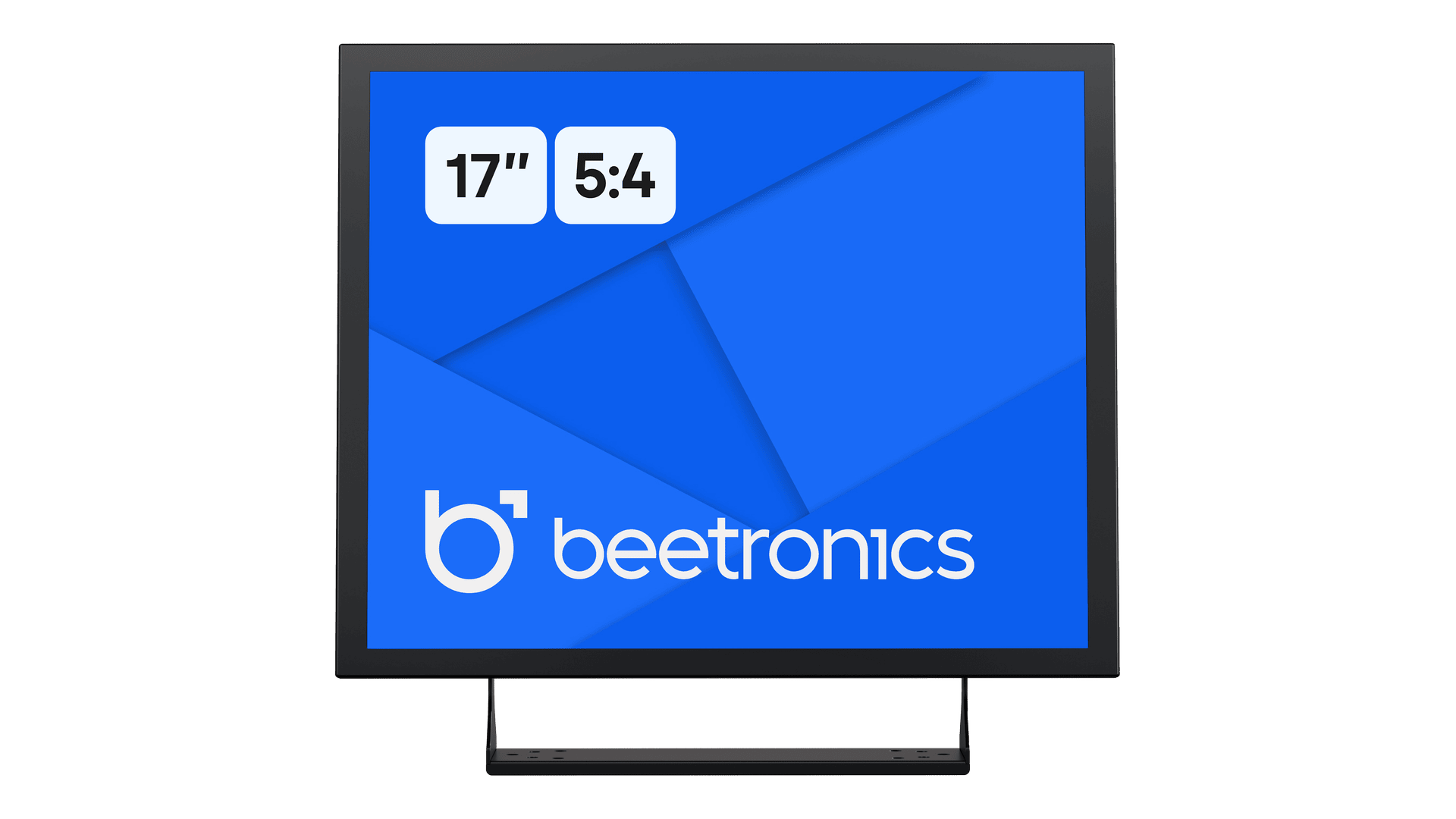

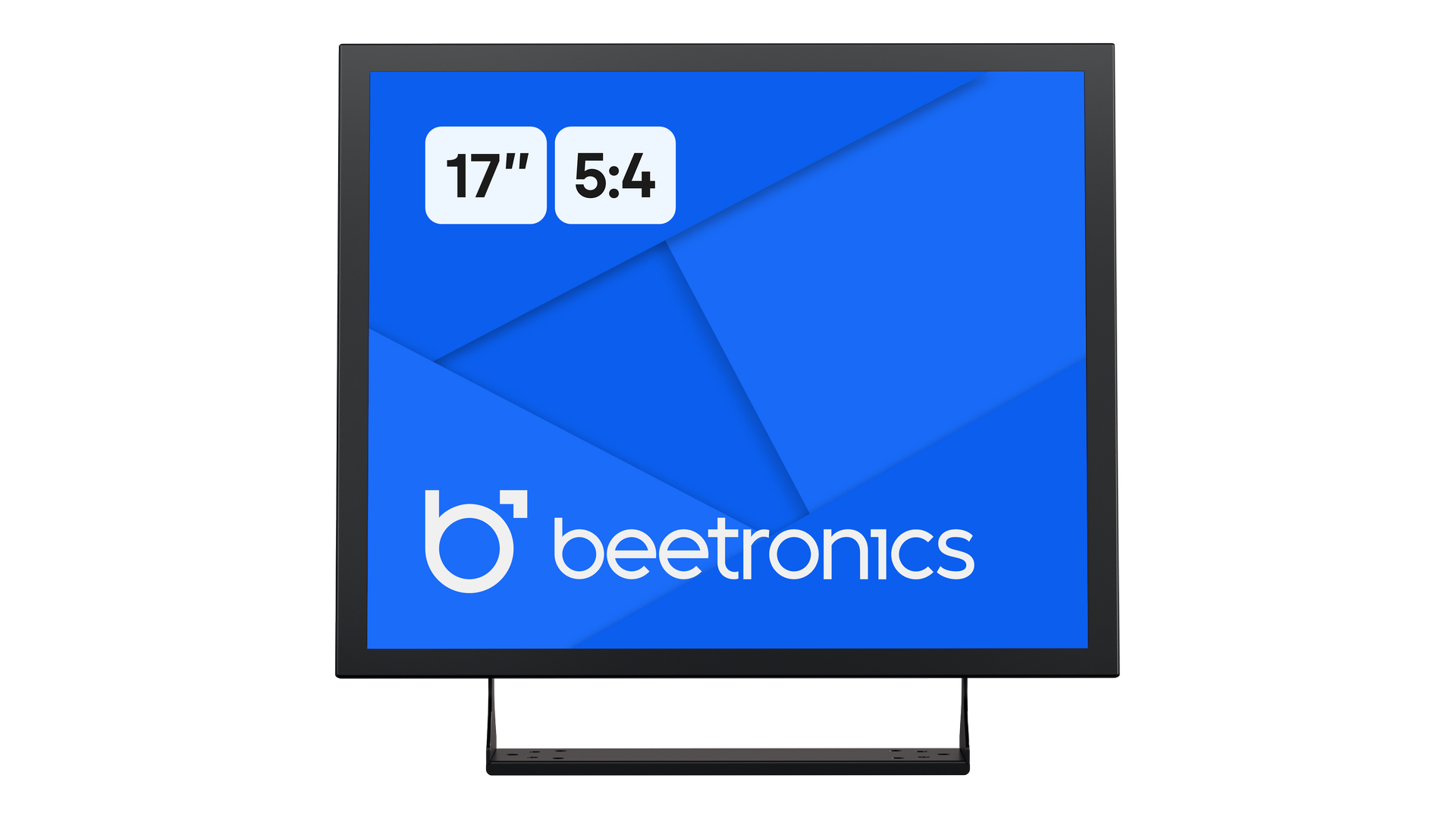

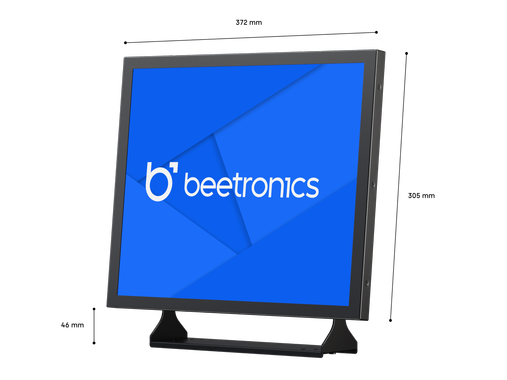

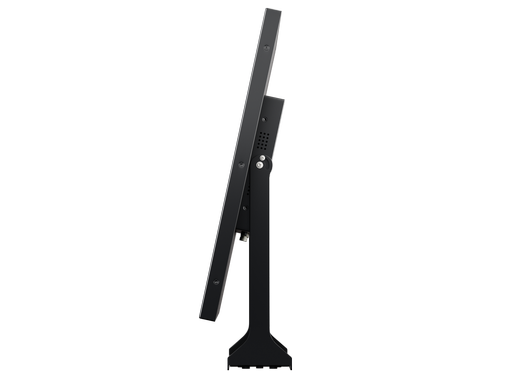

Stand

The monitor comes with a durable metal bracket that allows for 180-degree tilting. The bracket features screw holes for secure mounting to a surface, making it ideal for desktop, wall, or ceiling installations. If needed, the bracket can be easily removed, giving access to the universal 100mm VESA mount. This allows the monitor to be mounted using a variety of universal stands or brackets in both landscape and portrait orientations.

Specifications

General

Manufacturer
Beetronics
Product Line
Monitor Series
Product Name
17 Inch Monitor Metal (5:4)
Item Number
17VG7M
Previous Model
17VGM
Product Type
Monitor
Warranty
2 Years
Datasheet
Download PDF
User Manual
Download PDF
Quickstart
Download PDF

Display Architecture

Diagonal Size
17.0 Inches (432 mm)
Aspect Ratio
5:4
Native Resolution
1280 x 1024
Pixels Per Inch
96 PPI
Panel Type
IPS-LCD
Backlight
LED
Surface
Anti-Glare Hard Coating (3H)

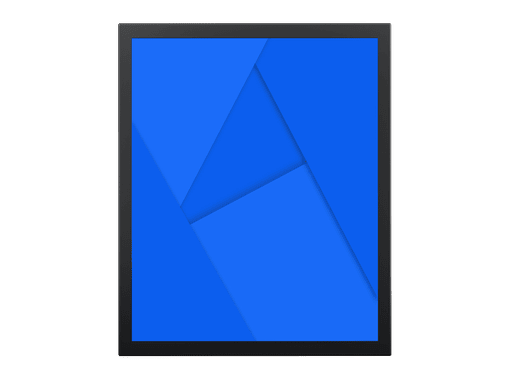

Supported Orientation
Landscape, Portrait, Face-up

Display Performance

Maximum Brightness
250 nits (typical)
Minimum Brightness
1 nit
Contrast
1000:1
Viewing Angle
178° Horizontal, 178° Vertical
Response Time
10 ms
Supported Resolutions
1920 x 1080 (max), 640 x 480 (min)
Color Encoding System
PAL/NTSC/SECAM

Operational Features

Audio
Dual Integrated Speakers
USB Media Player
Built-in USB media player with auto-play on power-up and continuous loop playback. Supports common video formats such as: MP4, AVI, MKV, MOV, MPG.OV, MPG.
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable backlight brightness via remote control or optional dimmer.
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.

Connectivity

HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA Video
1x
USB-A
1x Integrated USB Media Player
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x

Mechanical

Dimensions (Without Stand)
14.6 x 12.0 x 1.6 Inches
Image Size
13.3 x 10.6 Inches
Weight
6.6 lbs (8.1 lbs With Stand)
Color
Black
Technical Drawing (2D)
Download PDF
Technical Drawing (3D)
Download CAD/STP

Mounting

Wall Mount
VESA 100x100mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Supported Mounting Orientations
Landscape, Portrait, Face-up

Power

Input Voltage
19V DC
Operating Voltage Range
10-36V DC
Power Consumption
20 W (On), 0.4 W (Standby)
Power Supply
External DC Power Supply Included
Included Power Adapter
Input: 100-240V AC, 50/60Hz, Output: 19V DC, 2.5A
Power Connector
5.5 mm × 2.1 mm DC Barrel Connector
DC Cable Length
4.9 ft
AC Power Cord Length
3.3 ft

Environmental

Max. Non-Stop Operating Time
24/7
Operating Temperature
-10°C to +60°C (14°F to 140°F)
Storage Temperature
-20°C to +70°C (-4°F to 158°F)
Operating Humidity
10% - 90% Non-Condensing
MTBF
50K

Compliance & Regulations

Regional Standards
CE, UKCA, FCC (Part 15), ISED (ICES-003)
Environmental Standards
RoHS, REACH, WEEE, California Proposition 65, Conflict Minerals (3TG; supplier declaration-based)
Industry Standards
Maritime: IEC 60945, DNV-CG-0339 (Requires BEE-PSU1-MAR); Railway: EN 50155, EN 45545-2; Automotive: e-Mark, UN ECE R10, SAE J1113, SAE J1455
Compliance Scope
Standards and certifications apply to the tested product configuration using the specified power supply. Final system-level compliance remains the responsibility of the party responsible for system integration.
Compliance Statement
Download PDF

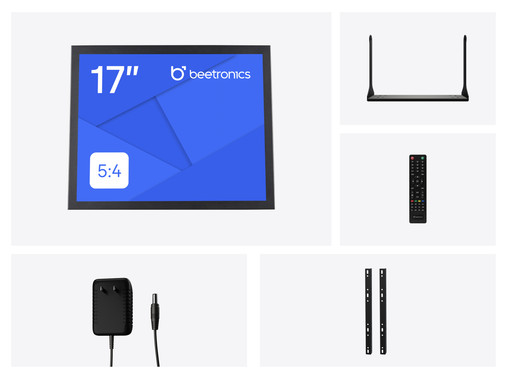

Package Content

Includes
Monitor, Mounting Strips, Stand, Remote Control, Power Adapter, Quickstart

Frequently Asked Questions

Can the 17VG7M withstand vibration and environmental exposure?

Yes. The 17 Inch Monitor Metal (5:4) is designed and tested for reliable operation in environments subject to vibration and mechanical stress. Its rugged metal enclosure provides a durable housing for the display and internal electronics, while the conformal-coated PCB provides additional protection against moisture, dust, corrosion, and other environmental exposure.

Is the 17VG7M suitable for daily and continuous use?

Yes. The 17 Inch Monitor Metal (5:4) is designed for reliable daily use and is rated for continuous 24/7 operation, allowing it to remain powered and in use around the clock without scheduled shutdown periods. The display has an MTBF of 50,000 hours.

Can the 17VG7M be powered from a 12V or 24V DC source?

Yes. The 17 Inch Monitor Metal (5:4) supports a 10-36V DC input range, including 12V and 24V, and comes with an AC power adapter for use with a standard wall outlet. Compliance coverage applies only to the tested power configurations specified in the model’s compliance statement and does not automatically extend to alternative power configurations.

Can the screen brightness on the 17VG7M be adjusted for different lighting conditions?

Yes. The 17 Inch Monitor Metal (5:4) offers adjustable screen brightness for different ambient lighting conditions. Brightness can be adjusted using the included remote control or an optional external dimmer/potentiometer. The display can be dimmed down to approximately 1 nit for dark or low-light environments, while the matte front panel helps reduce reflections and glare in brighter conditions.

Can the 17VG7M monitor automatically turn on when power is applied?

Yes. The 17 Inch Monitor Metal (5:4) includes an Auto On feature that automatically turns the monitor on when power or a video signal is detected. Once enabled, no manual power-on is required, and the monitor automatically resumes operation using the previously selected input source when power is restored.
