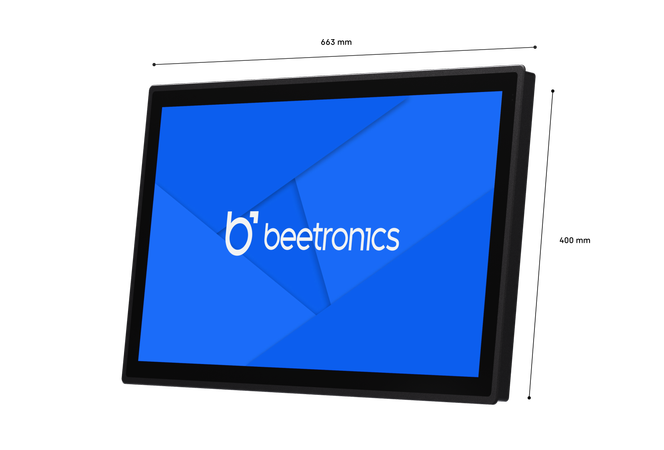

27 Inch Touchscreen Metal (High-Brightness)

1 / 10 ·

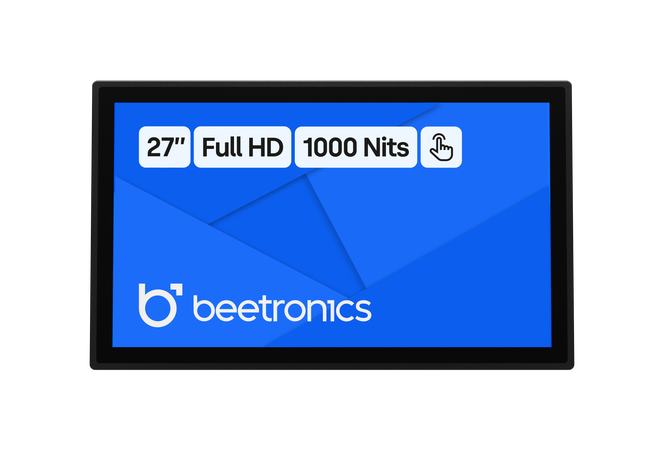

27 Inch Touchscreen Metal
(High-Brightness)

Model: 27HB9M/U1

100+ units in stock

Product Information

High-brightness Full-HD multi-touch panel
Input: HDMI, DisplayPort, USB-C, VGA
Mounting: Flush, embedded, panel mount

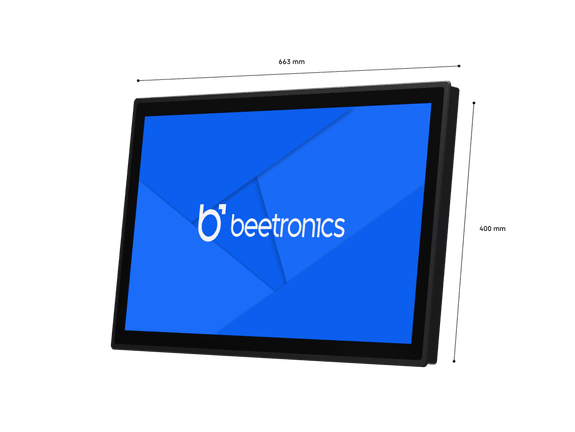

External dimensions: 26.1 x 15.8 x 2.0 inches

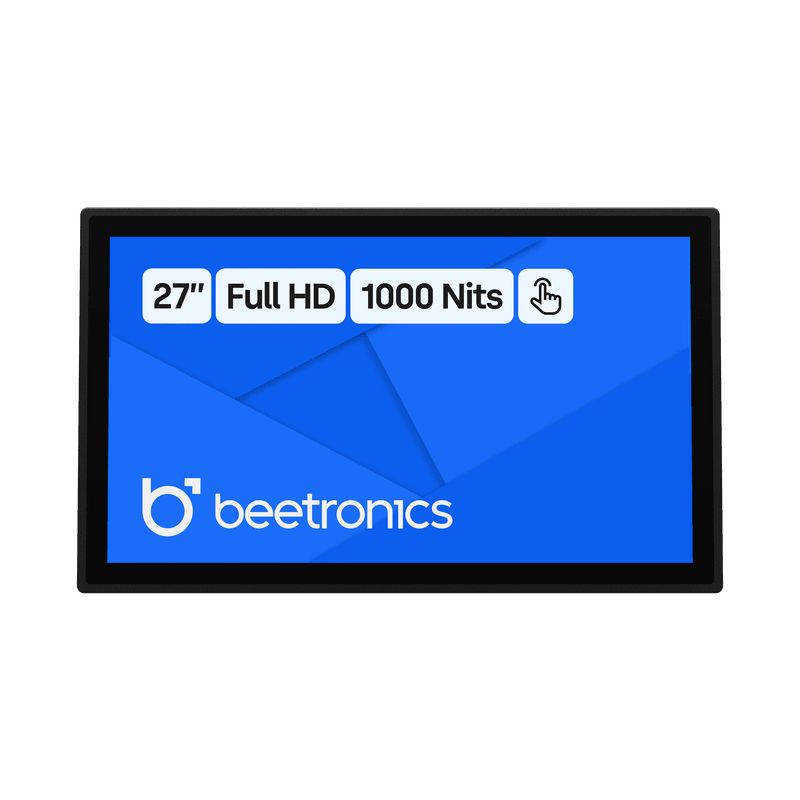

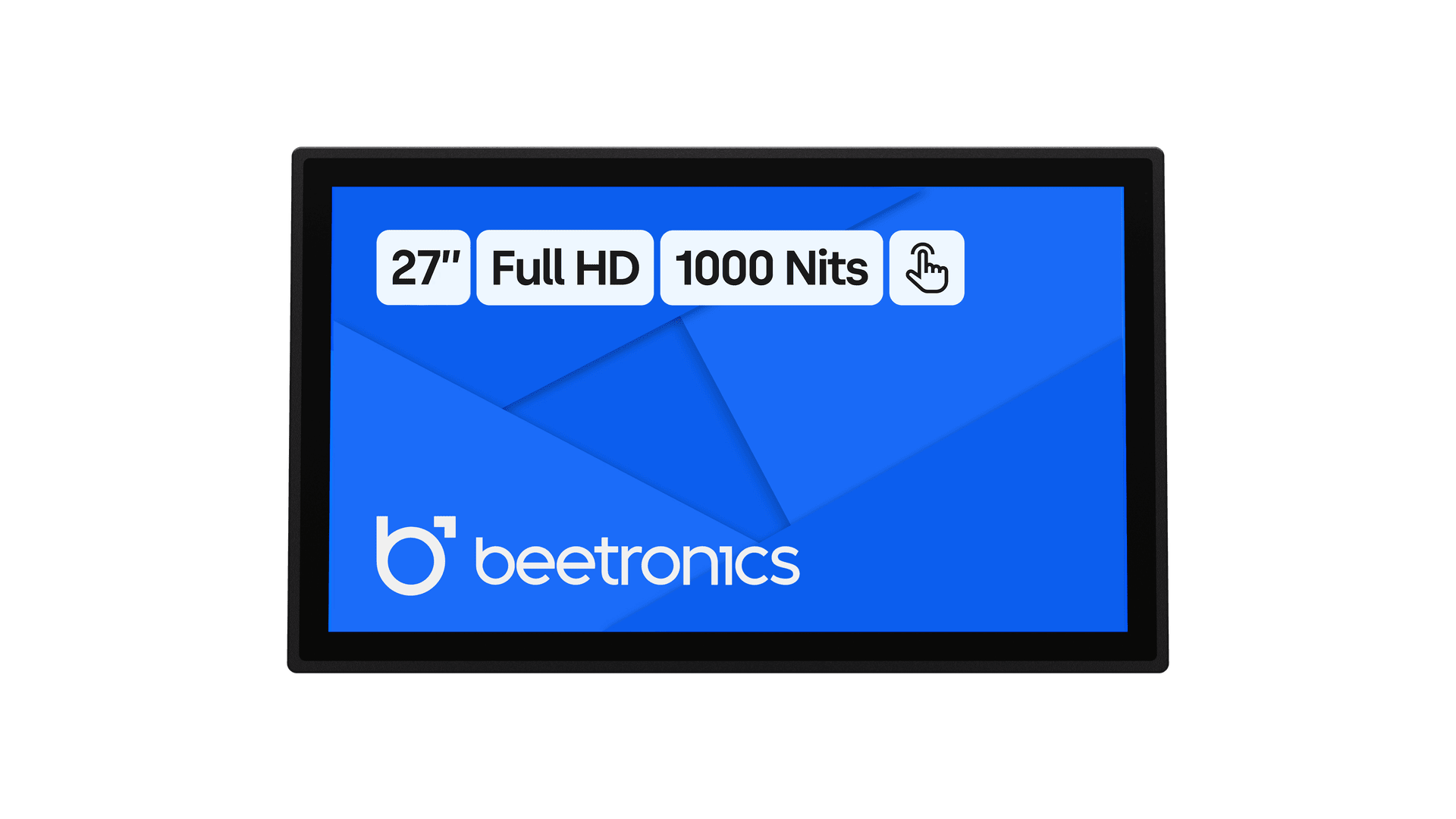

This 27-inch touchscreen monitor features a matte, Full HD panel with a high brightness of 1000 nits. The display is designed for both indoor and outdoor use and guarantees excellent visibility in any environment. Thanks to its sturdy and compact metal casing, the 27HB9M/U1 can be seamlessly integrated into any application. The touchscreen is suitable for professional, commercial, and industrial use.

$1,299.00

Order by 4:30 PM ET for same-day shipping

Long-Term Availability Consistently available for years to come.

Free Shipping & Returns No shipping costs and free 30-day returns.

5.000+ Reviews, Rated 4.8/5 Trusted by industry leaders worldwide.

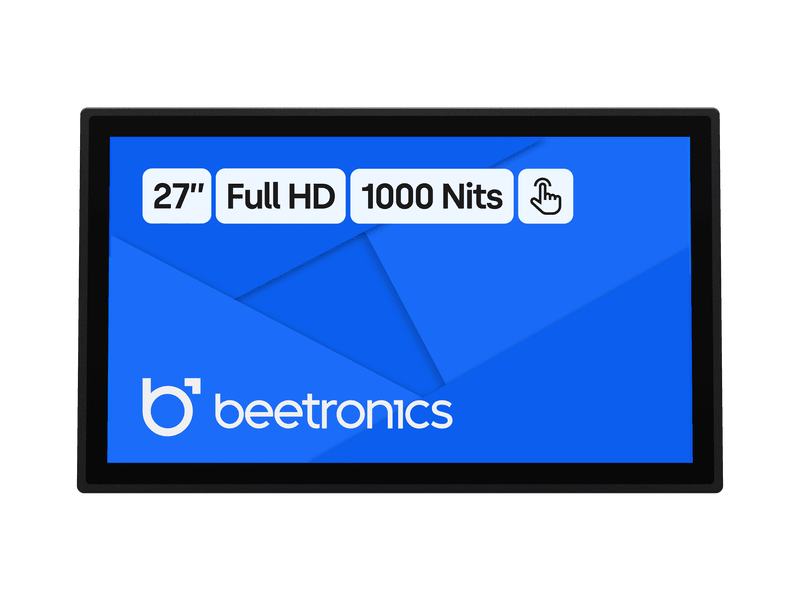

Sunlight-Readable Full HD Multi-Touch Panel

The 27-inch touchscreen monitor is equipped with a Full HD panel that provides a sharp image with true-to-life colors. The touchscreen has a matte front panel with a high brightness of 1000 NITS and is optically bonded. This ensures an easily readable image without reflections even in the brightest environments.

The screen brightness can also be automatically dimmed based on ambient light via the integrated light sensor. The brightness can also be manually adjusted using the included remote control or an optional dimmer knob.

Compatible With Windows, macOS and Linux

The 27-inch touchscreen monitor is compatible with devices using a Windows, macOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

Designed for Professional Use

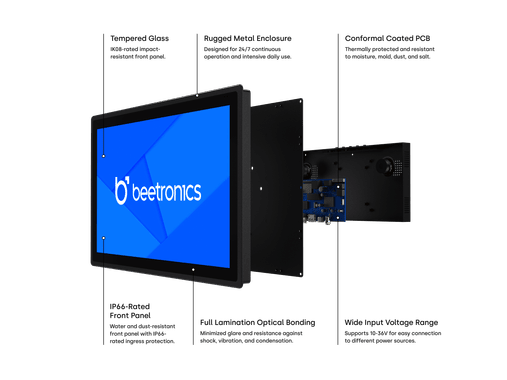

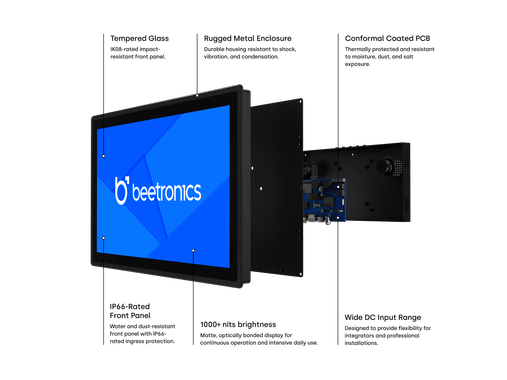

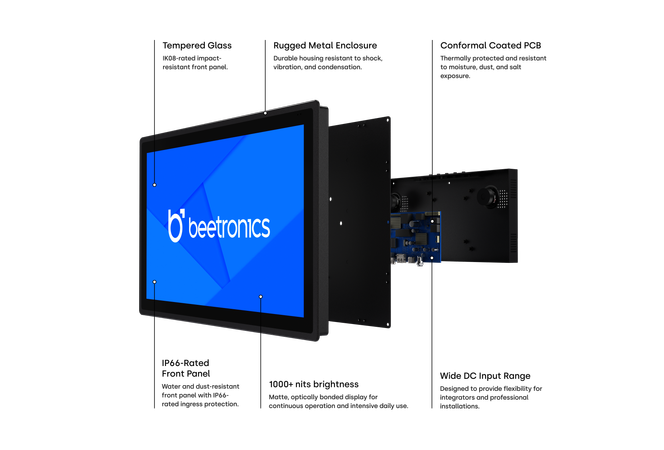

The 27HB9M/U1 is designed for professional applications and continuous operation. Built with industrial-grade components, the monitor is housed in a durable metal enclosure with an impact-resistant front panel. The display features a locking DC power connector and supports a wide 12–36V DC input range, providing flexibility for professional installations.

Mounting Options

Panel Mount

The monitor is designed for panel mounting, delivering a robust, water-resistant, and dust-proof solution. With its sleek, symmetrical bezel and integrated rubber sealing ring, it ensures a seamless, professional finish. This maintenance-free touchscreen requires no ventilation and is built for both indoor and outdoor environments. It supports mounting in both landscape and portrait orientations, offering flexible installation options to suit a variety of settings.

Wall Mount

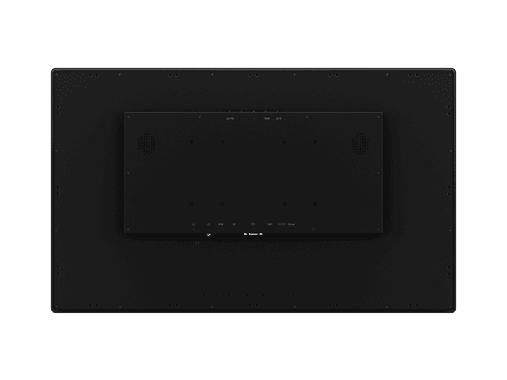

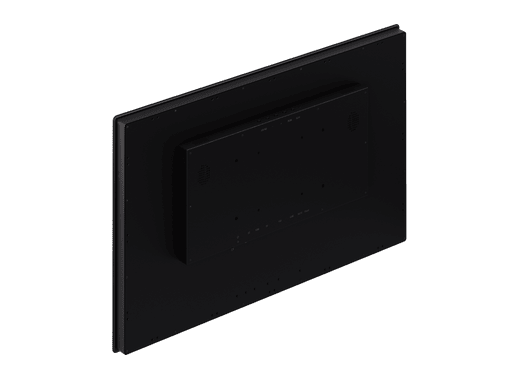

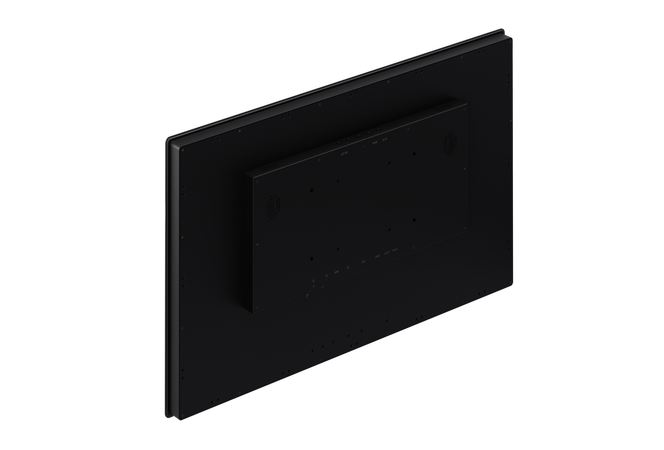

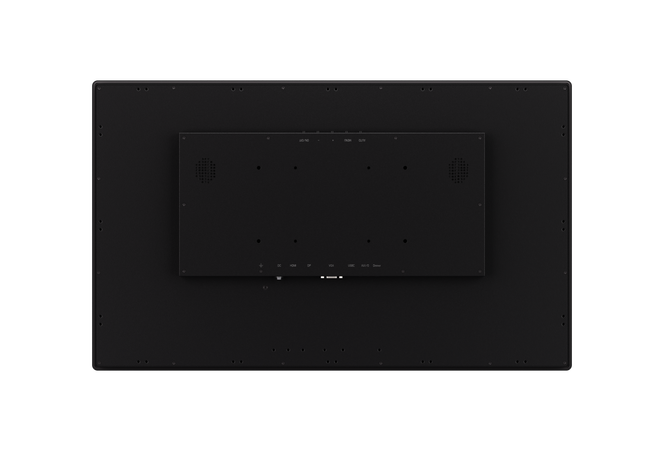

The touchscreen includes a universal 100mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Stand

The touchscreen is equipped with a universal 100mm VESA mounting pattern on the back of the housing. This allows the touchscreen to be mounted on our optional VDK7 desk stand, as well as on universal stands and mounting brackets. It can be mounted in both landscape and portrait orientation.

General

Manufacturer: Beetronics
Product Line: HB Touchscreen Series
Product Name: 27 Inch Touchscreen Metal (High-Brightness)
Item Number: 27HB9M/U1
Product Type: Touchscreen
Warranty: 2 Years
Datasheet: Download PDF
User Manual: Download PDF
Quickstart: Download PDF

Display Architecture

Aspect Ratio: 16:9 (4:3 Adjustable)
Native Resolution: 1920 x 1080
Pixels Per Inch: 82 PPI
Diagonal Size: 27.0 Inches (687 mm)
Backlight: LED
Surface: Tempered Glass, Matte Finish

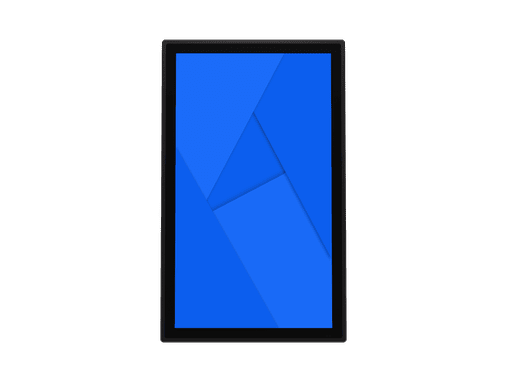

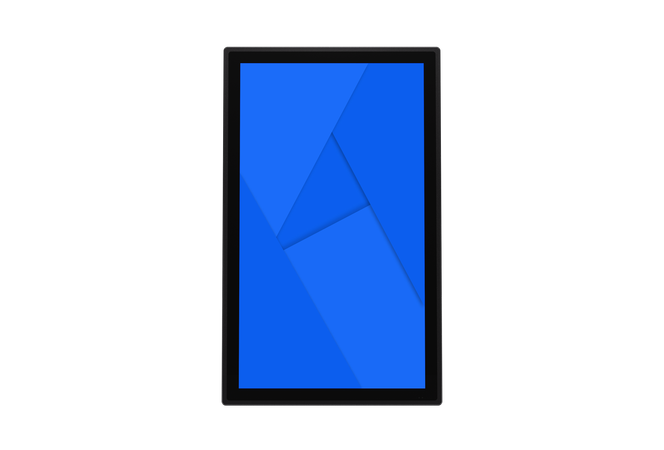

Supported Orientation: Landscape, Portrait, Face-up

Display Performance

Maximum Brightness: 1000 nits (typical)
Minimum Brightness: 1 nit
Contrast: 2000:1
Viewing Angle: 178° Horizontal, 178° Vertical
Response Time: 10 ms
Supported Resolutions: 1920 x 1080 (max), 640 x 480 (min)

Touch Technology

Touch Technology: Capacitive (PCAP), Optically Bonded
Touch Points: 10-Point (Multi-Touch)
Touch Interface: USB HID-Compliant
Touch Control: Stylus, Hand, Glove
Gesture Support: Tap, Swipe, Scroll, Pinch-to-Zoom (dependent on host system OS and application)
Touch Drivers: Download Touchscreen Driver

Operational Features

Audio: Dual Integrated Speakers
Key-Lock: The control buttons can be blocked.
Auto-On: Automatically powers on when it receives current or a signal.
Dimmable: Adjustable backlight brightness via remote control, optional dimmer, or an integrated ambient light sensor for automatic brightness adjustment. Dimming thresholds can be configured.

Software & Compatibility

Windows: Windows 8, 10, 11
Windows Embedded: Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS: Tahoe, Sequoia, Sonoma
Linux: All Linux Distributions
Brightsign: All BrightsignOS Versions
Samsung DeX: All Samsung DeX Versions

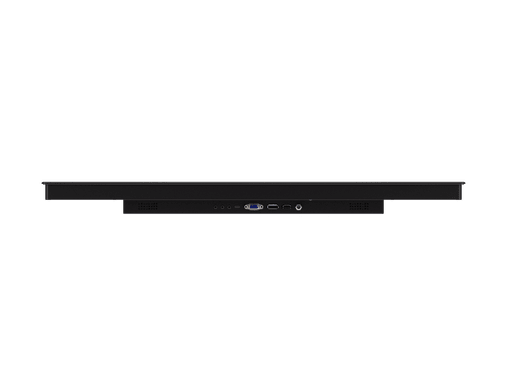

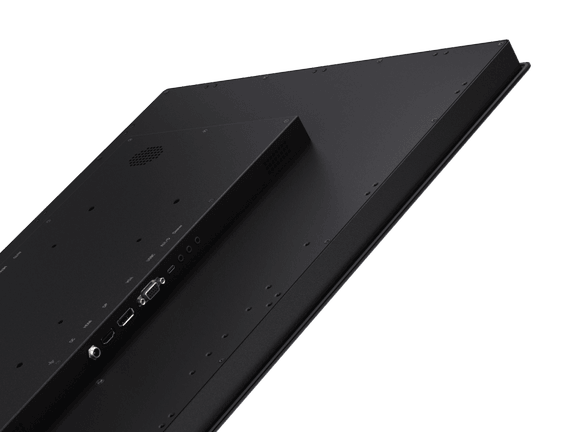

Connectivity

HDMI: 1x
DisplayPort: 1x
VGA: 1x
USB-C: 1x Video, Audio, Touch
USB-A: Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
AUX Input (3.5mm): 1x
AUX Output (3.5 mm): 1x

Mechanical

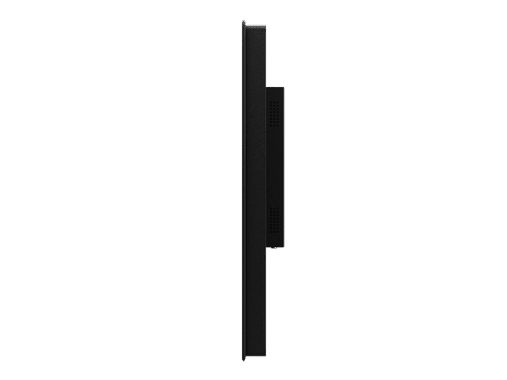

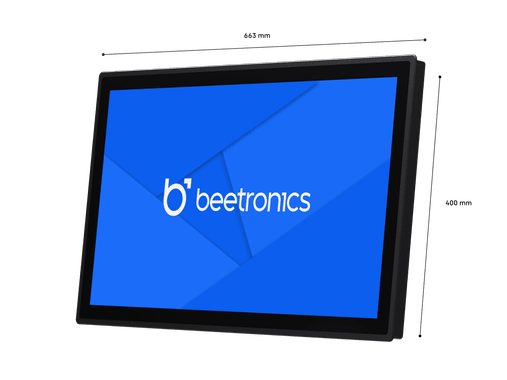

Dimensions (Without Stand): 26.1 x 15.1 x 2.0 Inches
Active Area: 23.6 x 13.3 Inches
Weight: 20.1 lbs
Color: Black
Technical Drawing (2D): Download PDF
Technical Drawing (3D): Download CAD/STP

Mounting

Wall Mount: VESA 100x100mm
Flush Mount: Panel Mount Accessories Included
Supported Mounting Orientations: Landscape, Portrait, Face-up

Power

Input Voltage: 19V DC
Operating Voltage Range: 12-36V DC
Power Consumption: 50 W (On), 0.4 W (Standby)
Power Supply: External DC Power Supply Included
Included Power Adapter: Input: 100-240V AC, 50/60Hz, Output: 24V DC, 3.0A
Power Connector: 5.5 mm × 2.1 mm DC Barrel Connector
DC Cable Length: 4.9 ft
AC Power Cord Length: 3.3 ft

Environmental

Max. Non-Stop Operating Time: 24/7
Operating Temperature: -20°C to +70°C (-4°F to 158°F)
Storage Temperature: -30°C to +80°C (-22°F to 176°F)
Operating Humidity: 10% - 90% Non-Condensing
Ingress Protection (IP): IP66 When Panel Mounted
Impact Protection (IK): IK08
MTBF: 50K

Compliance & Regulations

Regional Standards: CE, UKCA, FCC (Part 15), ISED (ICES-003)
Environmental Standards: RoHS, REACH, WEEE, California Proposition 65, Conflict Minerals (3TG; supplier declaration-based)
Industry Standards: Maritime: IEC 60945, DNV-CG-0339 (Requires BEE-PSU1-MAR); Railway: EN 45545-2; Automotive: e-Mark, UN ECE R10, SAE J1113, SAE J1455
Compliance Scope: Standards and certifications apply to the tested product configuration using the specified power supply. Final system-level compliance remains the responsibility of the party responsible for system integration.
Compliance Statement: Download PDF

Package Content

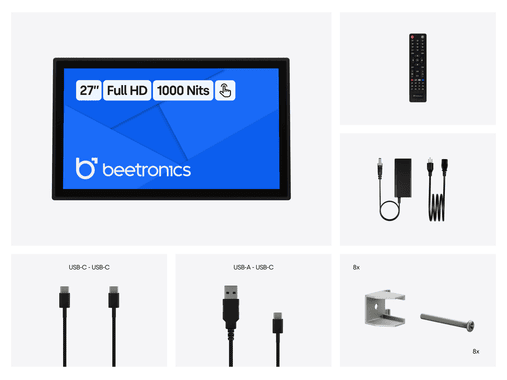

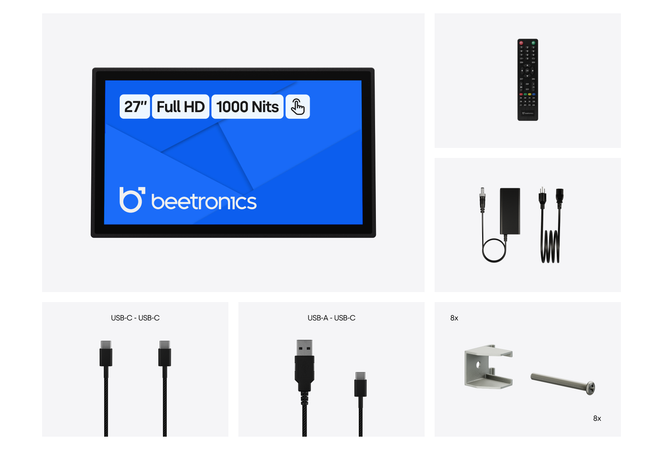

Includes: Touchscreen, USB-C to USB-C Cable, USB-C to USB-A Cable, Mounting Clip (20x), Corner Bracket (4x), Straight Bracket (10x),Screws, Remote Control, Power Adapter, Quickstart

Compatible Accessories

Dimmer: Compatible With External Dimmer (DMK7/DMK8)
Wall Mounting: Compatible With Flat Wall Mount Bracket (VWB1)
Touch Pen: Compatible With CTS7 Capacitive Touchscreen Stylus

Manual(PDF)

Quickstart(PDF)

Compliance Statement(PDF)

2D Drawing (PDF)

3D Drawing (STP)

Datasheet (PDF)

Touchscreen Drivers (DRIVER)

Frequently Asked Questions

Is the 27HB9M/U1 touchscreen readable in direct sunlight?

Yes. The 27 Inch Touchscreen Metal (High-Brightness) provides 1,000 nits of full-screen brightness for clear visibility in direct sunlight and other high-ambient-light conditions. An integrated ambient light sensor automatically adjusts the screen brightness as ambient light levels change and can dim the display when inactive. Brightness can also be adjusted manually using the included remote control.

Is the 27HB9M/U1 weather-resistant for outdoor installations?

Yes. The 27 Inch Touchscreen Metal (High-Brightness) is suitable for both indoor and outdoor installations. When panel-mounted, the touchscreen’s integrated sealing gasket seals against the mounting surface, creating an IP66-rated front that protects against dust and water. This allows the front of the touchscreen to be exposed to outdoor conditions while the rear electronics and connections remain enclosed within the installation.

Can the 27HB9M/U1 be integrated into an enclosure or panel?

Yes. The 27 Inch Touchscreen Metal (High-Brightness) is designed specifically for panel-mounted installations. It includes mounting clips that secure the touchscreen directly into an enclosure or panel, while its fanless, passively cooled design allows it to operate without internal fans or other moving parts. Detailed dimensions, mounting points, and installation measurements are provided in the downloadable 2D and 3D drawings under Product Specifications.

Can the 27HB9M/U1 be used in dusty or humid environments?

Yes. The 27 Inch Touchscreen Metal (High-Brightness) is designed for reliable operation in environments where dust and humidity may be present. Its rugged metal enclosure provides a durable housing, while the conformal-coated PCB provides additional protection against moisture, dust, and other environmental contaminants. The IK08-rated tempered glass surface provides increased resistance to impact, and an MTBF of 50,000 hours supports reliable, long-term operation.

Can condensation or dust build up behind the screen of the 27HB9M/U1?

No. The 27 Inch Touchscreen Metal (High-Brightness) is optically bonded, which means the space between the LCD and the tempered-glass front is completely filled with a transparent adhesive. Because there is no air gap, there is no space where moisture or dust can collect. This prevents the fogging, condensation, and dust build-up between the LCD and front glass that can occur in air-gap displays.
