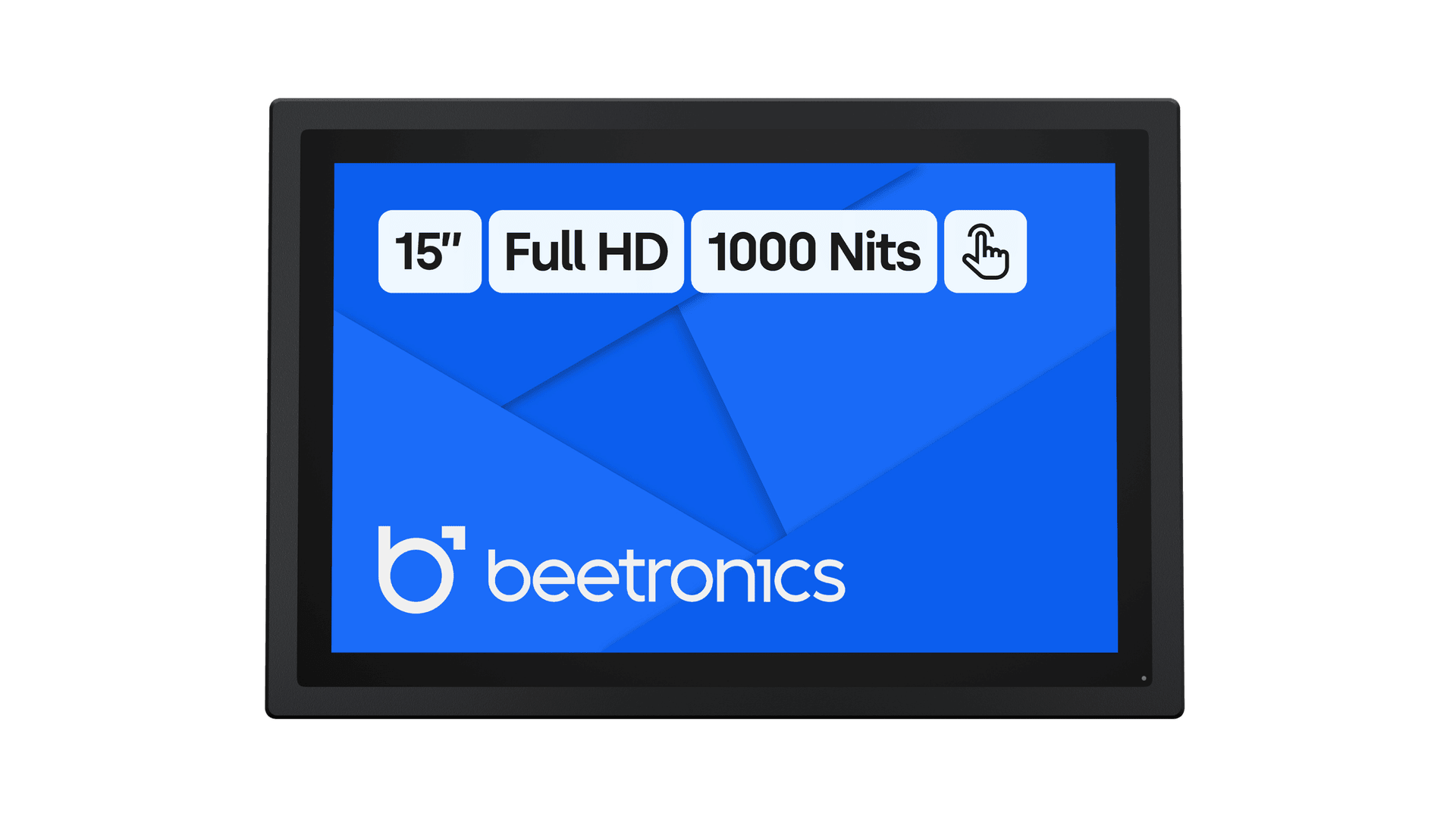

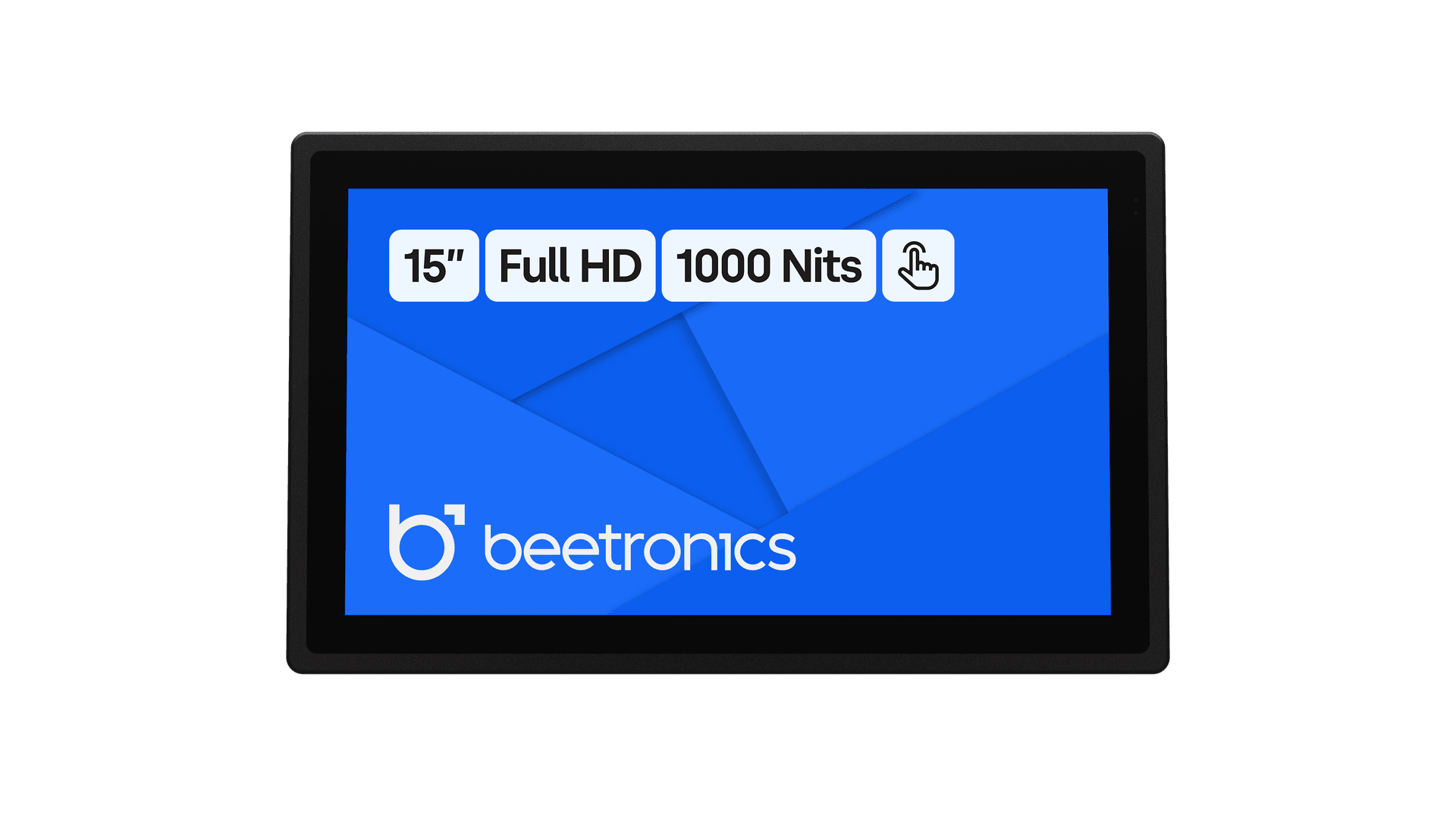

15 Inch Touchscreen Metal (High Brightness)
Model: 15HB9M
35 units in stock
15 Inch Touchscreen Metal (High Brightness)
15 Inch Touchscreen Metal (High Brightness)
15 Inch Touchscreen Metal (High Brightness)
15 Inch Touchscreen Metal (High Brightness)
15 Inch Touchscreen Metal (High Brightness)
15 Inch Touchscreen Metal (High Brightness)
15 Inch Touchscreen Metal (High Brightness)
15 Inch Touchscreen Metal (High Brightness)
15 Inch Touchscreen Metal (High Brightness)
15 Inch Touchscreen Metal (High Brightness)

15 Inch Touchscreen Metal
(High Brightness)

Model: 15HB9M
35 units in stock
  1. High brightness full HD multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, embedded, panel mount

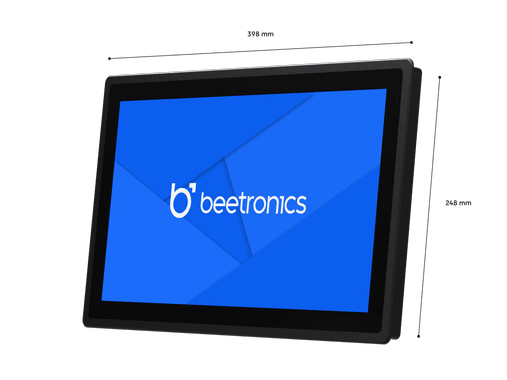

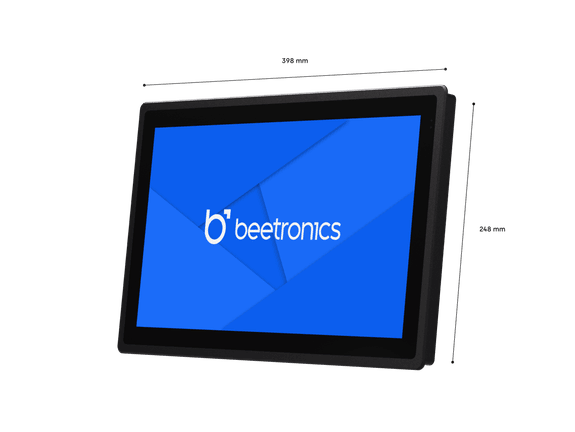

  4. External dimensions: 16.0 x 10.1 x 1.7 inches
  5. More specifications
Order by 5:00 pm ET for Delivery on Tuesday
  • Description
  • Specifications
  • Connectivity
  • Downloads

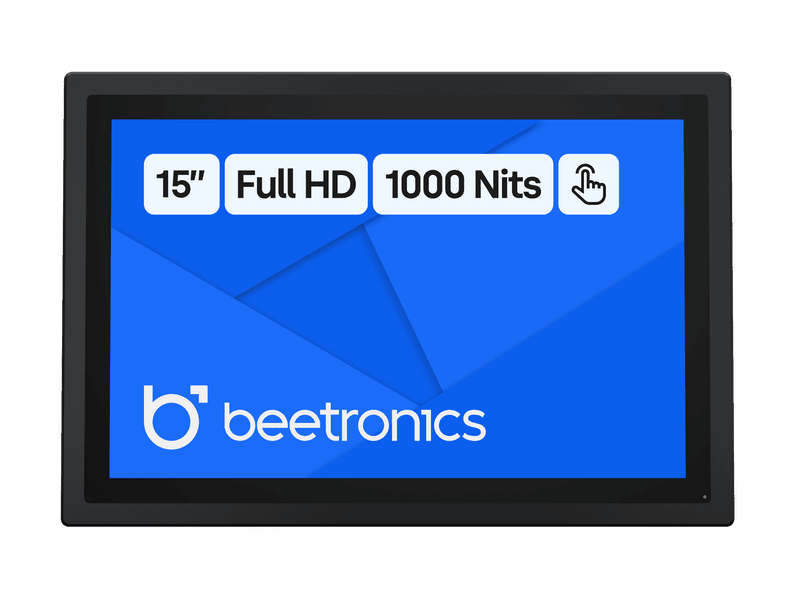

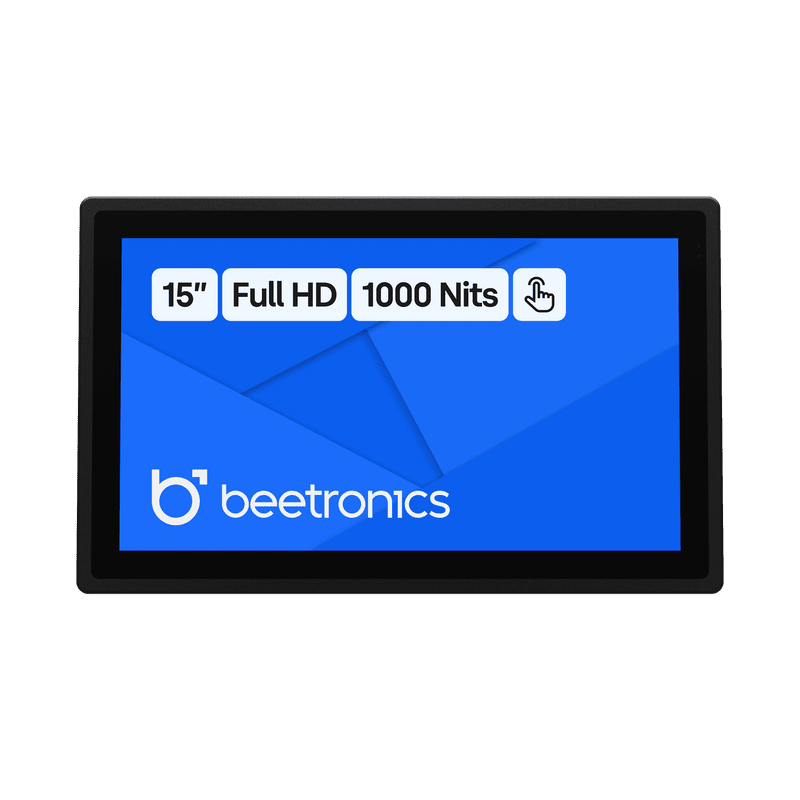

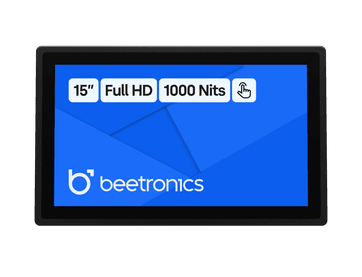

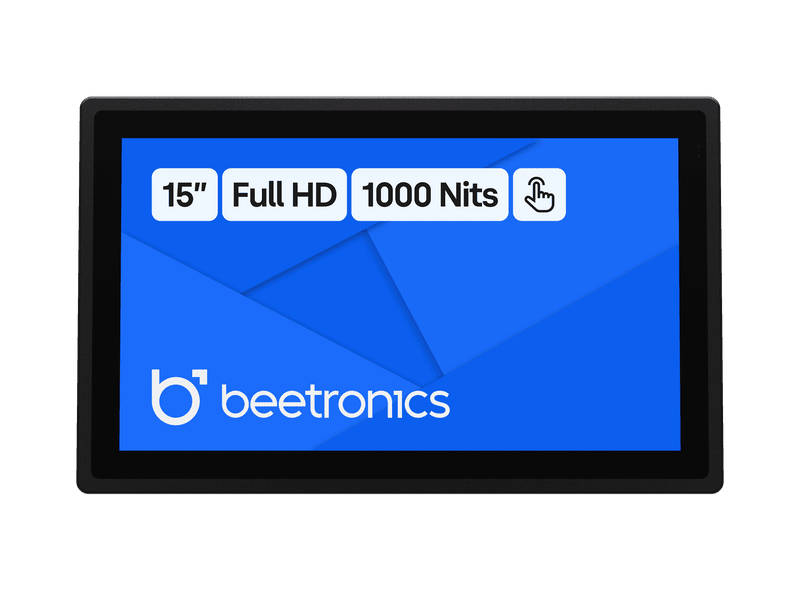

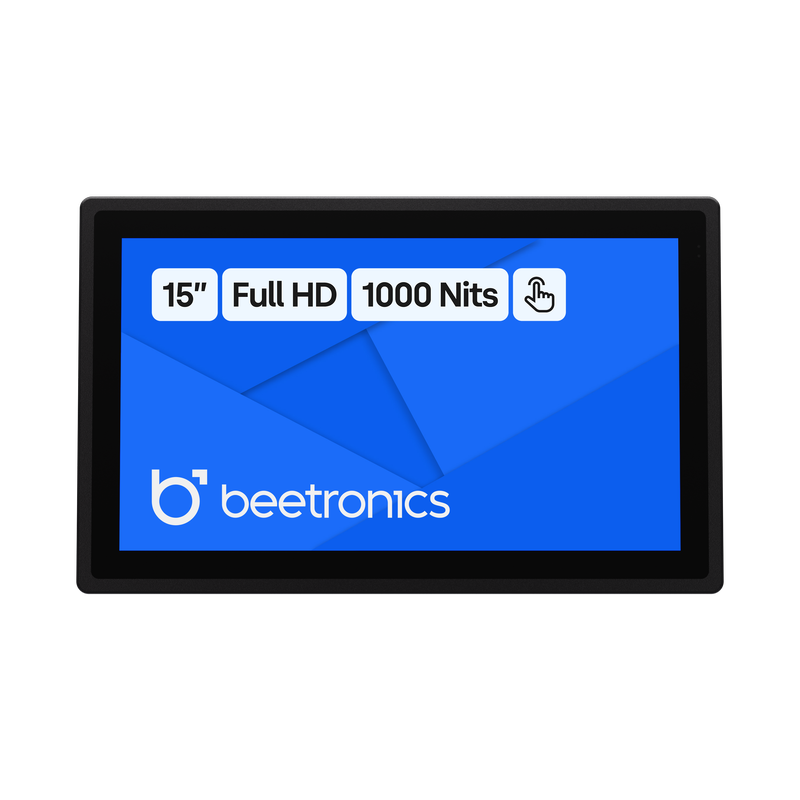

This 15-inch touchscreen monitor features a matte, Full HD panel with a high brightness of 1000 NITS. The display is designed for both indoor and outdoor use and guarantees excellent visibility in any environment. Thanks to its sturdy and compact metal casing, the 15HB9M can be seamlessly integrated into any application. The touchscreen is suitable for professional, commercial, and industrial use.

Sunlight-readable
Full HD multi-touch panel

The 15-inch touchscreen monitor is equipped with a Full HD panel that provides a sharp image with true-to-life colors. The touchscreen has a matte front panel with a high brightness of 1000 NITS and is optically bonded. This ensures an easily readable image without reflections even in the brightest environments.

The screen brightness can also be automatically dimmed based on ambient light via the integrated light sensor. The brightness can also be manually adjusted using the included remote control or an optional dimmer knob.

15 Inch Touchscreen Metal (High Brightness)

Compatible with Windows,
macOS, ChromeOS and Linux

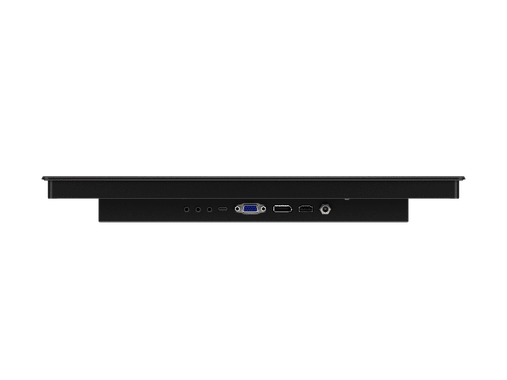

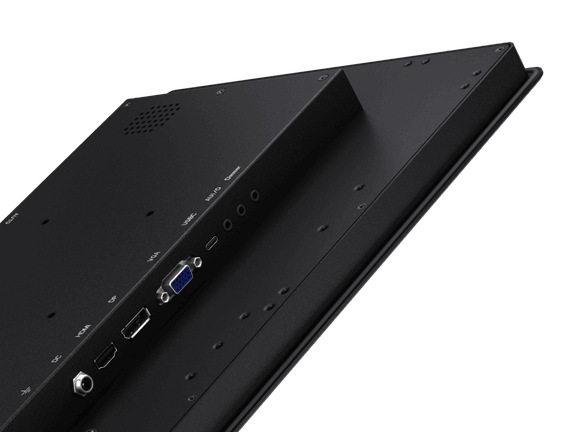

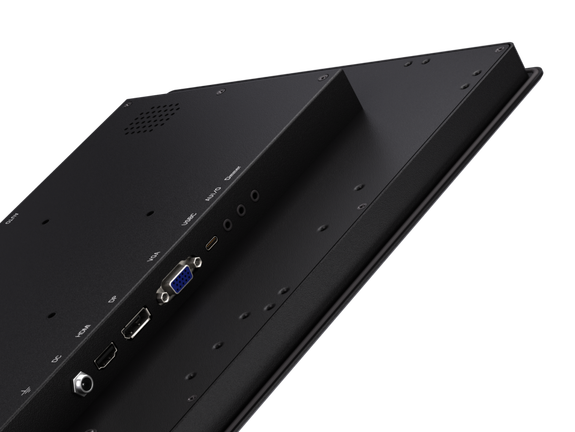

The 15-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognized and is immediately ready for use.

15 Inch Touchscreen Metal (High Brightness)

Designed for
professional use

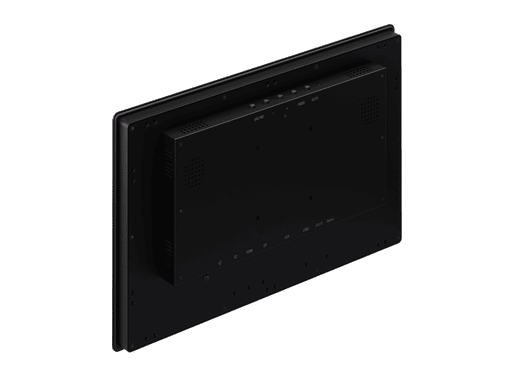

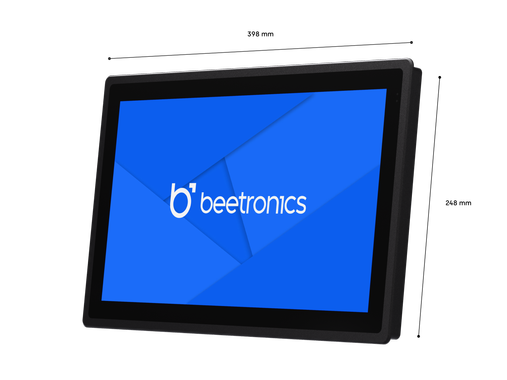

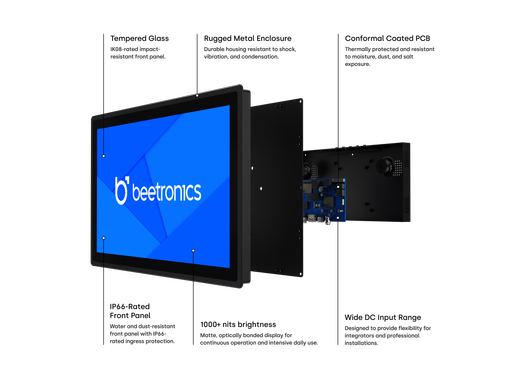

The 15HB9M is designed for professional applications and is suitable for continuous use. The display is produced using high-quality industrial components and features a robust metal casing with a sturdy front panel.

The display supports a wide input voltage of 10-36V DC, allowing it to be plugged direclly into an outlet or the popular 12V or 24V options.

15 Inch Touchscreen Metal (High Brightness)

Seamless integration
for any application

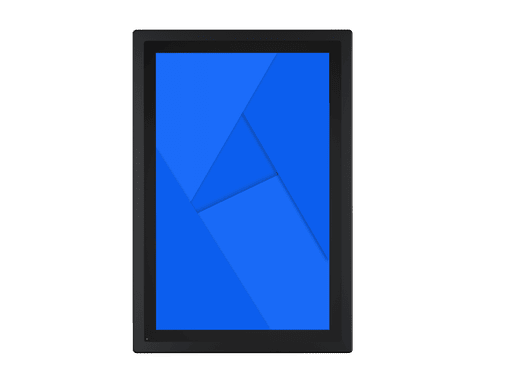

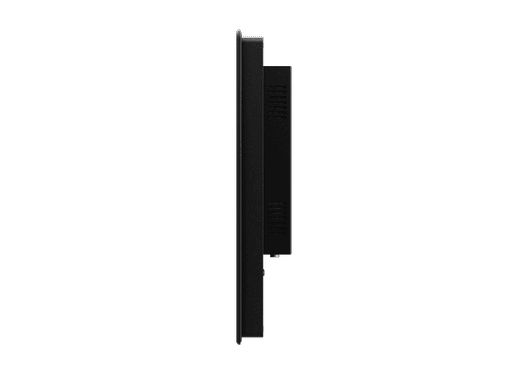

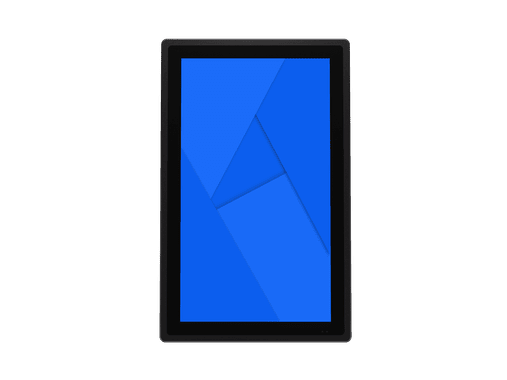

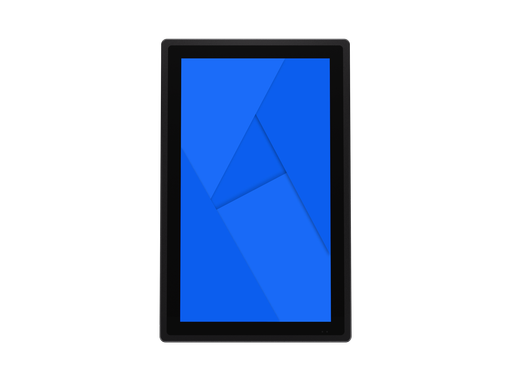

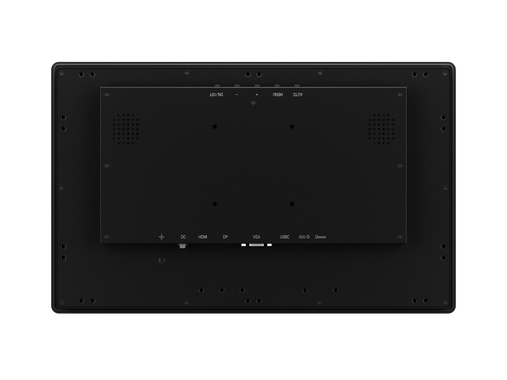

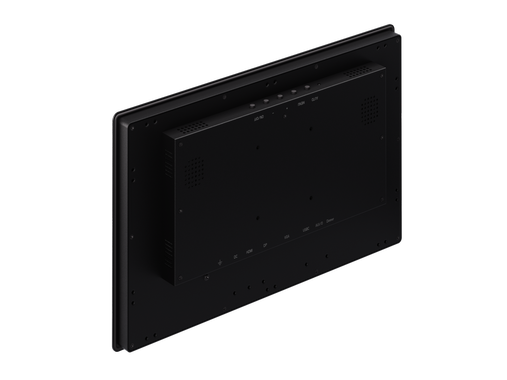

The touchscreen monitor is designed with a sturdy metal casing and a waterproof and dustproof front panel. The thin and symmetrical bezel provides a seamless flat finish and is suitable for both portrait and landscape mounting.

The touchscreen does not require ventilation and can be integrated into any application

15 Inch Touchscreen Metal (High Brightness)
General
Manufacturer
Beetronics
Item number
15HB9M
Product name
15 Inch Touchscreen Metal (High Brightness)
Warranty
2 years
Datasheet
User Manual
Quickstart
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Big Sur, Monterey, Ventura, Sonoma
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Panel
Diagonal size
15.6 inches (395 mm)
16:9 (4:3 adjustable)
1920 x 1080 (max), 640 x 480 (min)
Brightness
1000 nits
Contrast
1000:1
Color encoding system
PAL/NTSC/SECAM
170° horizontal, 170° vertical
Capacitive, 10-point multi-touch (PCAP), optically bonded
Touch Control
Stylus, hand, glove

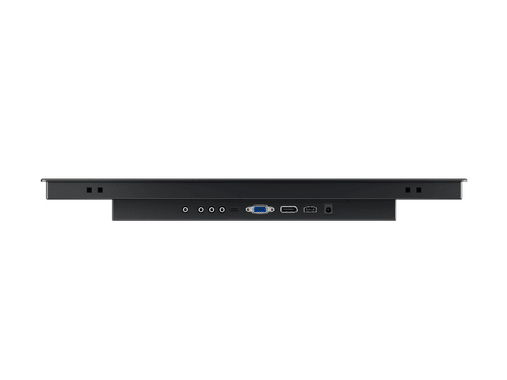

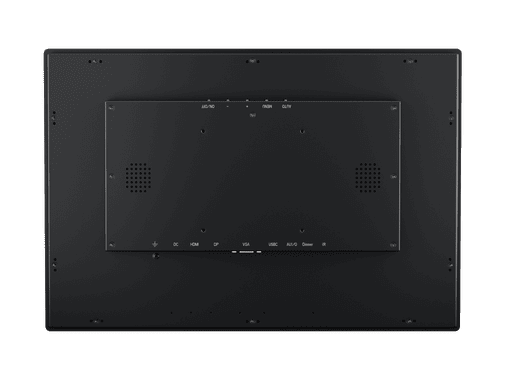

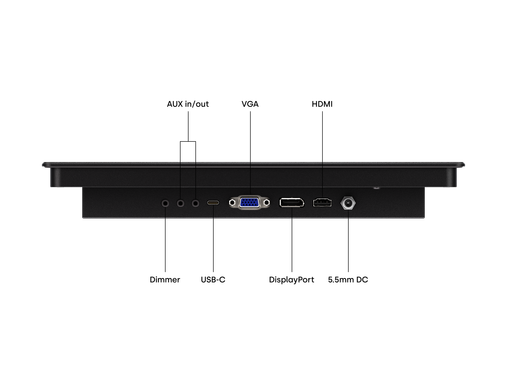

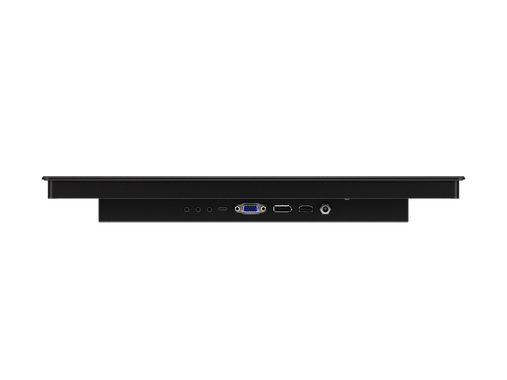

Connectivity
HDMI
1x
RCA
1x
VGA
1x
AUX input
1x
AUX output
1x
BNC (CVBS)
1x
USB-A
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
Size & weight
Color
Black
Weight
6.7 lbs
Width
16.0 inches
Height
10.1 inches

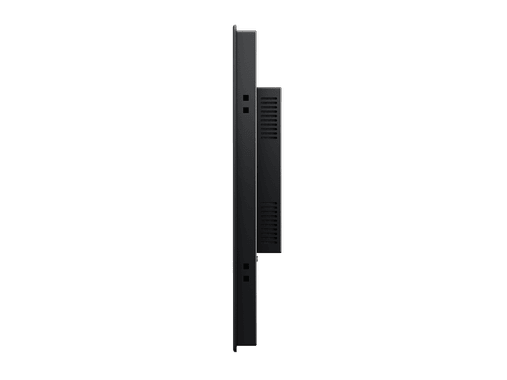

Thickness
1.7 inches
Display dimensions
13.5 x 7.6 inches
Technical drawing
3D Drawing
Features and functions
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Automatic dimming based on ambient light via an integrated light sensor. Manual dimming via the remote control or an optional dimmer knob.
Power
Input voltage
DC 10-36V
Consumption
Typical 19.8 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Operating temperature
-4°F to +158°F
Storage temperature
-4°F to +158°F
Operating humidity
20% - 90% non-condensing

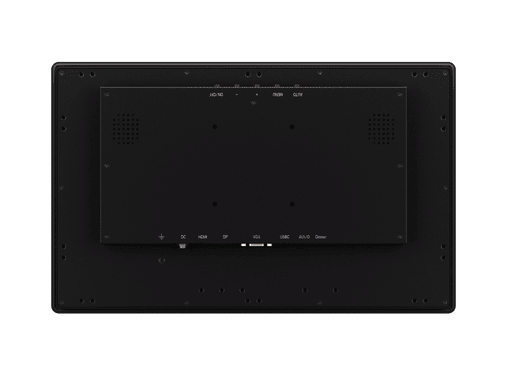

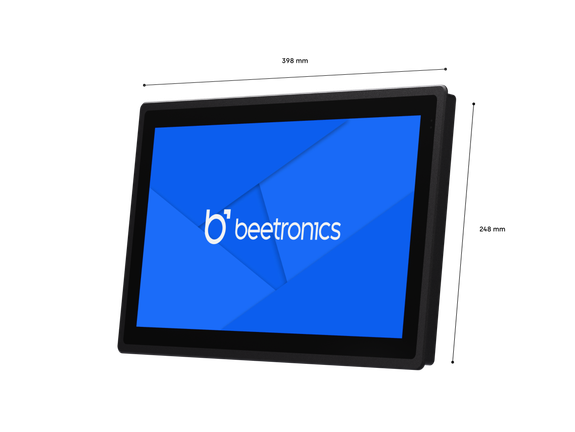

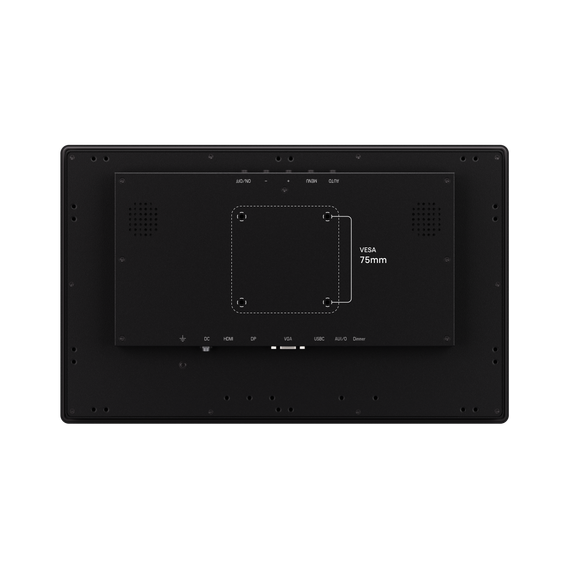

Mounting

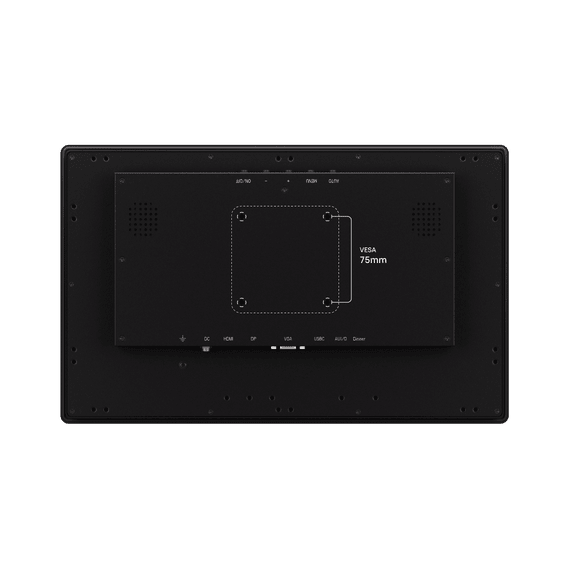

VESA (75 mm)
Flush mount
Panel mount accessories included.
Certifications & Standards
IP65 front panel, IP65 when panel mounted
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, EN50155, EN60601, CCC

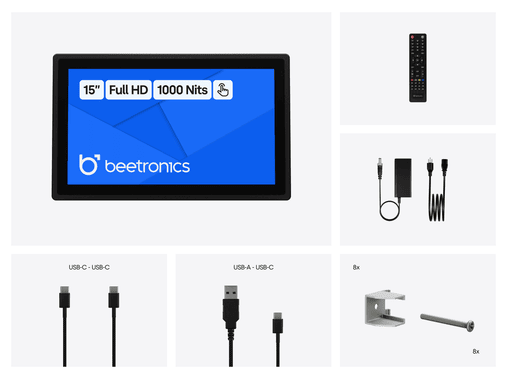

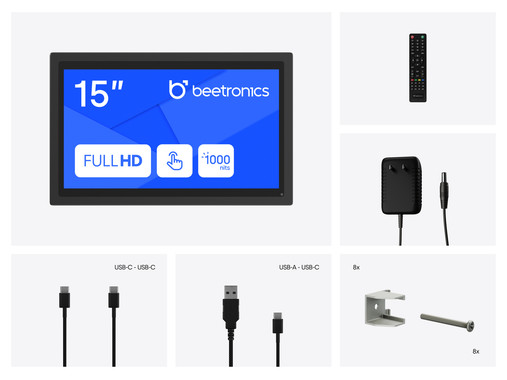

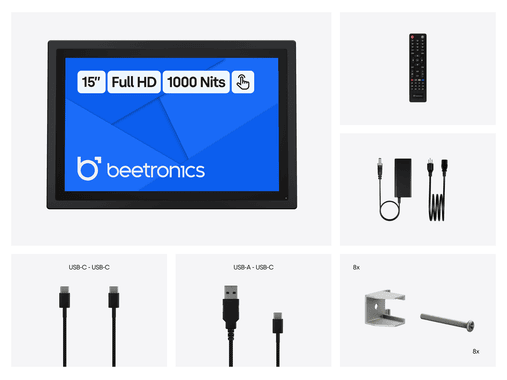

Package content
Includes
Touchscreen, USB-C to USB-C cable, USB-C to USB-A cable, remote control, mounting clamps (8x), mounting strips (8x), screws (8x), rubber seal, power adapter, manual
Compatible accessories
Dimmer
Compatible with external dimmer (DMK7/DMK8)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Touch Pen
Compatible with CTS7 capacitive touchscreen stylus
15 Inch Touchscreen Metal (High Brightness)
Downloads
User Manual
Quickstart
Technical drawing
3D Drawing
Datasheet
