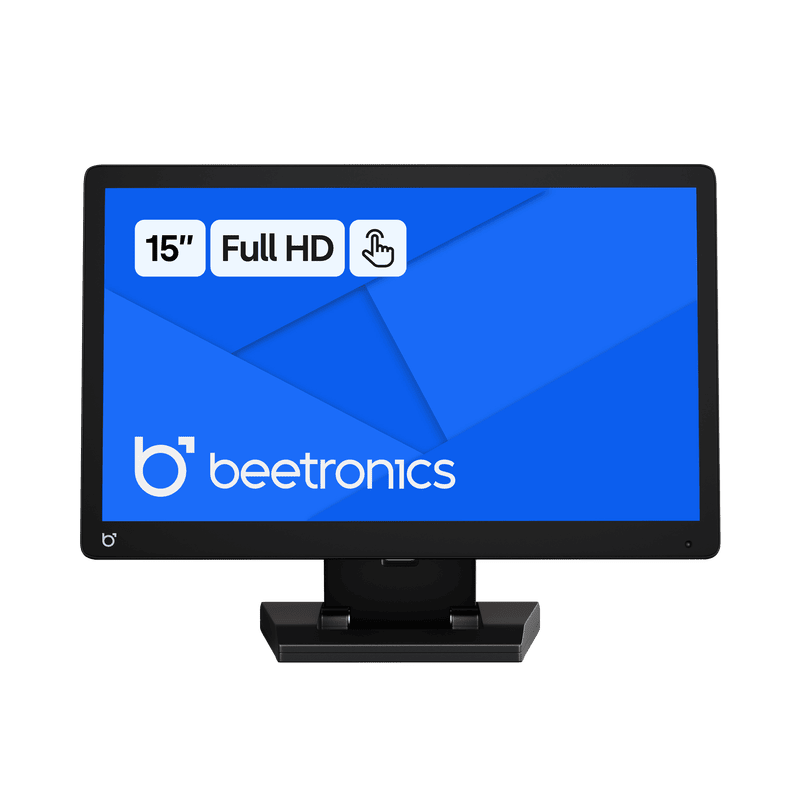

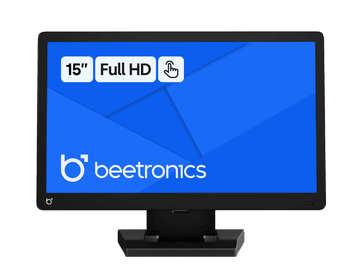

15 inch touchscreen

  1. Full HD multi-touch panel
  2. Windows, Mac, Linux & Android compatible
  3. Desktop and wall mountable
  4. 14.7 x 9.1 x 1.3 inches
Item number: 15TS5
100+ units in stock

Order before 11:55 PM for free delivery on Friday

$435.00
  • Description
  • Specifications
  • Connections
  • Downloads

This Full HD, 15 inch touchscreen has a reliable multi-touch panel that ensures accurate operation. The 15TS5 provides crystal-clear image quality with excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications and is suitable for intensive use.


Full HD multi-touch panel

Fitted with a native, Full HD, LED IPS panel, the touchscreen delivers outstanding image quality, vibrant colors and excellent 178° viewing angles. The 15TS5 has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides extremely accurate operation supporting many different gestures, including swiping, zooming and more.

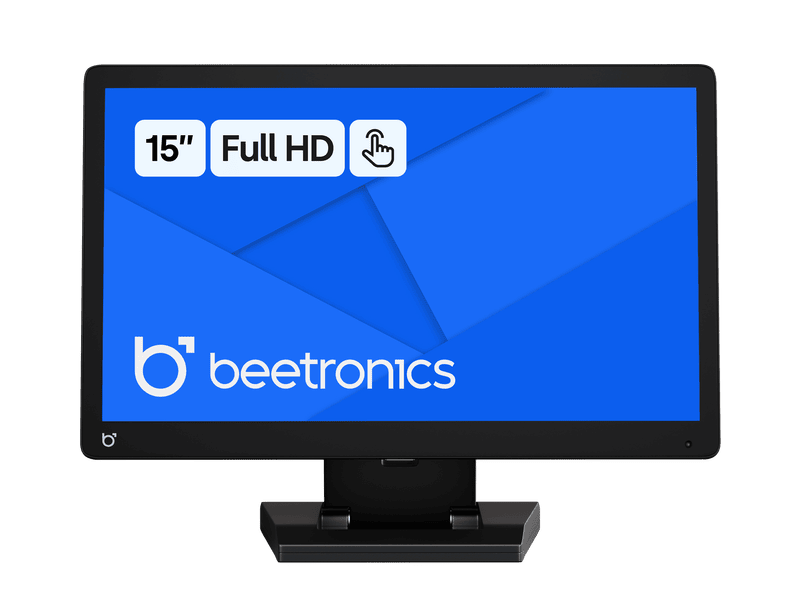

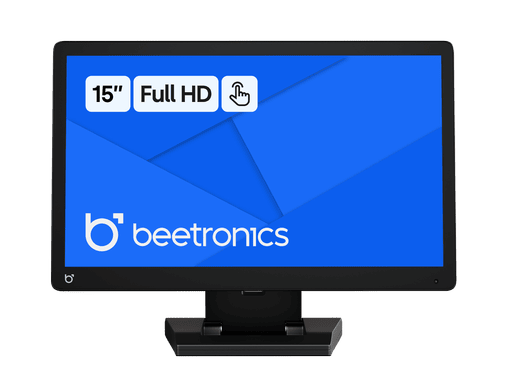

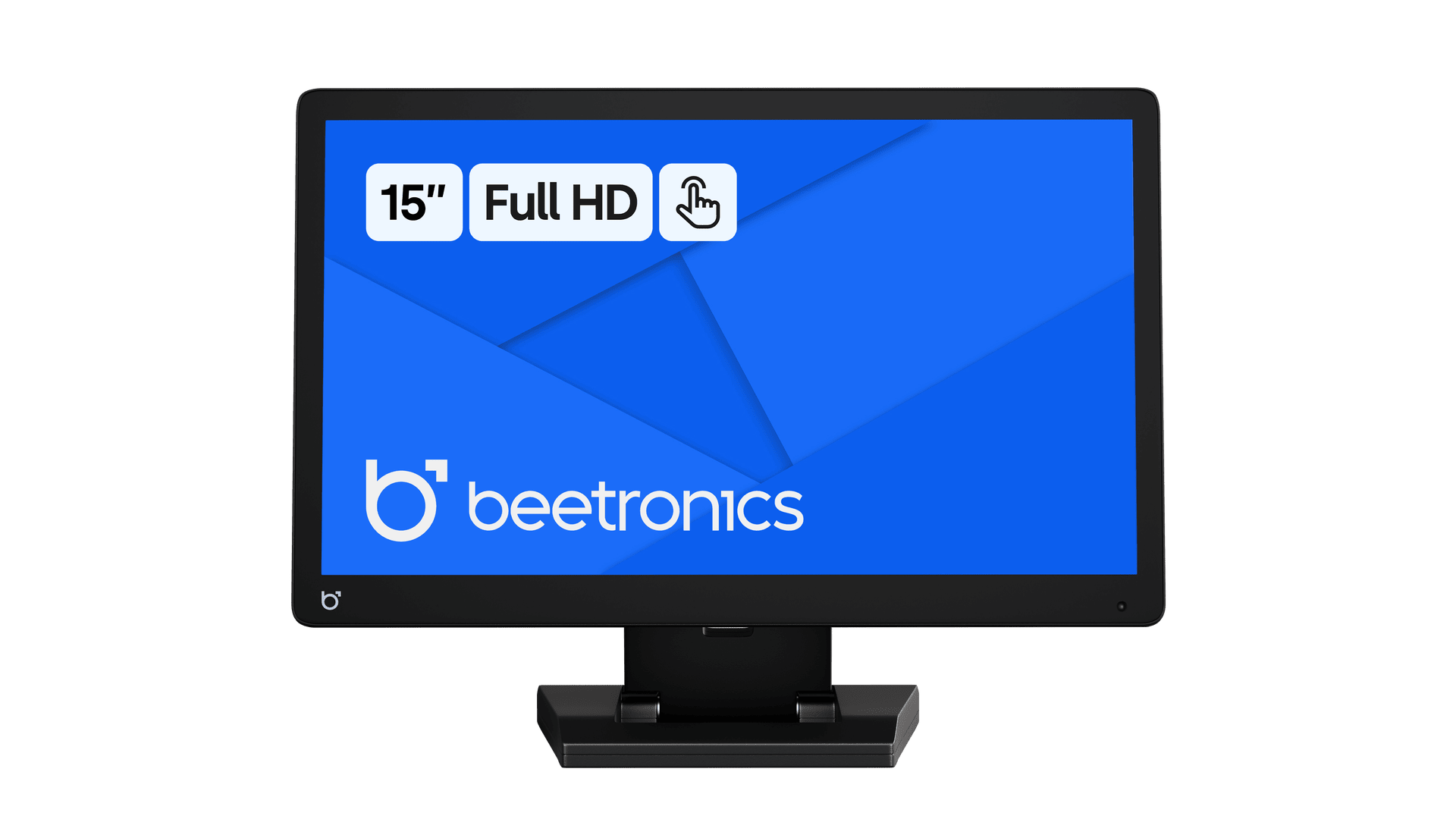

15 inch monitor with stand

Windows, Mac, Linux & Android compatiblele

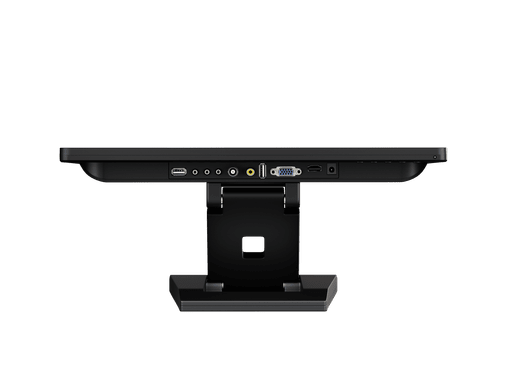

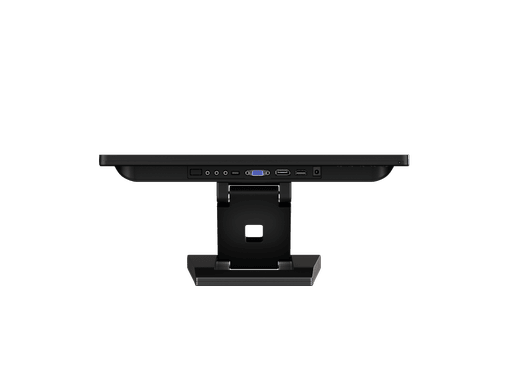

This touchscreen is compatible with Windows, Mac, Linux & Android operating systems. The 15TS5 has a variety of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable enables the touch functionality. The touchscreen monitor is automatically recognized and is instantly ready for use.

15 inch touchscreen compatible with windows, mac os, linux, android

Designed for professional use

The 15TS5 is suitable for continuous 24/7 operation. The monitor is manufactured using high quality components ensuring accurate operation and maximum reliability in every situation. Equipped with a sturdy casing and dimmable panel, the 15TS5 is ideal for professional use.

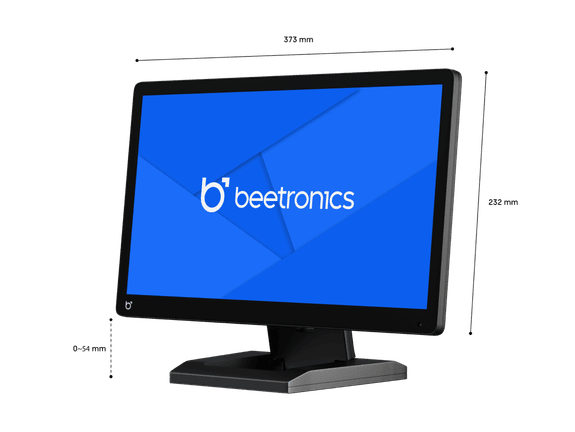

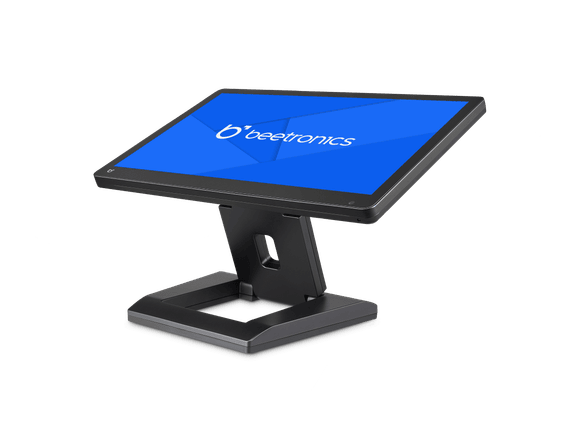

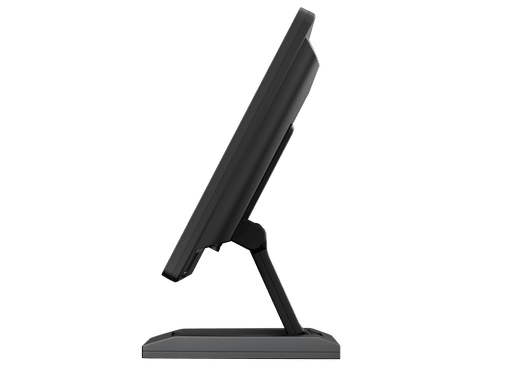

15 inch touchscreen with stand

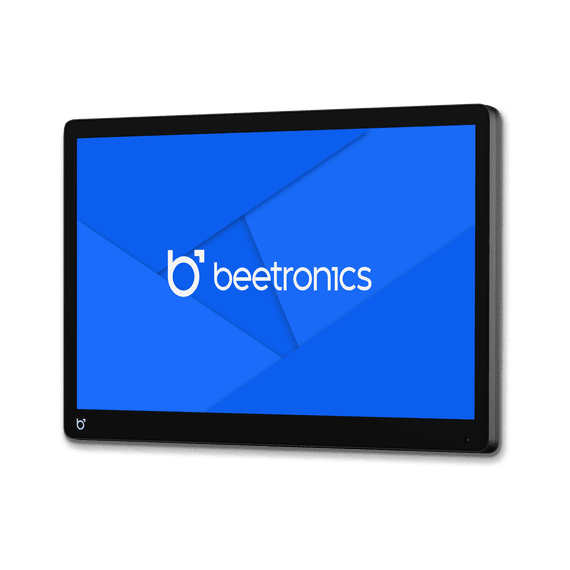

Desktop and wall mountable

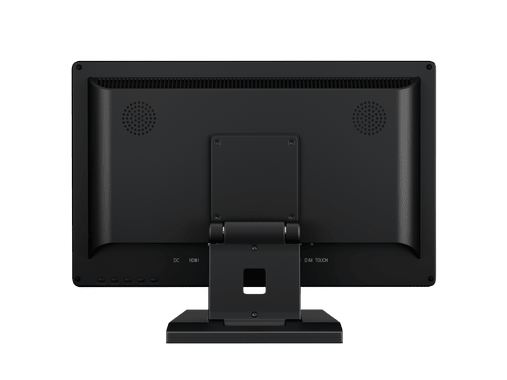

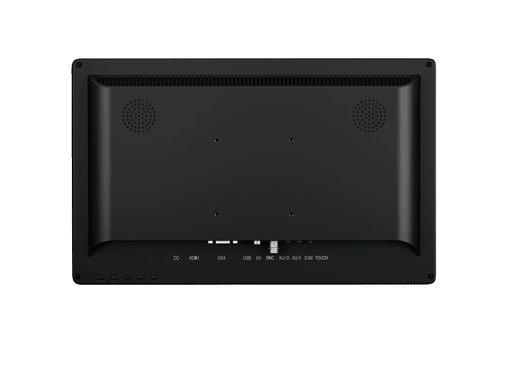

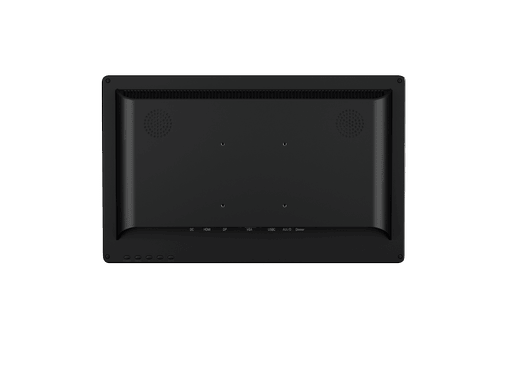

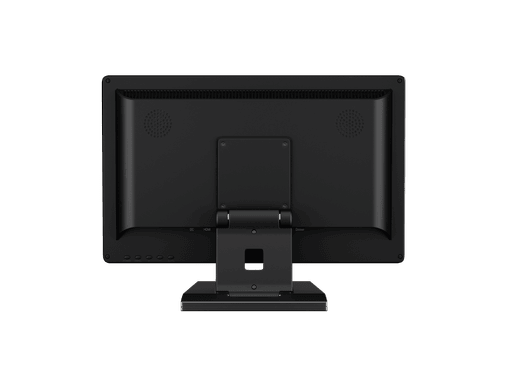

The Beetronics 15TS5 has a fully collapsible stand. The stand can easily be removed if desired, allowing access to the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket.

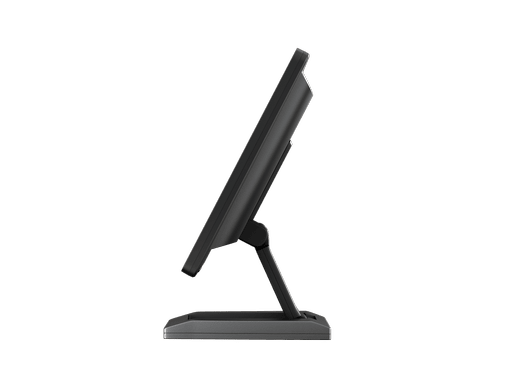

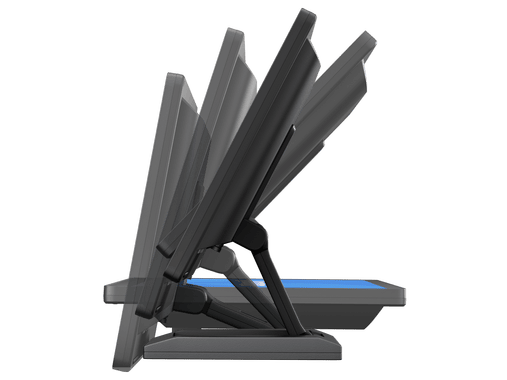

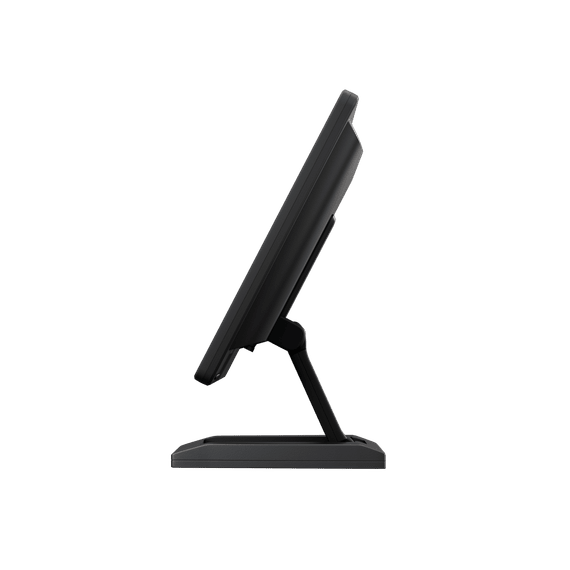

15 inch touchscreen with adjustable stand
General
Manufacturer Beetronics
Item number 15TS5
Product name 15 inch touchscreen
Warranty 2 years
Datasheet   Download PDF
Manual   Download PDF
Supported operating systems
Windows (Windows 7, 8, 10)
Windows Embedded (Windows embedded 7, 8, 10)
Mac (Yosemite, El Capitan, Sierra, High Sierra, Mojave)
Linux
Android (Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
Drivers No drivers needed. Plug & Play
Panel
Type LED-IPS
Diagonal size 15.6 inch (39,6 cm)
Aspect ratio 16:9 (4:3 adjustable)
Native resolution 1920 x 1080
Supported resolutions 1920 x 1080 (max), 640 x 480 (min)
Pixels per inch 146 PPI
Viewing angle 178° horizontal, 178° vertical
Colour encoding system PAL/NTSC/SECAM
Brightness 400 cd/m2
Contrast 700:1
Touch technology Capacitive, 10-point multitouch (PCAP)
Control Stylus, hand, glove

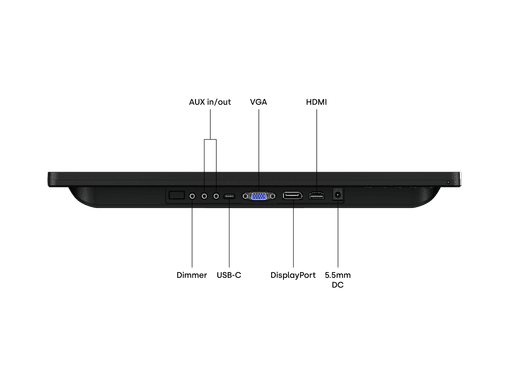

Connectivity
HDMI 1x
VGA 1x
BNC (CVBS) 1x
RCA video 1x
AUX output 1x
USB Only for touchscreen functionality

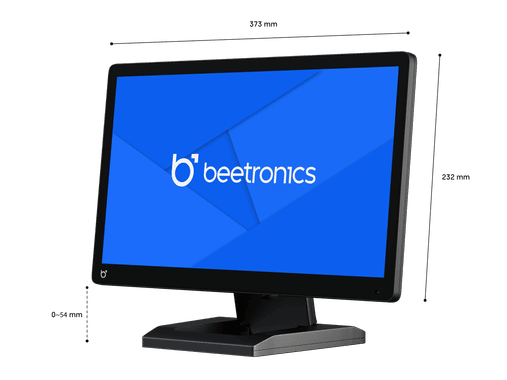

Size & weight
Colour Black
Weight 2.2 lbs (3.5 lbs with stand)
Width 14.7 inches
Height 9.1 inches (+0 to 1.8 inches with stand)
Thickness 1.3 inches
Display dimensions 13.6 x 7.6 inches
Technical drawing   Download PDF
Features and functions
Audio Integrated speakers
Key-lock The control buttons can be blocked
Auto-on Automatically powers on when it receives current or a signal
Dimmable Adjustable backlight brightness
Mirroring Image can be mirrored, horizontally and vertically
Power
Input voltage DC 12V
Power supply Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption <15 Watt (0.5 Watt standby)
Environmental
Operating temperature -4°F to +140°F
Storage temperature -4°F to +158°F
Operating humidity 20% - 90% non-condensing
Mounting
Wall mount VESA (75 mm)
Flush mount Possible, no accessories available
Stand Adjustable and detachable
Certifications & Standards
IP rating IP65 front panel
Certifications CE, FCC, RoHS, REACH

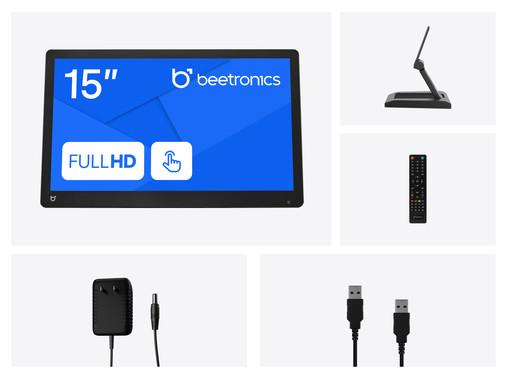

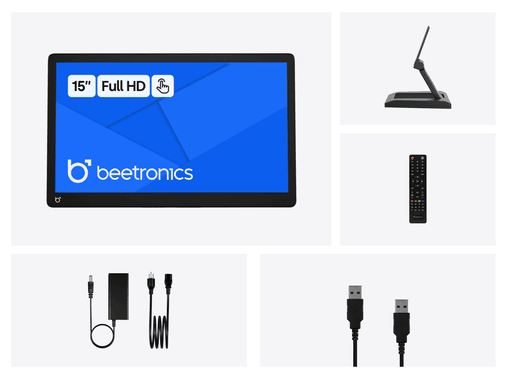

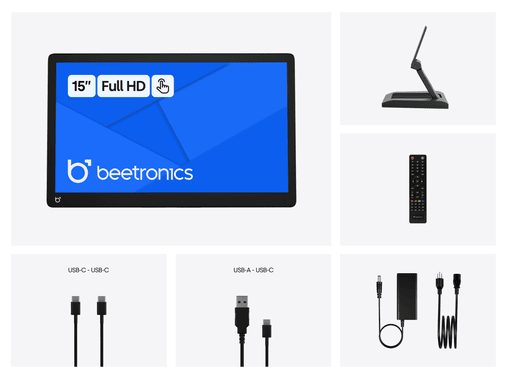

Package content
  1. 15 inch touchscreen
  2. Power adapter
  3. Remote control
  4. USB cable
  5. Stand
  6. Manual

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA(video)
RCA
AUX(output)
AUX_audio_35mm
USB(touch)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
