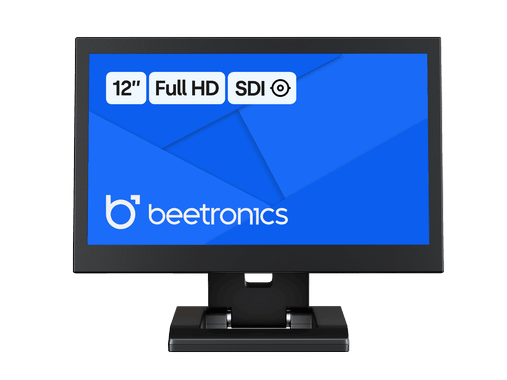

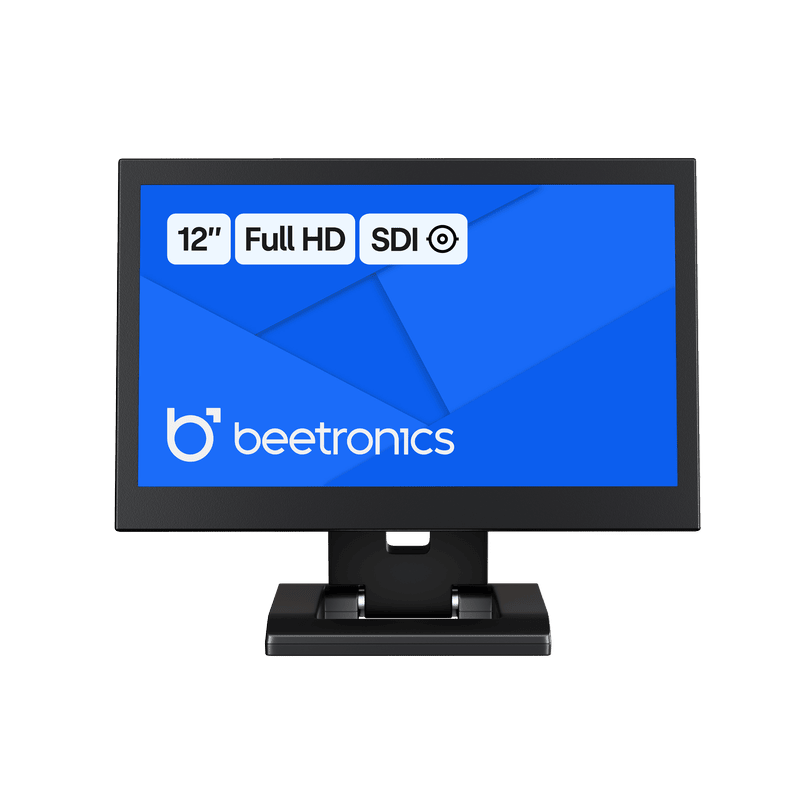

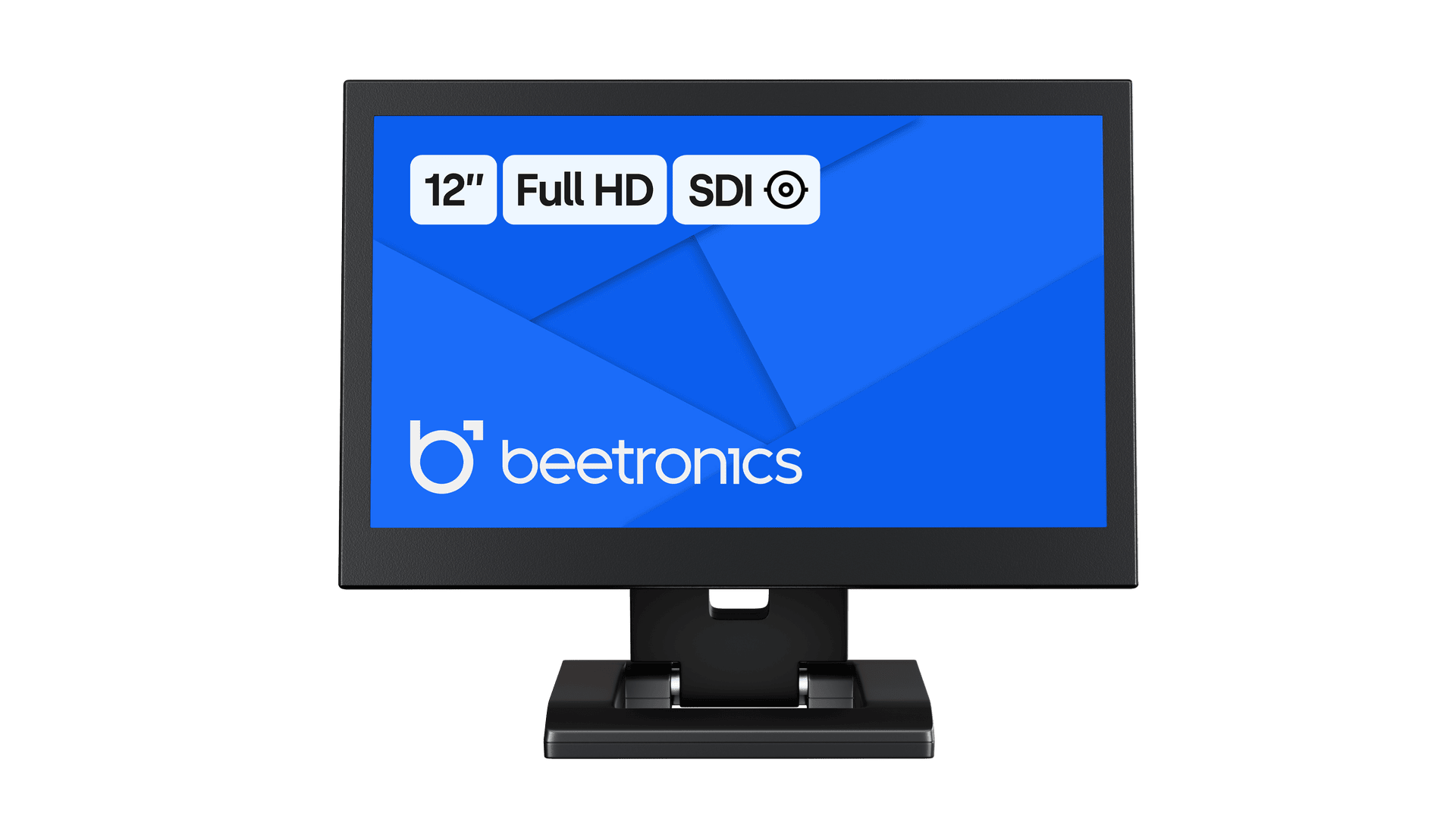

12 Inch Monitor Metal SDI
Model: 12SDI7M
76 units in stock
12 Inch Monitor Metal SDI
12 Inch Monitor Metal SDI
12 Inch Monitor Metal SDI
12 Inch Monitor Metal SDI
12 Inch Monitor Metal SDI
12 Inch Monitor Metal SDI
12 Inch Monitor Metal SDI
12 Inch Monitor Metal SDI
12 Inch Monitor Metal SDI
12 Inch Monitor Metal SDI

12 Inch Monitor Metal SDI

Model: 12SDI7M
76 units in stock
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI (input & output), SDI (2x input & 2x output)
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 11.0 x 7.1 x 1.5 inches
  5. More specifications
Order by 5:00 pm ET for Delivery on Tuesday
  • Description
  • Specifications
  • Connectivity
  • Downloads

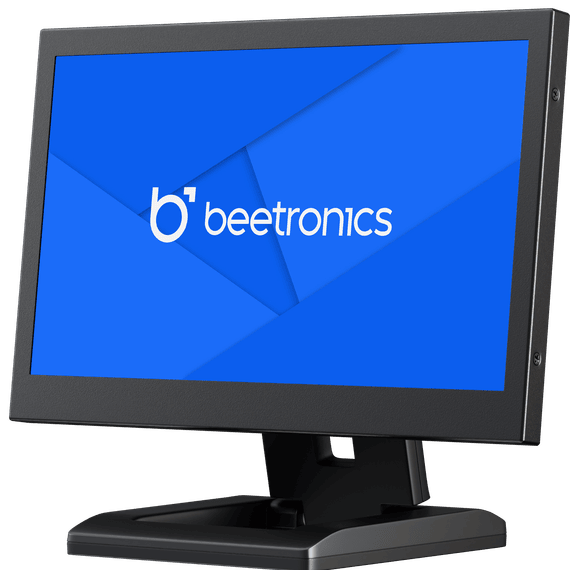

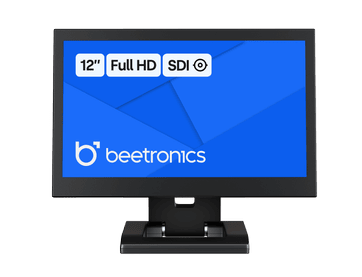

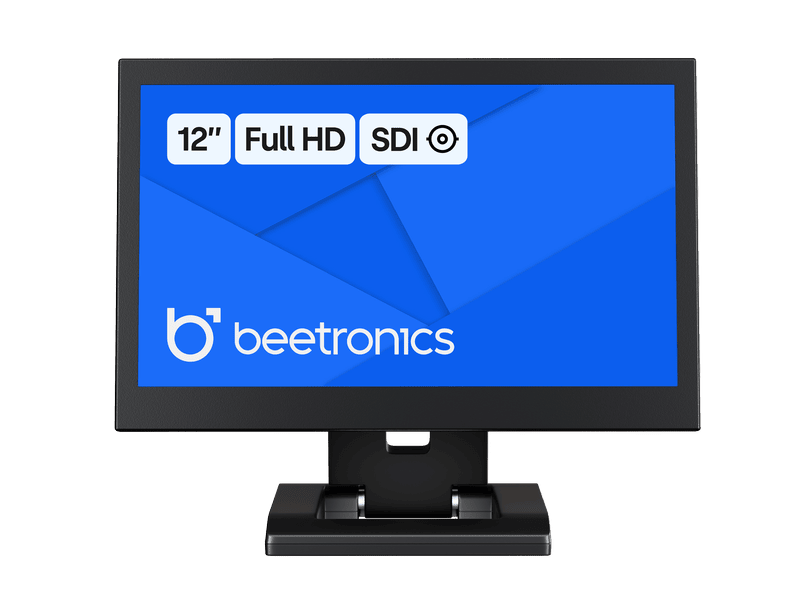

This 12 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. It has a sturdy metal housing and is ideal for desktop, flush and wall mounting. The 12SDI7M can be easily connected to multiple HDMI, and SDI sources as well as daisy chained to other screens thanks to the inputs and outputs available.

Outstanding Full HD image quality

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

12 Inch Monitor Metal SDI

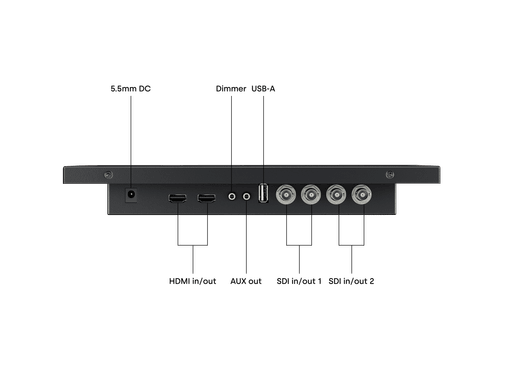

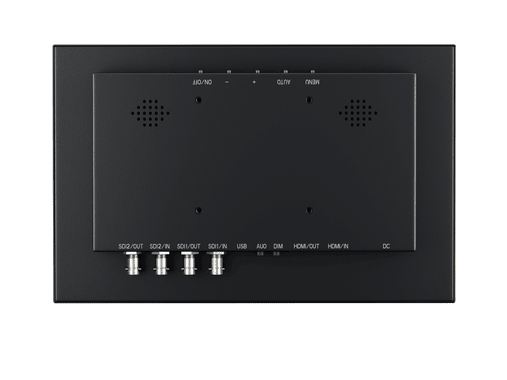

Versatile connectivity

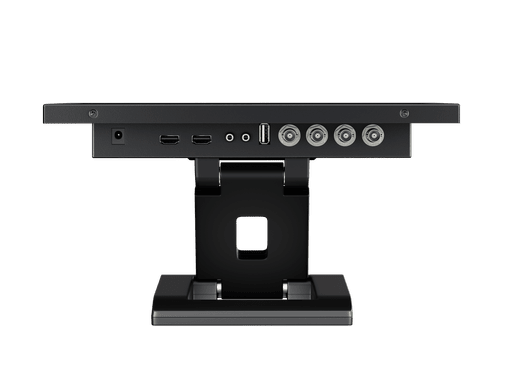

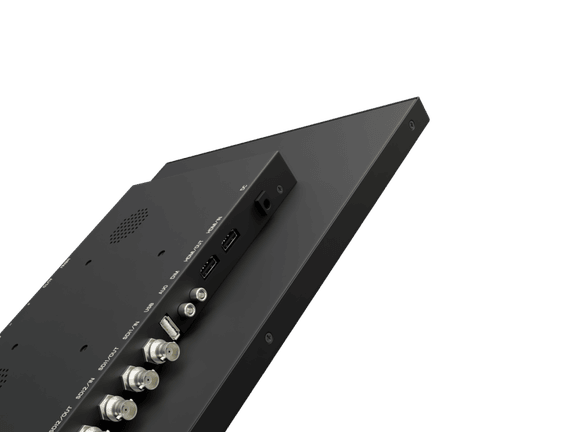

The 12SDI7M has an HDMI input and output and two SDI inputs and outputs. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

12 Inch Monitor Metal SDI

Designed for professional use

The 12SDI7M is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

12 Inch Monitor Metal SDI

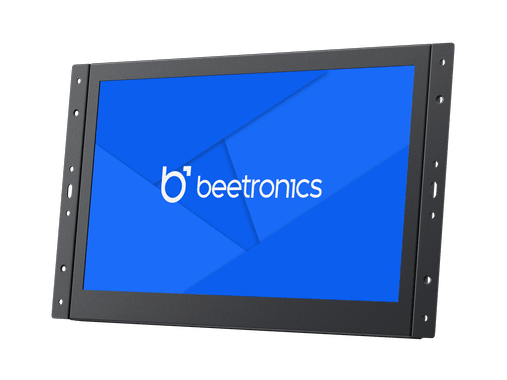

Easily integrated

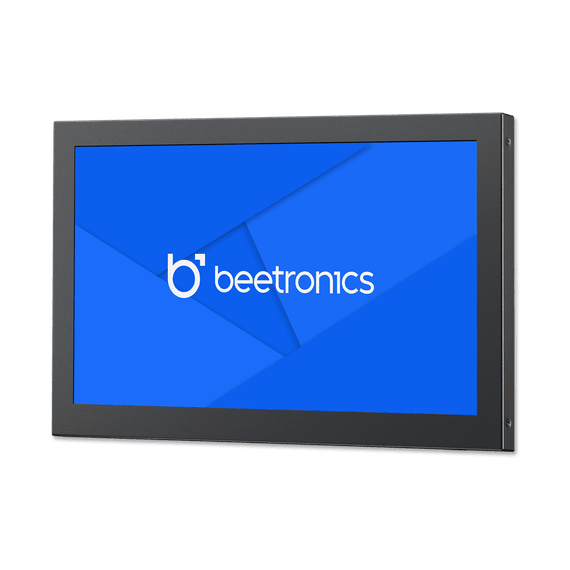

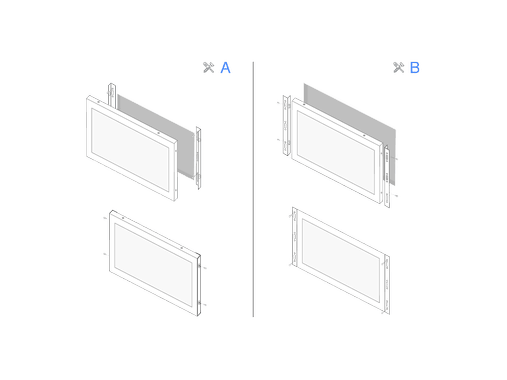

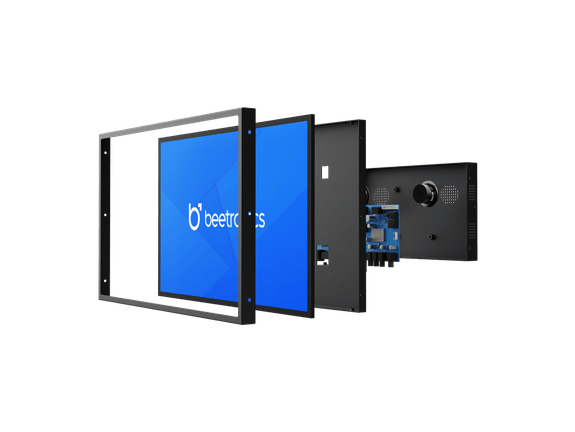

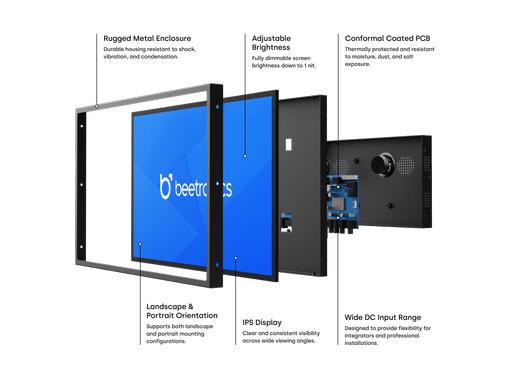

Thanks to numerous mounting options the 12 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

12 Inch Monitor Metal SDI

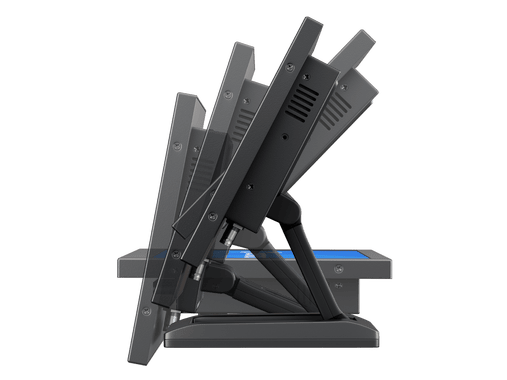

Desktop or wall mounting

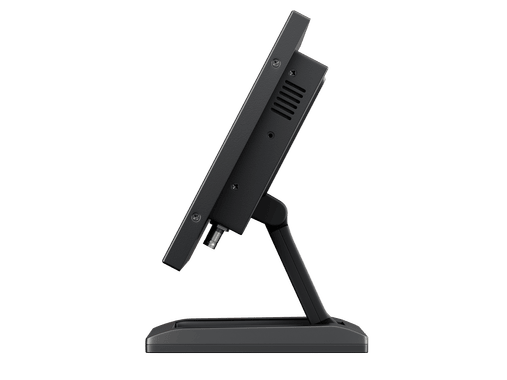

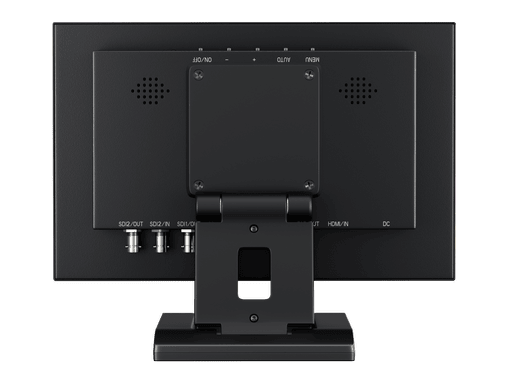

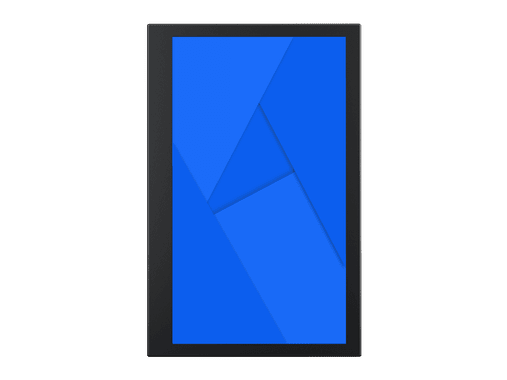

The Beetronics 12SDI7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode

12 Inch Monitor Metal SDI
General
Manufacturer
Beetronics
Item number
12SDI7M
Product name
12 Inch Monitor Metal SDI
Warranty
2 years
Datasheet
User Manual
Quickstart
Panel
Diagonal size
11.6 inches (296 mm)
Panel type
IPS-LCD
16:9 (4:3 adjustable)
Response time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
500 cd/m2
Contrast
1000:1
Color encoding system
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Connectivity
HDMI input
1x
HDMI output
1x
AUX input
1x
AUX output
1x
1x integrated USB media player
SDI input (3G)
2x
SDI output
2x

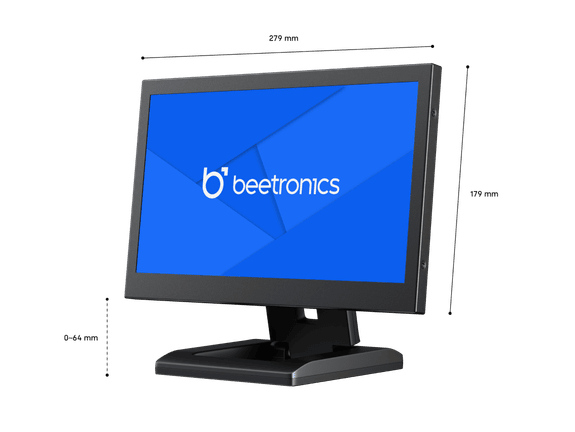

Size & weight
Color
Black
Dimensions (without stand)
11.0 x 7.1 x 1.5 inches
Image size
10.1 x 5.7 inches
Weight
2.9 lbs (3.7 lbs with stand)
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.
Orientation
Landscape, portrait, face-up
The monitor is equipped with a built-in USB media player.
Power
Input voltage
DC 9-33V
Consumption
Typical 17.4 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-2A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-4°F to +140°F
Storage temperature
-4°F to +158°F
Operating humidity
20% - 85% non-condensing
Mounting
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, EN50155, EN60601, CCC
Package content
Includes

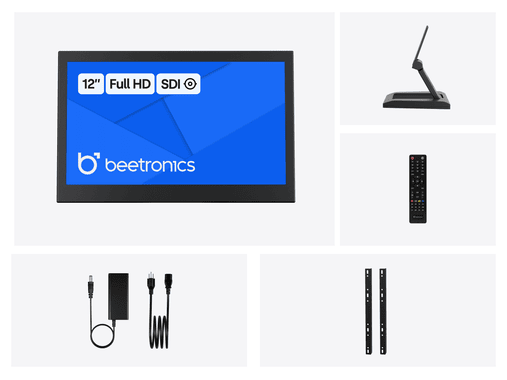

Monitor, Stand, Remote control, Mounting strips, AC power adapter, Manual
Compatible accessories
Dimmer
Compatible with external dimmer (DMK7/DMK8)
Rack mounting
Compatible with 19 inch rack mount kit (RMK2)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
VDK3 included as standard
12 Inch Monitor Metal SDI
Downloads
User Manual
Quickstart
Technical drawing
3D Drawing
Datasheet
