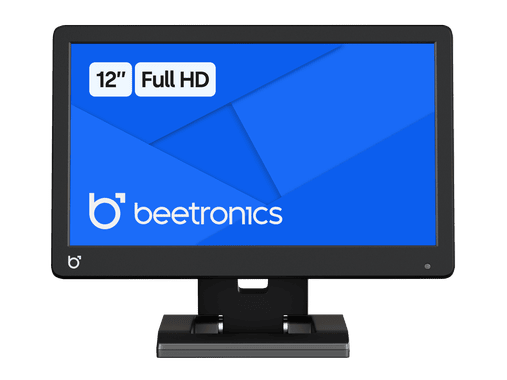

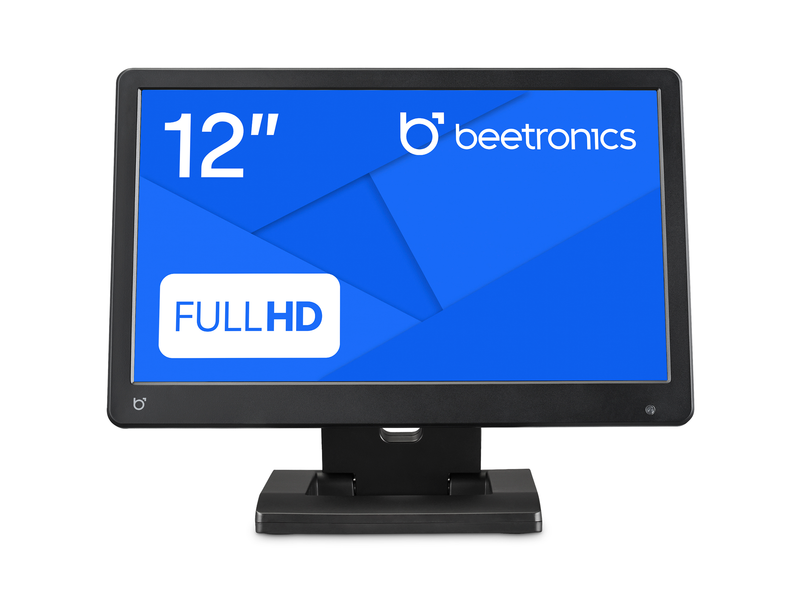

12 inch monitor

  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC and RCA
  3. Desktop and wall mountable
  4. 11.2 x 7.0 x 1.3 inches
Model: 12HD7
Special Order

Available in 7 - 10 days

$325.00
  • Description
  • Specifications
  • Connectivity
  • Downloads

This 12 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. The 10 inch monitor has a lightweight housing and is ideal for desktop and wall mounting. The 12HD7 can be connected via HDMI, VGA, BNC or RCA connections.

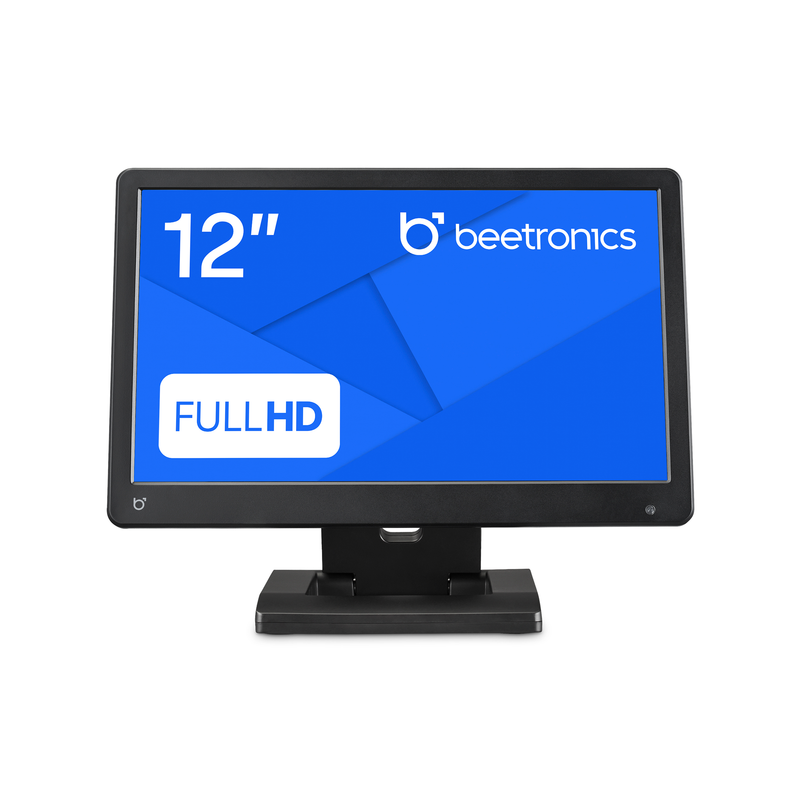

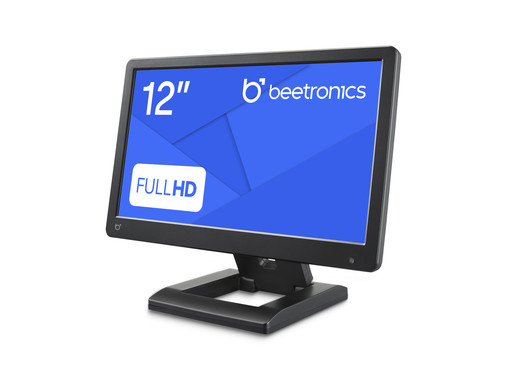

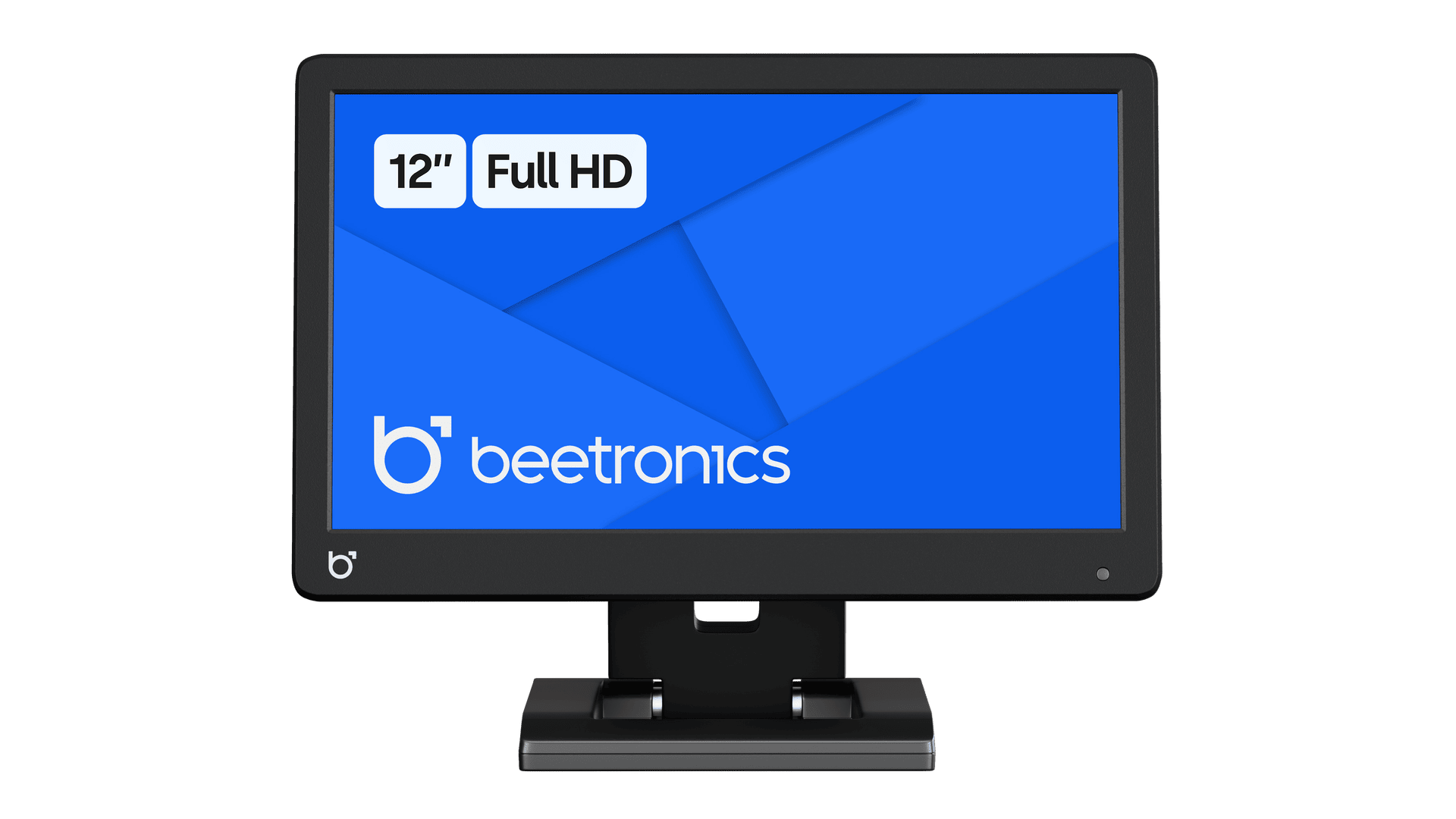

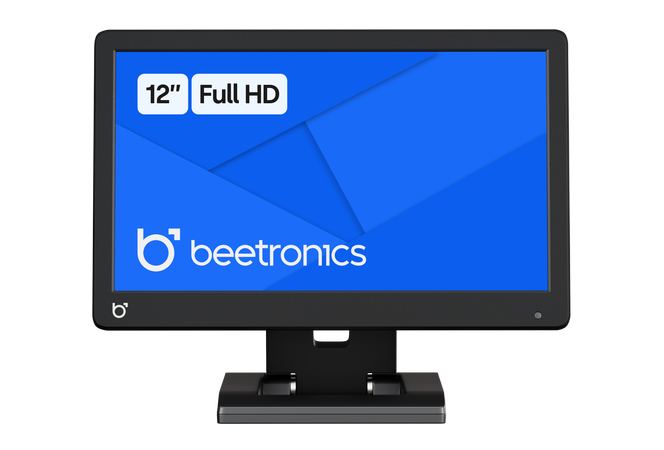

Outstanding Full HD image quality

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colors and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, color and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

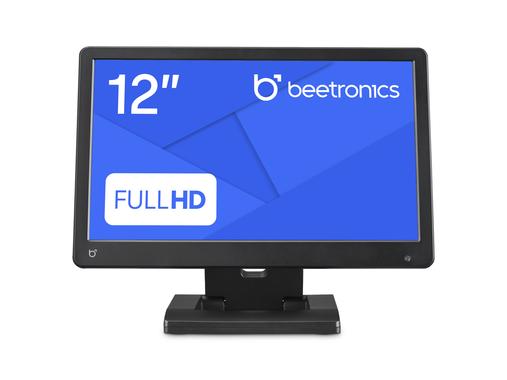

12 inch monitor full hd

Versatile connectivity

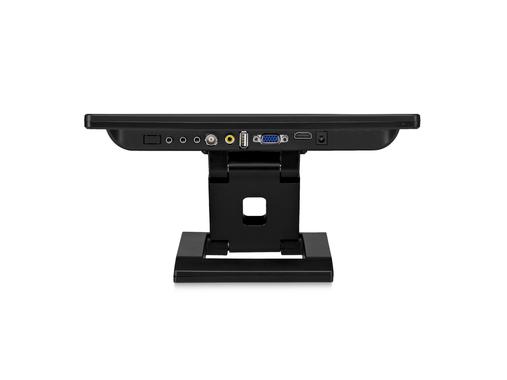

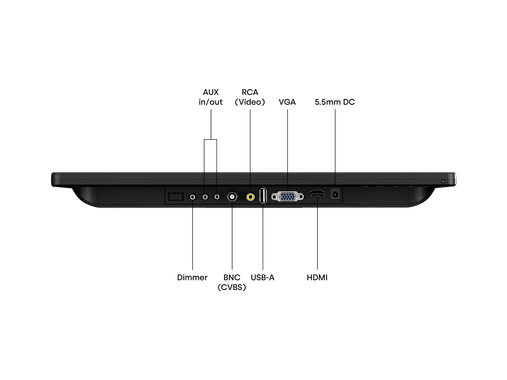

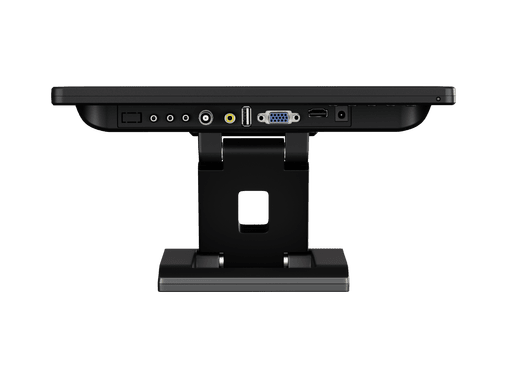

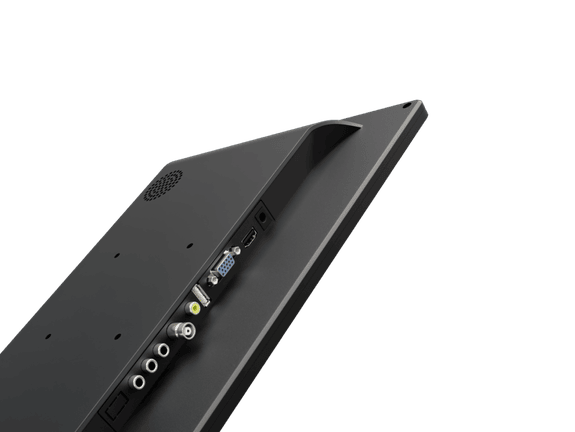

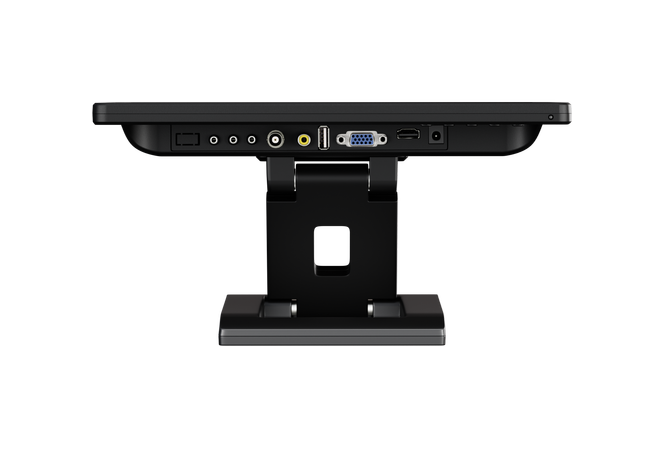

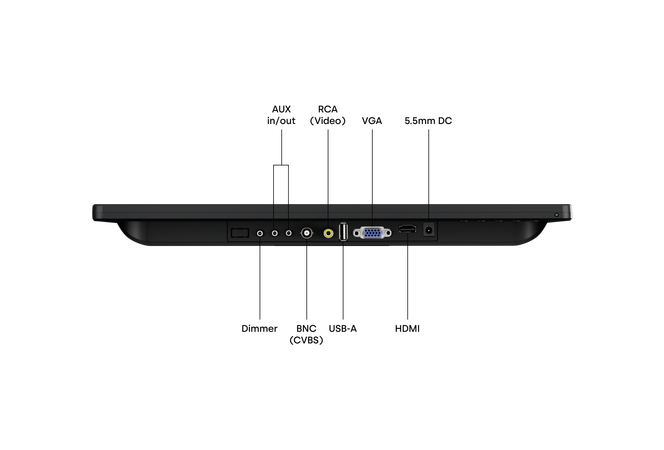

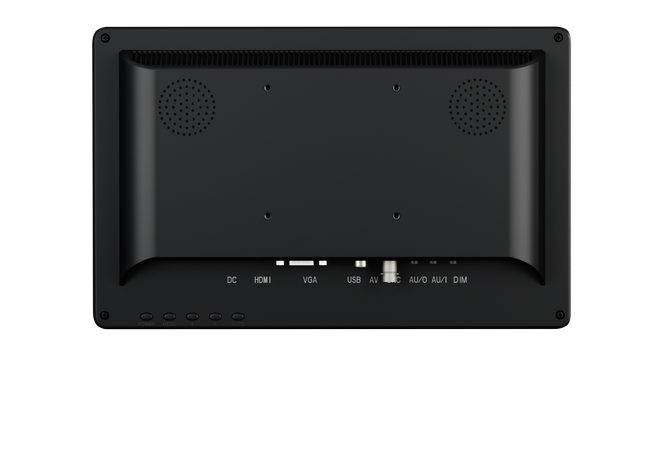

The 12HD7 has HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

12 inch monitor with hdmi bnc vga rca

Designed for professional use

The 12HD7 is designed for continuous operation and professional use. The monitor is manufactured with high quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

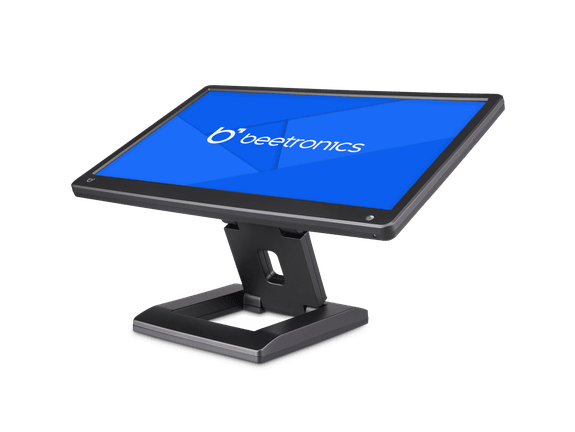

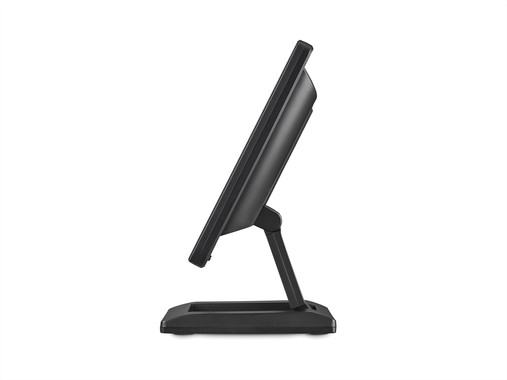

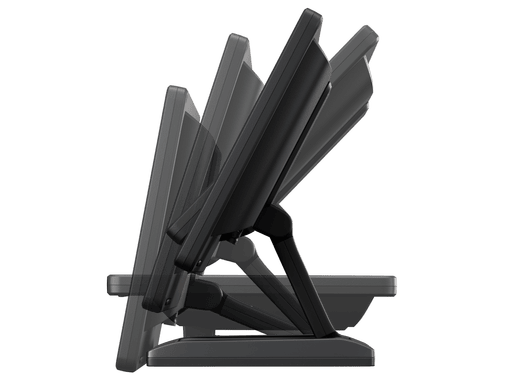

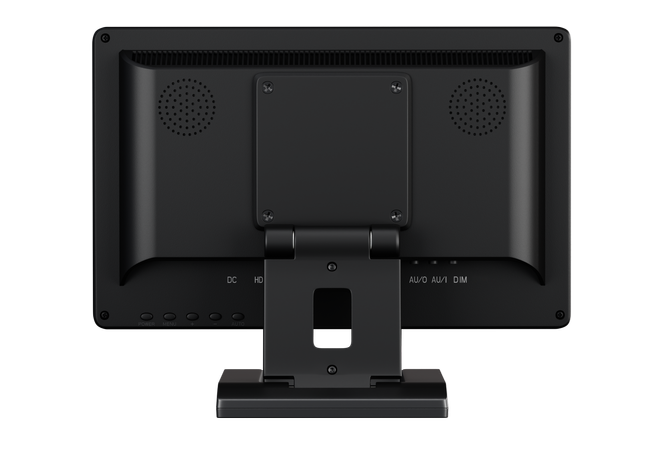

12 inch monitor full hd  with collapsible stand

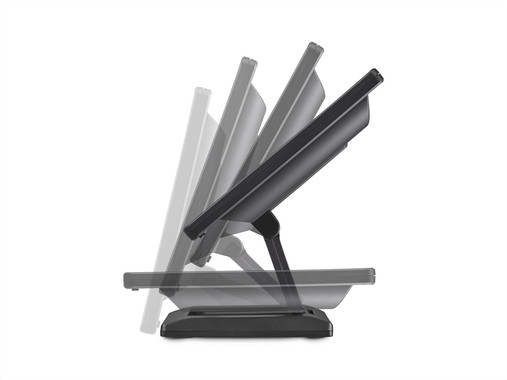

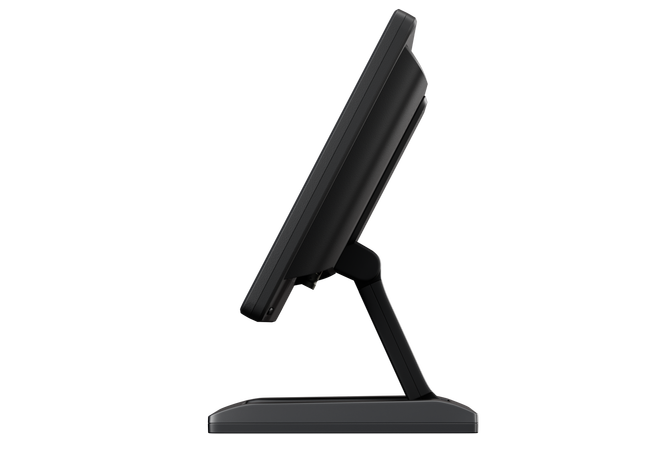

Desktop or wall mounting

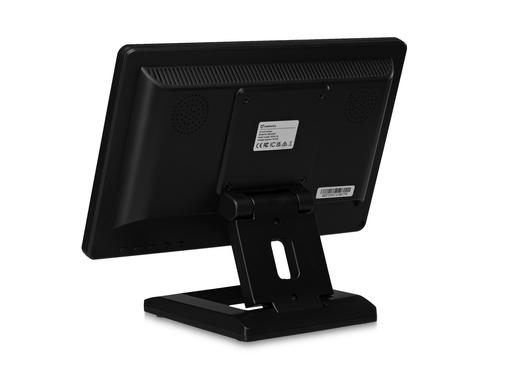

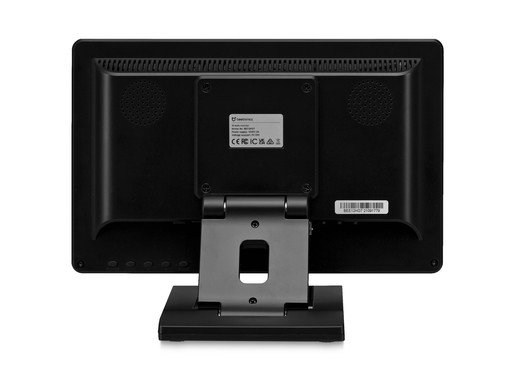

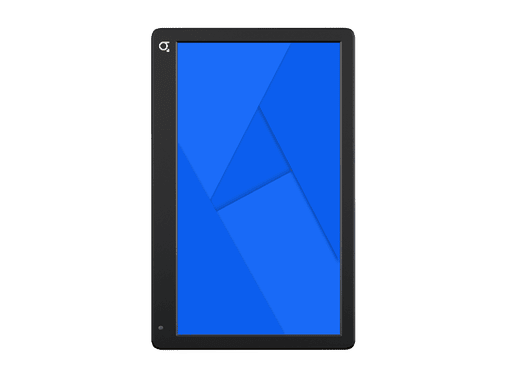

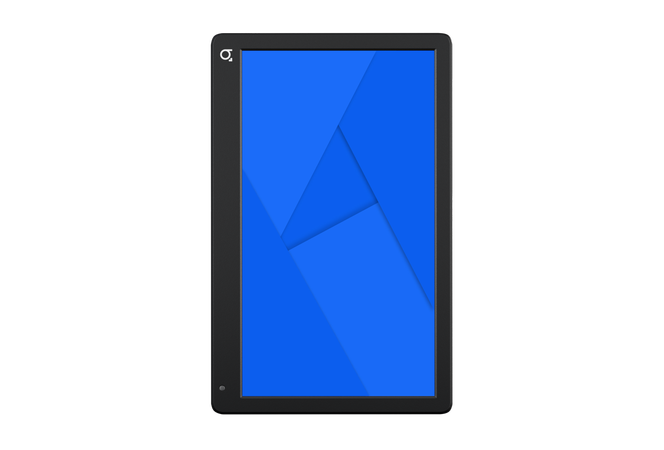

The Beetronics 12HD7 has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode.

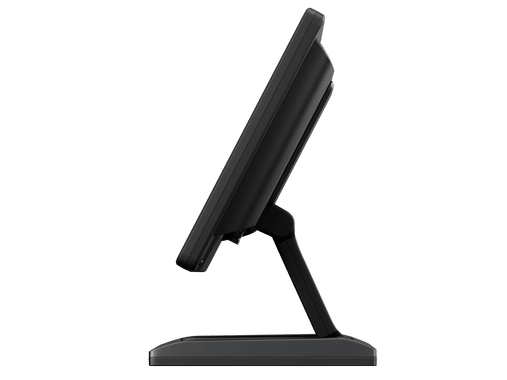

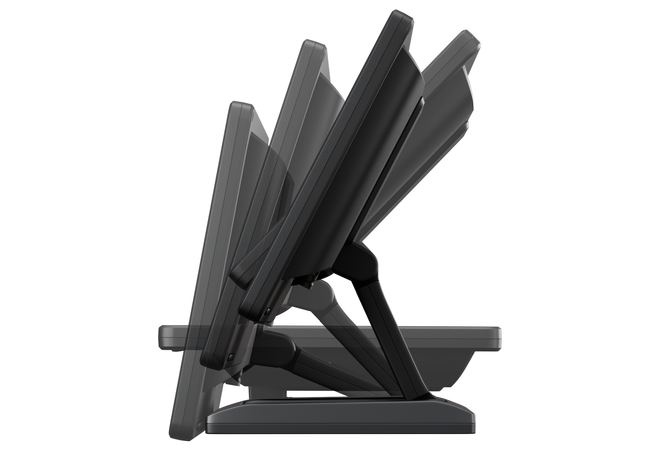

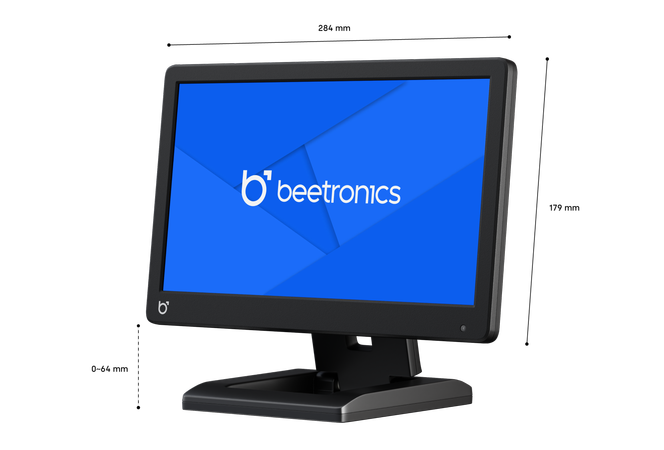

full hd 12 inch monitor adjustable stand
General
Manufacturer
Beetronics
Item number
12HD7
Product name
12 inch monitor
Warranty
2 years
Datasheet
Manual
Panel
Type
LED-IPS
Diagonal size
11.6 inches (295 mm)
Aspect ratio
16:9 (4:3 adjustable)
Native resolution
1920 x 1080
Supported resolutions
1920 x 1080 (max), 640 x 480 (min)
Pixels per inch
184 PPI
Viewing angle
178° horizontal, 178° vertical
Color encoding system
PAL/NTSC/SECAM
Brightness
300 cd/m2
Contrast
700:1
Connectivity
HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA video
1x
AUX input
1x
AUX output
1x
USB
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
Size & weight
Colour
Black
Weight
1.7 lbs (2.6 lbs with stand)
Width
11.2 inches
Height
7.0 inches  (+0 to 1.5 inches with stand)
Thickness
1.3 inches
Display dimensions
10.1 x 5.7 inches

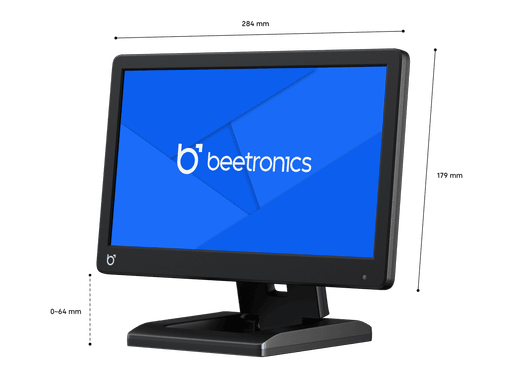

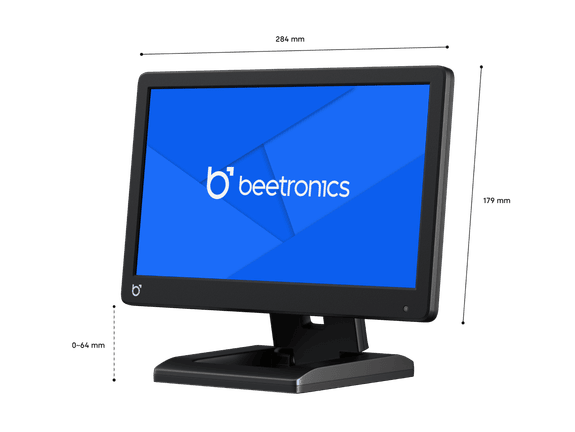

Technical drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 9-33V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption
<15 Watt (0.5 Watt standby)
Environmental
Operating temperature
-4°F to +140°F
Storage temperature
-4°F to +158°F
Operating humidity
20% - 90% non-condensing
Mounting
Wall mount
VESA (75 mm)
Flush mount
Possible, no accessories available
Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH

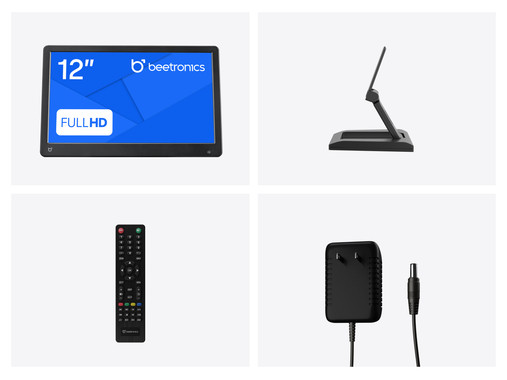

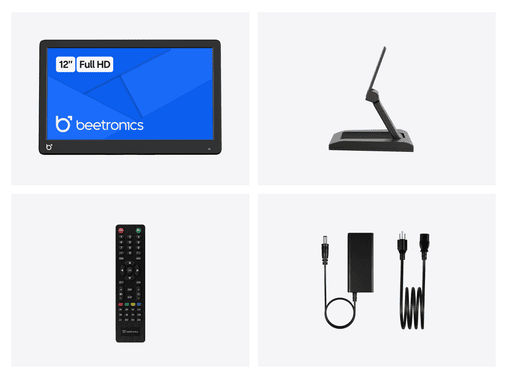

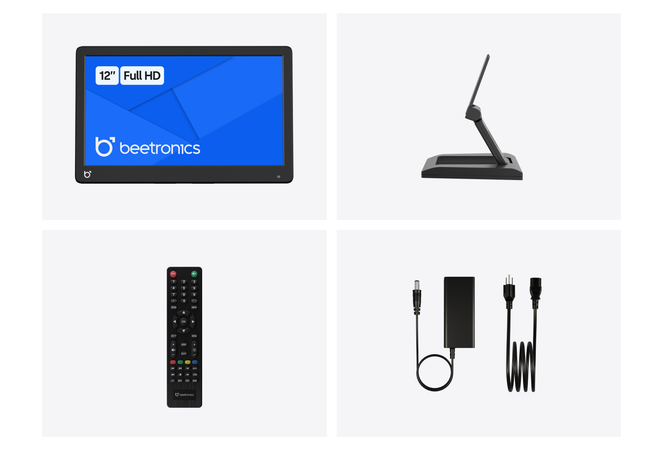

Package content
Includes
Monitor, Manual, Remote control, AC power adapter, Stand

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA (video)
RCA
3.5mm (input)
AUX_audio_35mm
3.5mm (output)
AUX_audio_35mm
USB(media)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
Files
Product name Model In stock Quantity Price

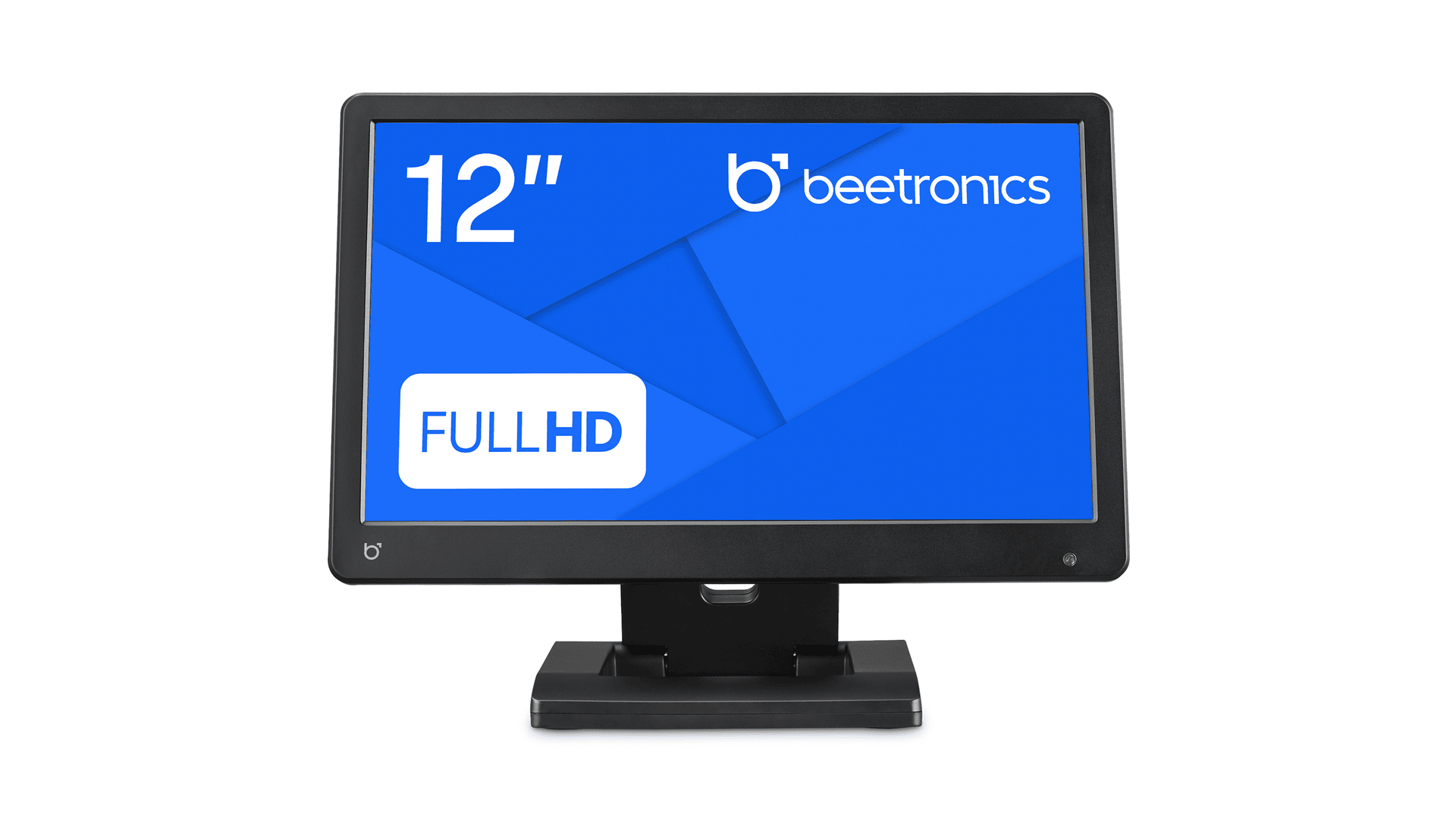

12 inch monitor
