The PSU1-LOCK-MAR-US is intended for use with Beetronics displays that specify compatibility with this power supply in their product specifications and are deployed in marine applications requiring DNV Type Approval. The DNV Type Approval of the applicable display models was obtained based on the configuration of the displays when used in combination with this specific power supply. Final certification and system-level compliance remain the responsibility of the system integrator or end-product manufacturer.
1
/
1
·

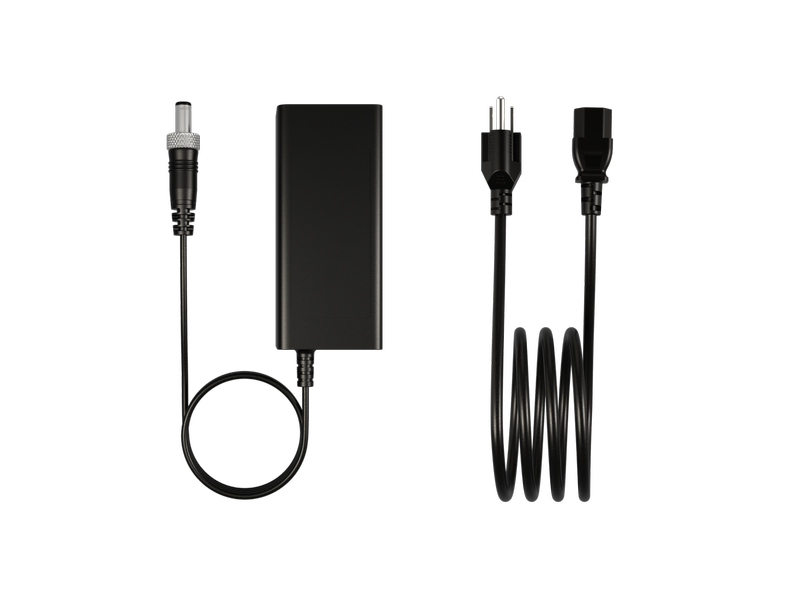

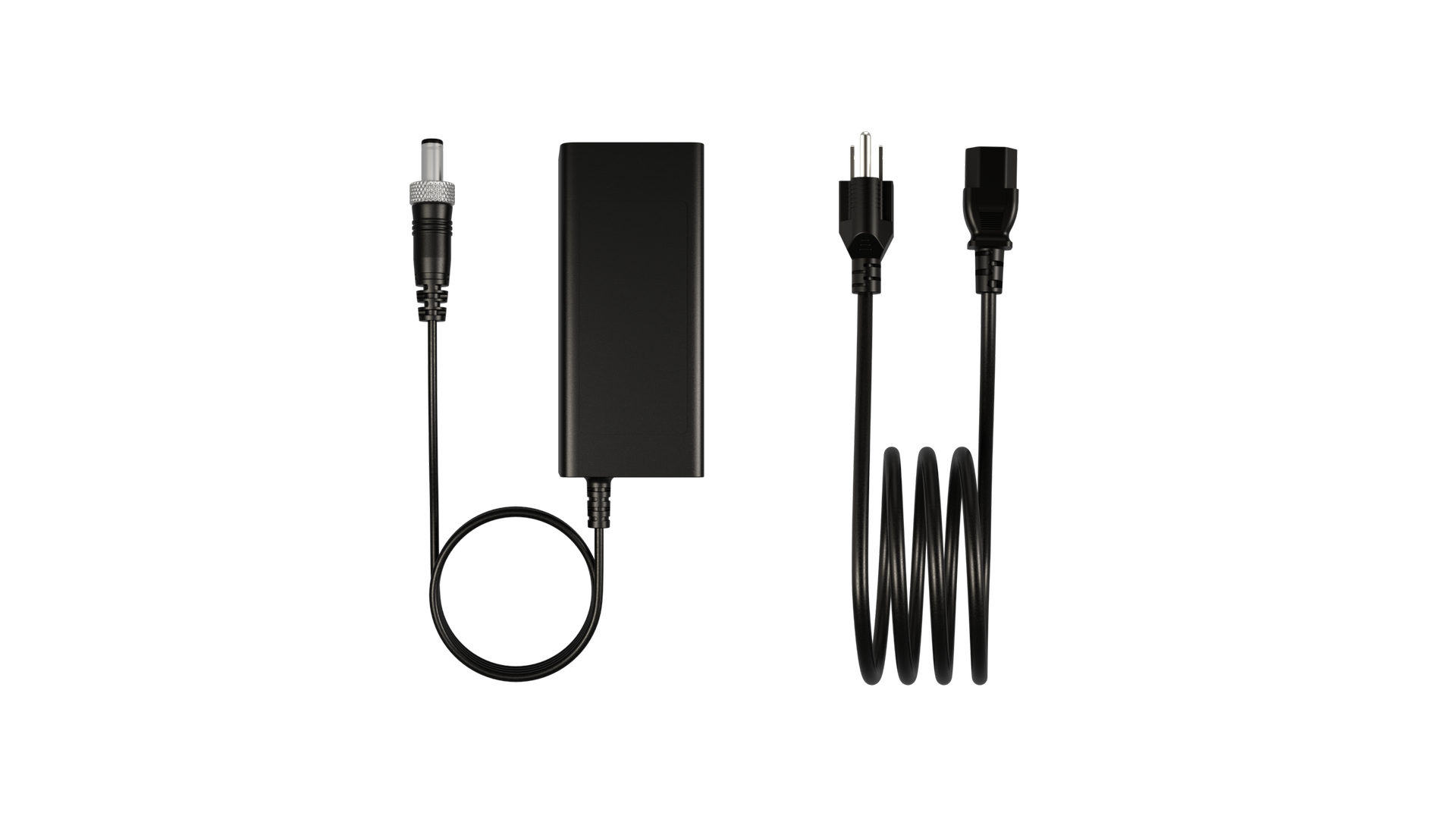

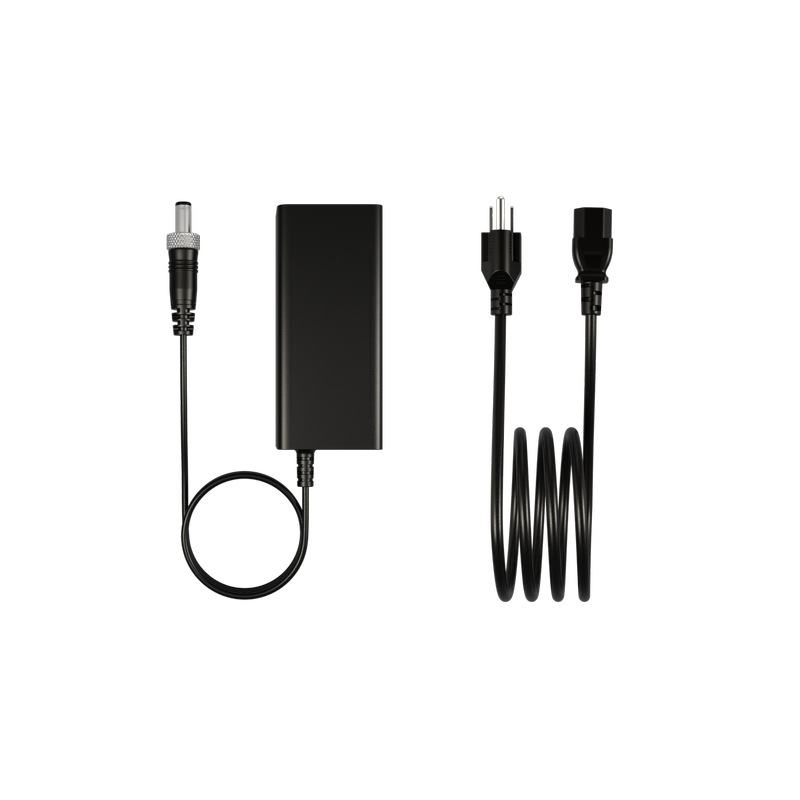

24V Power Adapter With Lock, US Plug
Product Information
- Input: 100-240V AC ~ 50/60Hz, 1.5A Max
- Output: 24V ⎓ 3.0A, 72W
- DC Plug Size: 5.5 mm × 2.1 mm
- Cable Length: 8.2 Feet
With a wide input voltage range of 100–240V AC (50/60Hz), the PSU1-LOCK-MAR-US is designed for use with standard North American AC power outlets. The power supply provides a regulated 24V DC output at 3.0A (72W) and features a 5.5 × 2.1 mm DC connector with a bayonet locking mechanism to ensure a secure and reliable connection. It is compatible with all HB (high-brightness) touchscreen models.
$19.00
Product Description
Specifications
General
- Manufacturer
- Beetronics
- Product Name
- 24V Power Adapter With Lock, US Plug
- Item Number
- PSU1-LOCK-MAR-US
- Warranty
- 2 Years
- Datasheet
- Download PDF
Mechanical
- Weight
- 0.7 lbs
- Color
- Black
- Cable length
- 8.2 Feet (AC: 3.3 Feet / DC: 4.9 Feet)
- Technical Drawing (2D)
- Download PDF
- Technical Drawing (3D)
- Download CAD/STP
Power
- Inner diameter
- 2.1 mm
- Outer diameter
- 5.5 mm
- Connector type
- US
- Voltage
- 24 Volt
- Amperage
- 2.5 Ampere
- Polarity
- - outside / + inside
Package Content
- Includes
- Power Supply
Compatibility
- Compatible with
- 10HB9M/U1, 12HB9M/U1, 15HB9M/U1, 17HB9M/U1, 19HB9M/U1, 22HB9M/U1, 24HB9M/U1, 27HB9M/U1
