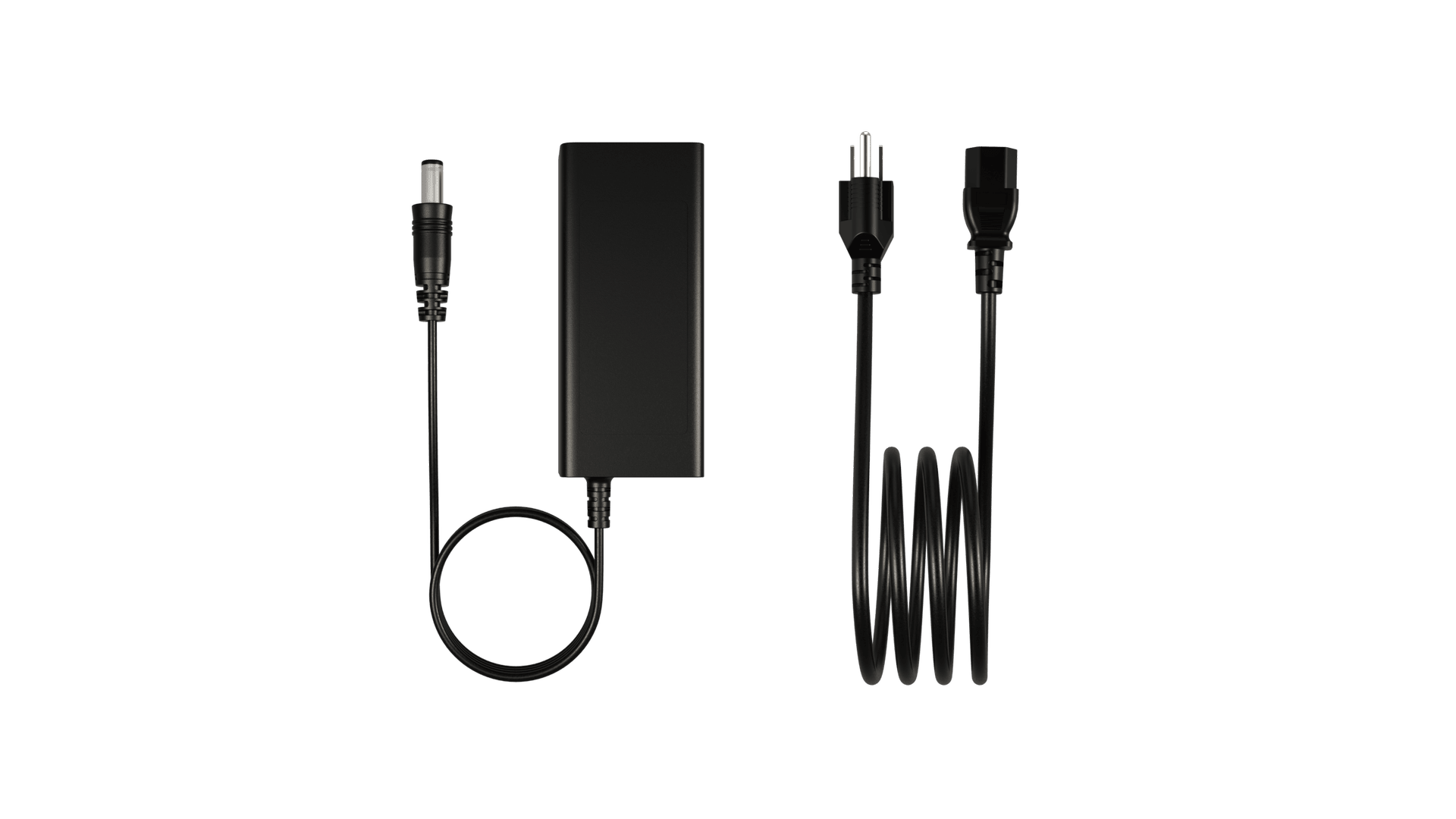

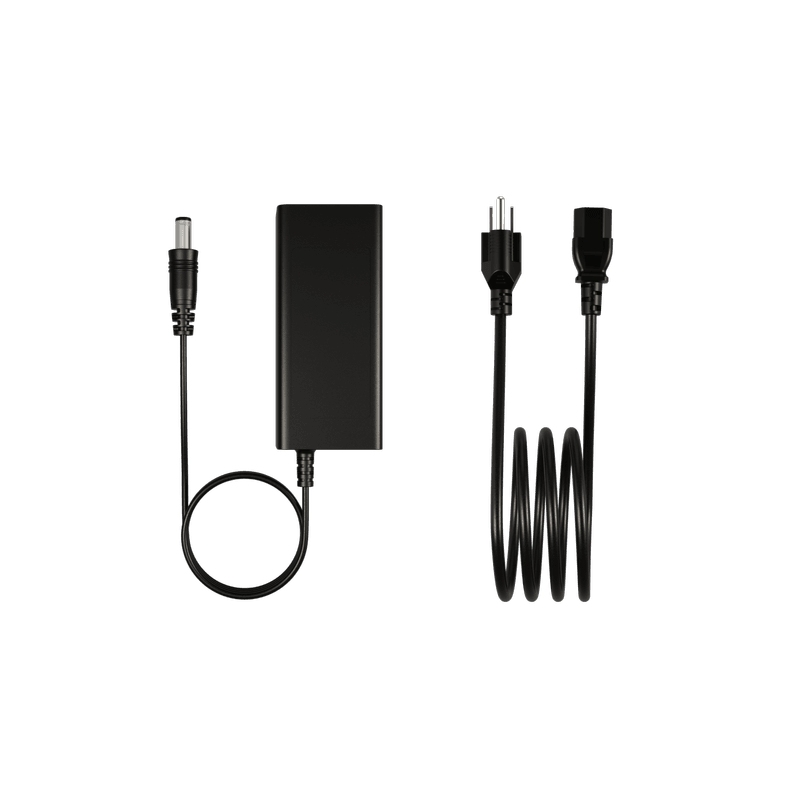

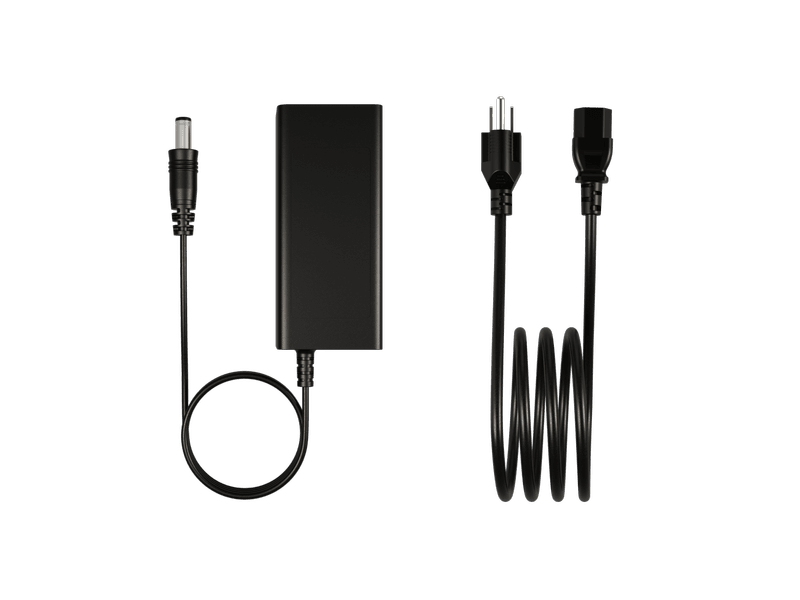

19V External Power Adapter
Product Information
- Input: 100-240V AC ~ 50/60Hz, 1.5A Max
- Output: 19V ⎓ 2.5A, 47.5W
- DC Plug Size: 5.5 mm
- Cable Length: 8.2 Feet
The PSU1-US is a reliable external power adapter designed for professional applications and continuous use. This adapter accepts a wide input range of 100-240V AC at 50/60Hz and is equipped with a 2-pin US plug, making it suitable for any standard US wall socket.
With a cable length of 8.2 feet, the PSU1-US delivers a stable output of 19V ⎓ 2.5A (47.5W) via a 5.5 mm DC plug. This power supply is compatible with all Beetronics monitors and touchscreens, with the exception of the high-brightness models.
$19.00
Long-Term Availability Consistently available for years to come.
Free Shipping & Returns No shipping costs and free 30-day returns.
5.000+ Reviews, Rated 4.8/5 Trusted by industry leaders worldwide.
Specifications
General
- Manufacturer
- Beetronics
- Item Number
- PSU1-US
- Product Name
- 19V External Power Adapter
- Warranty
- 2 Years
- Datasheet
- Download PDF
Size & Weight
- Color
- Black
- Weight
- 0.7 lbs
- Technical Drawing (2D)
- Download PDF
- Technical Drawing (3D)
- Download CAD/STP
- Cable length
- 8.2 Feet (AC: 3.3 Feet / DC: 4.9 Feet)
Power
- Inner diameter
- 0.1 Inches
- Outer diameter
- 0.2 Inches
- Connector type
- US
- Voltage
- 19 Volt
- Amperage
- 2.5 Ampere
- Polarity
- - outside / + inside
Compliance
- Standards & Certifications
- CE, FCC, RoHS, REACH, WEEE, UKCA
Package Content
- Includes
- Power Supply
Compatibility
- Compatible with
- 7HD7M, 8VG7M, 8HD7M, 9HD7M, 10HD7, 10VG7M, 10HD7M, 12HD7, 12VG7M, 12HD7M, 12SDI7M, 13HD7, 13HD7M, 15HD7, 15VG7M, 15HD7M, 15SDI7M, 17HD7M, 17VG7M, 19VG7M, 19HD7M, 22HD7M, 22SDI7M, 24HD7M, 27HD7M, 32HD7M, 7TS7M, 8TSV7M, 10TS7, 10TSV7M, 10TS7M, 12TS7, 12TSV7M, 12TS7M, 13TS7, 13TS7M, 15TS7, 15TSV7M, 15TS7M, 17TSV7M, 17TS7M, 19TSV7M, 19TS7M, 22TS7M, 24TS7M, 27TS7M, 32TS7M
Downloads
Download Technical Documentation
