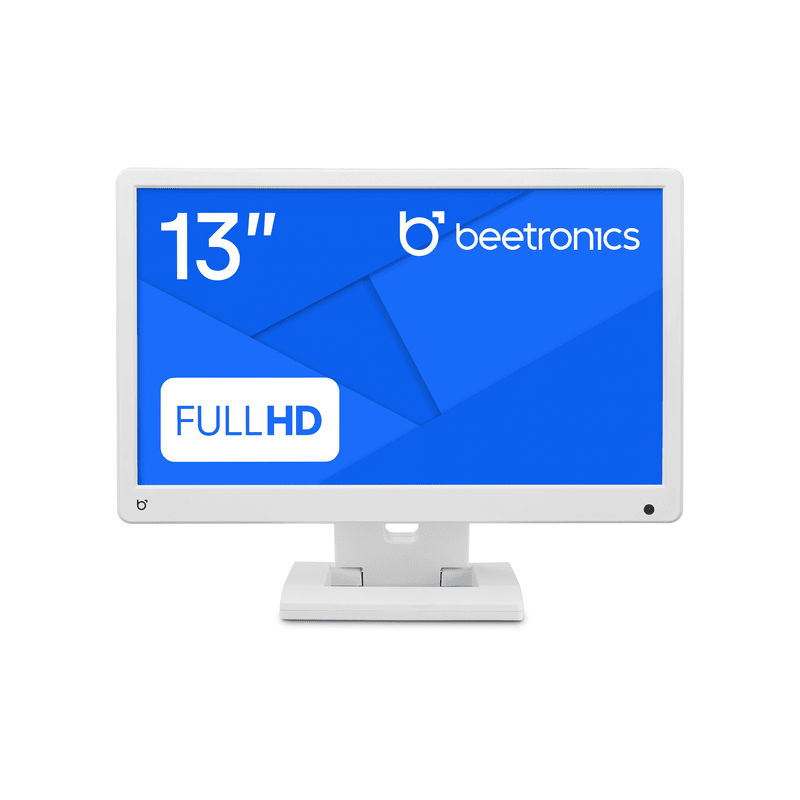

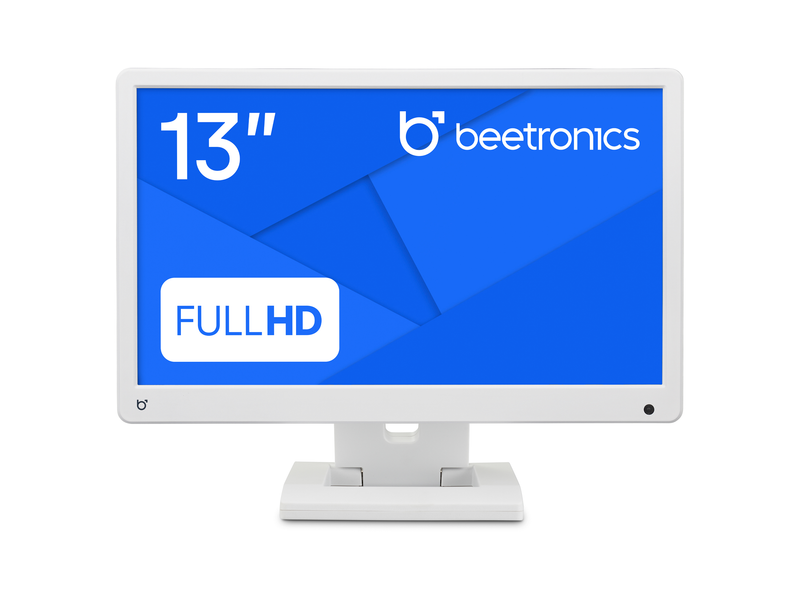

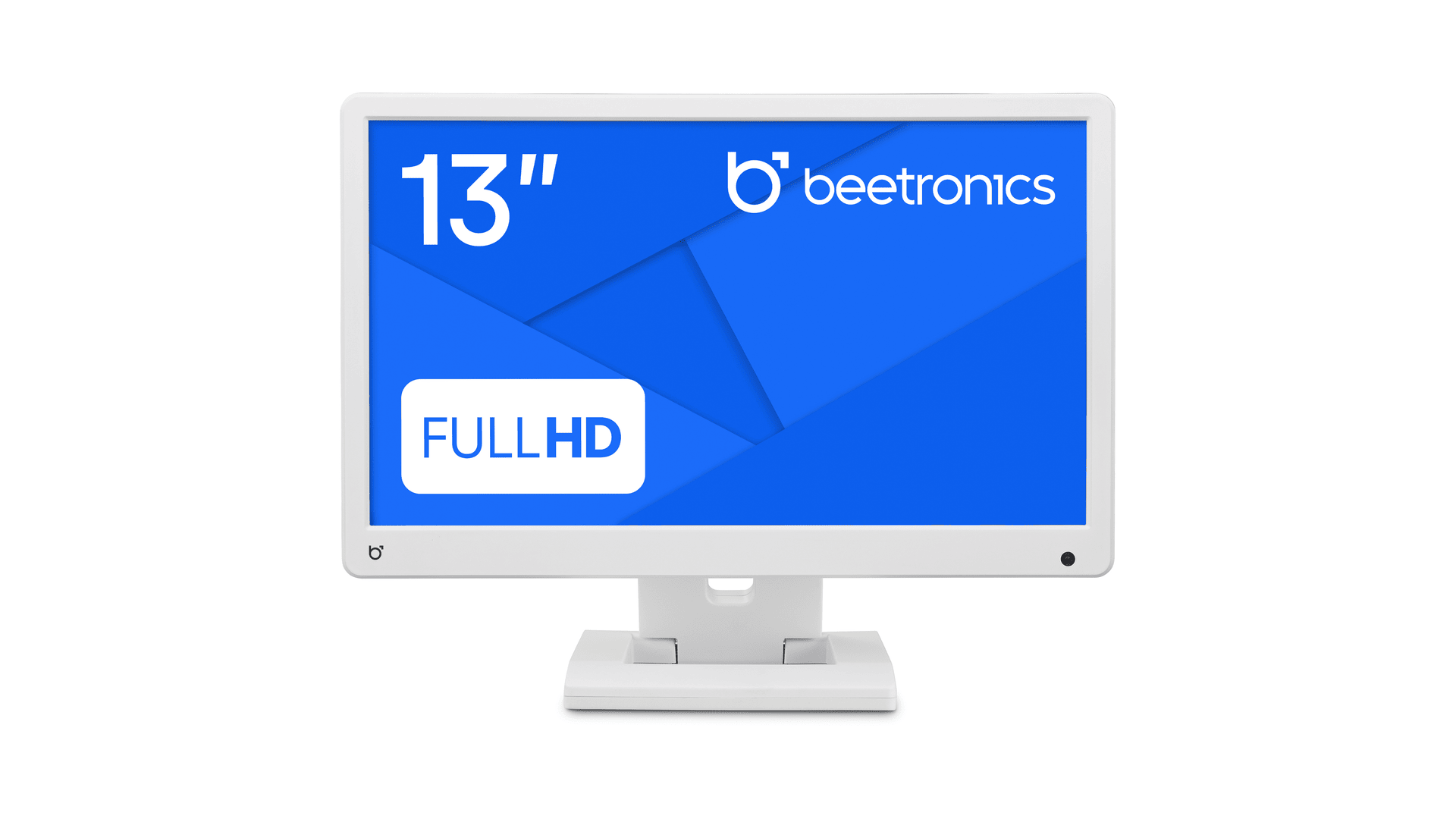

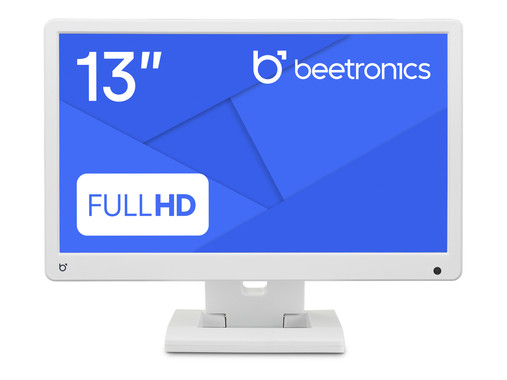

This, white, 13 inch monitor delivers best-in-class picture quality. The monitor has a LED-IPS panel, producing crystal-clear images with an excellent 178° viewing angle. The 13HD5W can be connected via HDMI, VGA, BNC or RCA connection, and is suitable for desktop and wall mounting.
Fitted with a native, Full HD, IPS panel, the monitor delivers outstanding image quality, vibrant colors and excellent 178° viewing angle. The matte screen ensures that glare is kept to a minimum, while contrast, color and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

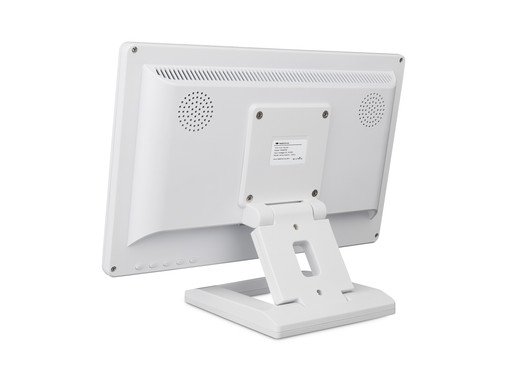

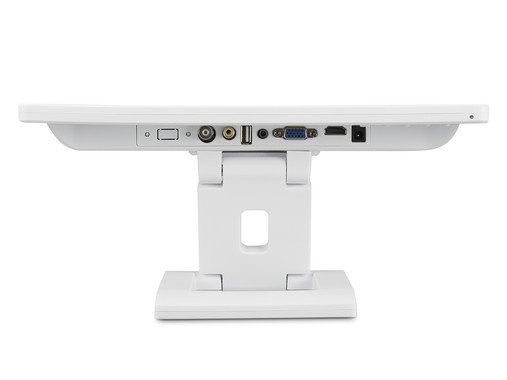

The 13 inch monitor has HDMI, VGA, BNC and RCA connections. The connections are located on the back of the monitor and are facing downwards, making it easy to install in all situations. The monitor can be setup to switch on automatically when it detects a current and/or video signal.
The 13HD5W has a white housing and dimmable panel. The monitor is manufactured with high quality components, guaranteeing reliable operation. The 13HD5W is suitable for continuous operation and is ideal for professional use.

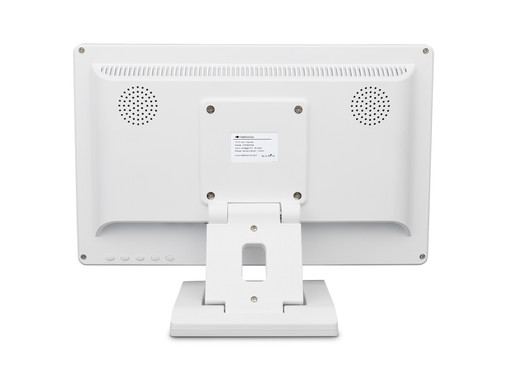

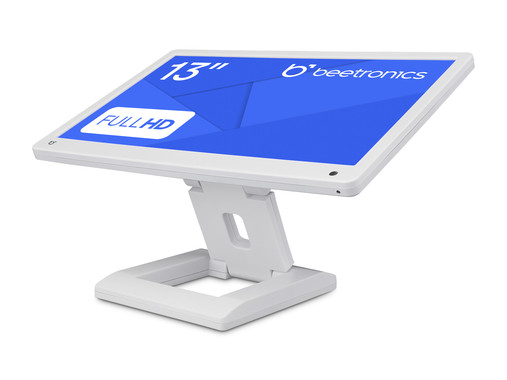

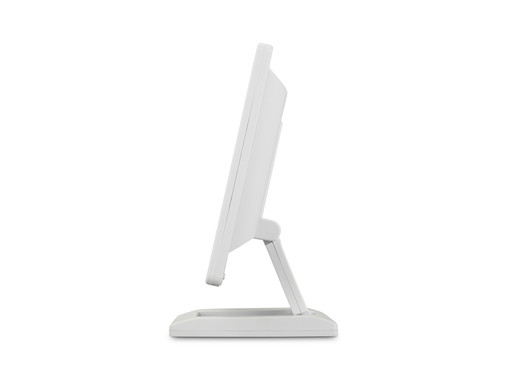

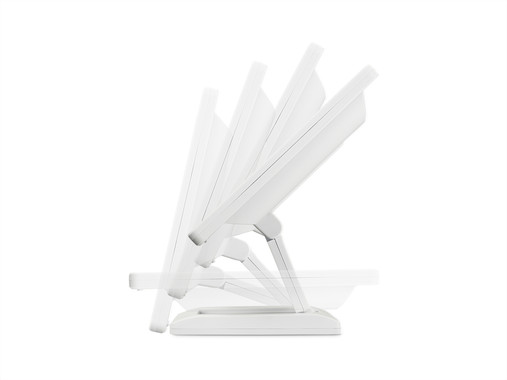

The Beetronics 13HD5W has a fully collapsible stand. The stand can easily be removed if desired, for easy access to the 75mm VESA mount. The VESA mount allows the monitor to be attached to a universal wall bracket.
General | |
---|---|
Manufacturer |
Beetronics
|
Item number |
13HD5W
|
Product name |
13 inch monitor (white)
|
Warranty |
2 years
|
Datasheet | |
Manual |
Panel | |
---|---|
Type |
Matte, LED-IPS
|
Diagonal size |
13.3 inches (338 mm)
|
Aspect ratio |
16:9 (4:3 adjustable)
|
Native resolution |
1920 x 1080
|
Supported resolutions |
1920 x 1080 (max), 640 x 480 (min)
|
Pixels per inch |
165 PPI
|
Viewing angle |
178° horizontal, 178° vertical
|
Color encoding system |
PAL/NTSC/SECAM
|
Brightness |
400 cd/m2
|
Contrast |
1000:1
|
Connectivity | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
AUX output |
1x
|
USB |
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
|
Size & weight | |
---|---|
Colour |
White
|
Weight |
1,3 lbs (2,2 lbs with stand)
|
Width |
12.5 inches
|
Height |
7.9 inches (+0 to 1.5 inches with stand)
|
Thickness |
1.3 inches
|
Display dimensions |
12 x 7.4 inches
|
Technical drawing |
Features and functions | |
---|---|
Audio |
Integrated speakers
|
Key-lock |
The control buttons can be blocked
|
Auto-on |
Automatically powers on when it receives current or a signal
|
Dimmable |
Adjustable backlight brightness
|
Mirroring |
Image can be mirrored, horizontally and vertically
|
Power | |
---|---|
Input voltage |
DC 9-28V
|
Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Consumption |
7.5 Watt
|
Environmental | |
---|---|
Operating temperature |
-4°F to +140°F
|
Storage temperature |
-4°F to +158°F
|
Operating humidity |
20% - 90% non-condensing
|
Mounting | |
---|---|
Wall mount |
VESA (75 mm)
|
Flush mount |
Possible, no accessories available
|
Stand |
Adjustable and detachable
|
Certifications & Standards | |
---|---|
Certifications |
CE, FCC, RoHS, REACH, UKCA
|
Package content | |
---|---|

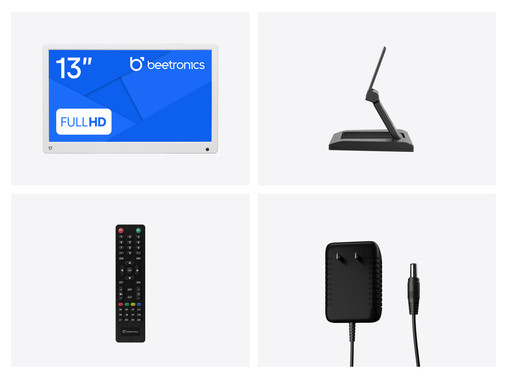

Includes |
Monitor, Manual, Remote control, AC power adapter, Stand
|
Manual | Download PDF |
Technical drawing | Download PDF |
Datasheet | Download PDF |
